Hotpoint RGA720PKWH - R 20 Inch Gas Range Manuel

RGA720PK – Hotpoint 20" Free-Standing Gas Range

Dimensions (in inches) Installation Information (in inches)

Electrical Rating: 120V, 60Hz, 5A

Installation Information: Before

installing, consult installation

instructions packed with product

for current dimensional data.

Note: LP conversion kit is required for

this model.

20-3/8"

2-1/2"

30"

36"

12"

14"

1/4"

13"

Max.

18" Min.

30" Min.

Electrical

Connection

Area

NOTE: Recommended gas

hook-up locations behind

range. Gas fittings and

shut-off cock should NOT

protrude more than 2" from

the wall to allow the range

to fit against the wall.

Minimum

distance to

walls above

the cooktop

on each side

Gas

Hookup

Area

40-1/2

CERTIFIED

Specification Revised 11/06

430212

All GE ranges are equipped with

an Anti-Tip device. The installation

of this device is an important,

required step in the installation

of the range.

Specification Revised 11/06

430212

RGA720PK – Hotpoint 20" Free-Standing Gas Range

Features and Benefits

• All Purpose Burners - Deliver a wide range of heat output ideal for most

cooking requirements

• Porcelain Oven Door - Offers a scratch-resistant porcelain coating for easy cleaning

• Lift-Up Cooktop - Cooktop lifts up for easy access to porcelain-enameled subtop

• Continuous Grates - Provide a flat, sturdy surface allowing easy movement of pans

between burners

• Two Oven Racks - Feature a durable construction to help accommodate any size or

type of cookware

• Four Embossed Rack Positions - Increase cooking flexibility and maximize oven capacity

• Broiler Drawer - Supplies a concentrated heat for crisping and browning

• Broiler Pan With Grid - Convenient broiler pan can be used when broiling for crisping

and browning

• Model RGA720PKWH – White

RGA720EKPK

OFF

LeftFront

OFF

LeftRear

OFF

RightRear

OFF

RightFront

OVENTEMP

Lite

Importatnt:

Ovenpilotlighting

instructionslocated

insideovenon

topovenlabel.

Lite

Ce manuel convient aux modèles suivants

Autres manuels Hotpoint Gamme

Hotpoint

Hotpoint HDT67V9H2CB/UK Manuel utilisateur

Hotpoint

Hotpoint CP97SEA/HA Manuel utilisateur

Hotpoint

Hotpoint RB734J Manuel utilisateur

Hotpoint

Hotpoint RB761G Instructions d'installation

Hotpoint

Hotpoint EG94X Manuel utilisateur

Hotpoint

Hotpoint RGA720EK Manuel de service

Hotpoint

Hotpoint RB526CWW Instructions d'utilisation

Hotpoint

Hotpoint RGB744 Guide d'installation

Hotpoint

Hotpoint H64IL9PAA S SK Manuel utilisateur

Hotpoint

Hotpoint RGA820 Instructions originales

Hotpoint

Hotpoint RB792SRSA Instructions d'utilisation

Hotpoint

Hotpoint RB787WC Manuel de service

Hotpoint

Hotpoint RGB540SEHSA Manuel utilisateur

Hotpoint

Hotpoint RGB518PCH Manuel de service

Hotpoint

Hotpoint RGB744GEJ Instructions d'installation

Hotpoint

Hotpoint RB790DPWW Manuel utilisateur

Hotpoint

Hotpoint HDM67G0CCX/UK Manuel utilisateur

Hotpoint

Hotpoint RGB790SERSA Guide de l'utilisateur

Hotpoint

Hotpoint RGB747GER Guide d'installation

Hotpoint

Hotpoint FT 820.1 /HA S Manuel utilisateur

Hotpoint

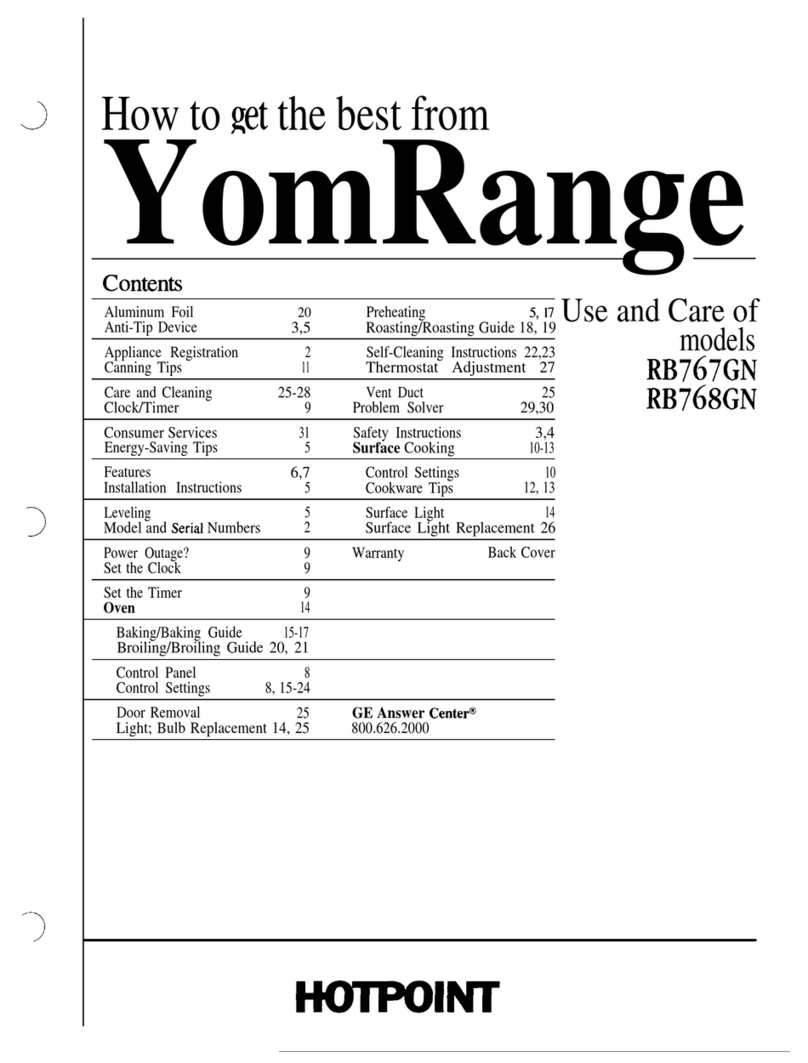

Hotpoint RB768GN Instructions d'installation

Hotpoint

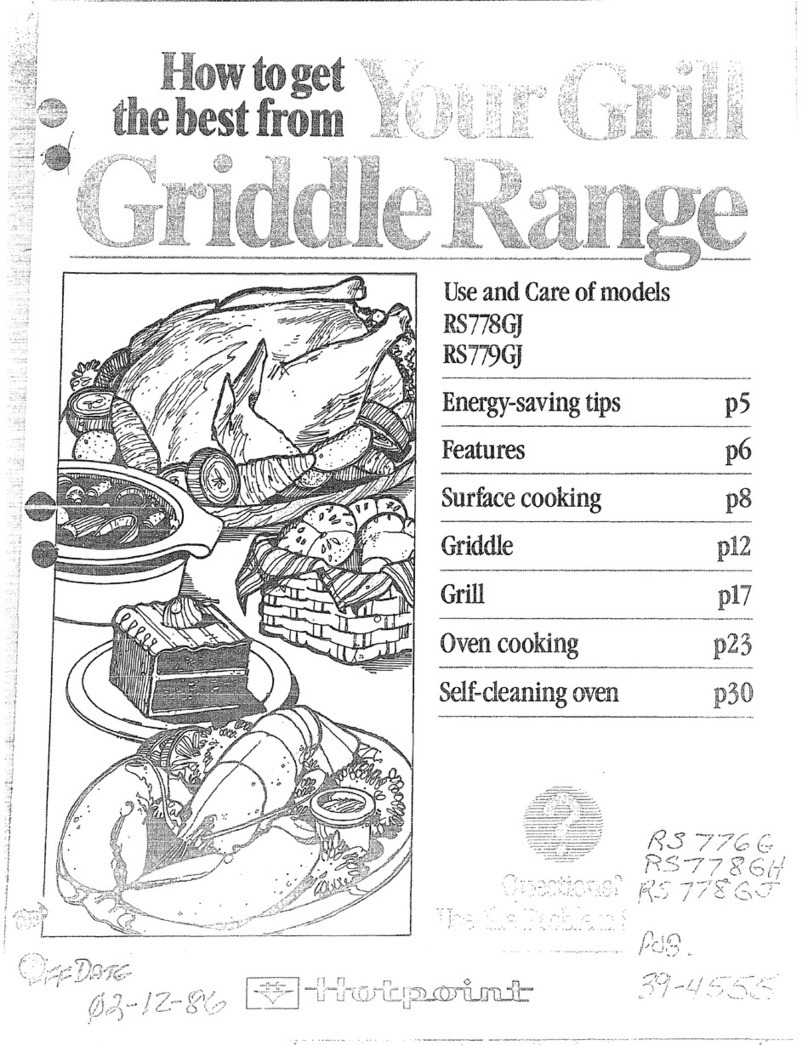

Hotpoint RS778GJ Instructions d'installation
