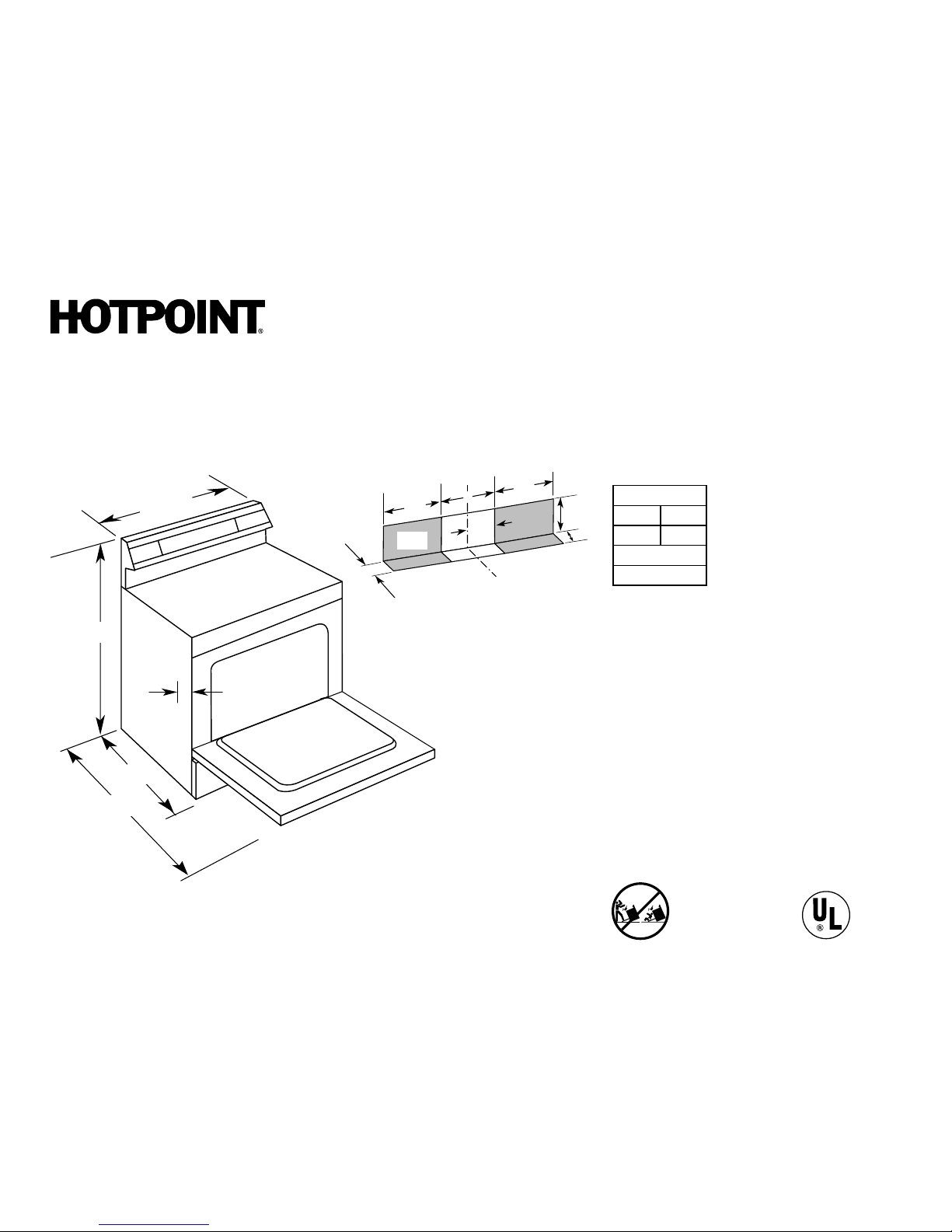

Dimensions (in inches)

Listed by

Underwriters

Laboratories

†Note: Check local codes for required breaker size.

Effective January 1, 1996, the National Electrical Code requires

that new construction (not existing) utilize a 4-conductor

connection to an electric range.

Note: 30" Electric Ranges conform to U.L. requirements for

0" spacing from walls below countertops. Allow 1-1/2" spacing

from the side of the range to adjacent vertical walls above the

cooktop surface.

Receptacle Locations: Locally approved flexible service cord

or conduit must be used because terminals are not accessible

after range installation. See shaded area in drawing for location

of electrical outlet box. Recommended outlet locations allow

range to be installed directly against rear wall.

Installation Information: Before installing, consult installation

instructions packed with product for current dimensional data.

*Dimension from wall to front of closed oven door.

Dimension from wall to the front of closed oven

door handle is 28-1/2".

†The range may be placed with

0" clearance (flush) at the back

wall and side walls if the range

side trims extend beyond the

cabinet fronts at least 1/4".

Self-Clean models only

Amp Rating

240V 11.7

208V 8.8

Breaker Size

40 Amps†

All Hotpoint ranges are equipped

with an Anti-Tip device. The

installation of this device is an

important, required step in the

installation of the range.



26-3/8*

46-3/8

1/4†

29-7/8

46-1/2

CENTER LINE

2-1/4

7-1/2

2-1/4

3-1/2

REAR

WALL

RB758DP– Hotpoint 30" Free-Standing Electric Range

26-3/8*

46-3/8

29-7/8

46-1/8

1/4†

CENTER LINE

2-1/4

7-1/2

2-1/4

3-1/2

REAR

WALL

* Dimension from wall to front of closed ovendoor.

Dimension from wall to the front of closed oven is 28-1/2"

The range may be placed with 0" clearance

(flush) at the back wall and side walls if the

range side trims extend beyond the cabinet

fronts at least 1/4". Self-clean models only.

†

Specification Revised 4/09

420410

Features and Benefits

• Self-Clean Oven - Conveniently cleans the oven cavity without the need for scrubbing

• Super-Large Oven Capacity - Provides an impressively large oven interior for cooking

more dishes and large meals at one time

• Coil Heating Elements - Provides consistent and even heat on the cooktop with

a plug-in element that is removable for easy cleaning

• Electronic Oven Controls - One-touch electronic pads are easy-to-use and allow for

simple oven operation

• Standard Window - Provides a convenient viewing area to check the progress of food

• Frameless Glass Oven Door - Offers an easy-to-clean and stylish design that blends

seamlessly into existing cabinetry

• Porcelain Upswept Cooktop - Features raised edges to help contain spills and make

clean-up easy

• Model RB758DPWW – White

• Model RB758DPBB – Black

• Model RB758DPCC – Bisque

RB758DP– Hotpoint 30" Free-Standing Electric Range

Specification Revised 4/09

420410

RB758DPBB/CC/WW

OFF

MED

FRONT REAR

OFF

MED

REAR

BURNER

FRONT

OFF

MED
