Specification Revised 9/05

420484

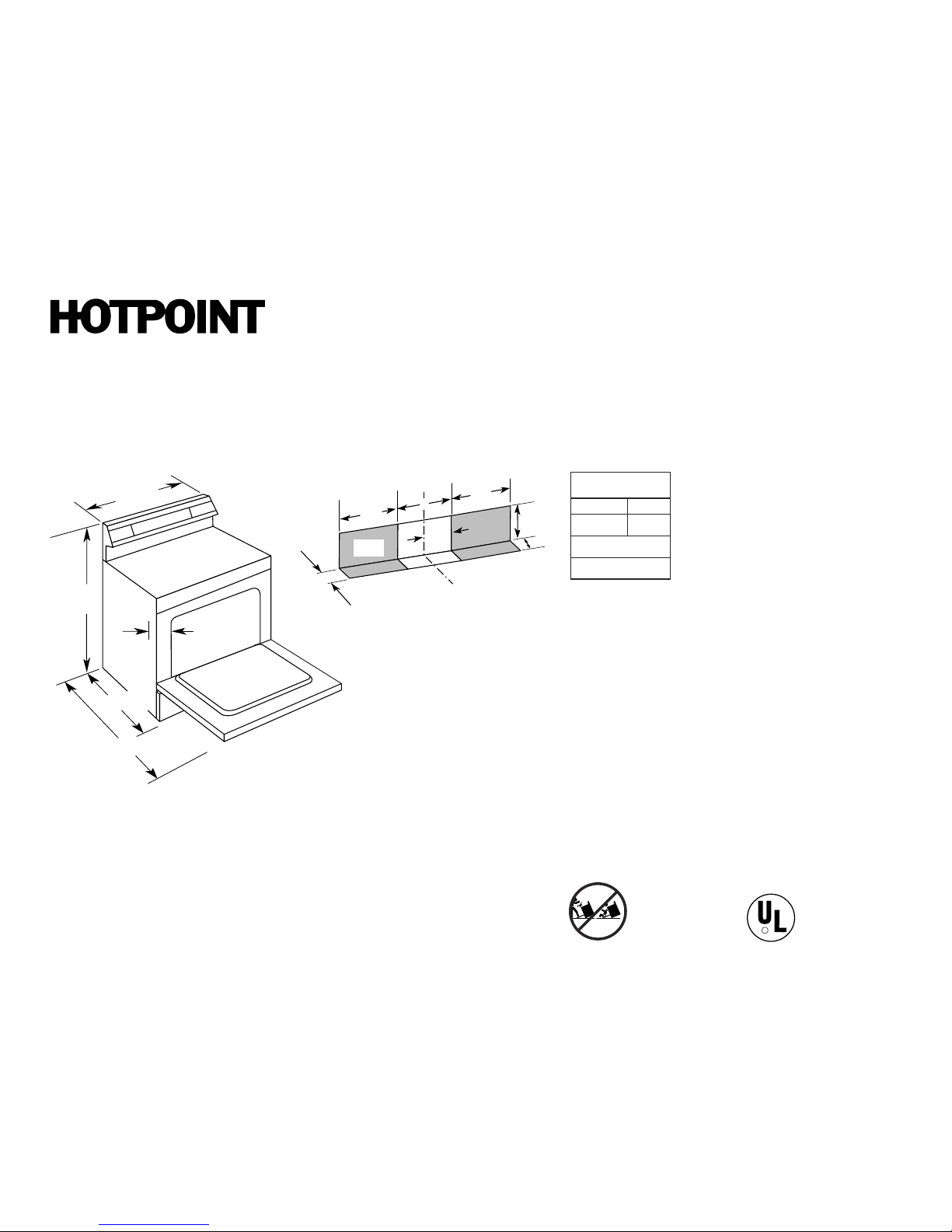

RB526HWW/HCC/KBB – Hotpoint 30" Free-Standing Electric Range

Dimensions (in inches)

Listed by

Underwriters

Laboratories

All Hotpoint ranges are equipped

with an Anti-Tip device. The

installation of this device is

an important, required step in

the installation of the range.

†Note: Check local codes for breaker size.

Note: 30" Electric Ranges conform to U.L. requirements for 0" spacing from

walls below countertops. Allow 1-1/2" spacing from the side of the range to

adjacent vertical walls above the cooktop surface.

Receptacle Locations: Locally approved flexible service cord or conduit

must be used because terminals are not accessible after range installation.

See shaded area in drawing for location of electrical outlet box. Recommended

outlet locations allow range to be installed directly against rear wall.

Installation Information: Before installing, consult installation instructions

packed with product for current dimensional data.

KW Rating

240V 11.0

208V 8.7

Breaker Size

40 Amps†

26-3/8*

46-3/8

1/4†

29-7/8

46-1/2

CENTER LINE

2-1/4

7-1/2

2-1/4

3-1/2

REAR

WALL

25-7/16

46-1/8

1/4†

29-7/8

45-1/8

CENTER LINE

2-1/4

7-1/2

2-1/4

3-1/2

REAR

WALL

* Dimension from wall to front of closed oven door.

Dimension from wall to the front of closed oven

door handle is 28-3/8".

†The range may be placed with

0" clearance (flush) at the back

wall and side walls if the range side

trims extend beyond the

cabinet fronts at least 1/4".

Self-Clean models only

Specification Revised 9/05

420484

RB526HWW/HCC/KBB – Hotpoint 30" Free-Standing Electric Range

Features and Benefits

• Super-Large Oven Capacity – Provides an impressively large oven interior for cooking more

dishes and large meals at one time.

• Coil Heating Elements – Provide consistent and even heat on the cooktop with a plug-in ele-

ment that is removable for easy cleaning.

• Electronic Clock and Timer – Features a convenient digital clock and easy-to-use timer with

an audible signal to help coordinate cooking times in the kitchen.

• Standard Window – Provides a convenient viewing area to check the progress of food.

• Porcelain Upswept Cooktop – Features raised edges to help contain spills and make

clean-up easy.

• Chrome Drip Bowls – Contain minor spills and are removable for easy cleaning.

• Two Oven Racks – Feature a durable construction to help accommodate any size or

type of cookware.

• Model RB526HWW – White on white (white door and white cooktop)

• Model RB526HCC – Bisque on bisque (bisque door and bisque cooktop)

• Model RB526KBB – Black on black (black door and black cooktop)

RB526H
