Hotpoint RVM1635BK Instructions d'utilisation

®

Listed by

Underwriters

Laboratories

Dimensions (in inches)

Important Information: When installing the microwave oven over a range, allow

minimum of 2" from bottom of Counter Saver Plus microwave oven to top of range

backguard to allow for removal of light covers.

Installation Information: This information is not intended to be used for installing

unit described. Before installing, consult installation instructions packed with product/

kit for current dimensional data.

Ventilation Options: The microwave oven is designed for adaptation for the

following three types of ventilation:

Outside Exhaust (Vertical – Delivered from factory in vertical position)

Outside Exhaust (Horizontal)

Recirculating (Non-vented ductless)

JX81J –

Recirculating

Charcoal Filter Kit

To be used when the

Counter Saver Plus

microwave oven

cannot be vented to

the outside.



Optional Accessories (Available at additional cost)

rvm1625 1435 Dimensions (in inches)

66" MIN.

Mounting

height

from floor

30" MIN.

width required Exhaust outlet

connects to

3-1/4" X 10" duct

16-1/2

21-3/4

Door open

15-9/16

13"

MAX.

15-3/4

RVM1635BK/WK/SK – Hotpoint® 1.6 Cu. Ft. Over-the-Range Microwave Oven

Specification Created 7/05

440027

®

Features and Benefits

• 1.6 cu. ft. capacity - 1000 Watts (IEC-705 test procedure)

• Turntable - Continually rotates food to ensure even cooking

• Instant On Controls - Allow quick, one-touch cooking and reheating

• Auto and Time Defrost - Automatically defrosts for a specified amount of time

• Time Cook I & II - Makes it possible to enter two cooking times, so users can stop the

microwave to stir or rotate foods without reprogramming

• Express Cook pads - A shortcut to set cook times from 1 to 6 minutes

• Two-Speed, 200-CFM Venting System - Quickly removes smoke and steam from cooktop

• Full-View Cooktop Lighting - Illuminates the cooking surface below

• Child lock out - Enables you to lock the keypad to prevent the oven from being accidentally

started

• Easy-mount installation - Easily mounts below cabinetry, freeing up valuable counter space

• Model RVM1635SK – Silver Metallic

• Model RVM1635WK – White

• Model RVM1635BK – Black

minute cook 1-6

Start

Surface

Light

Vent

Fan

Pause

Clear

Off

on/off

display on/off

1 3

4 6

87 9

Time

Cook

Auto

Defrost

Time

Defrost

Delay

Start

Power

Level

Add 30

sec.

Beverage Popcorn Ti mer

ClockReheat

on/offon/off

RVM1635SK

Specification Created 7/05

440027

RVM1635BK/WK/SK – Hotpoint® 1.6 Cu. Ft. Over-the-Range Microwave Oven

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hotpoint Four à micro-ondes

Hotpoint

Hotpoint RE50C Fiche technique

Hotpoint

Hotpoint RE926 Guide produit

Hotpoint

Hotpoint MWH434AX Manuel utilisateur

Hotpoint

Hotpoint RE964 Fiche technique

Hotpoint

Hotpoint Countersaver RVM60 Instructions d'installation

Hotpoint

Hotpoint RVM1435 Manuel utilisateur

Hotpoint

Hotpoint RH966G Manuel utilisateur

Hotpoint

Hotpoint MWH2622) Manuel utilisateur

Hotpoint

Hotpoint REM30F Instructions d'installation

Hotpoint

Hotpoint RVM1535DMBB - R 1.5 cu. Ft. Microwave OVEN7 Manuel utilisateur

Hotpoint

Hotpoint JES636 Manuel utilisateur

Hotpoint

Hotpoint MWH 2824 Manuel utilisateur

Hotpoint

Hotpoint RVM1435BK01 Guide de démarrage rapide

Hotpoint

Hotpoint 6675 Guide produit

Hotpoint

Hotpoint RVM1325WW Manuel de service

Hotpoint

Hotpoint Counter Saver RVM120J Instructions d'installation

Hotpoint

Hotpoint REM25 Manuel utilisateur

Hotpoint

Hotpoint RVM122J Fiche technique

Hotpoint

Hotpoint JES636 Manuel utilisateur

Hotpoint

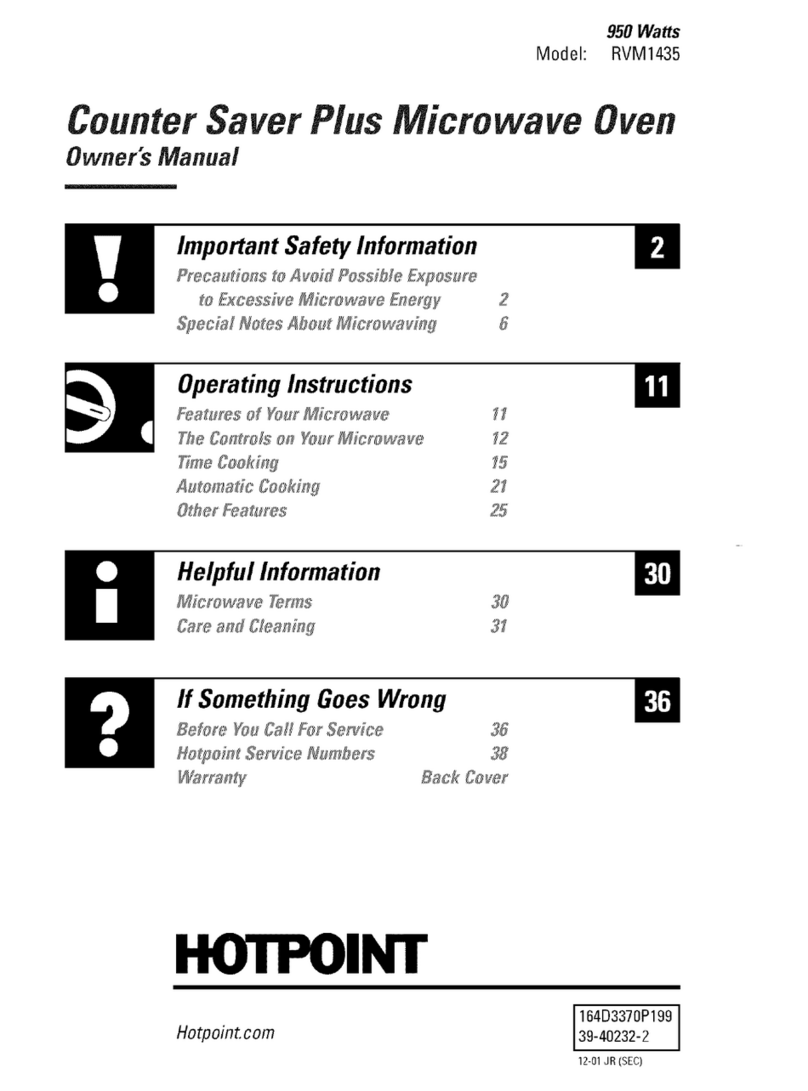

Hotpoint RVM1435 Manuel utilisateur
