EN Operating Instructions

hotpoint.co.uk

SETTING UP YOUR OVEN

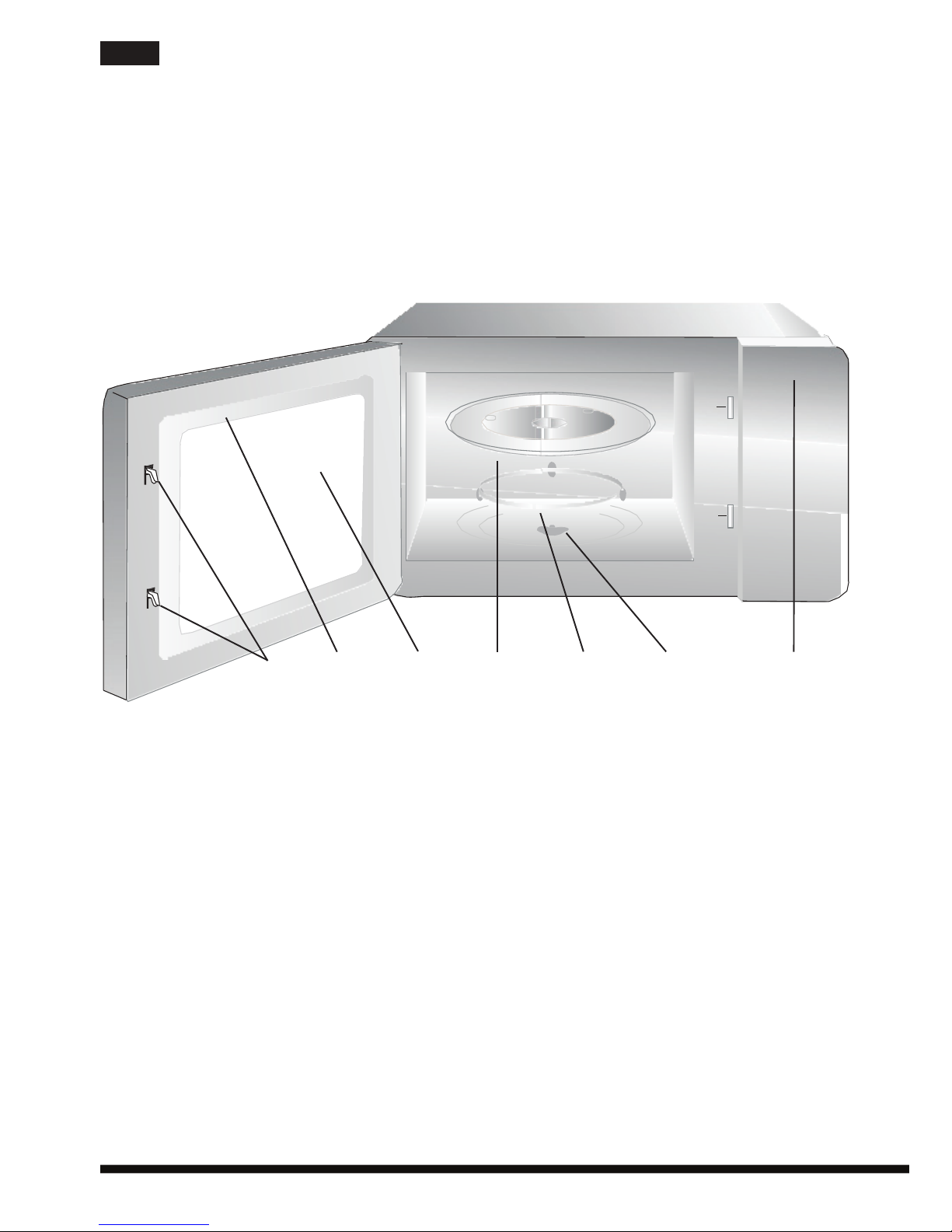

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

INTRODUCTION

Please read these instructions carefully before using this product, and save this manual for future use.

Failure to follow these instructions could affect the life of the appliance and reduce oven performance.

READ THESE INSTRUCTIONS CAREFULLY

AFG E D C B

A) Control panel

B) Turntable spindle

C) Turntable ring support

D) Glass turntable

E) See-through oven window

F) Door assembly

G) Door safety interlock system

hotpoint.co.uk

A) Microwave

B) Timer

C) Stop/Clear

D) Weight Defrost

min

85cm

20cm

30cm

20cm

0cm

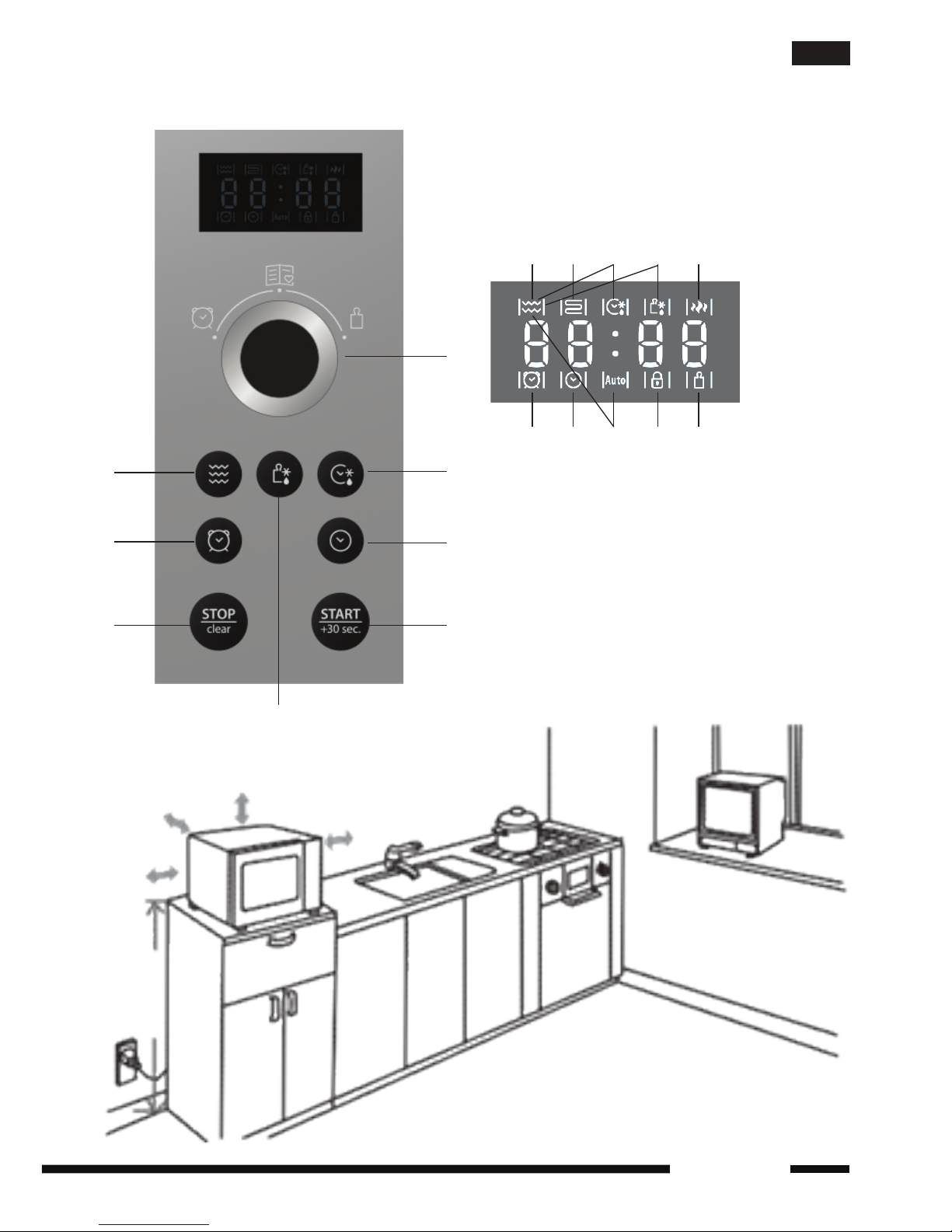

USER INTERFACE

E) Time Defrost

F) Clock

G) Start/+30Sec/Conrm

H) Control dial (knob)

1) Microwave cooking

2) Grill cooking

1) + 2) Combination cooking

1) + 3) Defrost by time

1) + 4) Defrost by weight

5) Power

6) Timer

7) Clock

1) + 8) Automatic function

9) Child Lock

10) Weight

1+3

1+8

1+4

hotpoint.co.uk

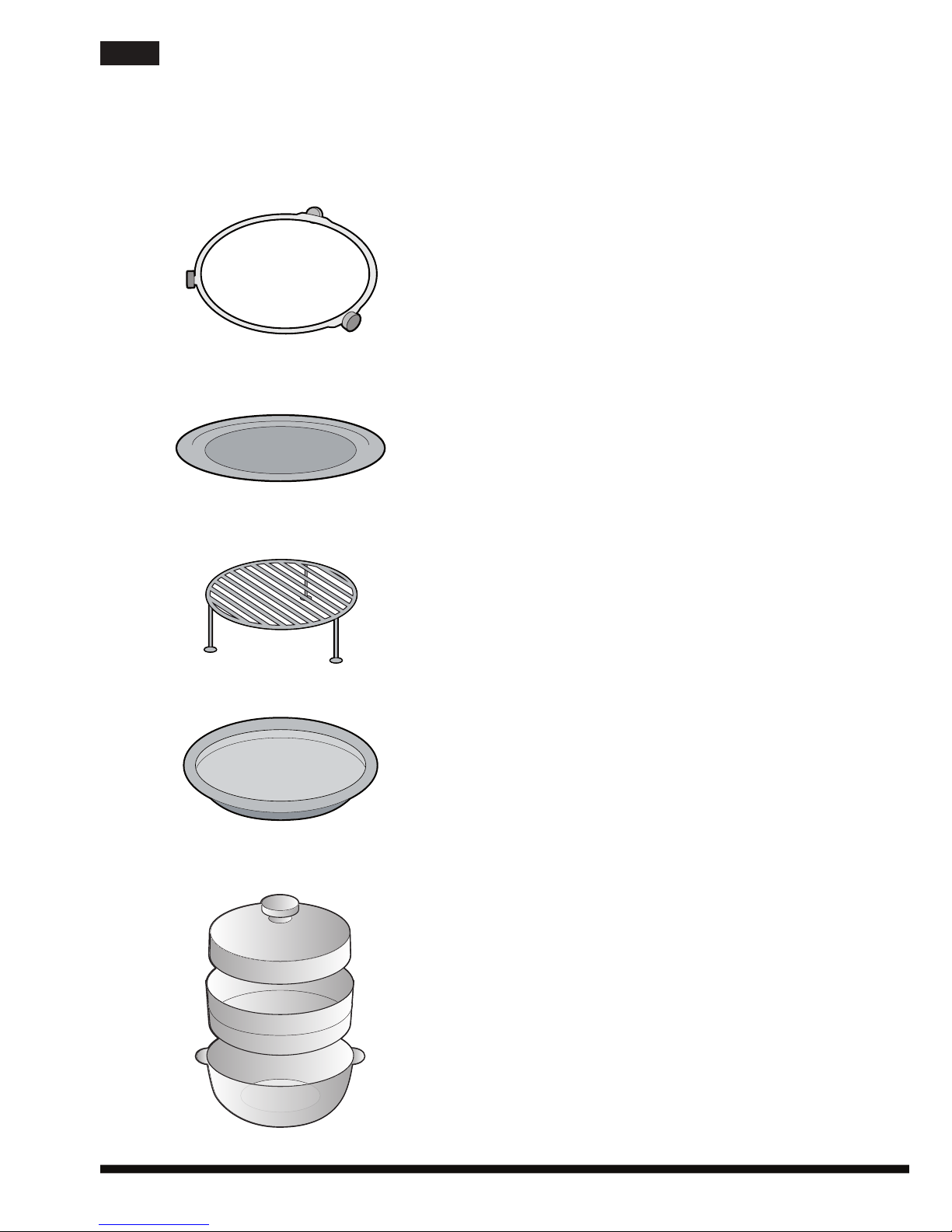

ACCESSORIES

SOME ACCESSORIES ARE AVAILABLE ONLY WITH CERTAIN MODELS

TURNTABLE RING SUPPORT

Fit it in the oven. Always put the turntable ring

support under the glass turntable. The support is

intended for the glass turntable only.

GLASS TURNTABLE

Put the glass turntable on the turntable support. It

will collect dripping substances during the cooking

process.

WIRE RACK

Place your plate on the rack to improve the results

of grill, combination and convection functions.

Use the wire rack with the grill function only.

CRISPY PLATE

Place the food directly on the crispy plate. Do

not use other dishes or utensils on the crispy

plate. Always place the crispy plate on the glass

turntable. Use the crispy plate with microwave

and combi (microwave + grill) functions only.

For better results, preheat the Crispy plate with

microwave for 3 minutes at maximum power.

STEAMER

Always use the steamer on the glass turntable.

Fill the lower part with water to obtain steam.

The strainer is intended for foods such as sh,

potatoes and vegetables. Don’t use the strainer

for cooking foods such as pasta, rice and

legumes. Use the steamer only with microwave

function.

hotpoint.co.uk

play with the appliance. Do

not allow children under 8 ye-

ars of age to perform cleaning

and maintenance operations

without supervision.

5. Keep the appliance and po-

wer supply cord out of reach

of children under 8 years of

age.

6. Only use utensils suitable for

microwave cooking.

7. Clean the oven at regular in-

tervals and remove any food

remains.

8. Read and follow the specic:

PRECAUTIONS TO PRE-

VENT POSSIBLE OVEREX-

POSURE TO MICROWAVE

ENERGY

9. Carefully attend appliance

when paper, plastic, or other

combustible materials are

used to heat food in order to

prevent the risk of re.

10.In case of smoke emission,

switch off or unplug the ap-

pliance and keep the door

closed in order to stie any

ames.

11. Do not overcook food.

12.Do not use the oven cavity for

storage purposes. Do not sto-

re items, such as bread, coo-

kies, etc. inside the oven.

13.Remove wire twist-ties and

metal handles from paper or

IMPORTANT SAFETY

INSTRUCTIONS WARNING

1. To reduce the risk of re,

burns, electric shock, and

injury to persons or overex-

posure to microwave energy

when using this appliance,

please follow basic safety

precautions, including the fol-

lowing:

2. WARNING: Liquids or

other food must not be

heated in sealed containers

since they are liable to explo-

de.

3. WARNING: It is hazar-

dous for anyone other

than a qualied person to car-

ry out any service or repair

operation which requires the

removal of the anti-radiation

protective cover of the micro-

wave oven.

4. This appliance is not intended

for use by children older than

8 and persons with reduced

physical, sensory or mental

capabilities, or lack of expe-

rience and knowledge, unless

they have been given super-

vision or instruction concer-

ning use of the appliance so

that they are able to use the

oven in a safe way and un-

derstand the hazards of im-

proper use. Children shall not

hotpoint.co.uk

ring appliance operation. The

surfaces are likely to get hot

during use. Keep cord away

from hot surfaces, and do

not cover any oven vent ope-

nings.

21.Do not let cord hang over

edge of table or counter.

22.Failure to maintain the oven

in a clean condition could

lead to deterioration of the

surface that could adversely

affect the life of the appliance

and possibly result in a hazar-

dous situation.

23.The contents of feeding bot-

tles and baby food jars shall

be stirred or shaken and the

temperature checked befo-

re consumption, in order to

avoid burns.

24. Microwave heating of beve-

rages can result in delayed

eruptive boiling, therefore ex-

tra care must be taken when

handling the container.

25.The appliance is not intended

for use by persons (including

children) with reduced physi-

cal, sensory or mental capa-

bilities, or lack of experience

and knowledge, unless they

have been given supervision

or instruction concerning use

of the appliance by a person

responsible for their safety.

plastic containers/bags befo-

re placing them in the oven.

14.Follow the installation instruc-

tions strictly to nish installa-

tion or store the oven.

15.Do not heat eggs in the shell

and whole hard-boiled eggs

in the microwave oven as

they may explode even after

microwave heating has en-

ded.

16.This appliance is intended for

household use and similar

applications such as:

- staff kitchen areas in shops,

ofces and other working

environments;

- guest rooms in hotels,

motels and other residential

type environments;

- farm houses;

- bed and breakfast envi-

ronments.

17.In case of damage, power

supply cord must be repla-

ced by the manufacturer, any

service technician or similarly

qualied personnel in order to

prevent any hazard.

18.Do not store or use the ap-

pliance outdoors.

19.Do not use the appliance near

water, on a wet basement or

near a swimming pool.

20.The temperature of accessi-

ble surfaces may be high du-

hotpoint.co.uk

35. The microwave oven shall not

be placed in a cabinet unless

it has been tested in a cabinet.

PRECAUTIONS TO PREVENT

POSSIBLE OVEREXPOSURE

TO MICROWAVE ENERGY

1. Do not attempt to operate this

oven with the door open as

this can result in harmful ex-

posure to microwave energy.

Never tamper with or deacti-

vate the interlocking devices

on the door.

2. Do not place any object

between the oven front face

and the door or allow any

dust or cleaner deposits on

sealing surfaces.

3. WARNING: If the door or

door seals are damaged,

the oven must not be opera-

ted until it has been repaired

by a qualied service techni-

cian.

ADDENDUM

Failure to maintain the oven in

a clean condition could lead to

deterioration of the surface that

could adversely affect the life of

the appliance and possibly result

in a hazardous situation.

26.Children should be supervi-

sed to ensure that they do not

play with the appliance.

27.The appliance is not intended

to be operated by means of

an external timer or separate

remote-control system.

28.Accessible parts may beco-

me hot during use. Young

children should be kept away

from appliance.

29.Do not use Steam cleaners to

clean the oven.

30.The oven becomes hot during

use. Care should be taken to

avoid touching heating ele-

ments inside the oven.

31.Only use the temperature

probe recommended for this

oven (for ovens provided with

temperature-sensing probe

tools.)

32. WARNING: The applian-

ce and its accessible

parts become hot during use.

Care should be taken to avoid

touching heating elements.

Children under 8 years of age

shall be kept away unless

continuously supervised.

33.The microwave oven must be

operated with the decorative

door open (for ovens with a

decorative door).

34.The rear surface of appliance

shall be placed against a wall.

hotpoint.co.uk

SPECIFICATIONS

Model MWH 2321 X UK

Rated Voltage 230V~ 50Hz

Rated Input

Power(Microwave)

1250W

Rated Output

Power(Microwave)

800W

Oven Capacity 23L

Turntable Diameter 270 mm

External Dimensions: 520x341x479 mm

Net Weight Approx.13.25kg

GROUNDING INSTALLATION

DANGER

Electrical Shock Hazard

Touching some of the internal

components can cause serious

personal injury or death. Do not

disassemble this appliance.

WARNING

Electrical Shock Hazard

Improper use of the grounding

can result in electrical shock. Do

not plug into an outlet until the

appliance is properly installed

and earthed.

This appliance must be earthed.

In the event of an electrical short

circuit, this reduces the risk

of electrical shock through an

appropriate current-carrying wire

discharging any static charge.

This appliance is supplied with

a moulded three pin mains plug

for your safety and convenience.

The plug must be plugged

into an outlet that is properly

installed and earthed. Consult

a qualied electrician or service

technician if the instructions are

not completely understood or to

ensure the appliance has been

properly earthed. If required, use

a 3-wire extension cord, only.

1. A short power-supply cord is

provided to reduce the risks of

entanglement or trippingover

a longer cord.

2. If a long cord set or

extension cord is used:

1) The marked electrical

rating of the cord set

orextension cord should be at

least as great as the electrical

rating of the appliance.

2) The extension cord must

be a earthed type 3-wire

cord.

3) The long cord should

never drape over the

counter-top or tabletop

where it can be pulled on

by children or tripped over

unintentionally.

INSTALLATION

1. Select a level surface that

provideenoughopenspaceforthe

intakeand/oroutletopeningvents.

hotpoint.co.uk

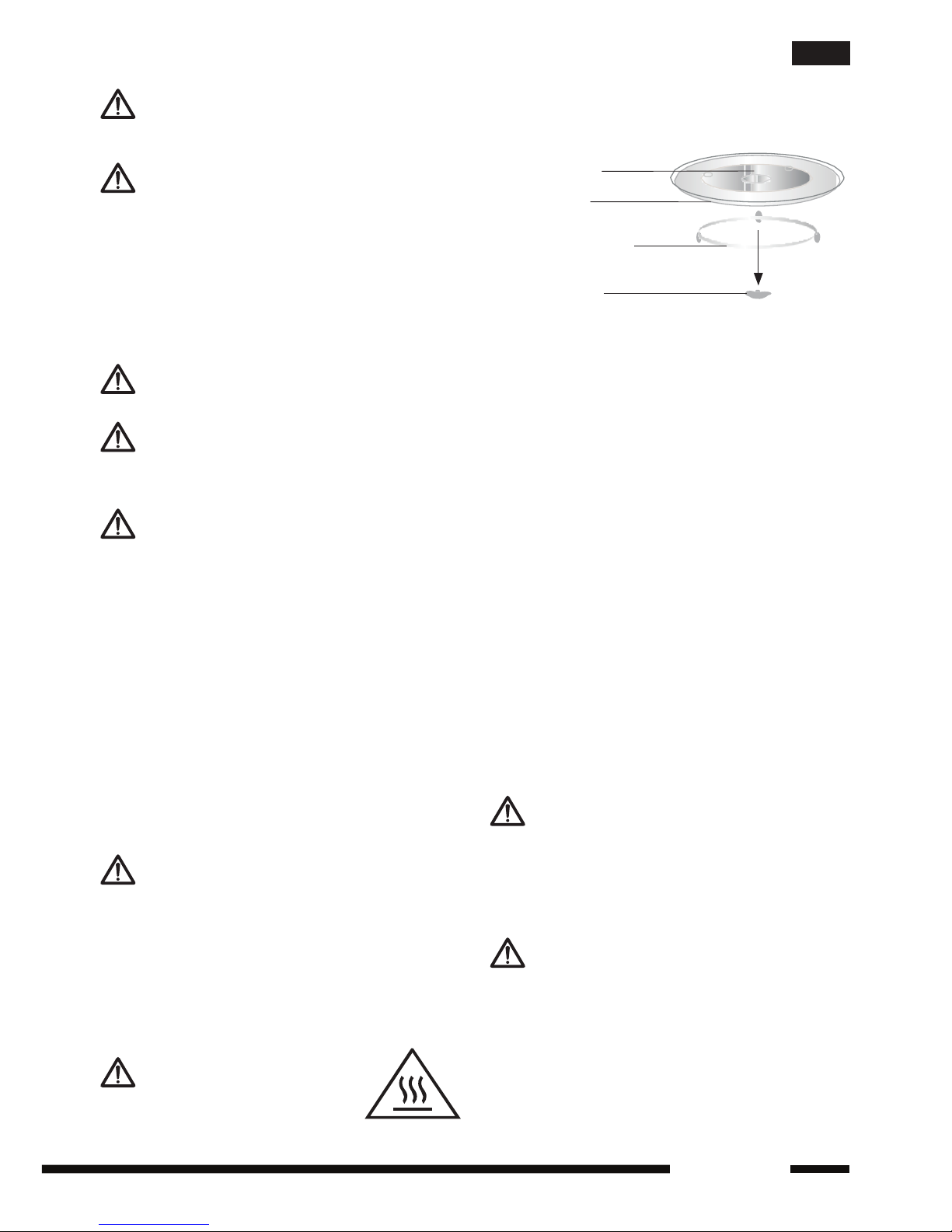

TURNTABLE INSTALLATION

Hub (underside)

Glass turntable

Turntable spindle

Turntable ring support

a. Never place the glass tray up-

side down. The glass tray should

never be restricted.

b. Both glass tray and turnta-

ble ring support must always be

used during cooking.

c. Food and food containers must

always be placed on the glass

tray for cooking.

d. If glass tray or turntable ring

support cracks or breaks, please

contact your nearest authorized

service centre.

COUNTERTOP INSTALLATION

Remove all packaging mate-

rial and accessories. Inspect

the oven for damages such as

dents or broken door. Do not in-

stall if oven is damaged.

Cabinet: Remove any pro-

tective lm from the microwa-

ve oven cabinet surface.

Do not remove the light brown

Mica cover that is attached to

the oven cavity to protect the

magnetron.

(1) The minimum installation

height is 85cm.

(2) The rear surface of

appliance shall be placed

against a wall. Leave a minimum

clearance of 30cm above the

oven; a minimum clearance of

20cm is required between the

oven and any adjacent walls.

(3) Do not remove legs from

the bottom of the oven.

(4) Blocking the intake and/or

outlet openings can damage

the oven.

(5) Place the oven as far

away from radios and TV as

possible. Operation of microwave

oven may cause interference to

your radio or TV reception.

2. Plug your oven into a standard

household outlet. Be sure the

voltage and the frequency is

the same as the voltage and the

frequency on the rating label.

Do not install oven over any

cooktop/hob or other heat-

producing appliance. If installed in

proximity of or over sources of

heat, the oven could be damaged

and the warranty would be void.

The accessible

surface may be

hot during operation.

Table des matières

Autres manuels Hotpoint Four à micro-ondes

Hotpoint

Hotpoint MWH33343B Manuel utilisateur

Hotpoint

Hotpoint RVM1535DMBB - R 1.5 cu. Ft. Microwave OVEN7 Manuel utilisateur

Hotpoint

Hotpoint JES636 Manuel utilisateur

Hotpoint

Hotpoint RGH946GEJ Instructions d'installation

Hotpoint

Hotpoint RH967 Instructions d'installation

Hotpoint

Hotpoint MD344IXH Manuel d'installation et d'exploitation

Hotpoint

Hotpoint RE963 Fiche technique

Hotpoint

Hotpoint 6640 Mode d’emploi

Hotpoint

Hotpoint RVM225WL Instructions d'installation

Hotpoint

Hotpoint RE959 Fiche technique

Hotpoint

Hotpoint rvm1625 Manuel utilisateur

Hotpoint

Hotpoint RE1450H Manuel utilisateur

Hotpoint

Hotpoint CURVE MWH 1311 B Manuel utilisateur

Hotpoint

Hotpoint Countersaver RVM60 Instructions d'installation

Hotpoint

Hotpoint REM25 Manuel utilisateur

Hotpoint

Hotpoint RE965 Instructions d'installation

Hotpoint

Hotpoint MWH 424.1 X Instructions d'utilisation et d'installation

Hotpoint

Hotpoint MWH 2824 Manuel utilisateur

Hotpoint

Hotpoint RES0730 Manuel utilisateur

Hotpoint

Hotpoint REM4F Instructions d'installation

Hotpoint

Hotpoint REM4H Manuel utilisateur

Hotpoint

Hotpoint RVM1535MM1SA Guide de démarrage rapide

Hotpoint

Hotpoint HOTPOINT Manuel utilisateur

Hotpoint

Hotpoint RE1440 Fiche technique

Manuels Four à micro-ondes populaires d'autres marques

Daewoo

Daewoo KOG-574R0S Manuel utilisateur

LG MH7040SS Manuel utilisateur

Sharp

Sharp R-895(AL)M Manuel utilisateur

Dometic

Dometic DOTRM13W Manuel utilisateur

Sanyo

Sanyo EM-X680 Manuel utilisateur

Sharp

Sharp R-393M Manuel utilisateur

KitchenAid

KitchenAid KMCX4510 Instructions d'installation

Smeg

Smeg S45MCX1 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHM2044 Manuel utilisateur

Sunbeam

Sunbeam SMW759 Manuel utilisateur

Gallet

Gallet FMOE230S Manuel utilisateur

Bosch

Bosch CEG732X.1B Manuel utilisateur

Dometic

Dometic Roadmate 230 Manuel utilisateur

Samsung

Samsung SJ0396W Manuel utilisateur

Sanyo

Sanyo EM-P494WS Manuel utilisateur

Sharp

Sharp R-240 Manuel utilisateur

Electrolux

Electrolux EMS2840 Manuel utilisateur

Daewoo

Daewoo KOC-984T2S13 Manuel utilisateur
