Hoshizaki KM-630MAH Manuel utilisateur

NO.

JULY 17, 2001

ISSUED:

71186

PARTS LIST

HOSHIZAKI

MODULAR CRESCENT CUBER

MODEL

KM-630MAH

KM-630MWH

KM-630MRH

JULY 24, 2001

REVISED:

KM-630MAH L-0 April 2001

KM-630MWH L-0 April 2001

KM-630MRH L-0 April 2001

MATERIALABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARYCODE

Ex.1 K-0

Parts are the same as in the preceding (Note) - = Part deleted.

year.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" (interchangeable part.)

skipped. So, "K" indicates "2000".

o = New part for "x"

Ex.2 L-0 in the same auxiliary code.

"L" is the next in alphabetical

order. So, "L" indicates "2001".

Ex.3 L-1

Each time a part is changed (non-interchangeably)

in a year, this number advances.

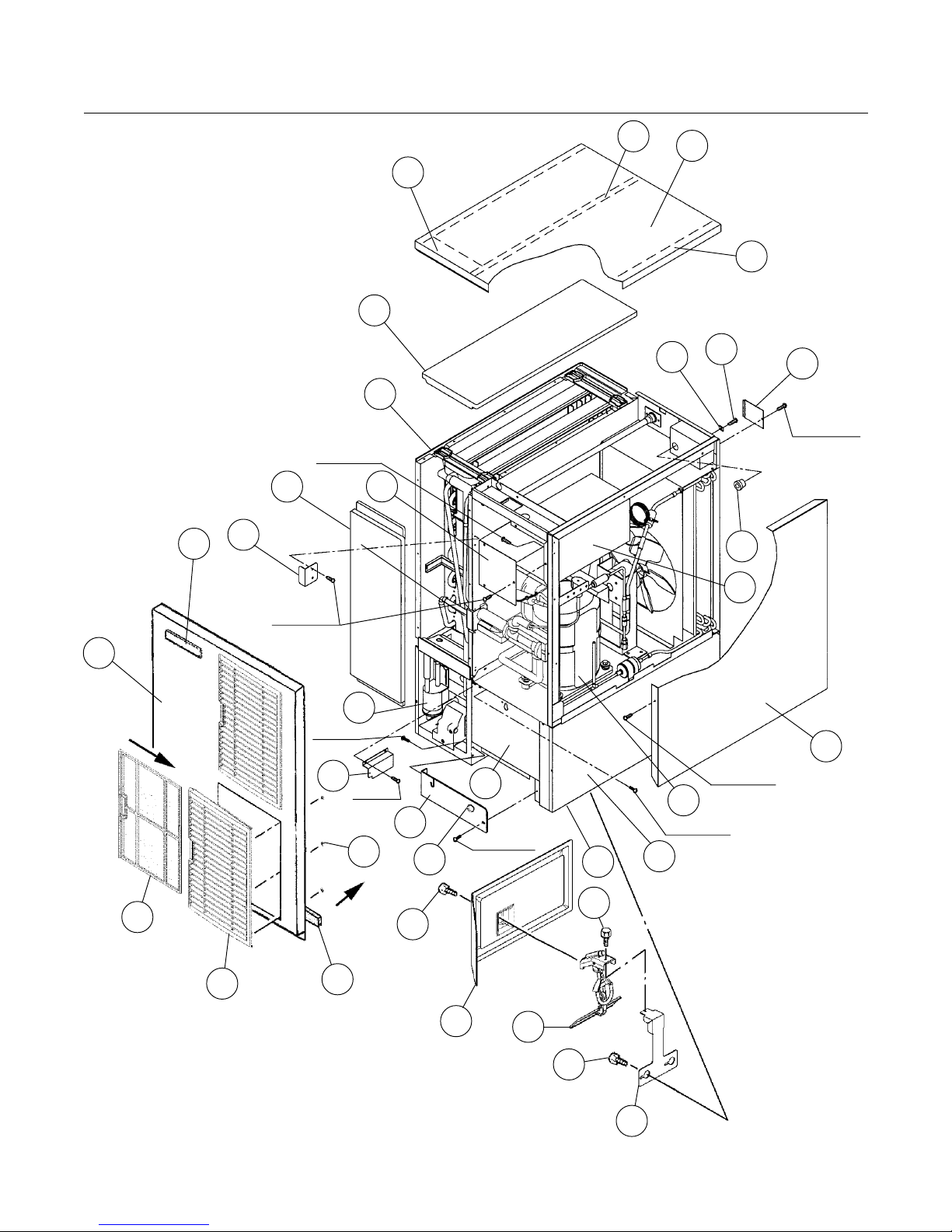

KM-630MAH A. ICE CUBER ASSEMBLY L-0

7P31-0408

7F31-0408

7P31-0408

7P31-

0408

7C32-

0425

7P32-0408

7C32-0408

MODEL: KM-630MAH TITLE:A. ICE CUBER ASSEMBLY

REQUIRED NUMBER

INDEX

NO.

DESCRIPTION

MATERIAL OR MODEL

NUMBER

PART

NUMBER L-0

B REFRIGERATION CIRCUIT - 1A0580A01 1

C WATER CIRCUIT HS-1205 1A0283A02 1

D CONTROL BOX ASSEMBLY - 2A2246A01 1

T2 SCREW 4X8 7P31-0408 3

E LABEL LOCATION - 3A1908A01 1

1 EVAP. CASE - 1A0579G02 1

2 BASE - 2A2146G01 1

FT SCREW 4X8 7F31-0408 7

3 FRAME ABS 3A0217G01 1

TRUSS HEAD SCREW 4X8, SS 7C32-0408 1

TRUSS HEAD SCREW 4X25, SS 7C32-0425 2

4 SQUARE WASHER BRASS 433537-02 1

5 SCREW-GROUNDING BRASS 433304-02 1

6 JUNCTION BOX COVER GS 433410-01 1

T2 SCREW 4X8 7P31-0408 1

7 BIN SWITCH - 4A2430-01 1

8 SHIELD - 3A1438-01 1

9 BRACKET (M) - 3A1434-01 1

10 THUMBSCREW SS, ABS 415949G09 2

11 BASE COVER SS 321525G01 1

12 TOP INSULATION PP, PUR 215730G01 1

13 FRONT INSULATION PP, PUR 215731G02 1

14 SIDE PANEL (R) SS 2A2117G02 1

T2 SCREW 4X8, SS 7P32-0408 1

15 CONTROL BOX COVER GS 3A1828-01 1

T2 SCREW 4X8 7P31-0408 3

16 FRONT PANEL SS 2A2243G01 1

17 LOUVER (A) - 1A0547-01 2

18 AIR FILTER (A) - 2A2062G01 2

19 PUSH RETAINER - 4A2414-01 6

MODEL: KM-630MAH TITLE:A. ICE CUBER ASSEMBLY

REQUIRED NUMBER

INDEX

NO.

DESCRIPTION

MATERIAL OR MODEL

NUMBER

PART

NUMBER L-0

20 BUSHING SR-34-2 420472-05 1

21 TOP PANEL SS (3A1890A01) 2A2133-01 1

22 GASKET PVC 427014-04 2

23 GASKET (A) PVC 324859-03 1

24 INSULATION PE FOAM 438012-01 1

25 BARRIER GS 4A0352-01 1

T2 SCREW 4X8 7P31-0408 2

26 SIDE PANEL (R) BASE SS 2A2147-01 1

27 GASKET L=554 4A0808L02 1

28 BARRIER-INSULATION GS 4A1167-01 1

T2 SCREW 4X8 7P31-0408 2

29 THUMBSCREW - 415949G04 2

30 BUSHING - 4A2536-01 1

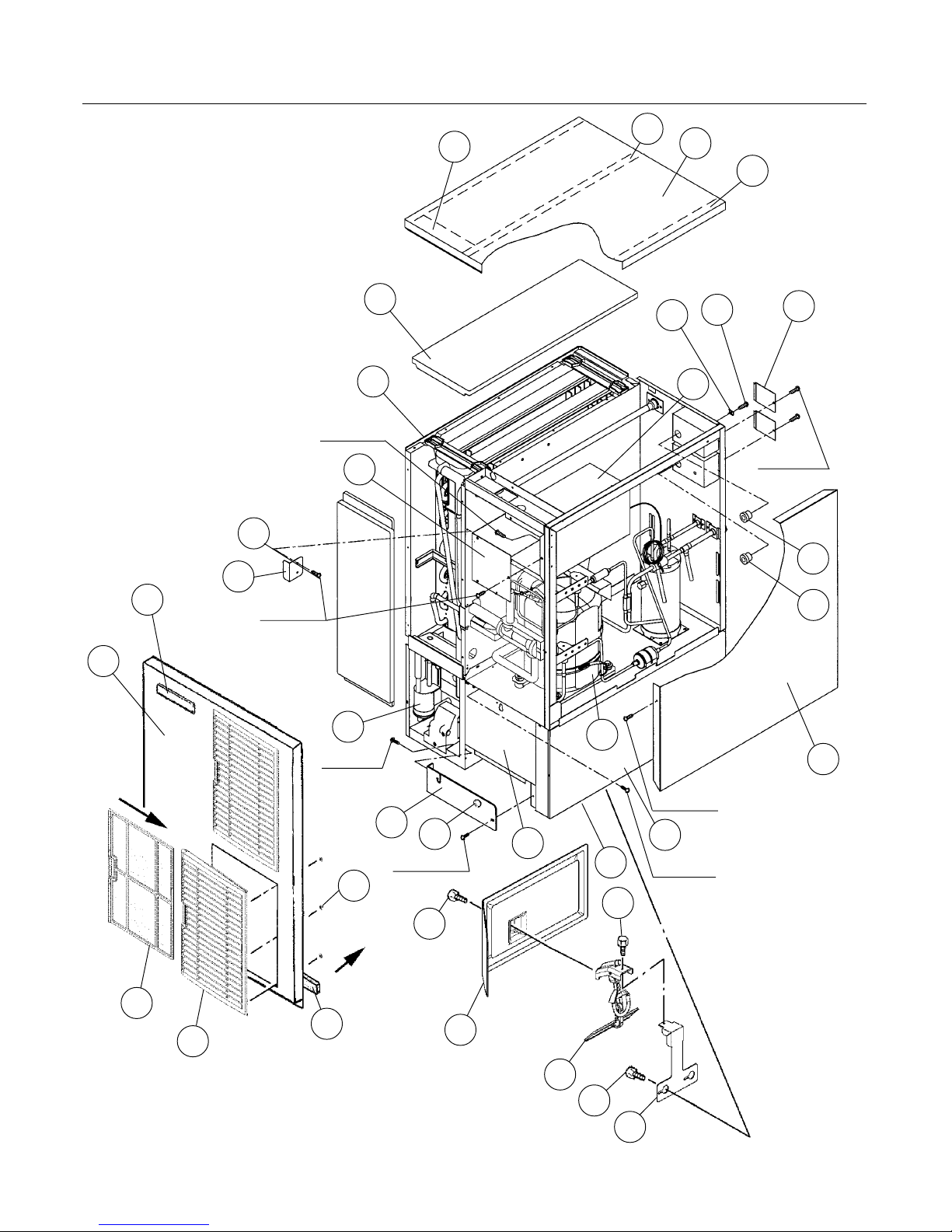

KM-630MWH A. ICE CUBER ASSEMBLY L-0

7P31-0408

7F31-0408

B7P32-0408

7P31-0408

7C32-0408

311

7C32-0425

MODEL: KM-630MWH TITLE:A. ICE CUBER ASSEMBLY

REQUIRED NUMBER

INDEX

NO.

DESCRIPTION MATERIAL OR MODEL

NUMBER

PART

NUMBER L-0

B REFRIGERATION CIRCUIT - 1A0581A01 1

C WATER CIRCUIT HS-1205 1A0283A02 1

D CONTROL BOX ASSEMBLY - 2A2246A02 1

T2 SCREW 4X8 7P31-0408 3

E LABEL LOCATION - 3A1909A01 1

1 EVAP. CASE - 1A0579G02 1

2 BASE - 2A2146G02 1

FT SCREW 4X8 7F31-0408 7

3 FRAME ABS 3A0217G01 1

TRUSS HEAD SCREW 4X8, SS 7C32-0408 1

TRUSS HEAD SCREW 4X25, SS 7C32-0425 2

4 SQUARE WASHER BRASS 433537-02 1

5 SCREW-GROUNDING BRASS 433304-02 1

6 JUNCTION BOX COVER GS 433410-01 1

T2 SCREW 4X8 7P31-0408 1

7 BIN SWITCH - 4A2430-01 1

8 SHIELD - 3A1438-01 1

9 BRACKET (M) - 3A1434-01 1

10 THUMBSCREW SS, ABS 415949G09 2

11 BASE COVER SS 321525G01 1

12 TOP INSULATION PP, PUR 215730G01 1

13 FRONT INSULATION PP, PUR 215731G02 1

14 SIDE PANEL (R) SS 2A2117G02 1

T2 SCREW 4X8, SS 7P32-0408 1

15 CONTROL BOX COVER GS 3A1828-01 1

T2 SCREW 4X8 7P31-0408 3

16 FRONT PANEL SS 2A2253G01 1

17 BUSHING SR-34-2 420472-05 1

18 TOP PANEL SS (3A1890A01) 2A2133-01 1

19 GASKET PVC 427014-04 2

MODEL: KM-630MWH TITLE:A. ICE CUBER ASSEMBLY

REQUIRED NUMBER

INDEX

NO.

DESCRIPTION MATERIAL OR MODEL

NUMBER

PART

NUMBER L-0

20 GASKET (A) PVC 324859-03 1

21 INSULATION PE FOAM 438012-01 1

22 SIDE PANEL (R) BASE SS 2A2147-01 1

23 AIR FILTER (A) - 2A2062G01 1

24 BARRIER-INSULATION GS 4A1167-01 1

T2 SCREW 4X8 7P31-0408 2

25 LOUVER (A) - 1A0547-01 1

26 PUSH RETAINER - 4A2414-01 3

27 GASKET L=554 4A0808L02 1

28 BUSHING - 4A2536-01 1

29 THUMBSCREW - 415949G04 2

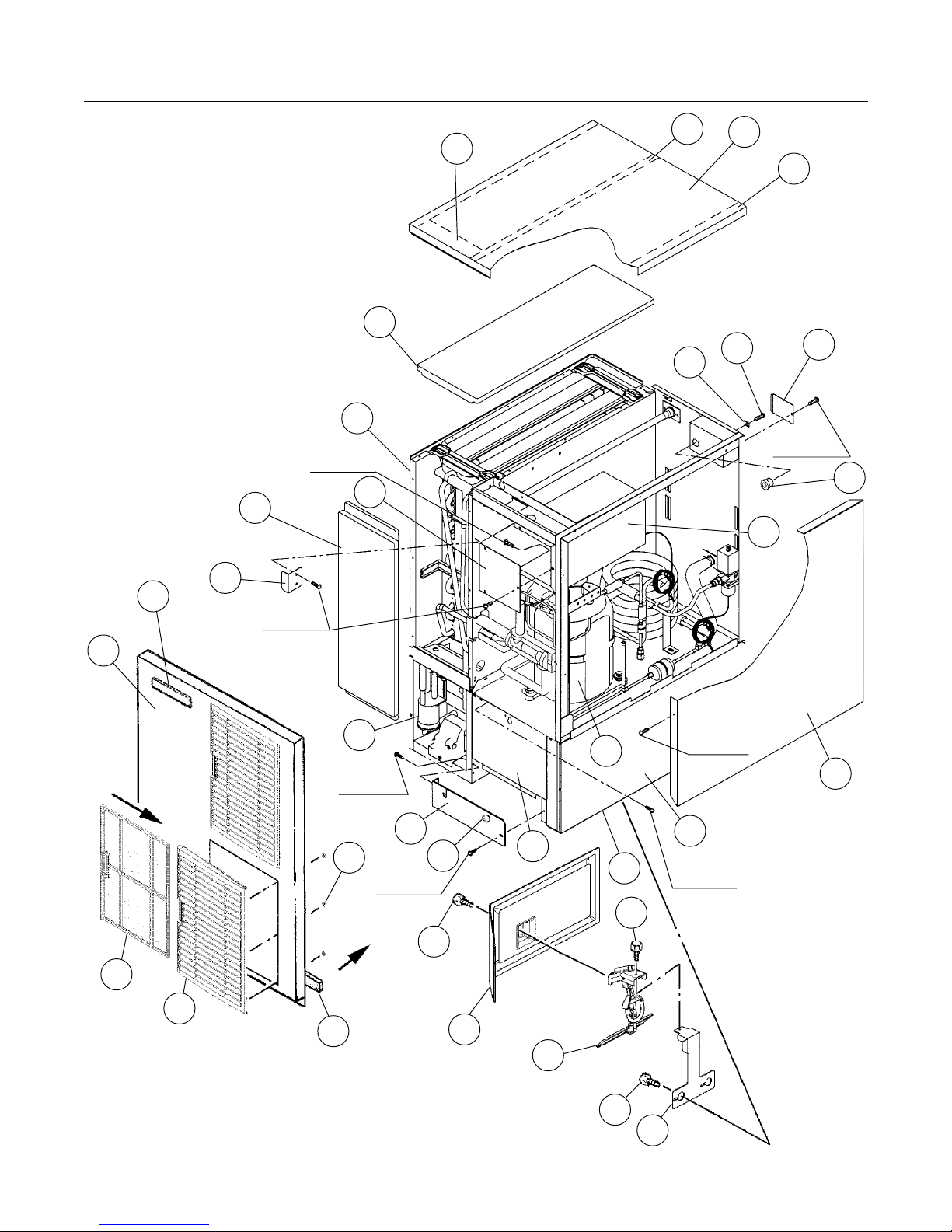

KM-630MRH A. ICE CUBER ASSEMBLY L-0

7P31-0408

7F31-0408

7P32-0408

15 7P31-0408

7P31-0408

7C32-0425

311

7C32-0408 2

28 28
