Hoshizaki KM-500MAF Manuel utilisateur

NO.

ISSUED:

MODEL

HOSHIZAKI

MODULAR CRESCENT CUBER

(FINAL) PARTS LIST

KM-500MAF

KM-500MWF

KM-500MRF

NOV. 2, 1999

71153

REVISED: JUNE 26, 2002

J-0 Jan., 1999

J-1 June 1999

K-0 Dec., 1999

L-0 Jan., 2001

L-1 March 2001

KM-500MAF

J-0 Jan., 1999

J-1 June 1999

K-0 Dec., 1999

L-0 Jan., 2001

KM-500MWF

J-0 Jan., 1999

J-1 June 1999

K-0 Dec., 1999

L-0 Jan., 2001

KM-500MRF

MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitritrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

Ex.1 K-0

Parts are the same as in the preceding (Note) - = Part deleted.

year.

x =

Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" (interchangeable)

skipped. So, "K" indicates "2000". part.

Ex.2 L-0 o =

New part for "x" in the

"L" is the next in alphabetical

same auxiliary code.

order. So, "L" indicates "2001".

Ex.3 L-1

Each time a part is changed non-interchangeably

in a year, this number advances.

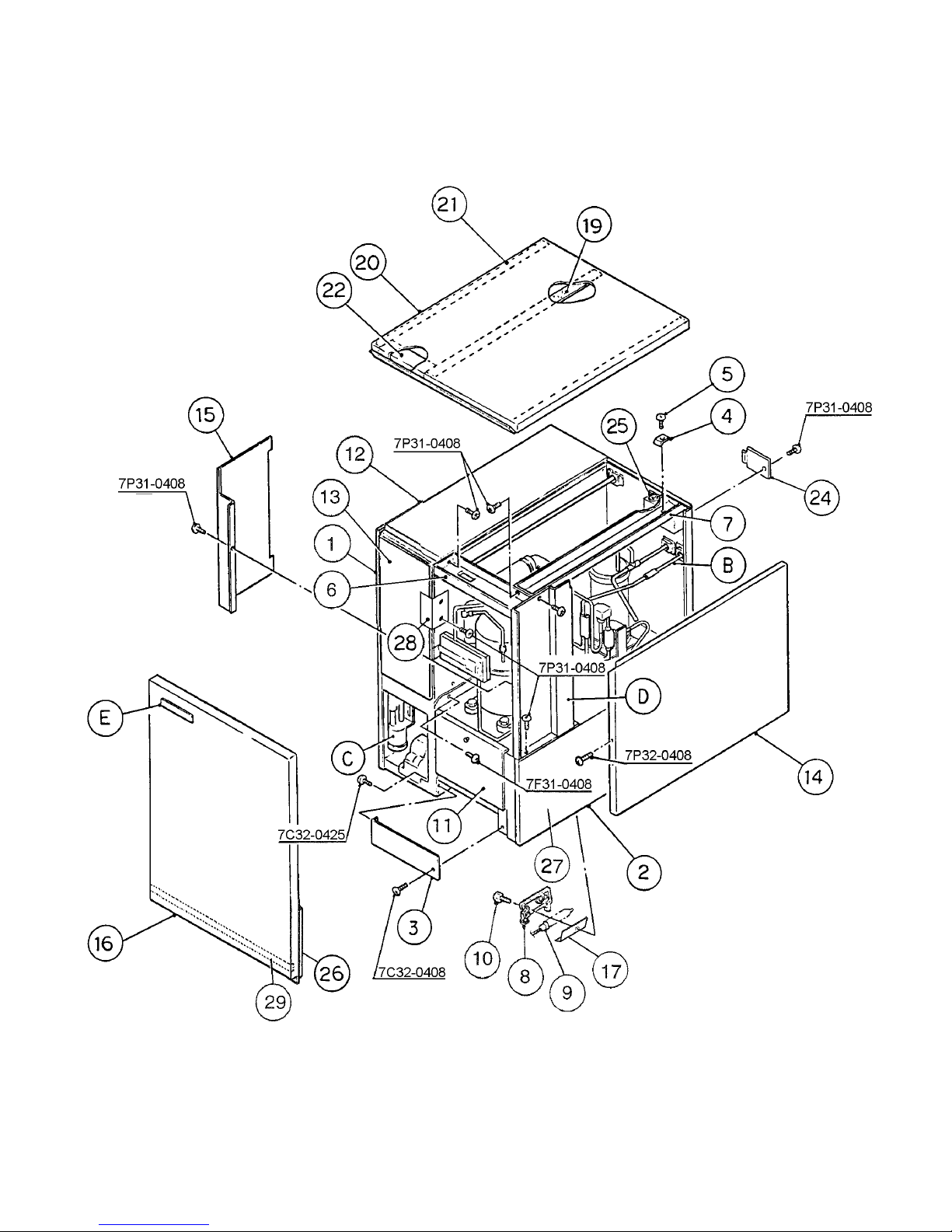

KM-500MAF A. ICE CUBER ASSEMBLY J-0, J-1, K-0, L-0, L-1

MODEL: KM-500MAF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER

J-0

J-1

K-0 L-0 L-1

B REFRIGERATION CIRCUIT - 1A0420A01 1 1 -

- 1A0420A03 1 1

C WATER CIRCUIT HS-1204 1A0283A01 1 1 1 1

D CONTROL BOX ASSEMBLY - 2A1497A01 1 1 x1

- 2A1959A01 o1 1

T2 SCREW 4X8 7P31-0408 4 4 4 4

E LABEL LOCATION - 3A1234A01 1 1 1 1

1 EVAP. CASE HS-1010 1A0277G01 1 1 x1

HS-1010 1A0532G01 o1 1

2 BASE - 2A1321G06 1 1 1 1

FT SCREW 4X8 7F31-0408 7 7 7 7

3 FRAME ABS 3A0217G01 1 1 1 1

TRUSS HEAD SCREW 4X8, SS 7C32-0408 1 1 1 1

TRUSS HEAD SCREW 4X25, SS 7C32-0425 2 2 2 2

4 SQUARE WASHER BRASS 433537-02 1 1 1 1

5 SCREW - GROUNDING BRASS 433304-02 1 1 1 1

6 TOP FRAME GS 332443-01 1 1 1 1

T2 SCREW 4X8 7P31-0408 4 4 4 4

7 SIDE FRAME GS 332465G01 1 1 1 1

T2 SCREW 4X8 7P31-0408 1 1 1 1

8 BULB HOLDER PE 328919-01 1 1 1 1

9 SPACER PE 443545-01 1 1 1 1

10 THUMBSCREW SS, ABS 415949G03 2 2 2 2

11 BASE COVER SS 321525G01 1 1 1 1

12 TOP INSULATION PP 215730G01 1 1 1 1

13 FRONT INSULATION PP 215731G01 1 1 1 1

14 SIDE PANEL (R) SS 211811G06 1 1 1 1

T2 SCREW 4X8, SS 7P32-0408 1 1 1 1

15 CONTROL BOX COVER GS 332466-01 1 1 1 1

T2 SCREW 4X8 7P31-0408 1 1 1 1

MODEL: KM-500MAF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER

J-0

J-1

K-0 L-0 L-1

16 FRONT PANEL SS 3A1175G01 1 1 1 1

17 LOUVER (B) ABS 103121-03 2 2 2 2

18 BARRIER GS 4A0362-01 1 1 1 1

T2 SCREW 4X8 7P31-0408 2 2 2 2

19 TAPPING SCREW ( BLACK) STEEL, 4x8 433954-01 2 2 2 2

20 TOP PANEL SS

(324859A03)

220465-01 1 1 1 1

21 GASKET PVC

(324859A03)

427014-04 2 2 2 2

22 INSULATION PE FOAM

(324859A03)

438012-01 1 1 1 1

23 AIR FILTER (B) ABS 208283G03 2 2 2 2

24 DEFLECTOR SS 4A1951-01 1 1 1 1

25 GASKET (A) (324859A03) 324859-03 1 1 1 1

26 SIDE PANEL (R) – BASE SS 212620-01 1 1 1 1

27 BARRIER-INSULATION GS 4A1167-01 1 1 1

T2 SCREW 4x8 7P31-0408 2 2 2

28 GASKET L=554 4A0808L02 1 1

KM-500MWF A. ICE CUBER ASSEMBLY J-0, J-1, K-0, L-0

MODEL: KM-500MWF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER

J-0

J-1

K-0 L-0

B REFRIGERATION CIRCUIT - 1A0421A01 1 1 -

- 1A0421A03 1

C WATER CIRCUIT HS-1204 1A0283A01 1 1 1

D CONTROL BOX ASSEMBLY - 2A1497A02 1 1 x1

- 2A1959A02 o1

T2 SCREW 4X8 7P31-0408 4 4 4

E LABEL LOCATION - 3A1245A01 1 1 -

- 3A1245A02 1

1 EVAP. CASE HS-1010 1A0277G01 1 1 x1

HS-1010 1A0532G01 o1

2 BASE - 2A1321G05 1 1 1

FT SCREW 4X8 7F31-0408 7 7 7

3 FRAME - 3A0217G01 1 1 1

TRUSS HEAD SCREW 4X8, SS 7C32-0408 1 1 1

TRUSS HEAD SCREW 4X25, SS 7C32-0425 2 2 2

4 SQUARE WASHER BRASS 433537-02 1 1 1

5 SCREW - GROUNDING BRASS 433304-02 1 1 1

6 TOP FRAME GS 332443-01 1 1 1

T2 SCREW 4X8 7P31-0408 4 4 4

7 SIDE FRAME GS 332465G01 1 1 1

T2 SCREW 4X8 7P31-0408 2 2 2

8 BULB HOLDER PE 328919-01 1 1 1

9 SPACER PE 443545-01 1 1 1

10 THUMBSCREW SS, ABS 415949G03 2 2 2

11 BASE COVER SS 321525G01 1 1 1

12 TOP INSULATION PP 215730G01 1 1 1

13 FRONT INSULATION PP 215731G01 1 1 1

14 SIDE PANEL (R) SS 211811G06 1 1 1

T2 SCREW 4X8, SS 7P32-0408 1 1 1

MODEL: KM-500MWF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER

J-0

J-1

K-0 L-0

15 CONTROL BOX COVER GS 332466-01 1 1 1

T2 SCREW 4X8 7P31-0408 1 1 1

16 FRONT PANEL SS 3A1175G02 1 1 1

17 DEFLECTOR SS 4A1951-01 1 1 1

18 - - -

19 GASKET (A) (324859A03) 324859-03 1 1 1

20 TOP PANEL SS ,

(324859A03)

220465-01 1 1 1

21 GASKET PVC,

(324859A03)

427014-04 2 2 2

22 INSULATION PE FOAM,

(324859A03)

438012-01 1 1 1

23 FRONT COVER P.S 2A0182-01 1 1 1

24 SIDE PANEL (R) –BASE SS 212620-01 1 1 1

25 BARRIER –INSULATION GS 4A1167-01 1 1

T2 SCREW 4x8 7P31-0408 2 2

26 GASKET L=554 4A0808L02 1

KM-500MRF A. ICE CUBER ASSEMBLY J-0, J-1, K-0, L-0
