(FINAL)PARTSLIST

STACKABLE CRESCENT CUBER

89/336

73/23

HOSHIZAKI

NUMBER: 71158

ISSUED: NOV. 16, 1999

KM-1300SAF-E

KM-1300SWF-E

KM-1300SRF-E

REVISED: AUG. 5, 2002

Auxiliary Codes

KM-1300SAF-E J-1 MARCH 1999

K-0 JAN., 2000

L-1 APRIL 2001

KM-1300SWF-E J-1 MARCH 1999

KM-1300SRF-E J-1 MARCH 1999

IMPORTANT

IEC standards require that the clamping means of earthing terminals be

adequately secured against accidental loosening and that accessible metal parts

of the icemaker which may become live in the event of an insulation fault be

permanently and reliably connected to an earthing terminal within the icemaker

or to the earthing contact of the icemaker inlet.

This is accomplished in this icemaker through the use of stainless steel toothed

washers, Hoshizaki Part # 7R22-0400.

HA MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PE P = Polyethylene terephthalate = etlon

PP = Polypropylene

PS = Polystyrene

PIFE = Polytetrafluoroethylene = eflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

Ex.1 K-0

Parts are the same as in the preceding (Note) - = Part deleted.

year.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part.

skipped. So, "K" indicates "2000".

o = New part for "x"

Ex.2 L-0 in the same auxiliary code.

"L" is the next in alphabetical

order. So, "L" indicates "2001".

Ex.3 L-1

Each time a part is changed non-interchangeably,

in a year, this number advances.

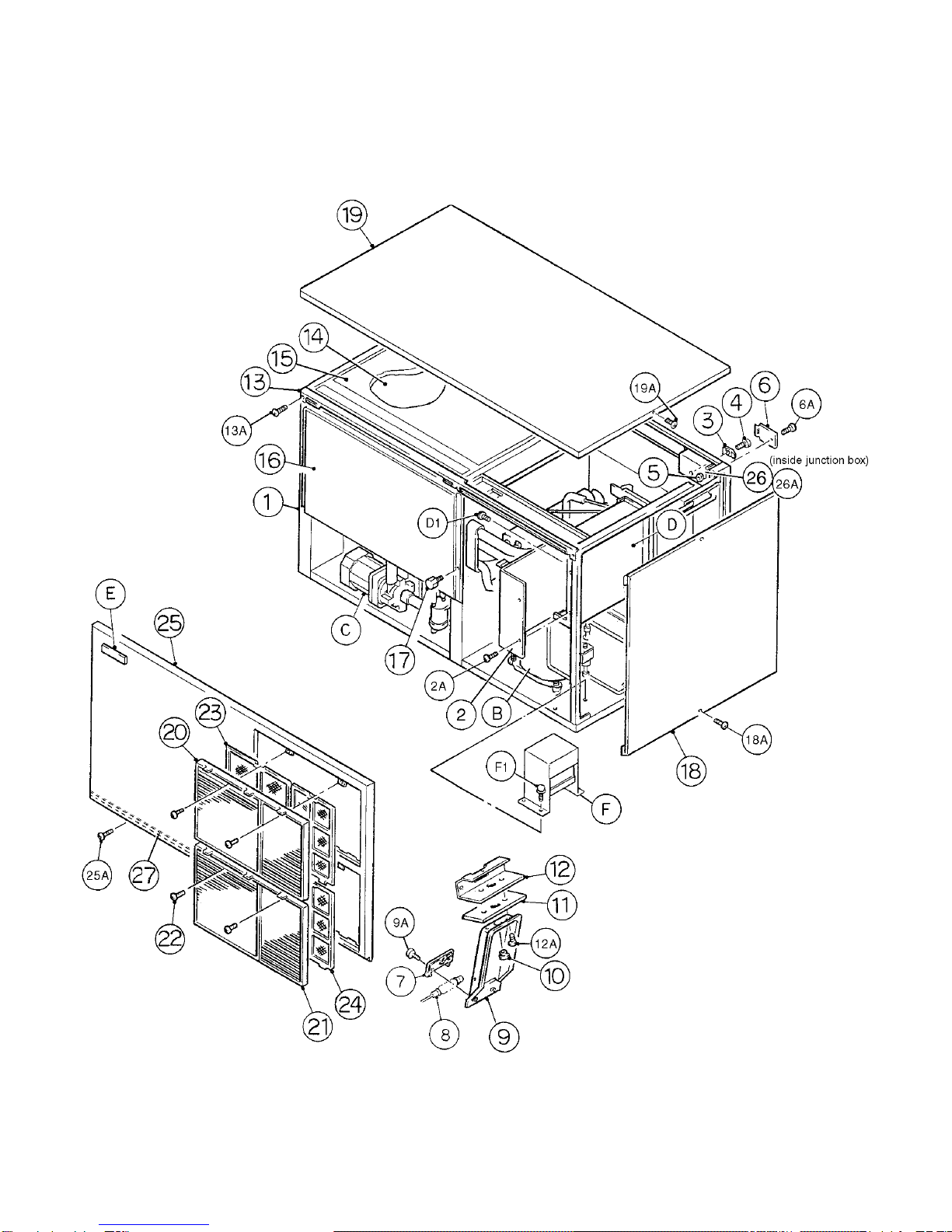

KM-1300SAF-E A. ICE CUBER ASSEMBLY J-1, K-0, L-1

MODEL: KM-1300SAF-E TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER J-1 K-0 L-1

B REFRIGERATION

CIRCUIT

- 1A0207A03 1 1 1

C WATER CIRCUIT - 2A0835A02 1 1 1

D CONTROL BOX

ASSEMBLY

- 2A1333A01 1 1 1

D1 T2 SCREW Zinc, 4X8 7P31-0408 3 3 3

E LABEL LOCATION - 2A1330A02 1 1 1

F TRANSFORMER BOX

ASSEMBLY

334324A01 1 1 1

F1 HEX HEAD BOLT

W/WASHER

5 X10 7B0130510 4 4 4

1 EVAP. CASE - 105860G31 1 1 1

2 CONTROL BOX COVER GS 3A0174-01 1 1 1

2A T2 SCREW Zinc, 4X8 7P31-0408 3 3 3

3 SQUARE WASHER BRASS 433537-02 1 1 1

4 SCREW - GROUNDING BRASS 433304-02 1 1 1

5 BUSHING SR-34-2 420472-05 1 1 1

6 JUNCTION BOX COVER GS 4A1767-01 1 1 1

6A T2 SCREW Zinc, 4X8 7P31-0408 1 1 1

7 BULB HOLDER ABS 328919-01 1 1 1

8 SPACER PE 443545-01 1 1 1

9 BULB HOLDER (C) ABS 216340G01 1 1 1

9A TRUSS HEAD SCREW SS, 4X12 7C32-0412 2 2 2

10 BUSHING EP

RUBBER

425307-01 1 1 1

11 SPACER ABS 439727-01 1 1 1

12 BULB HOLDER (D) GS 328742-01 1 1 1

12A T2 SCREW SS, 4X16 7P32-0416 2 2 2

MODEL: KM-1300SAF-E TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER J-1 K-0 L-1

13 FRONT PANEL -

BRACKET

SS 323903-01 1 1 1

13A T2 SCREW SS 7P32-0412 3 3 3

14 SPACER ABS 324321-01 1 1 1

15 TOP INSULATION ABS, PE 324216G01 1 1 1

16 FRONT INSULATION ABS, PE 324215G01 1 1 1

17 THUMBSCREW ABS, SS 415949G01 1 1 1

18 SIDE PANEL (R) SS 213668G01 1 1 1

18A TRUSS HEAD SCREW SS, 4X8 7C32-0408 1 1 1

19 TOP PANEL (324217A0

213669-01 1 1 1

19A TRUSS HEAD SCREW SS, 4X8 7C32-0408 3 3 3

20 LOUVER (B) ABS 103121-05 2 2 2

21 LOUVER (C) ABS 103122-03 2 2 2

22 TAPPING SCREW -

BLACK

STEEL,

4X8

433954-01 4 4 4

23 AIR FILTER (B) ABS 208283G03 2 2 2

24 AIR FILTER (C) ABS 208284G01 2 2 2

25 FRONT PANEL SS 213708-01 1 1 1

25A TRUSS HEAD SCREW SS, 4X16 7C32-0416 2 2 2

26 TERMINAL BLOCK 4A1026-01 1 1 1

26A PAN HEAD SCREW 3X16 7C11-0316 2 2 2

27 GASKET L=1219 4A0808L02 11

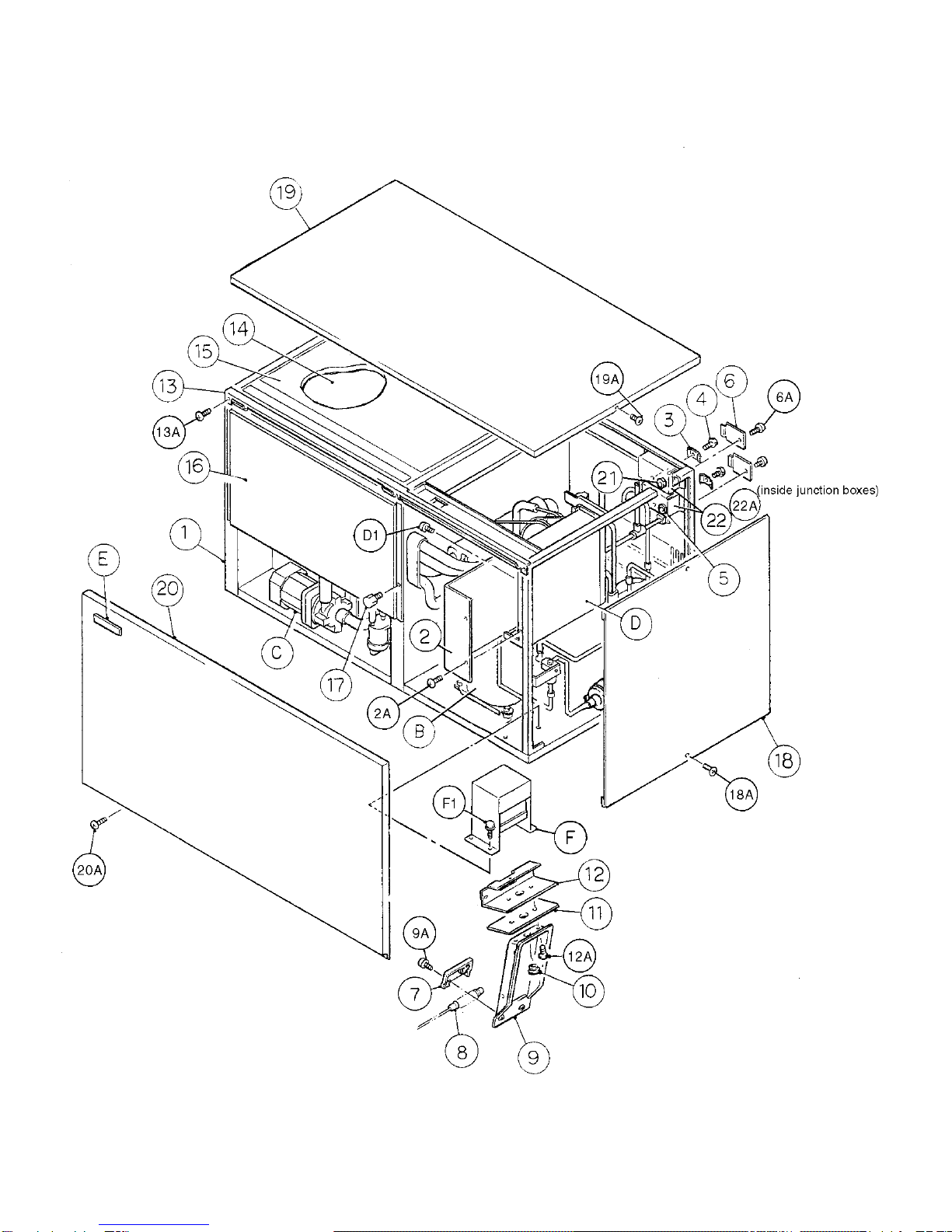

KM-1300SWF-E A. ICE CUBER ASSEMBLY J-1

MODEL: KM-1300SWF-E TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER J-1

B REFRIGERATION CIRCUIT - 1A0259A03 1

C WATER CIRCUIT - 2A0835A01 1

D CONTROL BOX ASSEMBLY HS-1101 2A1333A02 1

D1 T2 SCREW 4X8 7P31-0408 3

E LABEL LOCATION - 2A1332A01 1

FTRANSFORMER BOX

ASSEMBLY

334324A01 1

F1 HEX HEAD BOLT W/WASHER 5X10 7B0130510 4

1 EVAP. CASE - 105860G32 1

2 CONTROL BOX COVER GS 3A0174-01 1

2A T2 SCREW 4X8 7P31-0408 3

3 SQUARE WASHER BRASS 433537-02 1

4 SCREW - GROUNDING BRASS 433304-02 1

5 BUSHING SR-30-1 420472-05 1

6 JUNCTION BOX COVER GS 4A1767-01 1

6A T2 SCREW 4X8 7P31-0408 1

7 BULB HOLDER ABS 328919-01 1

8 SPACER PE 443545-01 1

9 BULB HOLDER (C) ABS 216340G01 1

9A TRUSS HEAD SCREW 4X12, SS 7C32-0412 2

10 BUSHING EP RUBBER 425307-01 1

11 SPACER ABS 439727-01 1

12 BULB HOLDER (D) GS 328742-01 1

12A T2 SCREW 4X16, SS 7P32-0416 2

13 FRONT PANEL - BRACKET SS 323903-01 1

13A T2 SCREW 4X12, SS 7P32-0412 3

14 SPACER ABS 324321-01 1

15 TOP INSULATION ABS, PE 324216G01 1

16 FRONT INSULATION ABS, PE 324215G01 1

17 THUMBSCREW ABS, SS 415949G01 1

MODEL: KM-1300SWF-E TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER J-1

18 SIDE PANEL (R) SS 213668G01 1

18A TRUSS HEAD SCREW 4X8, SS 7C32-0408 1

19 TOP PANEL SS 213669-01 1

19A TRUSS HEAD SCREW 4X16, SS 7C32-0416 3

20 FRONT PANEL SS 215104-01 1

20A TRUSS HEAD SCREW 4X16, SS 7C32-0416 2

21 TERMINAL BLOCK 4A1026-01 1

21A PAN HEAD SCREW 3X16 7C11-0316 2

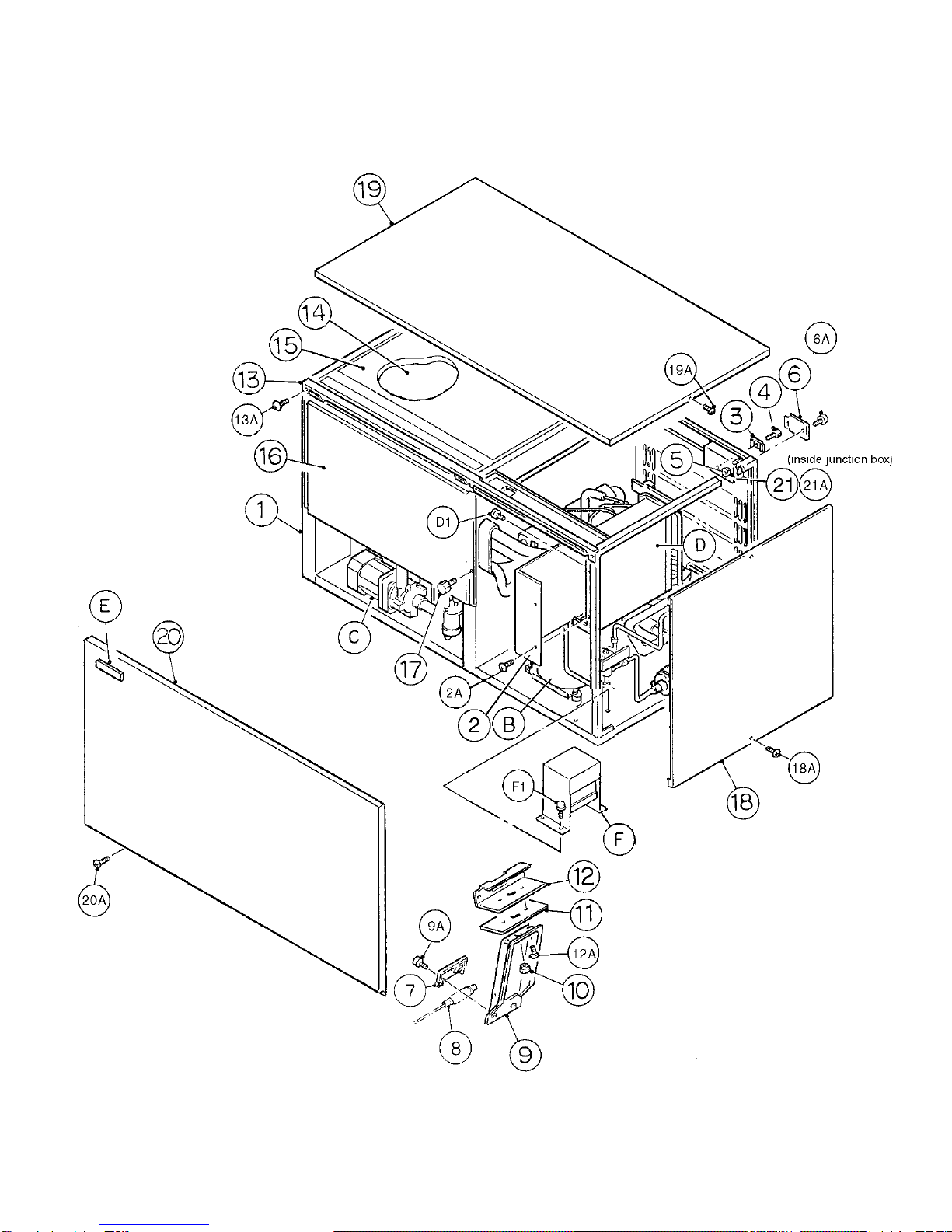

KM-1300SRF-E A. ICE CUBER ASSEMBLY J-1
