Hoshizaki F-300BAF Manuel utilisateur

Hoshizaki

“A Superior Degree

of Reliability”

www.hoshizaki.com

Model

F-300BAF

Self-Contained Flaker

Hoshizaki America, Inc.

PARTS LIST

Number: 71126

Issued: 3-15-1999

Revised: 9-8-2008



CONTENTS

Auxiliary Codes ...................................................................................................................... 3

Note About Ordering Parts .................................................................................................... 3

Material Abbreviations ........................................................................................................... 4

A. Ice Flaker Assembly .......................................................................................................... 5

B. Evaporator Assembly ........................................................................................................ 9

C. Refrigeration Unit ............................................................................................................ 1

D. Water Circuit Assembly ................................................................................................... 15

E. Cover Assembly - Bin Top .............................................................................................. 19

F. Control Box Assembly ..................................................................................................... 1

G. Sliding Door .................................................................................................................... 6

H. Label Location ................................................................................................................. 7

J. Fan Motor Assembly ........................................................................................................ 30

K. Spout Assembly .............................................................................................................. 31

L. Accessories & Packaging ................................................................................................ 3

Auxiliary Codes

F-300BAF H-0 August 1998

J-0 January 1999

J-1 June 1999

K-0 December 1999

K-1 April 000

K- May 000

L-0 December 000

L-1 May 001

M-0 December 001

M-1 October 00

N-0 December 00

P-0 December 003

Auxiliary Code Breakdown

K-0

Designates the year. "K" indicates the year 000. Years progress or regress in alphabetical order.

"J" is 1999, "L" is 001, "M" is 00, and so on. The letters "I" and "O" were skipped.

Designates signicant part changes within the same year for this model. Base is 0 and this number

advances for each change.

Example: P-1

"P" indicates 004.

"1" indicates the rst signicant part change for 004.

Note About Ordering Parts

Most assemblies cannot be ordered as complete units; parts in the assemblies generally must be ordered

separately.

Material Abbreviations

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene-styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrauoroethylene = Teon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

A. Ice Flaker Assembly

F-300BAF

H-0 to M-0

see pages 37-38

for all parts in

K assembly

A. Ice Flaker Assembly

F-300BAF

M-1 to P-0

Title: A. Ice Flaker Assembly Model: F-300BAF

Index

No. Description

Material or

Model Number Part Number

Required Number

H-0

J-0

J-1

K-1

K-

L-0

L-1

M-0

M-1

P-0

B EVAP. ASSEMBLY - 34138A01 1 1 1 1 1

C REFRIGERATION UNIT - 10918A01 1 1 1 -

1A055A01 1 1

D WATER CIRCUIT ASSEMBLY - 10916A01 1 1 1 1 1

E COVER ASSY - BIN TOP - 317056A01 1 1 -

3A1544A01 1 1 1

TRUSS HEAD SCREW 4X8, SS 7C3-0408 7 7 7 7 7

F CONTROL BOX ASSEMBLY - 887A01 1 1 1 -

A98A01 1 -

A463A01 1

TRUSS HEAD SCREW 4X8 7C31-0408 4 4 4 4 4

G SLIDING DOOR - 341381A01 1 1 1 1 1

H LABEL LOCATION - 8838A01 1 1 1 1 -

8838A0 1

K SPOUT ASSEMBLY (replaces

#6)

- A511A01 1

1 BOTTOM PANEL GS 10915G01 1 1 1 -

10915G0 1 1

 GEAR MOTOR BRACKET (B) GS 454868-01 1 1 1 1 1

HEX HEAD BOLT 8X30, SS 7B0-0830 3 3 3 3 3

SPLIT LOCK WASHER M8, SS 7L-0800 3 3 3 3 3

FLAT WASHER M8, SS 7W-0800 3 3 3 3 3

3 LINER PLATE PVC 4506-01 3 3 3 3 3

HEX HEAD BOLT W/WASHER

(LF)

8X0, SS 7B03080 3 3 3 3 3

4 BRACKET - EVAPORATOR SS 341378-01 1 1 1 1 -

HEX HEAD BOLT W/WASHER

(LF)

5X10, SS 7B030510     -

5 PACKING EPDM 47151-01 1 1 1 1 1

6 SPOUT PC 719-01 1 1 1 1 -

7 SPOUT PACKING (A) EPDM 453663-01 1 1 1 1 -

8 THUMBSCREW SS, ABS 415949G03 7 7 7 7 5

9 SPOUT (B) ABS 7130-01 1 1 1 1 -

- 3654-01 1

10 SPOUT PACKING (B) EPDM 453664-01 1 1 1 1 -

- 4A769-01 1

11 BIN - FOAMED - 8837G01 1 1 1 1 -

A467G01 1

FT SCREW 4X8, SS 7F3-0408 3 3 3 3 3

1 BRACKET - WIRE GS 454850-01 1 -

TRUSS HEAD SCREW 4X8 7C31-0408  -

13 BUSHING SR-30-1 4047-03 1 1 1 1 1

14 BUSHING SR-7K- 4047-0 1 1 1 1 1

15 BARRIER - FAN MOTOR GS 341379-01 1 1 1 1 1

TRUSS HEAD SCREW 4X6 7C31-0406     

Title: A. Ice Flaker Assembly Model: F-300BAF

Index

No. Description

Material or

Model Number Part Number

Required Number

H-0

J-0

J-1

K-1

K-

L-0

L-1

M-0

M-1

P-0

16 REAR PANEL (A) GS 10983-01 1 1 1 1 1

T SCREW 4X8 7P31-0408 5 5 5 5 5

17 SIDE PANEL (R) - 341386G01 1 -

341386A0 1 1 1 1

T SCREW 4X8 7P31-0408 4 4 4 4 4

TRUSS HEAD SCREW 4x8, SS 7C3-0408 3 3 3 3 3

18 SIDE PANEL (L) - 341385G01 1 -

341385A0 1 1 1 1

T SCREW 4X8 7P31-0408 4 4 4 4 4

TRUSS HEAD SCREW 4x8, SS 7C3-0408 3 3 3 3 3

TOOTH WASHER M4, SS 7R-0400     

19 RAIL SS 341380-01 1 1 1 1 1

0 EDGING CE-010-S,

L=850

45931-04 1 1 1 1 1

TRUSS HEAD SCREW 4X8, SS 7C3-0408 5 5 5 5 5

1 BRACKET - FRONT PANEL SS 34137-01 1 1 1 1 1

TRUSS HEAD SCREW 4X8, SS 7C3-0408 5 5 5 5 5

 FRONT PANEL (R) - 341371G01 1 -

3A1441A01 1 1 1 1

TRUSS HEAD SCREW 4X8, SS 7C3-0408     

3 TOP PANEL SS 341383G01 1 1 1 1 1

TRUSS HEAD SCREW 4X8, SS 7C3-0408 4 4 4 4 4

4 FRONT PANEL (L) - 341384G01 1 -

3A144G01 1 1 1 1

TRUSS HEAD SCREW 4X8, SS 7C3-0408 4 4 4 4 4

5 LOUVER (B) PP 10311-03 1 1 1 1 1

6 AIR FILTER (B) PP 0883G03 1 1 1 1 1

7 TAPPING SCREW (BLACK) STEEL, 4x8 433954-01 1 1 1 1 1

8 POWER SUPPLY CORD AEC-30 4A1773-01 1 1 1 1 1

9 CLAMP - 4A0337-07 8 9 9 9 9

30 PACKING - BIN EPDM 48186-01 1 1 1 1 1

TRUSS HEAD SCREW 4X8, SS 7C3-0408 3 3 3 3 3

31 CABLE TIE CV-150 790-0003 5 5 5 5 5

3 GEAR MOTOR BRACKET (A1) - 341373G01 1 1 1 1 -

3A613G01 1

FT SCREW 4X8, SS 7F3-0408 4 4 4 4 4

33 BRACKET – EVAP (A) - 4A754-01 1

34 BRACKET – EVAP (B) - 4A755-01 1

35 BRACKET – EVAP (C) - 3A310-01 1

HEX HEAD BOLT W/WASHER

(LF)

5X10, SS 7B030510 4

B. Evaporator Assembly

F-300BAF

H-0 to K-

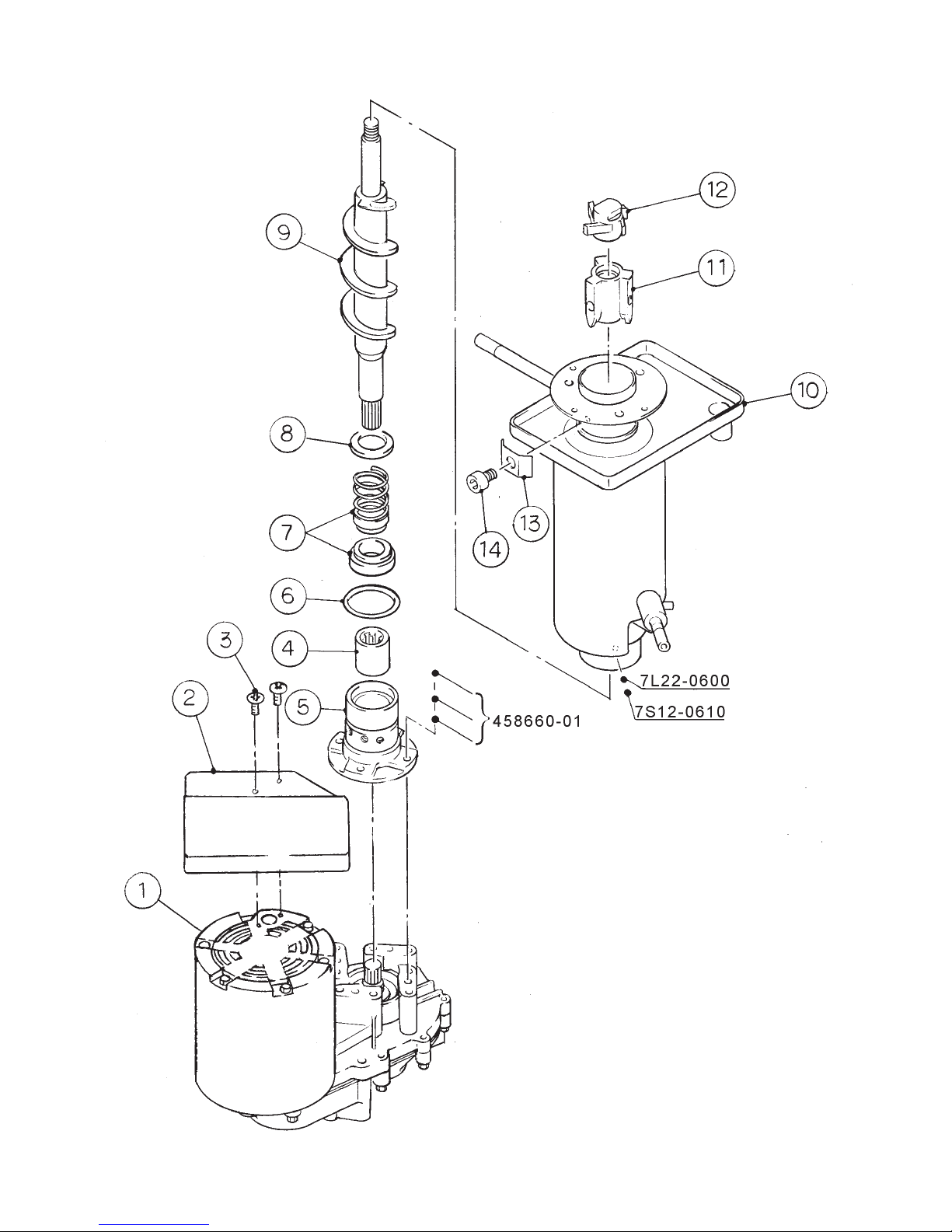

B. Evaporator Assembly

F-300BAF

L-0 to P-0
