Hoshizaki DCM-300BAH Manuel utilisateur

Hoshizaki

“A Superior Degree

of Reliability”

www.hoshizaki.com

Models

DCM-300BAH(-OS)

Cubelet Icemaker/Dispenser

Hoshizaki America, Inc.

Number: 71326

Issued: 4-20-2011

PARTS LIST

CONTENTS

Auxiliary Codes...................................................................................................................... 3

Note About Ordering Parts .................................................................................................... 3

A. Ice Dispenser Assembly .................................................................................................... 4

B. Refrigeration Circuit........................................................................................................... 7

C. Ice Making Unit ................................................................................................................. 9

D. Water Circuit .....................................................................................................................11

E. Control Box Assembly...................................................................................................... 13

F. Shutter Assembly ............................................................................................................. 14

G. Dispensing & Agitating Gear Motor Assemblies.............................................................. 15

H. Bin Assembly................................................................................................................... 16

J. Label Location.................................................................................................................. 17

K. Accessories & Packaging ................................................................................................ 18

Auxiliary Codes

DCM-300BAH A-0 April 2011

DCM-300BAH-OS A-0 April 2011

Auxiliary Code Breakdown

The auxiliary code is the rst two characters in the serial number. The rst character

indicates the year. Years progress or regress in alphabetical order. The series runs from

"A" through "V" and the letters "I" and "O" are skipped. The second character indicates

signicant part changes within a year. Base is "0" and this number advances for each

change. In cases where there is a letter in parentheses, this designates the month. This is

the last character in the serial number. The series runs from "(A)" through "(M)" and the

letter "(I)" is skipped. This designation is only included when identifying a parts change

within an auxiliary code.

Note About Ordering Parts

Most assemblies cannot be ordered as complete units; parts in the assemblies generally

must be ordered separately.

A. Ice Dispenser Assembly

DCM-300BAH, DCM-300BAH-OS

A-0

35 36

13a

30a

16a

19a

23a

31b

DCM-300BAH-OS

30 30a

31a

Title: A. Ice Dispenser Assembly Model: DCM-300BAH, DCM-300BAH-OS

Index

No. Description

Material or

Model Number Part Number

Required Number

A-0

Ice Dispenser Assembly

Order Assembly Parts

Individually

DCM-300BAH 1A2196A01 1

DCM-300BAH-OS 1A2196A02 1

1Socket Hex Cap Screw 8×95, SS 7S12-0895 3

2Thumbscrew 415949G12 3

3 Thumbscrew 415949G12 3

4 Spout B 208807-01 1

4a Thumbscrew 415949G11 4

5 Spout Cover 215773-01 1

5a Thumbscrew 415949G08 2

6 Cup Guide 326702-01 2

7 Packing 427151-01 1

8Spout Packing A 427195-01 1

9 Spout Packing B 427196-01 1

10 Gasket 429758-01 2

11 Ground Screw 433304-02 1

12 Square Washer 433537-02 1

13 Spout 3A6554-01 1

13a Thumbscrew 415949G11 3

14 Lower Panel 2A0699G01 1

15 Grille 2A0827G01 1

16 Bin Cover 2A0880A02 1

16a Thumbscrew 415949G12 4

17 Drip Tray 2A2591G01 1

18 Auger 339192G01 1

19 Evaporator Bracket 3A6580-01 1

19a Hex Head Bolt w/Washer 5×10, SS 7B0230510 2

20 Agitator 3A0895G01 1

21 Top Panel 3A2514G01 1

22 Reservoir Bracket 3A5675-01 1

23 Ice Chute 4A2204-01 1

23a Thumbscrew 415949G08 2

24 Drain Pan 323765G01 1

25 Air Filter 208283G03 1

26 Louver 103121-03 2

27 Apron Panel DCM-300BAH 2A0720-01 1

DCM-300BAH-OS 3A3617G01 1

28 Ice Sensor Assembly DCM-300BAH-OS 4A3753G01 1

29 Water Sensor Assembly DCM-300BAH-OS 4A3753G02 1

30 Sensor Latch DCM-300BAH-OS 4A3848-01 2

30a Thumbscrew DCM-300BAH-OS 415949G10 2

31 Middle Front Frame DCM-300BAH 2A4748G01 1

DCM-300BAH-OS 2A2743G01 1

31a Taper Collar 4H0171-01 2

31b Flat Head Screw 4×12, SS 7C22-0412 2

Title: A. Ice Dispenser Assembly Model: DCM-300BAH, DCM-300BAH-OS

Index

No. Description

Material or

Model Number Part Number

Required Number

A-0

32 Dispense Mode Switch DCM-300BAH 4A0558-01 1

DCM-300BAH-OS 4A2957-01 1

33 Control Switch 4A1034-01 1

34 Safety Switch 4A5034-01 1

35 Front Panel Assembly

(includes items 36 and 37)

DCM-300BAH 3A4999A02 1

Front Panel DCM-300BAH-OS 2A2891-01 1

36 Push Switch Assembly

(includes item 37)

DCM-300BAH 3A4997A01 1

37 Push Switch DCM-300BAH 435745-02 2

38 Rear Panel 2A5403-01 1

39 Left Side Panel 2A6144-01 1

40 Right Side Panel 2A6143-02 1

1a 1b 1c

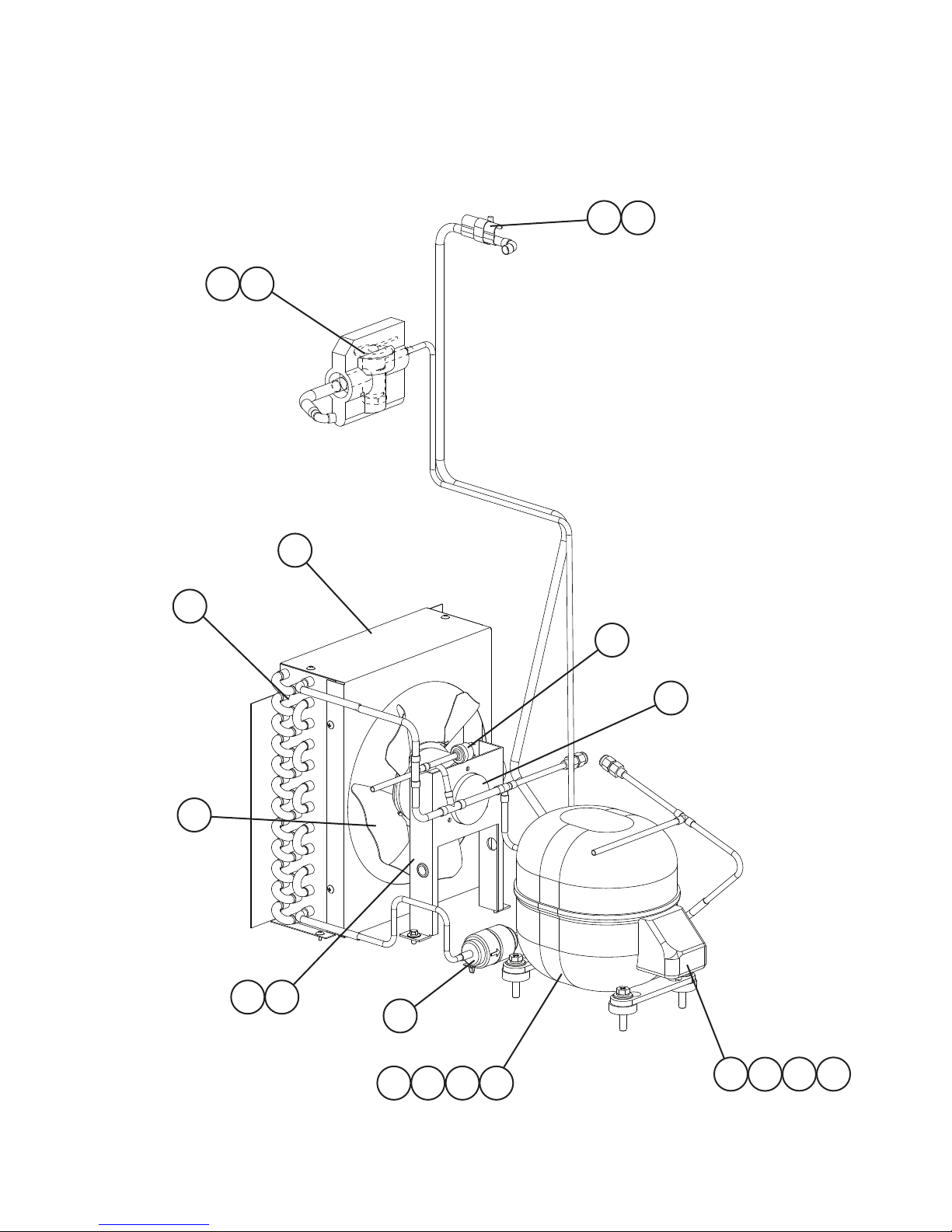

B. Refrigeration Circuit

DCM-300BAH, DCM-300BAH-OS

A-0

2 4

12 13

14 15

Title: B. Refrigeration Circuit Model: DCM-300BAH, DCM-300BAH-OS

Index

No. Description

Material or

Model Number Part Number

Required Number

A-0

Refrigeration Circuit

Order Assembly Parts Individually

2A6525A01 1

1 Compressor (includes items

2 through 5)

4A4614-01 1

1a Grommet 4A2281-01 4

1b Spacer 4A2282-01 4

1c Bolt 8×45 437889-01 4

2 Terminal Box 4A4614F01 1

3 Protector Retainer 4A4614F02 1

4 Protector 4A4614F03 1

5 Start Relay 4A4614F04 1

6 Condenser 2A0780-01 1

7 Fan Shroud 3A0715-01 1

8 Fan Motor Bracket 3A0716-01 1

8a Hex Head Bolt w/Washer 5×12, SS 7B0230512 2

9 Fan Motor 4A0815-01 1

10 Fan Blade 3A0608-01 1

11 Drier 4A1113-01 1

12 Expansion Valve 4A1117-01 1

13 Expansion Valve Cover 4A1168-01 1

14 Expansion Valve Bulb Holder 3A0107-01 1

15 Clamp 443461-01 1

16 High-Pressure Switch 463180-04 1

C. Ice Making Unit

DCM-300BAH, DCM-300BAH-OS

A-0

Title: C. Ice Making Unit Model: DCM-300BAH, DCM-300BAH-OS

Index

No. Description

Material or

Model Number Part Number

Required Number

A-0

Ice Making Unit

Order Assembly Parts Individually

3A6561A01 1

1 Gear Motor (for mounting

hardware, see section "A"

item 1)

2U0147-01 1

2 Auger 361013G01 1

3 Cutter 440905-01 1

4 Evaporator 2A3308G01 1

4a Split Lock Washer M6, SS 7L22-0600 4

4b Socket Head Cap Screw 6×10, SS 7S12-0610 4

5 Extruding Head 327141G01 1

5a Seal Bolt M8 P01768-01 3

5b Washer 453791-01 3

6 Housing 206013G03 1

6a Bolt 6×20, SS 4A1989-01 4

7 Mechanical Seal 432491-01 1

8 Ring 432494-01 1

9 Spline Coupling 418316-01 1

10 "O" Ring 4A4755-01 1
