Model U4001 Owners

Manual

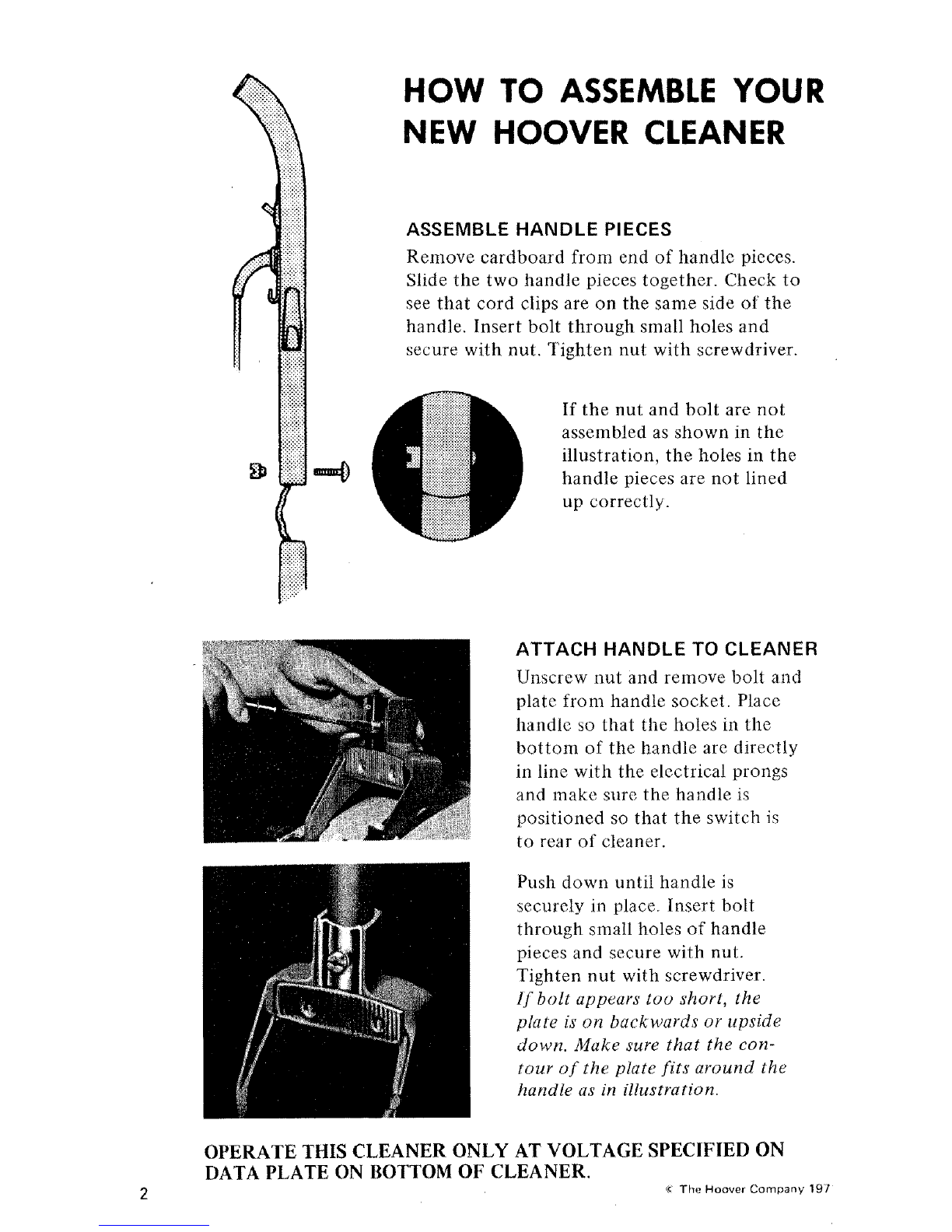

HOW TO ASSEMBLE YOUR

NEW HOOVER CLEANER

ASSEMBLE HANDLE PIECES

Remove cardboard from end of handle pieces.

Slide the two handle pieces together. Check to

see that cord clips are on the same side of the

handle. Insert bolt through small holes and

secure with nut. Tighten nut with screwdriver.

If the nut and bolt are not

assembled as shown in the

illustration, the holes in the

handle pieces are not lined

up correctly.

ATTACH HANDLE TO CLEANER

Unscrew nut and remove bolt and

plate from handle socket. Place

handle so that the holes in the

bottom of the handle are directly

in line with the electrical prongs

and make sure the handle is

positioned so that the switch is

to rear of cleaner.

Push down until handle is

securely in place. Insert bolt

through small holes of handle

pieces and secure with nut.

Tighten nut with screwdriver.

If boll appears' too short, the

plate is on backwards or upside

down. Make sure that the con-

tour of the plate fits around the

handle as in illustration.

OPERATE THIS CLEANER ONLY AT VOLTAGE SPECIFIED ON

DATA PLATE ON BOTTOM OF CLEANER.

(c The Hoover Company 197

HOW TO ATTACH OUTER

JACKET TO CLEANER

Place the two projections at the

bottom of the outer bag assembly

inside the wire loops at the back

of the cleaner. Pull the bag clip

to tile left and fit bag against

opening. When you release the

bag clip, make sure that it fits

completely over the bag lock.

Attach the spring to the support

hook, which is located on tile

handle.

HOW TO ATTACH THROW-

AWAY BAG TO CLEANER

Open the outer jacket and pull

out tube. Roll rubber bag

retainer down the tube toward

the cleaner. Slip the open end of

the throw-away bag onto tube and

push as [!ar back as possible. (Be

sure to match arrow or1 throw-away

bag with the 0 mark on the tube.)

Unroll the rubber bag retainer so

it holds bag firmly in place.

Grasp the pleats on each side of

the throw-away bag at dotted line

and pull out until entire dotted

line is visible. Place throw-

away bag inside the outer

jacket without folding and

close jacket.

After turning cleaner on, push

down on the handle until the

front of the cleaner is free

from the carpet. This insures

that the throw-away bag

is inflated.

To turn d.p,,

cleaner on, _ \

push switch \ \

down. To \

turn cleaner

off, pull the|

switch up. ._

HANDLE ADJUSTMENTS

The handle on your cleaner has three positions storage, operating,

and low (for reaching under low furniture). The handle can be

lowered by stepping on pedal at the left rear of cleaner. The handle

stiould always be in storage position when cleaning tools are used.

RUG ADJUSTMENTS

The rug adjustment lever located on the right

rear of the cleaner offers four different positions

for better cleaning on a wide range of carpet. The

four positions are: LOW, NORMAL, HIGH

and SHAG.

To select the desired rug position, tilt the cleaner

forward and adjust the lever until it "clicks"

into the desired position.

For best results the lever is conveniently adjusted

by hand.

Select the LOW setting for cleaning Indoor/Outdoor carpet. Notice that

the nozzle of the cleaner is flush with the carpet. For rugs of normal

pile height, select the NORMAL position. If the cleaner is difficult

to push, move the lever to the HIGH position. Choose the SHAG

position for cleaning very long or shag pile carpet.

Note: When removing loose dirt from hard surface floors, adjust the

cleaner to the NORMAL position. The LOW setting on the cleaner

lowers the nozzle to the carpet for effective cleaning of LOW carpet.

However, be certain to change the rug position when cleaning normal

or shag pile carpet, if the LOW setting is used when cleaning normal

or shag pile carpet, there is an increase in the belt load and pushing effort

is greatly increased.

WARNING: ELECTRIC SHOCK COULD OCCUR

IF USED OUTDOORS OR ON WET SURFACES.

DELUXE CLEANING SET: Vinyl Hose

and Converter, Telescoping Extension Wand,

Crevice Tool, Upholstery Nozzle, Dusting

Brush, and Bare Floor Brush.

STANDARD CLEANING SET:

Vinyl Hose and Converter,

Extension Wand, Crevice Tool,

and Upholstery Brush.

USING YOUR ATTACHMENTS

NOTE; When using tools, select SHAG RUG POSITION on cleaner.

You can convert your cleaner for use with the attachments in a matter of

seconds, and you will find a tool for almost every cleaning job in your

home.

The Upholstery Nozzle or Upholstery Brush conveniently cleans up-

holstered furniture, draperies, tapestries, mattresses, clothing, carpeted

stairs and automobile interiors. The Crevice Tool is most useful for hard-

to-reach areas, edges of wall-to-wall carpeting, between appliances and

crevices of wooden furniture.

STORING

ATTACHMENTS*

Your vinyl attachment kit has

been designed so that all of the

attachments plus the telescoping

wand can be packed inside. For

ease in storage, it can be hung

on the cord clip of the cleaner.

(The kit has two slots located

near the top for ease in hanging.)

Also it can be hung conveniently

on a hook in the closet.

*A vailable with Deluxe Set only.

TO CONNECT CONVERTER TO CLEANER

Tilt the cleaner so the underside is

visible. Insert the converter in the

track on the underside of the cleaner.

Push converter all the

way in to the red line.

It is not necessary to

remove the belt.

TELESCOPING WAND*

When you require extra length for

cleaning bare floors or hard to reach

places, attach the telescoping

extension wand. To lengthen the

wand, push in on the plastic latch

and extend wand until it locks itself

in place. To shorten, use opposite

procedure.

*Available with Deluxe Set only

MANY USES FOR CLEANING ATTACHMENTS

Vinyl Hose

Hose has vinyl jacket for long,

trouble-free life.

Floor Brush*

All hard floors and carpeted

stairs.

Upholstery Nozzle or

Upholstery Brush

Upholstered furniture, draperies,

tapestries, mattresses, clothing,

automobile interiors, carpeted

stairs.

Dusting Brush*

Carved furniture, table tops,

books, lamps, lighting fixtures,

Venetian blinds, shutters, registers,

baseboards.

Crevice Tool

Upholstered furniture, edges of

wall-to-wall carpeting, radiators,

dresser drawers, spaces between

kitchen equipment.

*A vail_tble with Deluxe Set only.

HOW TO CONNECT

ATTACHMENTS

To connect the cleaning

attachments to either the

telescoping wand or hose,

press down on the plastic

latch. (See illustration.) Fit

the attachment into place. Be

sure the button on the attach-

ment is locked in place. To

release, press down on plastic

spring latch and remove.

HELPFUL INSTRUCTIONS ON USING YOUR CLEANER

EASY TO CARRY. Your cleaner has a convenient carrying handle

located underneath the handle bail.

DON'T PICK UP HARD, SHARP OBJECTS. with the cleaner. They

may damage the belt, the moving parts, and the bag.

TAKE CARE OF THE CORD

1. Wind it loosely on cord hooks to avoid unnecessary strain.

2. Grasp the plug (not the cord) to disconnect from wall outlet as it

may cause damage to cord, plug, prongs or receptacle.

3. Don't run cleaner over cord it may damage insulation.

CLEANING YOUR ATTACHMENTS. To clean the hose wipe off dirt

with a cloth dampened with a liquid detergent. Use a damp cloth to

remove detergent. Cleaning attachments may be washed in warm water

with a detergent. Rinse and let dry before using.

CAUTION: Never turn the cleaner upside down or attempt to service

it in any manner while it is connected to the electrical outlet.

HOW TO USE YOUR CLEANER ON

LIGHTWEIGHT FLEXIBLE RUGS

Stand on one end of the rug and move cleaner toward other end.

Before reaching the other end, push down on the handle. This will

lift up the nozzle (front of cleaner) and will prevent the rug from

clinging to the cleaner. Continue to lift up the nozzle of the cleaner

when you have reached the end. Push down on the handle until tile

cleaner is completely off the rug. Move the cleaner back to start

again and lower the nozzle, using only forward strokes.

IF TROUBLE OCCURS. If the cleaner does not pick up surface dirt,

it is an indication that something is wrong. Here are some of the things

you should check before calling the service man.

1. CHECK BAG (SEE PAGES3 AND 9)

2. CHECK BELT (SEE PAGE 10)

3. CHECK AGITATOR BRUSHES (SEE PAGE 12)

4. CHECK RUG ADJUSTMENT (SEE PAGE 4)

If you need further help, call your Hoover Service Station or Hoover

Dealer.

NOTE: Disconnect cord before replacing parts.

THE BAG

Your Hoover cleaner has a durable outer jacket which covers the

throw-away bag. A light wiping with a damp cloth will keep this

outer jacket clean.

To assure that your Hoover cleaner operates at peak performance

it is imperative that you use only genuine Hoover throw-away

filter bags made by The Hoover Company. Genuine Hoover bags

can be identified by the Hoover Medallion. These

bags are made from special material which is

scientifically formulated to filter out dust while

allowing air to flow through freely.

WHEN TO REPLACE

Check the bag from time to time. When dirt reaches the dotted

line printed on the throw-away bag, the bag should be changed.

If you let more dirt than this accumulate, your cleaner will not

operate efficiently. Discard used bag.

CAUTION: Very fine materials, such as face powder, cornstarch,

fireplace ashes or fireplace soot, may seal the throw-away bag and

may cause it to burst even though it is only partially full of dirt.

When the cleaner is used to remove material of this nature, the bag

should be changed frequently.

WHERE TO BUY BAGS

Bags may be purchased from your local Authorized Hoover Deal-

er, or from Hoover Factory Service Stations listed on the white

insert.

WHEN ORDERING BAGS BE SURE TO MENTION THE MODEL

OF YOUR CLEANER. This is located on the bottom side of the

main casting at the opening where the

cleaning tool converter is inserted.

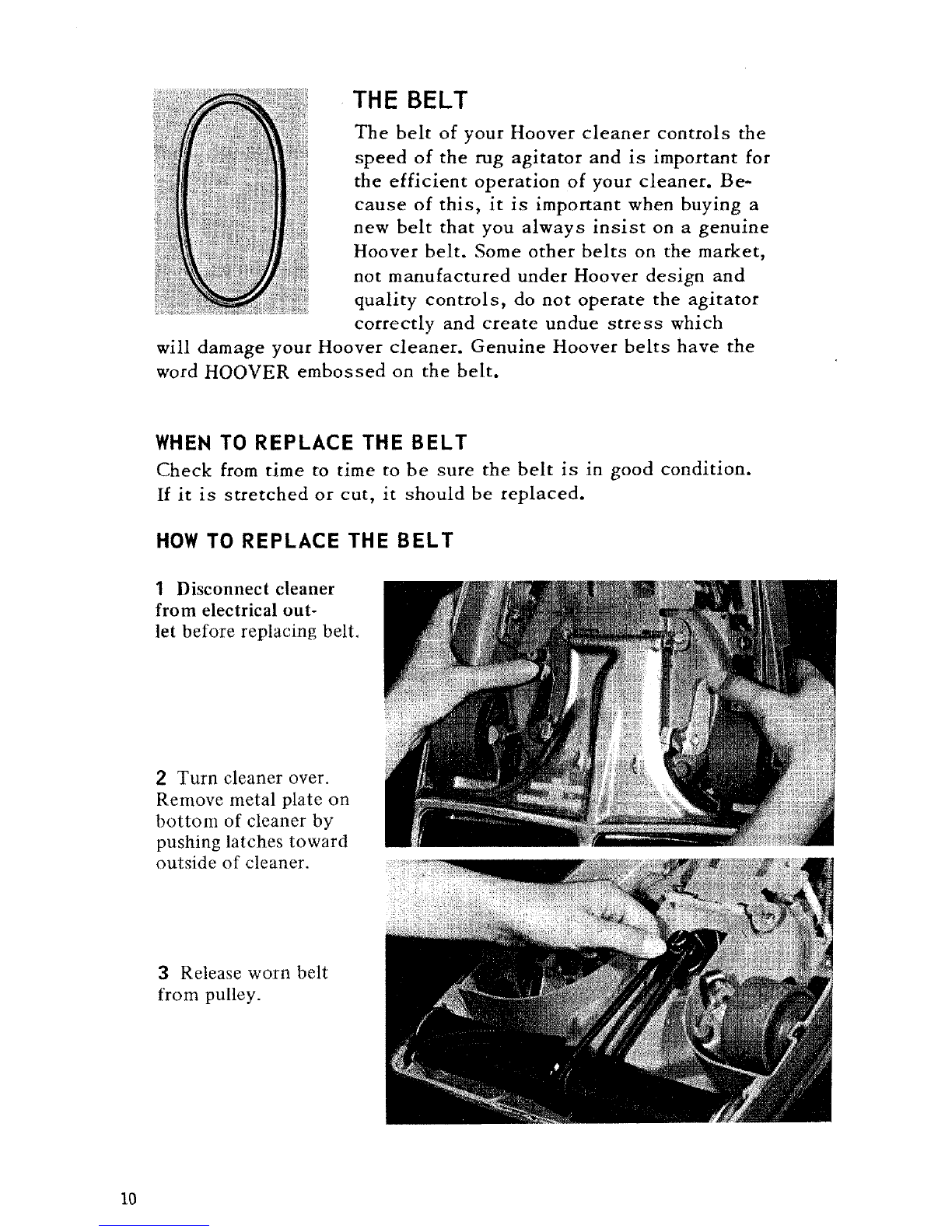

THE BELT

The belt of your Hoover cleaner controls the

speed of the rug agitator and is important for

the efficient operation of your cleaner. Be-

cause of this, it is important when buying a

new belt that you always insist on a genuine

Hoover belt. Some other belts on the market,

not manufactured under Hoover design and

quality controls, do not operate the agitator

correctly and create undue stress which

will damage your Hoover cleaner. Genuine Hoover belts have the

word HOOVER embossed on the belt.

WHEN TO REPLACE THE BELT

Check from time to time to be sure the belt is in good condition.

If it is stretched or cut, it should be replaced.

HOW TO REPLACE THE BELT

1Disconnect cleaner

from electrical out-

let before replacing belt.

2Turn cleaner over.

Remove metal plate on

bottom of cleaner by

pushing latches toward

outside of cleaner.

3Release worn belt

from pulley.

Autres manuels Hoover Aspirateur

Hoover

Hoover Commercial Lightweight Cleaner with Dirt Cup Manuel utilisateur

Hoover

Hoover FH40160 Manuel utilisateur

Hoover

Hoover FloorMATE FloorMATETM The Hard Floor Cleaner Manuel utilisateur

Hoover

Hoover Jive Manuel utilisateur

Hoover

Hoover SH40080 Manuel utilisateur

Hoover

Hoover Zoom Pet Manuel utilisateur

Hoover

Hoover FH40005 Manuel utilisateur

Hoover

Hoover SteamVac Widepath Manuel utilisateur

Hoover

Hoover Jovis Plus Manuel utilisateur

Hoover

Hoover DS22PTG Manuel utilisateur

Hoover

Hoover freemotion Manuel utilisateur

Hoover

Hoover LiNX BH50005 Manuel utilisateur

Hoover

Hoover Studio Manuel utilisateur

Hoover

Hoover DF71DV08011 Manuel utilisateur

Hoover

Hoover VR81VR02001 Manuel utilisateur

Hoover

Hoover Space Explorer Manuel utilisateur

Hoover

Hoover SteamVac F7412-900 Manuel utilisateur

Hoover

Hoover Soft Guard C1404 Manuel utilisateur

Hoover

Hoover AP-12 1200W Manuel utilisateur

Hoover

Hoover RC71 Manuel utilisateur

Hoover

Hoover 3000 PERFORMER Manuel utilisateur

Hoover

Hoover BH70705 Manuel utilisateur

Hoover

Hoover Legacy Supreme S2200 Manuel utilisateur

Hoover

Hoover UH40155 Manuel utilisateur

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Oreck

Oreck Cordless Captura BK51700 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur
