Hoover Convertible U4345 Manuel utilisateur

nvertible

" I

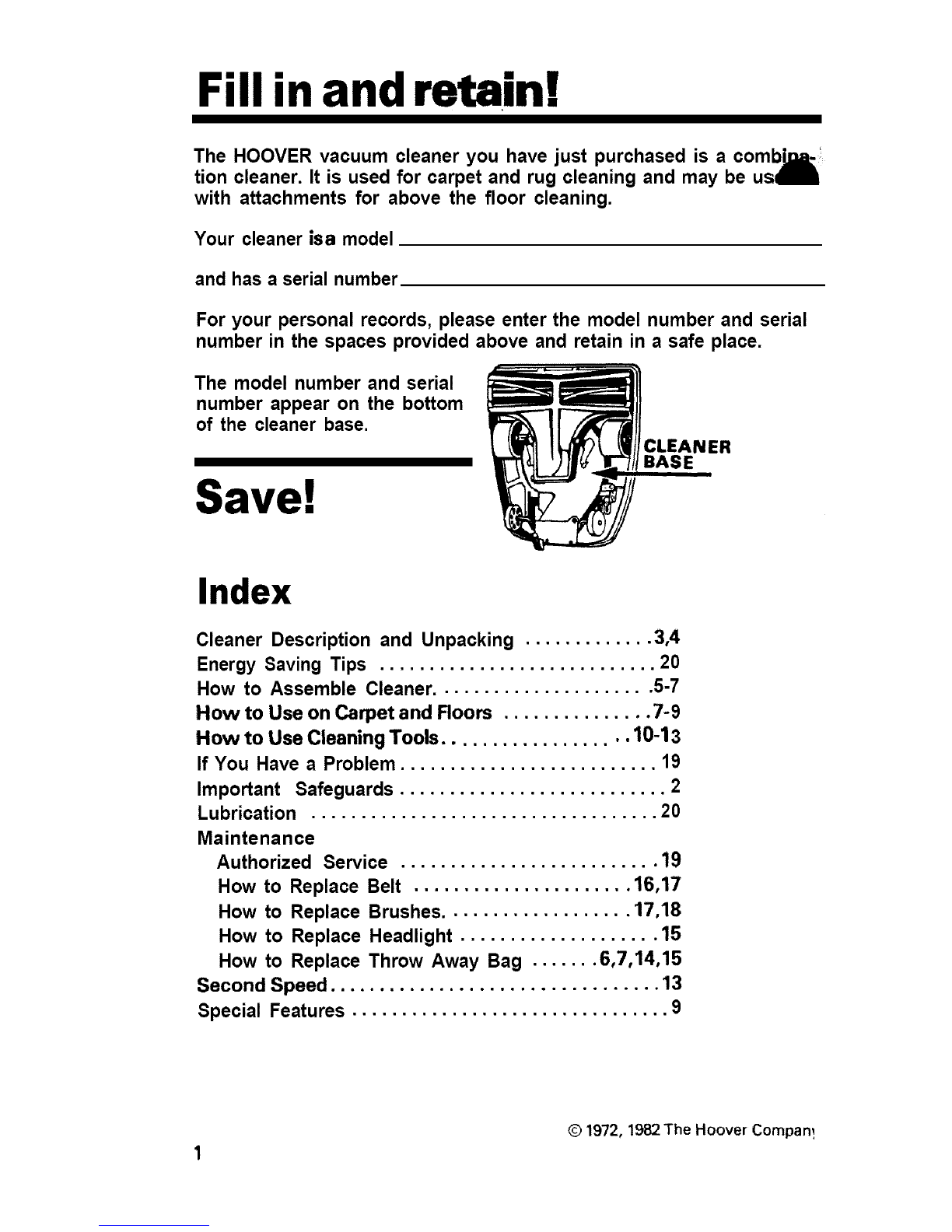

Fill in and retain.

The HOOVER vacuum cleaner you have just purchased is a com

tion cleaner. It is used for carpet and rug cleaning and may be

with attachments for above the floor cleaning.

Your cleaner isa model

and has a serial number

For your personal records, please enter the model number and serial

number in the spaces provided above and retain in a safe place.

The model number and serial

number appear on the bottom

of the cleaner base.

Save!

CLEANER

BASE

Index

Cleaner Description and Unpacking ............. 3,4

Energy Saving Tips ............................ 20

How to Assemble Cleaner ...................... 5-7

How to Use on Carpet and Roore ............... 7-9

How to Use Cleaning Tools ................. ,. 10-13

If You Have a Problem .......................... 19

Important Safeguards ........................... 2

Lubrication ................................... 20

Maintenance

Authorized Service .......................... i9

How to Replace Belt ...................... 16,17

How to Replace Brushes ................... 17,18

How to Replace Headlight .................... 15

How to Replace Throw Away Bag ....... 6,7,14,15

Second Speed ................................. 13

Special Features ................................ 9

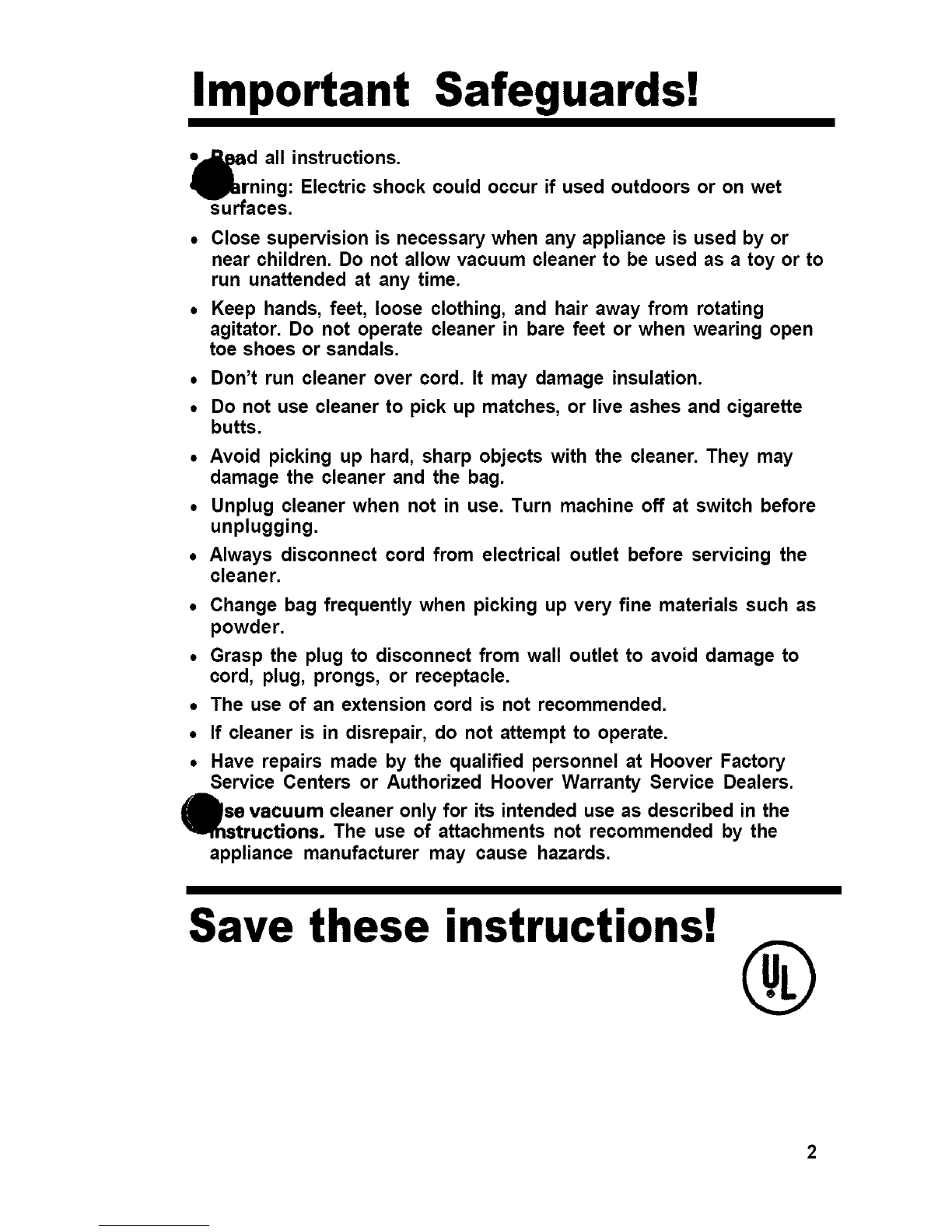

Important Safeguards!

_r d all instructions.

ning: Electric shock could occur if used outdoors or on wet

surfaces.

•Close supervision is necessary when any appliance is used by or

near children, Do not allow vacuum cleaner to be used as a toy or to

run unattended at any time,

• Keep hands, feet, loose clothing, and hair away from rotating

agitator. Do not operate cleaner in bare feet or when wearing open

toe shoes or sandals.

•Don't run cleaner over cord. It may damage insulation.

•Do not use cleaner to pick up matches, or live ashes and cigarette

butts.

•Avoid picking up hard, sharp objects with the cleaner. They may

damage the cleaner and the bag.

•Unplug cleaner when not in use. Turn machine off at switch before

unplugging,

• Always disconnect cord from electrical outlet before servicing the

cleaner.

•Change bag frequently when picking up very fine materials such as

powder.

•Grasp the plug to disconnect from wall outlet to avoid damage to

cord, plug, prongs, or receptacle.

•The use of an extension cord is not recommended.

• If cleaner is in disrepair, do not attempt to operate.

• Have repairs made by the qualified personnel at Hoover Factory

Service Centers or Authorized Hoover Warranty Service Dealers.

se vacuum cleaner only for its intended use as described in the

structions. The use of attachments not recommended by the

appliance manufacturer may cause hazards.

Save these instructions!

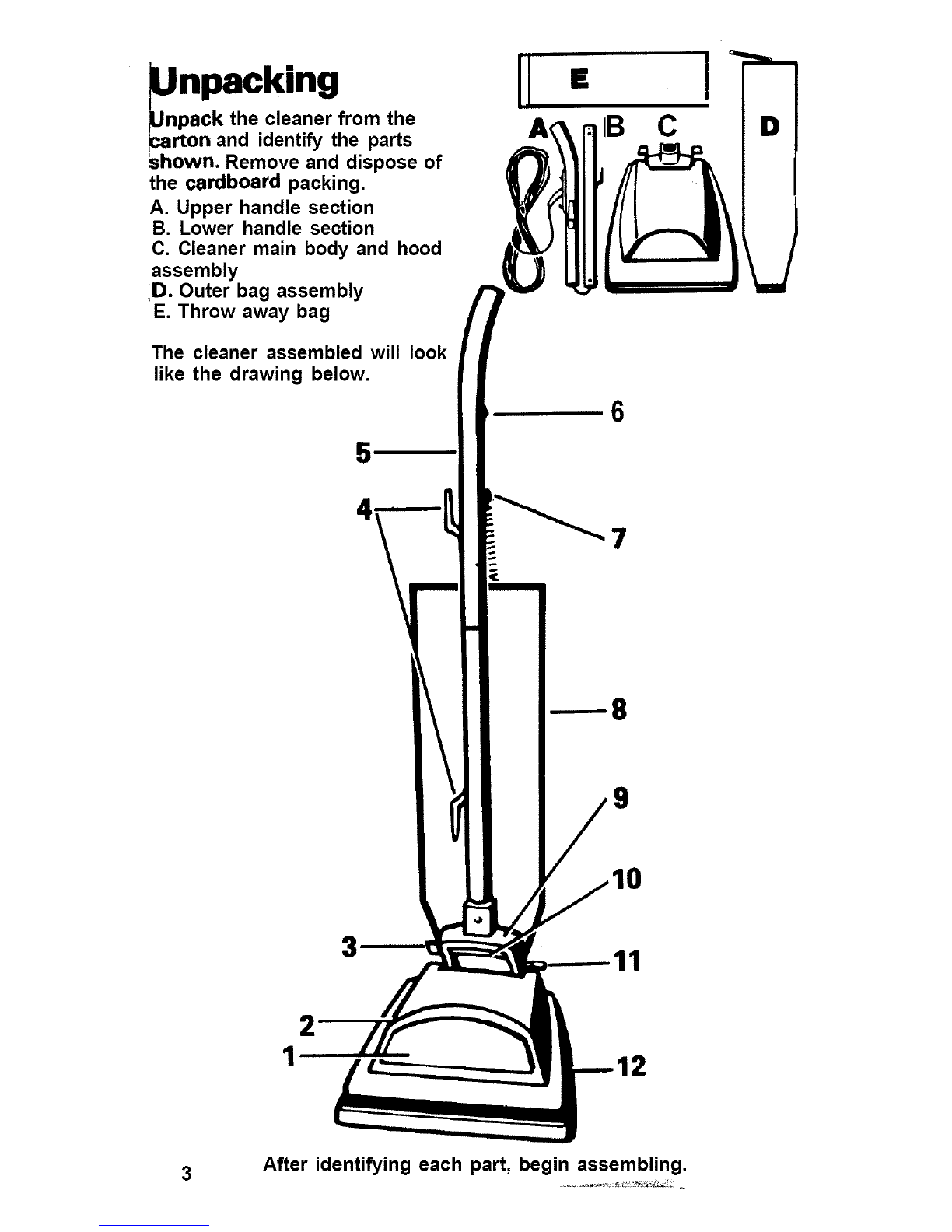

Unpacking

_Unpack the cleaner from the

_icp.rton and identify the parts

shown. Remove and dispose of

the cardboard packing,

A. Upper handle section

B, Lower handle section

C, Cleaner main body and hood

assembly

D- Outer bag assembly

E. Throw away bag

The cleaner assembled will look

like the drawing below.

311

112

3 After identifying each part, begin assembling.

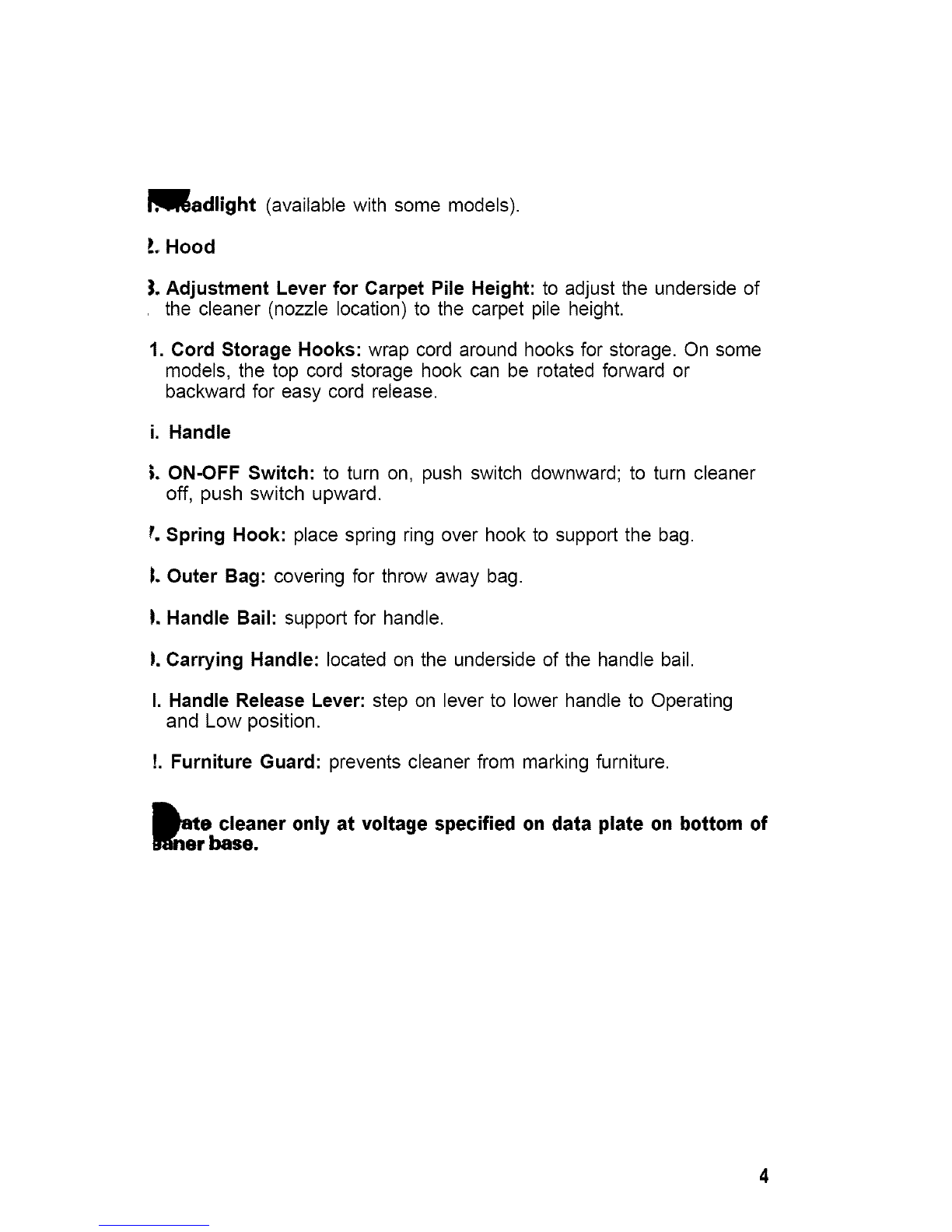

I_adlight (available with some models).

!. Hood

3. Adjustment Lever for Carpet Pile Height: to adjust the underside of

the cleaner (nozzle location) to the carpet pile height.

1. Cord Storage Hooks: wrap cord around hooks for storage. On some

models, the top cord storage hook can be rotated forward or

backward for easy cord release.

i. Handle

i. ON-OFF Switch: to turn on, push switch downward; to turn cleaner

off, push switch upward.

t, Spring Hook: place spring ring over hook to support the bag.

i. Outer Bag: covering for throw away bag.

!. Handle Bail: support for handle.

1.Carrying Handle: located on the underside of the handle bail.

I. Handle Release Lever: step on lever to lower handle to Operating

and Low position.

!. Furniture Guard: prevents cleaner from marking furniture.

tre cleaner only at voltage specified on data plate on bottom of

base.

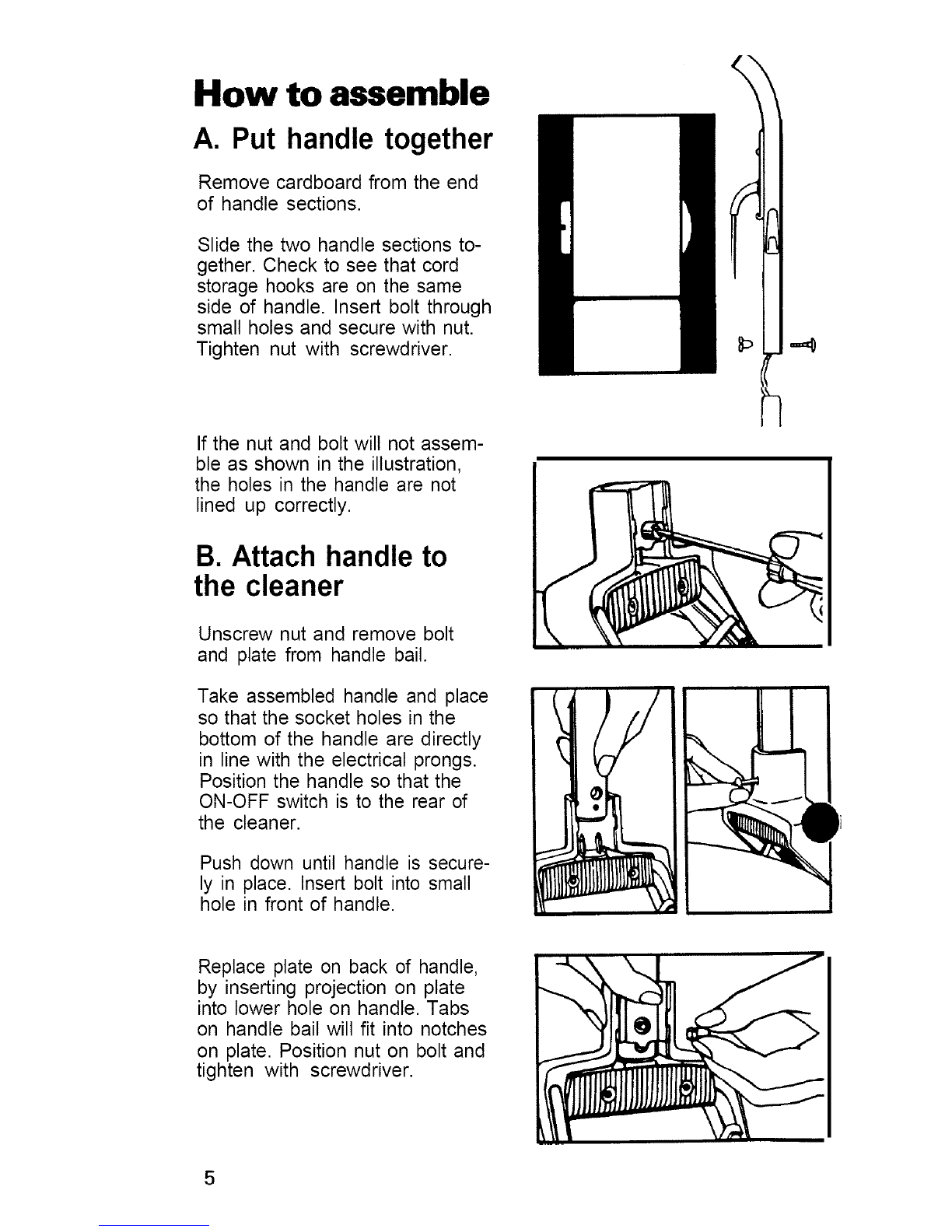

How to assemble

A. Put handle together

Remove cardboard from the end

of handle sections.

Slide the two handle sections to-

gether. Check to see that cord

storage hooks are on the same

side of handle. Insert bolt through

small holes and secure with nut.

Tighten nut with screwdriver.

If the nut and bolt will not assem-

ble as shown in the illustration,

the holes in the handle are not

lined up correctly.

B. Attach handleto

the cleaner

Unscrew nut and remove bolt

and plate from handle bail.

Take assembled handle and place

so that the socket holes in the

bottom of the handle are directly

in line with the electrical prongs.

Position the handle so that the

ON-OFF switch is to the rear of

the cleaner.

Push down until handle is secure-

ly in place. Insert bolt into small

hole in front of handle.

Replace plate on back of handle,

by inserting projection on plate

into lower hole on handle. Tabs

on handle bail will fit into notches

on plate. Position nut on bolt and

tighten with screwdriver.

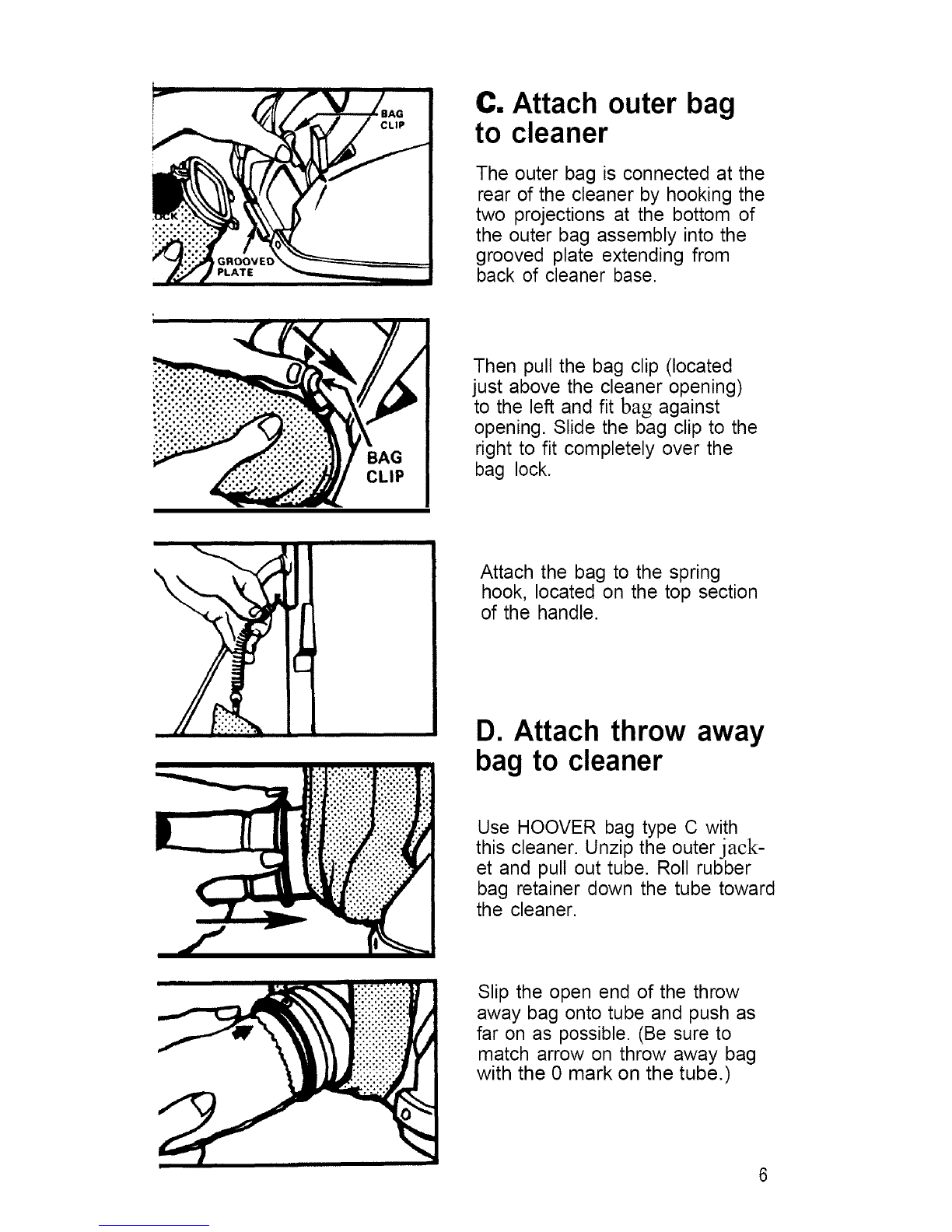

C, Attach outer bag

to cleaner

The outer bag is connected at the

rear of the cleaner by hooking the

two projections at the bottom of

the outer bag assembly into the

grooved plate extending from

back of cleaner base.

BAG

CLIP

Then pull the bag clip (located

just above the cleaner opening)

to the left and fit bag against

opening. Slide the bag clip to the

right to fit completely over the

bag lock.

\Attach the bag to the spring

hook, located on the top section

of the handle.

D. Attach throw away

bag to cleaner

Use HOOVER bag type C with

this cleaner. Unzip the outer jack-

et and pull out tube. Roll rubber

bag retainer down the tube toward

the cleaner.

Slip the open end of the throw

away bag onto tube and push as

far on as possible. (Be sure to

match arrow on throw away bag

with the 0 mark on the tube.)

Unroll the rubber bag retainer so it

holds bag firmly in place. Grasp

the pleats on each side of the

throw away bag at dotted line

and pull out until entire dotted

line is visible. Place throw away

bag inside the outer jacket with-

out folding and zip jacket.

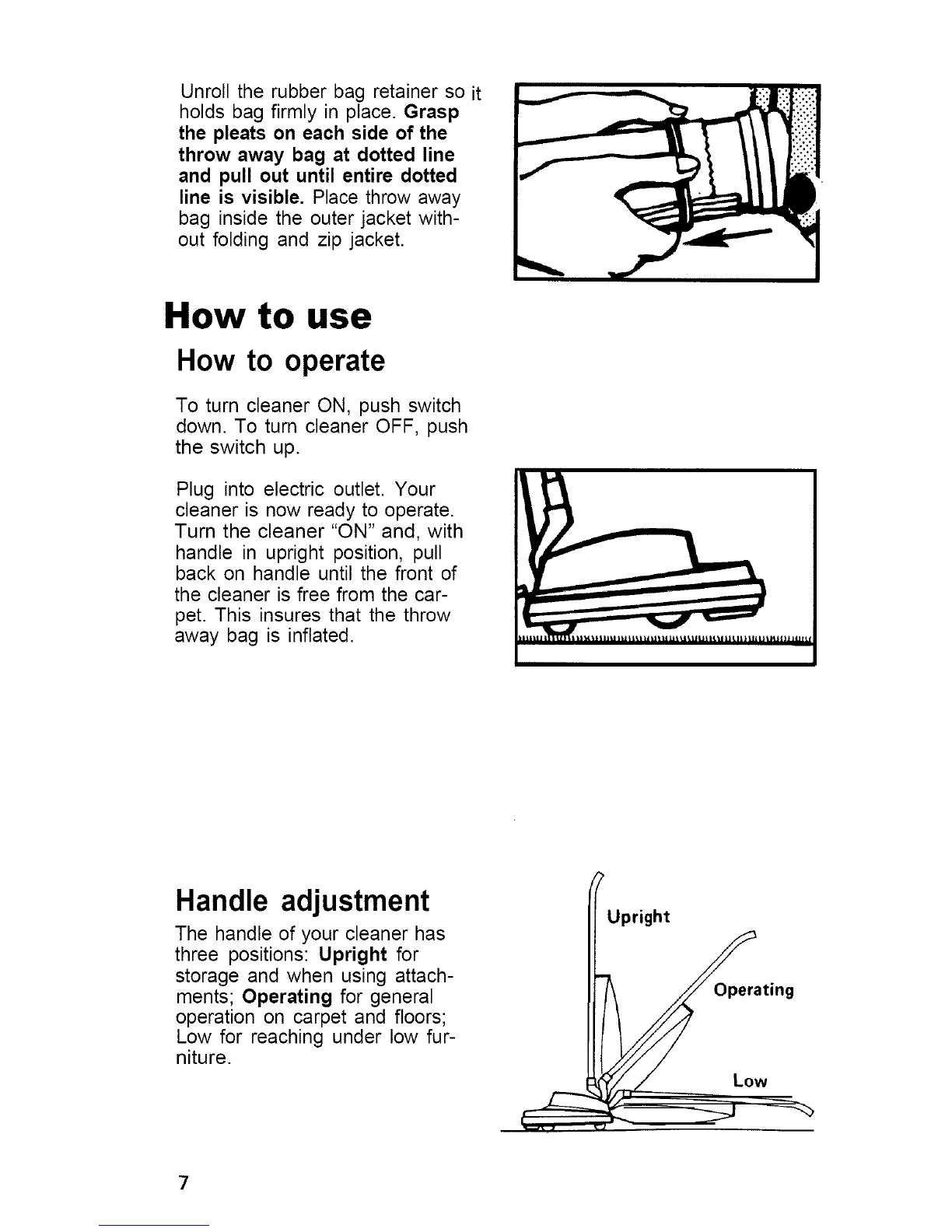

How to use

How to operate

To turn cleaner ON, push switch

down. To turn cleaner OFF, push

the switch up.

Plug into electric outlet. Your

cleaner is now ready to operate.

Turn the cleaner "ON" and, with

handle in upright position, pull

back on handle until the front of

the cleaner is free from the car-

pet. This insures that the throw

away bag is inflated.

Handle adjustment /i u

The handle of your cleaner has pright

II _

three positions: Upright for II J/

storage and when using attach-

ments; Operating for general ting

operation on carpet and floors;

Low for reaching under low fur-

niture.

NOZZLE

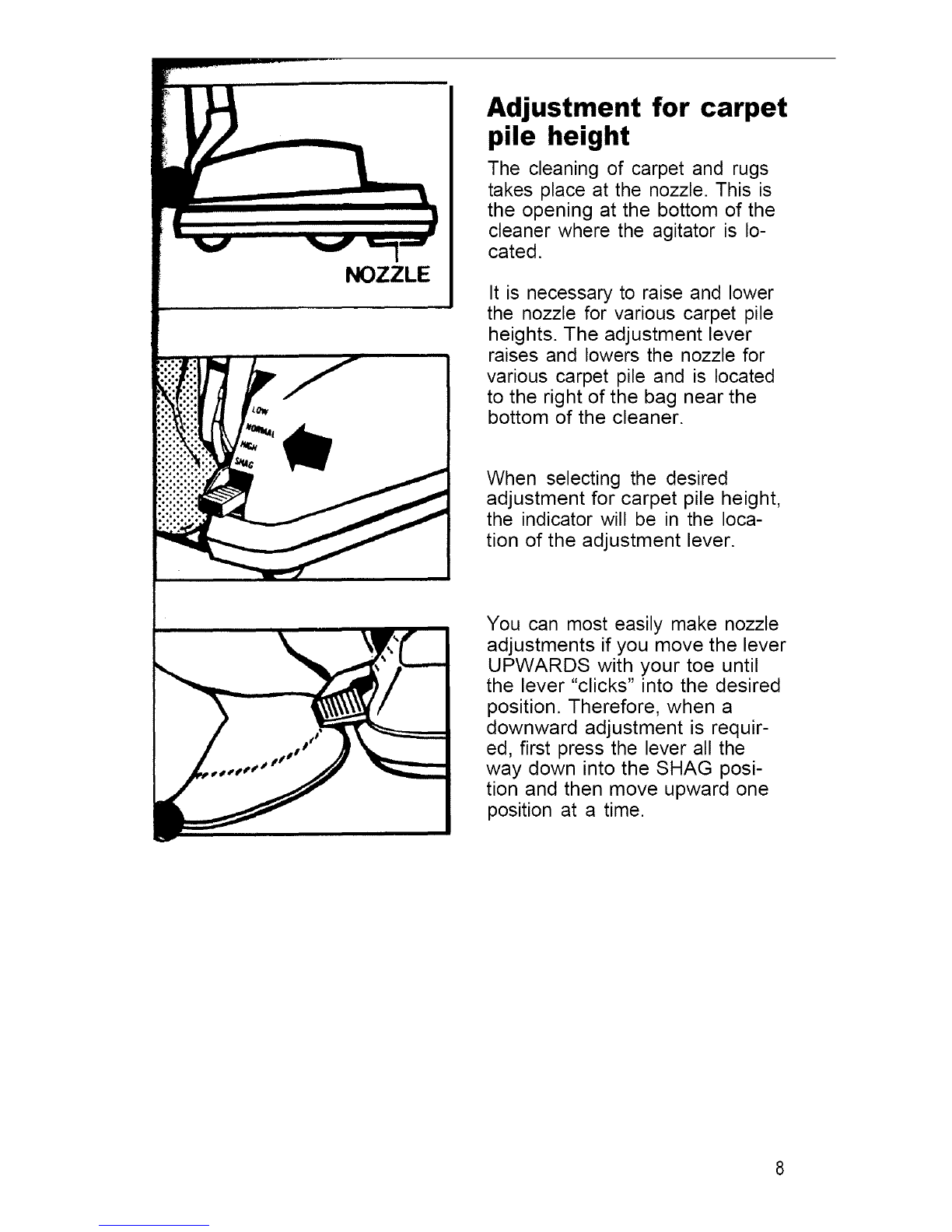

Adjustment for carpet

pile height

The cleaning of carpet and rugs

takes place at the nozzle. This is

the opening at the bottom of the

cleaner where the agitator is lo-

cated.

It is necessary to raise and lower

the nozzle for various carpet pile

heights. The adjustment lever

raises and lowers the nozzle for

various carpet pile and is located

to the right of the bag near the

bottom of the cleaner.

When selecting the desired

adjustment for carpet pile height,

the indicator will be in the loca-

tion of the adjustment lever.

You can most easily make nozzle

adjustments if you move the lever

UPWARDS with your toe until

the lever "clicks" into the desired

position. Therefore, when a

downward adjustment is requir-

ed, first press the lever all the

way down into the SHAG posi-

tion and then move upward one

position at a time.

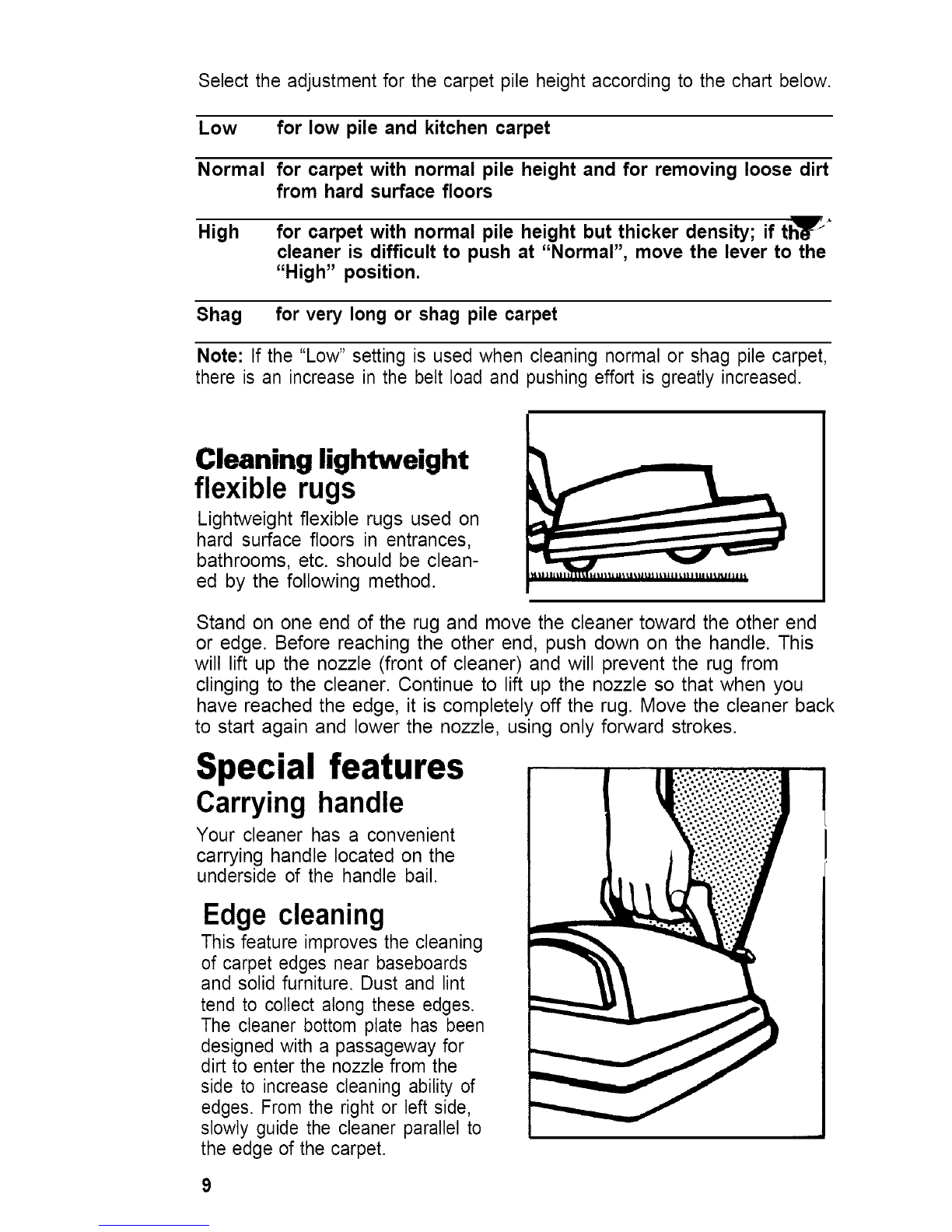

Select the adjustmentfor the carpet pile height according to the chart below.

Low for low pile and kitchen carpet

Normal for carpet with normal pile height and for removing loose dirt

from hard surface floors

High for carpet with normal pile height but thicker density; if th'lr"

cleaner is difficult to push at "Normal", move the lever to the

"High" position.

Shag for very long or shag pile carpet

Note: If the "Low" setting is used when cleaning normal or shag pile carpet,

there is an increase in the belt load and pushing effort is greatly increased.

Cleaning lightweight

flexible rugs

Lightweight flexible rugs used on

hard surface floors in entrances,

bathrooms, etc. should be clean-

ed by the following method.

Stand on one end of the rug and move the cleaner toward the other end

or edge. Before reaching the other end, push down on the handle. This

will lift up the nozzle (front of cleaner) and will prevent the rug from

clinging to the cleaner. Continue to lift up the nozzle so that when you

have reached the edge, it is completely off the rug. Move the cleaner back

to start again and lower the nozzle, using only forward strokes.

Special features

Carrying handle

Your cleaner has a convenient

carrying handle located on the

underside of the handle bail.

Edge cleaning

This feature improves the cleaning

of carpet edges near baseboards

and solid furniture. Dust and lint

tend to collect along these edges.

The cleaner bottom plate has been

designed with a passageway for

dirt to enter the nozzle from the

side to increase cleaning ability of

edges. From the right or left side,

slowly guide the cleaner parallel to

the edge of the carpet.
