EN0R 8439 R0

ST699

ELECTRONIC DUAL

ZONE TIMER

PRODUCT DATA

The ST699 electronic dual zone timer

is used to control gravity, primary or

fully pumped central heating systems

requiring a single 24 hour programme

with two ON/OFF periods per day.

ST699 incorporates a simple and

intuitive programming concept which

established its predecessor as the

leading electronic dual zone timer on

the market.

ST699 is designed for European CEN

approval.

FEATURES

•24-hour programme

•Independent heating and hot water channels

•One or Two ON/OFF periods per day

•Built-in programme

•Temporary programme override/advance

•7-day battery back-up

•Compact size

•AM/PM or 24 hour clock format (factory option)

•

Wallplate compatibility with 7-day version (ST799)

•10 minute programme resolution

•3 A resistive/inductive (@ 0.6 pf) 230 V~ SPDT relay

rating

•Simple/intuitive programming

•Surface or wallbox mounting options

•Pack contains everything for immediate installation

Honeywell

ST699 ELECTRONIC DUAL ZONE TIMER

EN0R 8439 R0 2

DIMENSIONS

Mounting

Remove the subbase from the timer by depressing the

securing clip A and pulling the two halves apart. See fig. 1

The ST699 can either be mounted onto the wall surface or a

flush mounted UA1 (with 60.3 mm pitch mounting holes)

using the screws supplied.

IMPORTANT

1. The installer must be a trained service

engineer

2. Disconnect the power supply before beginning

installation

INSTALLATION

SPECIFICATIONS

Product type

Electronic dual zone timer

Power supply :230 V~ (±10%), 50 HZ

Power reserve :Rechargeable battery with 7 days

backup following a 24 hour charging

period

Switch rating :2 x SPDT potential free

3 A resistive @ 230 V~ (± 10%), 50 Hz

3 A inductive @ 0.6 pf

Programme :24-hour with two ON/OFF periods daily

Programme

resolution :10 minutes

Programme day

03.00 AM to 02.50 AM (on the next day)

Override :Advance next programme time

(change)

Wiring

Surface or single

wallbox (UA1 size)

Wiring access

Rear or bottom edge (surface wiring

access)

Wire gauge :0.75 to 2.5 mm2two max. per terminal

Dimensions :100 x 100 x 38 mm (w x h x d)

Protection class

:IP20 (IEC 529)

Environmental :Operating temperature range 0 to 45oC

Shipping and storage temperature

range -20 to 55oC

Humidity range 0 to 90% rh, non-

condensing

Approvals :Designed to meet European CEN

approval EN60730

Life :7 years minimum

Fig. 1

ORDERING SPECIFICATION

ST699B1002

ST699 ELECTRONIC DUAL ZONE TIMER

3EN0R 8439 R0

ROOM

THERMOSTAT

BOILER

PUMP

CLOCK

ST699

FUSE

WIRING

Cable entries can be made through the opening in the rear of

the subbase, or via the three surface entry break-outs in the

top and two sides of the wallplate. See fig. 2

The ST699 is designed for fixed wiring only and must be

wired in accordance with the latest IEE wiring regulations.

Ensure the wiring connections to the mains supply is via a

fuse rated at not more than 3 A and a Class "A" switch

(having contact separation of at least 3 mm in all poles).

Remove the terminal cover to allow access to the wiring

terminals as shown in fig.2. Connect the systems wiring as

shown by the specific applications wiring diagram. A

maximum of two 2.5 mm2(cross sectional area) wires can be

connected to each terminal as shown in fig.3. Each wire

should be stripped of insulation to a length no greater than

7mm to safeguard against the possibility of electrical shorts.

Fig. 2

*A link must be provided between L-5-8 on the subbase of

ST699 for all Sundial Plans, or fully controlled pumped

primary systems

Fig. 3

Basic System 3 - as System 2 except boiler cycling

controlled by room thermostat when DHW is switched

OFF

Systems Wiring

DHW OFF

DHW ON

CLOCK

Basic Wiring CH OFF

CH ON

ST699

CLOCK

Basic System 1 - without thermostats

BOILER

PUMP

ST699

CLOCK

ROOM

THERMOSTAT

BOILER

PUMP

Basic System 2 - with room thermostat

ST699

i 7

max.

L------------------~

-----1---------,E

~-Nill

.----+--t--------i

'---'---~

L------------------~

230

V-

50 Hz

230

V-

50 Hz

.------+--------,E

.-------1

ill

.----+--t--------J

'---'----'

'---I--...-----:---__

__________________

•

-----1---------,E

ill

.----+--t--------i

'---'----

I I

__________________

•

;----.__L

230

V-

50 Hz

230

V-

50 Hz

ST699 ELECTRONIC DUAL ZONE TIMER

Honeywell Control Systems Limited Helping You Control Your World

Newhouse Industrial Estate

Motherwell ML1 5SB

United Kingdom

EN0R 8439 R0

NOTE:

In the Sundial S, W, and Y Plan wiring diagrams,

connections are shown to basic boilers only. For

wiring connections to pump overrun boilers refer to

boiler manufacturers instructions or Honeywell for

assistance.

Final Assembly

When the wiring is completed, replace the terminal cover

ensuring it is correctly installed with ends located under the

tabs and the locking pin through the locating hole.

Replace the timer onto the wallplate, ensuring it is firmly

secured by the three securing clips.

Switch on the power and refer to the user's guide for

programming details.

If the display remains blank, press the RESET button

with a blunt object. (e.g. a pencil)

C-Plan

ROOM STAT.

CYLINDER

STAT. MID-POSITION VALVE

BOILER

PUMP

CLOCK

3 A max

ST699

Y-Plan

ST699

W-Plan

T6360/T4360

ROOM STAT.

L641

CYLINDER

STAT.

V4044

DIVERTING VALVE

BOILER

PUMP

CLOCK

3 A max

ST699

T6360/T4360

ROOM STAT.

L641

CYLINDER

STAT.

V4043H

2 PORT ZONE VALVE

BOILER

PUMP

CLOCK

3 A max

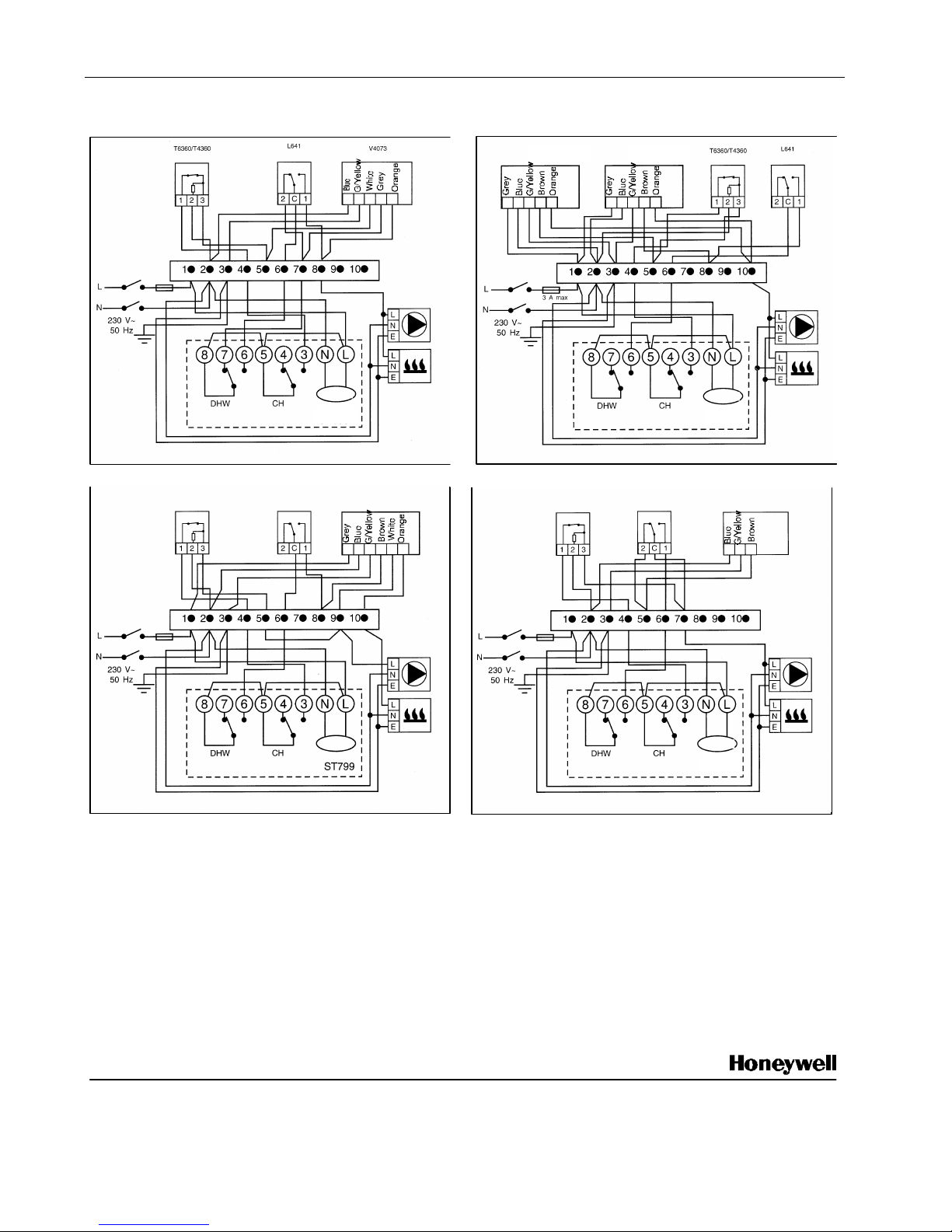

SUNDIAL PLAN WIRING DIAGRAMS

S-Plan

HEATING

HOT

WATER

BOILER

PUMP

CLOCK

ST699

V4043H

2 PORT ZONE VALVE

V4043H

2 PORT ZONE VALVE

ROOM STAT.

CYLINDER

STAT.

T6360/T4360

L641

I I

__________________

•

V4073 T6360/T4360

I I

-------------------~

230

V-

·~~~;t~~~~~~~t+---:!::::=~F7-t--

) I

I I

__________________

L641

Honeywell
