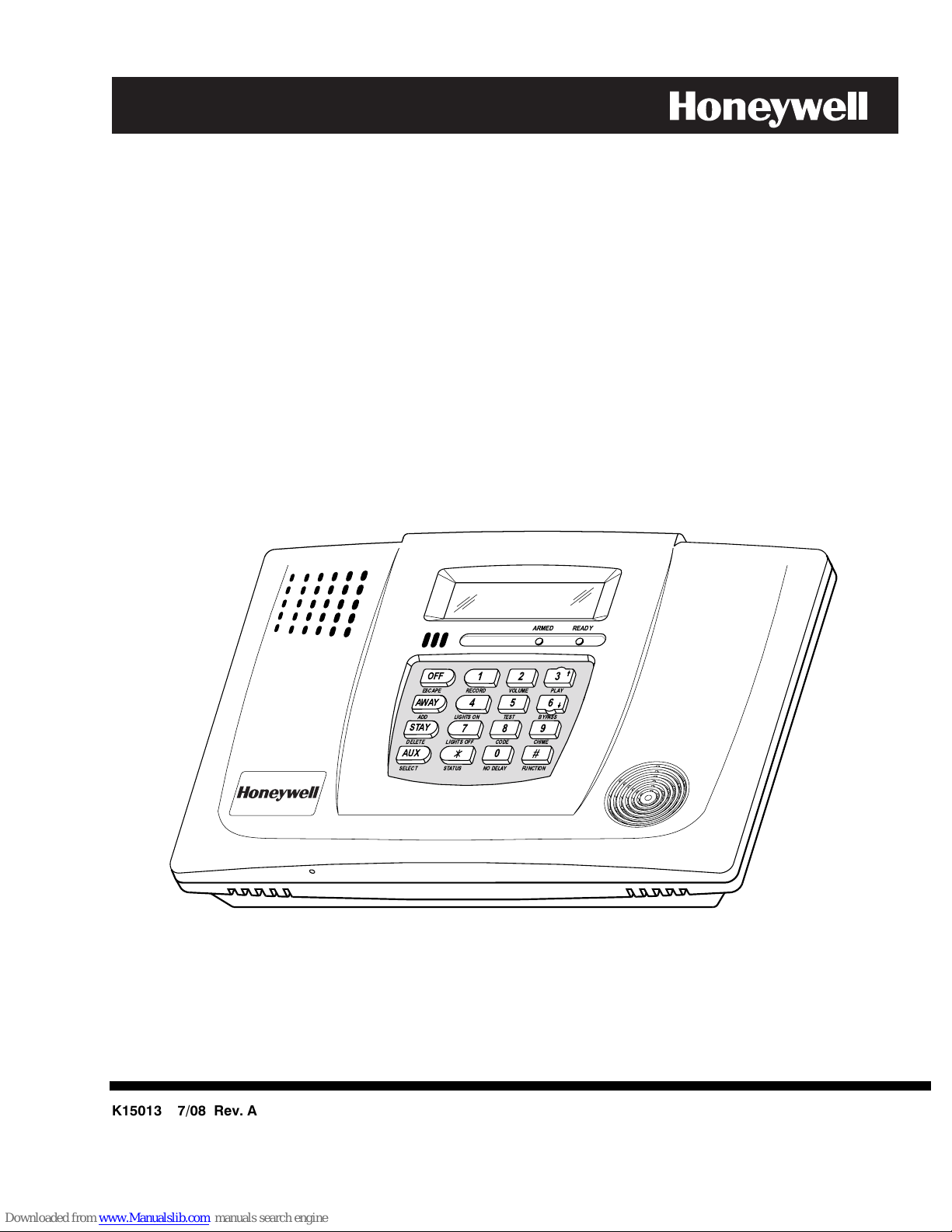

Honeywell LYNXR-2 Series Security System Mode d'emploi

LYNXR-2

Security Systems

Programming Guide

ARMED READY

BYPASS

NO DELAY

RECORD

TEST

FUNCTION

STATUS

VOLUME PLAY

CODE

LIGHTS ON

LIGHTS OFF CHIME

ESCAPE

ADD

DELETE

SELECT

OFF

123

AWAY

AUX

STAY

789

K15013 7/08 Rev. A

- 2 -

TABLE OF CONTENTS

Data Fields................................................................................................................................................................3

✻56 Enhanced Zone Programming........................................................................................................................11

✻80 Device Programming.......................................................................................................................................13

✻81 Zone Lists........................................................................................................................................................14

✻83 Enhanced Sequential Mode ...........................................................................................................................15

✻84 Assign Zone Voice Descriptors.......................................................................................................................16

Vocabulary Index (for ✻84 Assign Zone Voice Descriptors) ..................................................................................16

✻85 Record Custom Voice Descriptors..................................................................................................................18

✻56 Enhanced Zone Programming Worksheet......................................................................................................18

Powerline Carrier Device Worksheet for ✻80 and ✻81...........................................................................................20

5800 Series Transmitter Loop Numbers Diagram ..................................................................................................21

Special Messages...................................................................................................................................................22

LYNXR-2 Summary of Connections Diagram.........................................................................................................23

Refer to the Installation and Setup Guide for detailed information on programming the LYNXR-2 system. The

Installation and Setup Guide includes full descriptions of all data fields.

ULLYNXR-2 is not intended for UL985 Household Fire applications unless a 24-hour backup battery

(P/N LYNXRCHKIT-HC or LYNXRCHKIT-SHA) is installed.

TO ENTER PROGRAMMING MODE:

1. Power up, then depress [✻

✻✻

✻] and [#] both at once, within 50 seconds of powering up.

2. For factory defaulted system, enter: Installer Code (4 + 1 + 1 + 2) plus 8 + 0 + 0. OR

If different Installer Code is programmed, enter: New Installer Code + 8 + 0 + 0.

(if ✻98 was used to exit previously, method 1 above must be used to enter the program mode again)

3. Upon entry into Program mode, data field ✻20 will be displayed (the first data field in the system) and both

keypad LEDs will flash.

TO PROGRAM THE DATA FIELDS:

1. Press [✻] followed by the desired field number (e.g., ✻21), then make the required entry.

2. The keypad beeps three times after entering data, then displays the next data field in sequence.

3. For phone number and account number fields, press [✻] to end the entry if less than number maximum

number of digits is entered.

4. To delete an entry, simply press [✻] plus that field number and reenter the correct data. For phone number

and account number fields ✻40-✻44, ✻88 and ✻94, press [✻] + field number + [✻].

INTERACTIVE MENU MODES:

There are six interactive menu modes as listed below. To enter these modes, first enter Program mode. While in

Program mode, press [✻] plus the mode number desired (e.g., ✻56).

✻56 Enhanced Zone Programming...............For programming zone characteristics, report codes, etc.

✻80 Device Programming..............................For programming Powerline Carrier Devices

✻81 Zone List Programming..........................For programming zone lists for use with Powerline Carrier Devices

✻83 Enhanced Sequential Mode ...................For entering transmitter serial numbers

✻84 Assign Zone Voice Descriptors ..............For assigning voice descriptors to zones

✻85 Record Custom Voice Descriptors .........For recording custom voice descriptors

- 3 -

TO LOAD A DEFAULT SET:

While in Program mode, press ✻97, then enter a number 1-4 corresponding to the default table desired. See

the Installation Instructions for the default tables. Enter 0 if you are not selecting a default table.

TO EXIT PROGRAMMING MODE:

✻98 Exits programming mode and prevents re-entry by: Installer Code + 8+ 0 + 0. If ✻98 is used to exit programming

mode, system must be powered down, then press [✻] and [#] within 50 seconds of power up to re-enter

programming mode.

✻99 Exits programming mode and allows re-entry by: Installer Code + 8 + 0 + 0 or: Power-up, then press [✻] and [#]

within 50 seconds of power up.

DATA FIELDS

Field Function Programmed Values [ ] = Table 1 Default Values

SYSTEM SETUP (✱20– ✱ 30)

✱20 INSTALLER CODE [4112]

Enter 4 digits, 0–9

✱21 QUICK ARM ENABLE †[1]

0 = no; 1 = yes

✱22 KEYPAD BACKLIGHT TIMEOUT [0]

0 = none (backlighting always on); 1 = backlight off after 10secs

✱23 FORCED BYPASS †[0]

0 = none; 1 = bypass open zones

UL installations = 0

✱24 RF HOUSE ID CODE | [00]

00 = disable all wireless keypad usage;

01–31 = 5804BD/5804BDV house ID

✱25 POWERLINE CARRIER DEVICE

HOUSE CODE [0]

0 = A; 1 = B, 2 = C, 3 = D, 4 = E, 5 = F, 6 = G, 7 = H, 8 = I,

9 = J, #10 = K, #11 = L, #12 = M, #13 = N, #14 = O, #15 = P

✱26 CHIME BY ZONE †[0]

0 = no; 1 = yes (program zones to chime on zone list 3)

✱27 REAL TIME CLOCK DISPLAY †[1]

0 = no; 1 = yes, display time on keypad

✱29 DAYLIGHT SAVING TIME

START/END MONTH [3, 11]

Start End

1-9, #+10,#+11,#+12. Enter 0,0 if no daylight savings time used.

✱30 DAYLIGHT SAVING TIME

START/END WEEKEND [2,1]

Start End

0=disable; 1=first; 2=second; 3=third; 4=fourth;

5=last; 6=next to last; 7=third from last

ZONE SOUNDS AND TIMING (✱

✱✱

✱31– ✱

✱ ✱

✱ 39)

✱31 SINGLE ALARM SOUNDING/ZONE † [0]

0 = Alarm Sounding Per Zone will be the same as the Swinger

Shutdown” set in field *92;

1 = yes, limit once per arming period (also applies to long range

radio output if “0” is selected in ✻91 field)

UL installations = 0

† Entering a number other than the one specified may give unpredictable results.

- 4 -

Field Function Programmed Values [ ] = Table 1 Default Values

✱32 SOUNDER TIMEOUT †[0]

0=timeout; 1=no timeout

✱33 ALARM BELL TIMEOUT †[1]

0 = none; 1=4 min; 2=8 min; 3=12 min; 4 = 16 min

UL installations = 1 (4 min) minimum

✱34 EXIT DELAY | †[70]

00-99 = exit delay time (in seconds).

UL installations = 60 seconds max.

✱35 ENTRY DELAY 1 (zone type 01) | †[30]

00-99 = entry delay time (in seconds);

UL installations = 45 seconds max.

✱36 ENTRY DELAY 2 (zone type 02) | †[60]

00-99 = entry delay 2 time (in seconds);

UL installations = 45 seconds max.

✱37 AUDIBLE EXIT WARNING /

QUICK EXIT † [1, 1]

Exit Warn Quick Exit

0 = no; 1 = yes

✱38 CONFIRMATION OF ARMING DING

Note: If LYNX is armed by RF button (key fob),

a confirmation ding occurs immediately after

arming regardless of field *38 settings. If LYNX

is disarmed by RF button (key fob), additional

disarming confirmation ding is provided. The

ding occurs immediately after disarming and is

longer than arming confirmation ding.

† [0]

0 = no arming confirmation ding after arming system by APX32EN keypad or

RF keypad; 1 = arming confirmation ding after arming system by APX32EN

keypad or RF keypad; 2 = arming confirmation ding after arming from RF

keypad only

If Option 1 is selected, confirmation of arming is provided by a 1/2 second

sounder “ding” that sounds when closing report is sent, or at the end of exit

delay. If Option 2 is selected the external sounder “ding” occurs immediately

after arming from an RF keypad.

Note: Confirmation ding only sounds when LYNX is Armed Away or disarmed

after being Armed Away.

✱39 POWER UP IN PREVIOUS STATE † [1]

0 = no; 1 = yes; UL installations = 1

† Entering a number other than the one specified may give unpredictable results.

DIALER PROGRAMMING (✱40– ✱ 53)

In fields ✱40, ✱41, ✱42, enter up to the number of digits shown. Enter 0–9; #+11 for '✻'; #+12 for '#'; #+13 for

a pause.

✱40 PABX ACCESS CODE

Enter 6 digits. If fewer than 6 digits are entered, pressing ✻

advances to the next field. To clear entries from field, press ✻40✻

✱41 PRIMARY PHONE NUMBER

Enter up to 20 digits; Do not fill unused spaces. If fewer than 20 digits

entered, pressing ✻advances to the next field. To clear entries from

field, press ✻41✻.

- 5 -

Field Function Programmed Values [ ] = Table 1 Default Value

✱42 SECONDARY PHONE NUMBER

Enter up to 24 digits; Do not fill unused spaces. If fewer than 24 digits

entered, pressing ✻advances to the next field. To clear entries from

field, press ✻41✻.

All four digits of the subscriber account number must be entered in Fields ✻

✻✻

✻43 and ✻

✻✻

✻44. If ten digit format is

selected in ✻

✻✻

✻48 (option 5), all ten digits of the Subscriber Account number must be entered.

For fields ✻43, ✻44:

Enter 4 to 10 digits. Enter 0–9; #+11 for B; #+12 for C; #+13 for D; #+14 for E; [#+15 for F]. Enter ✻ as 4th digit, if 3+1

dialer reporting is to be used. If only 3 digits used, pressing ✻advances to the next field. Enter [✻] as the fifth digit if a 4-

digit account number (for 4+1, 4+2, CID®) is used.

To clear entries from field, press ✻43✻ or ✻44✻. Examples:

For Acct. 1234, enter: 1 | 2 | 3 | 4 ; For Acct. B234, enter: #+11| 2 | 3 | 4 For Acct. 1234567890, enter:

1| 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 0 ; For Acct. 123, enter: 1 | 2 | 3 | ✻

✱43 PRIMARY SUBS ACCT # See note above.

✱44 SECONDARY SUBS ACCT # See note above.

For field ✻46

Enter up to 24 digits. Enter 0-9, #+11 for ‘✻’; #+12 for ‘#’; #+13 for a pause (two seconds).

✱46 “FOLLOW ME” REMINDER

PHONE NUMBER

Enter up to 24 digits; Do not fill unused spaces. If fewer than 24 digits

entered, pressing ✻advances to the next field. To clear entries from

field, press ✻46✻.

✱47 PHONE SYSTEM SELECT †[5]

Central Dialing Mode

Station Pulse Tone Pulse Tone

No WATS 0 = No Speaker

Phone

1 = No

Speaker Phone

4 = With

Speaker Phone

5 = With

Speaker Phone

WATS 2 = No Speaker

Phone

3 = No

Speaker Phone

6 = With

Speaker Phone

7 = With

Speaker Phone

✱48 REPORT FORMAT for PRIM./SEC [7, 7]

Primary Secondary

0 = 3+1, 4+1 ADEMCO L/S STANDARD

1 = 3+1, 4+1 RADIONICS STANDARD

2 = 4+2 ADEMCO L/S STANDARD

3 = 4+2 RADIONICS STANDARD

5 = ADEMCO CONTACT ID® REPORTING WITH 10-DIGIT SUBS ACCT NO.

6 or undefined = 4+2 ADEMCO EXPRESS

7 = ADEMCO CONTACT ID® REPORTING WITH 4-DIGIT SUBS ACCT NO.

8 = 3+1, 4+1 ADEMCO L/S EXPANDED

9 = 3+1, 4+1 RADIONICS EXPANDED

† Entering a number other than the one specified may give unpredictable results.

Note: If you are using Pulse (rotary) Dialing, you must

enter the numbers slowly to allow the pulse dialer

time to o

erate.

Note: Option 5 or 7 (ADEMCO Contact ID®)

must be selected for AAV.

- 6 -

Field Function Programmed Values [ ] = Table 1 Default Value

✱49 SPLIT/DUAL REPORTING [0]

0 = Disable (None, unless primary fails)

TO PRIMARY PHONE No. TO SECONDARY PHONE No.

1 = Alarms, Restore, Cancel Others

2 = All except Open/Close, Test Open/Close, Test

3 = Alarms, Restore, Cancel All

4 = All except Open/Close, Test All

5 = A l l All

** Pager Message

A 7-digit code (plus optional 16-digit prefix) is

sent to the pager consisting of a 3-digit event code,

followed by 0 and a 3-digit user or zone number.

See Installation Instructions for an explanation of

the pager code, which takes the following form:

AAAAAAAAAAAAAAAA-EEE-0NNN

TO PRIMARY PHONE No.

6 = All except Open/Close

7 = All reports

8 = All reports

9 = All except Open/Close

TO PAGING** No. (Secondary)

Alarms, Open/Close‡, Troubles

Alarms, Troubles

Alarms, Open/Close‡, Troubles

Open/Close‡

‡Will report users 0, 5-8 or wireless

arm/disarm button zones 26-33; all other

zones and users do not report

AAA… = optional 16-digits (see field ✻88)

EEE = 3-digit event code: 911 (alarm), 101 (open), 102 (close),

811 (trouble)

0 = always displayed

NNN = 3-digit user number or zone number, depending on the

type of event (EEE) that occurred.

TO PRIMARY PHONE No.

10 = All except Open/Close

11 = All reports

12 = All reports

13 = All except Open/Close

TO SECONDARY (“FOLLOW

ME”) SYSTEM PHONE No.

Alarms, Open/Close‡, Troubles

Alarms, Troubles

Alarms, Open/Close‡, Troubles

Open/Close‡

‡Will report users 0, 5-8 or wireless

arm/disarm button zones 26-33; all other

zones and users do not report

✱50 15 SEC DIALER DELAY (BURG) †[0]

0 = no; 1 = yes; UL installations = 0

✱51 PERIODIC TEST REPORT †[0]

0 = none; 1 = 24 hours; 2 = weekly; 3 = 30 days

(enter Test Code in field ✻64)

✱52 FIRST TEST REPORT OFFSET †[2]

0 = 24 hour; 1 = 6 hours; 2 = 12 hours; 3 = 18 hours

(Time to 1st report from power up/programming or downloading).

✱53 SESCOA/RADIONICS SELECT [0]

0 = Radionics (0–9, B–F reporting); 1 = SESCOA (0–9 only reporting).

Select 0 for all other formats.

✱54 LACK OF USAGE NOTIFICATION [0]

0 = Disabled 4 = 90 days

1 = 1 day 5 = 180 days

2 = 7 days 6 = 365 days

3 = 27 days

✱55 REPORTING CHANNELS

[0]

0 = Telco Line (no Radio)

1 = LRR/IP(Digital Communication only) and Telco Line

3 = LRR/IP (Digital Communication only) (no Telco Line)

5 = LRR/IP (Digital Communication with AAV) (Telco Line connections

for 2-way voice session only, if applicable)

✱56 ENHANCED ZONE PROGRAMMING See procedure in this guide and refer to the Installation Guide.

✱58 RF JAM DETECT [0]

0 = no RF Jam Detection; 1 = RF Jam Detect on, no CS report;

2 = RF Jam Detect on with CS report

(if trouble/restore report is enabled in fields ✻60, ✻71)

Note: For event logging option 2 must be selected.

† Entering a number other than the one specified may give unpredictable results.

- 7 -

Field Function Programmed Values [ ] = Table 1 Default Value

TO PROGRAM SYSTEM STATUS, & RESTORE REPORT CODES (✱59–✱76, & ✱89):

With a 3+1 or 4+1 Standard Format: Enter a code in the first box: 1–9, 0, B, C, D, E, or F. Enter "#+10" for 0, "#+11" for

B, "#+12" for C, "#+13" for D, "#+14" for E, "#+15" for F.

A "0" (not "#+10") in the first box will disable a report.

A "0" (not "#+10") in the second box will result in automatic advance to the next field when programming.

With an Expanded or 4+2 Format: Enter codes in both boxes (1st and 2nd digits) for 1–9, 0, or B–F, as described above.

A "0" (not "#+10") in the second box will eliminate the expanded message for that report.

A "0" (not "#+10") in both boxes will disable the report.

With Ademco Contact ID Reporting: Enter any digit (other than "0") in the first box, to enable zone to report (entries in the

second boxes will be ignored).

A "0" (not "#+10") in the first box will disable the report.

Examples: For Code 3(single digit), enter: 3 | 0

For Code 3 2 (two digits), enter: 3 | 2

For Code B 2 (Hexadecimal), enter: #+11 | 2

SYSTEM STATUS REPORT CODES (✱59–✱68)

✱59 EXIT ERROR REPORT CODE [1]

✱60 TROUBLE REPORT CODE | [1,0]

✱61 BYPASS REPORT CODE | [0,0]

✱62 AC LOSS REPORT CODE | [0,0]

✱63 LOW BATTERY REPORT CODE | [1,0]

✱64 TEST REPORT CODE | [1,0]

✱65 OPEN REPORT CODE †† [0]

✱66 ARM AWAY/STAY REPORT CODE †† [0,0]

AWAY STAY

✱67 RF XMTR LOW BATTERY REPORT

CODE | [1,0]

✱68 CANCEL REPORT CODE | [1,0]

RESTORE REPORT CODES (✱70–✱76)

✱70 ALARM RESTORE REPORT CODE [1]

✱71 TROUBLE RESTORE REPORT CODE | [1,0]

✱72 BYPASS RESTORE REPORT CODE | [0,0]

✱73 AC RESTORE REPORT CODE | [0,0]

✱74 LOW BAT RESTORE REPORT CODE | [1,0]

(†† 2nd digit is automatically sent as the user

number if expanded or 4+2 reporting is

selected.)

2nd digit is automatically sent as 2nd digit of the zone alarm

report code programmed in ✻56, if expanded or 4+2 reporting

is selected.

2nd digit is automatically sent as 2nd digit of the zone alarm

report code programmed in ✻56, if expanded or 4+2 reporting

is selected.

- 8 -

Field Function Programmed Values[ ] = Table 1 Default Value

✱75 RF XMTR LO BAT RST RPT CODE | [1,0]

✱76 TEST RESTORE RPT CODE | [0,0]

DYNAMIC SIGNALING FIELD ✻

✻✻

✻77

✱77 DYNAMIC SIGNALING DELAY/

DYNAMIC SIGNALING PRIORITY

| [0, 0]

1st Entry (delay before switch CS reporting path)

0 = Redundant reporting

on dialer and LRR/IP

device

7 = 105 seconds

8 = 120 seconds

9 = 135 seconds

1 = 15 seconds #10 = 150 seconds

2 = 30 seconds #11 = 165 seconds

3 = 45 seconds #12 = 180 seconds

4 = 60 seconds #13 = 195 seconds

5 = 75 seconds #14 = 210 seconds

6 = 90 seconds #15 = 225 seconds

2nd Entry

0 = Primary Dialer Preferred Channel

1 = LRR/IP Preferred Channel

2 = LRR/IP reporting only

✱78 PROGRAMMABLE TONE

GENERATION TIME | [0, 0]

00 = Disabled

01-09 = 100-900 ms

10-99 = 1.0 – 9.9 secs.

OUTPUT AND SYSTEM SETUP (✱80–✱92)

✱80

✱81

DEVICE PROGRAMMING MENU

MODE

ZONE LISTS MENU MODE

Program ✻80 and ✻81 only if Powerline Carrier Devices or

chime by zone are to be used. See procedure later in this

manual.

✱83 ENHANCED SEQUENTIAL MODE See procedure later in this manual.

✱84 ASSIGN ZONE VOICE DESCRIPTOR

See procedure later in this manual.

✱85 RECORD CUSTOM VOICE

DESCRIPTOR

See procedure later in this manual.

✱86 MULTI-MODE (E-MAIL

NOTIFICATION) [0]

0 = Disable multi-mode devices

1 = Enable multi-mode device address #6 only

2 = Enable multi-mode device address #7 only

3 = Enable multi-mode addresses

✱87 AUX FUNCTION/ 1-BUTTON PAGING [0]

0 = Aux key performs defined function (macro);

1 = Aux key sends message to pager or voice message to follow me

system phone number.

If 1, you must also select an option 6-9 in field ✻49 for the pager or

10-13 for the follow me system announcement.

- 9 -

Field Function Programmed Values[ ] = Table 1 Default Value

✱88 PAGER CHARACTERS

Up to 16 digits can be entered that will appear in front of the 7-digit

pager message sent by the control (either upon system event or upon

pressing AUX key [if programmed for paging]; see field ✻87 and ✻49

for other options regarding the paging feature). See the Installation

Instructions (fields ✻87, ✻88 and ✻49) for full descriptions of the

paging feature. You do not need to fill all 16 digits (press [✻] to

advance to next field). To clear entries, enter ✻88✻.

To enter “✻” = [#] + [11]; To enter “#” = [#] + 12]

To enter 2-second pause = [#] + [13] (some pagers require an

additional delay [pause] in order to receive the entire message)

✱89 EVENT LOG 80% FULL RPT CODE | [0,0]

✱90 EVENT LOGGING [3]

0 = None; 1 = Alarm/Alarm Restore; 2 = Trouble/Trouble Restore;

4 = Bypass/Bypass Restore; 8 = Open/Close.

Example: To select “Alarm/Alarm Restore”, and “Open/Close”, enter

9 (1 + 8); To select all, enter #15.

Note: System messages are logged when any non-zero selection is made.

✱91 ALARM AUDIO VERIFICATION

(AAV)/REMOTE PHONE CONTROL [2]

0 = None

1 = AAV and remote phone control

2 = remote phone control only

4 = AAV only

Notes: (1) In order to activate the Remote Phone Control feature and defeat

an answering machine, ensure that the correct ring detection

count (“15”) has been programmed in field ✻95.

(2) Remote phone session will be terminated if a report must be

sent.

(3) Alarm Audio Verification will only function when Contact ID® is

selected. AAV cannot be used for UL installations.

(4) If an alarm will be reported to primary and secondary phone

numbers, AAV can only function via the secondary number.

(5) If an alarm will be reported to a pager (6-8 in field ✻49), or to

follow me phone number (10-12 in field ✻49) AAV cannot be

used.

(6) If AAV is selected and LRR/IP communications device is enabled,

you must enter "0" (primary dialer preferred channel) as the second

entry in Field *77.

✱92 NUMBER OF REPORTS IN ARMED

PERIOD [0]

0 = 10 Alarm/Alarm Restore Reports;

1 = Unlimited (UL installations = 0)

DOWNLOAD INFORMATION (✱93, ✱94, ✱95)

✱93 FLEXIBLE CALLBACK [0]

0 = No flexible callback; 1 = Last digit flexible; 2 = Last 2 digits

flexible;

3 = Last 3 digits flexible

- 10 -

Field Function Programmed Values [ ] = Table 1 Default Value

✱94 DOWNLOAD PHONE NUMBER

Enter up to 20 digits, 0–9; #+11 for '✻'; #+12 for '#'; #+13 for a

pause. Do not fill unused spaces. If fewer than 20 digits entered,

pressing ✻advances to the next field. To clear entries from field,

press ✻94✻.

Note: In UL installations, downloading may only be performed if a technician

is at the site.

✱95 RING DETECT COUNT FOR

DOWNLOADING/REMOTE PHONE

CONTROL MODE

[15]

0 = Disable Station Initiated Download; 1–14 = number of

rings (1–9, [#]+10 =10, [#] +11 =11, [#] +12 =12, [#] +13

=13, [#] +14 =14); 15 = answering machine defeat ([#] +15

=15)

✱96 INITIALIZE DOWNLOAD ID &

SUBSCRIBER ACCOUNT

No entry required

✱97 SET ALL PROGRAM FIELDS TO

1 OF 4 SETS OF DEFAULT VALUES

Enter 1-4 to select from default tables 1-4

Enter 0 to abort.

✱98 EXITS PROGRAMMING MODE

(PREVENTS RE-ENTRY)

If ✻98 is used to exit programming mode, you cannot enter the

Installer Code + 8+ 0 + 0 for re-entry. You must press "✻" and

"#" within 50 seconds of power up or from exiting Programming

mode to re-enter Programming mode.

Note: After exiting Program mode, the system takes up to 1 minute to reset.

To bypass the reset delay, press [#] + [0].

✱99 EXITS PROGRAMMING MODE

(ALLOWS RE-ENTRY)

Installer Code + 8 + 0 + 0

or:

Power-up, then press "✻" and "#" within 50 seconds of power

up or from exiting Programming mode.

Note: After exiting Program mode, the system takes up to 1 minute to reset.

To bypass the reset delay, press [#] + [0].

Autres manuels pour LYNXR-2 Series Security System

Table des matières

Autres manuels Honeywell Système de sécurité

Honeywell

Honeywell ADEMCO VISTA SERIES Manuel utilisateur

Honeywell

Honeywell ESSER IQ8Alarm Manuel utilisateur

Honeywell

Honeywell ADE ACCENTA Gen4 Manuel utilisateur

Honeywell

Honeywell VISTA-32FBPT Manuel utilisateur

Honeywell

Honeywell SEF800HF Manuel utilisateur

Honeywell

Honeywell Domonial Manuel utilisateur

Honeywell

Honeywell LYNX Touch Security System Manuel utilisateur

Honeywell

Honeywell LYNXRPK-2 - Wireless Self-Contained Security Syste - LYNXRPK-2 - Wireless Self-Contained Security... Instructions de montage

Honeywell

Honeywell Optiflex Interactive Manuel utilisateur

Honeywell

Honeywell FBII OMNI 600 Manuel utilisateur

Honeywell

Honeywell LYNX Manuel utilisateur

Honeywell

Honeywell RWD21 Manuel utilisateur

Honeywell

Honeywell System 1500e Manuel utilisateur

Honeywell

Honeywell Notifier P700N Manuel utilisateur

Honeywell

Honeywell ADEMCO VISTA-40 Instructions de montage

Honeywell

Honeywell Galaxy 2-44 Manuel utilisateur

Honeywell

Honeywell Wireless Alarm Bar Manuel utilisateur

Honeywell

Honeywell Vista 21IP Manuel utilisateur

Honeywell

Honeywell TCPA1BS Manuel utilisateur

Honeywell

Honeywell Friedland FGGA04 Series Manuel utilisateur

Honeywell

Honeywell LYNX Touch L5210 Series Mode d'emploi

Honeywell

Honeywell Ademco VISTA-20P Manuel utilisateur

Honeywell

Honeywell Fire-Lite Alarms MS-9200UDLSC Manuel utilisateur

Honeywell

Honeywell VISTA-128BPTSIA Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
