Honeywell Le Sucre Manuel utilisateur

-English-

Le Sucre™

Quick Installation guide

Contents

MANDATORY STEPS TO FOLLOW BEFORE BEGINNING

YOUR INSTALLATION ................................................................2

STEP 1: Connecting Le Sucre...........................................................................2

STEP 2: Creating your account on Internet......................................................3

INSTALLING YOUR SYSTEM .....................................................4

Registering the « Badge Reader » ....................................................................8

Registering the badges......................................................................................9

Registering the Door Contact..........................................................................10

Registering the motion sensor........................................................................11

Installing other peripherals..............................................................................13

Finalizing the installation.................................................................................14

800-19460-A

10/2014

MANDATORY STEPS TO FOLLOW BEFORE BEGINNING YOUR

INSTALLATION

STEP 1: Connecting Le Sucre

Push the lock with the tool supplied to open the SIM card

compartment, and then pull out the SIM card holder.

Insert the SIM card in its holder as shown, and then replace the

holder in the central unit.

Slide off the battery cover, insert the batteries and replace the

cover.

Connect the power pack to the unit and a mains socket.

Note: Depending on the model, either a Jack or a USB connector is

used

WARNING

Before continuing, Le Sucre™ must be power supplied and the SIM Card must be

installed into Le Sucre™.

Please follow next steps to get Le Sucre™ ready.

STEP 2: Creating your account on Internet

1. Logon to the website https://tc20e.total-connect.eu

assword.

All fields with * are mandatory.

orm, check the case at the bottom of the page to agree to the Terms and

conditions and click on “Next”.

ge then appears: « Your account has been sucessfully activated ». Clik on the blue

button to continue.

2. Click on “Create user” to create your account. You will then be asked to enter a 20 digit long ID

code. This code is printed on a sticker located on Le Sucre.

3. You will then be able to choose your username and password used to login the system. You

will also be asked to enter a valid email to be contacted in case of problem or forgotten

Once you have completed the f

The following messa

A confirmation email will be sent to you reminding your login and password for the website.

Now you can log in you account through the main page of the website.

INSTALLING YOUR SYSTEM

fter logging in, the following message then appears:

1. he first step is to set your contacts: these are the people who will be notified by email when an

alarm or a problem occurs in your premises.

Up to three contacts can be set up. The first contact is usually yourself and is mandatory. The

second and third contacts are optional and can be skipped during the installation.

You have to use the international format when entering the contacts’ phone numbers.

™ remains totally fixed, you can set the phone number

corresponding to the SIM Card :

You have to use the international format when entering the SIM card phone number.

2. When the green light on Le Sucre

After typing the phone number and the provider's APN, click on the Next button.

The connection with Le Sucre™ begins

The connection may take several minutes. Once the connection is established you will see the green icon

at the top right of the page: .

The system is now in the installation mode

3. Wait for Le Sucre™ to be recognized by the Website and to be displayed on the screen as

shown below :

ou can

Registeri

Note:

now start to

ng the « Ba

Pull up the p

Badge Read

Fix the brac

3 screws. (s

Insert the 3

You will hea

install your

ge Reader

rt shown, a

et to the wall

rews are not

atteries the r

3 short bee

devices and

d slide the b

using the ta

supplied)

ight way rou

s from the B

sensors:

acket off the

e provided o

dge Reader

r with

4. Slide the Badge Reader onto its bracket.

The badge reader plays a series of beeps and then 3 fast beeps. The Website shows the detection of the

new peripheral with the message in the upper strip:”New Material incoming… ”

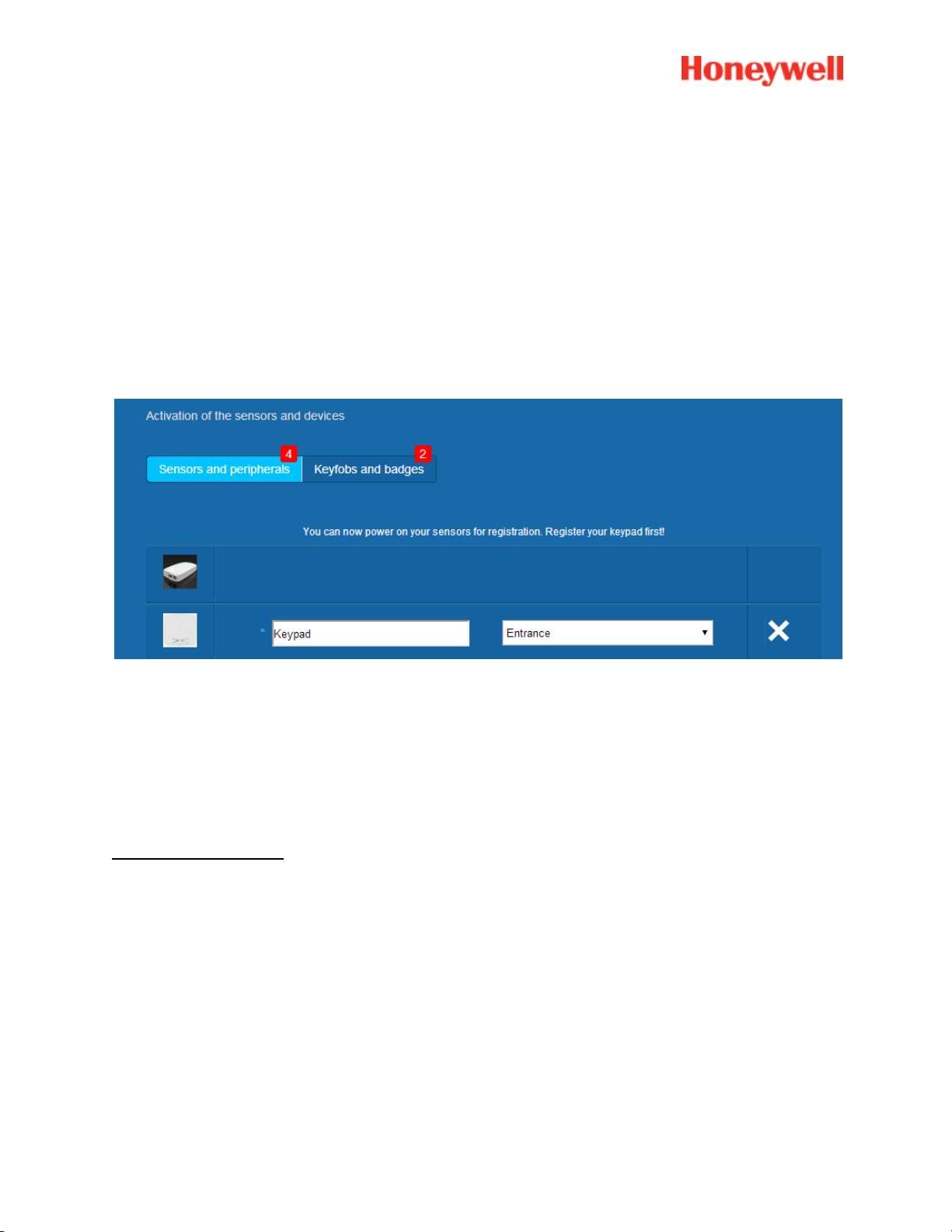

Wait for the badge reader to appear in the “Sensors and peripherals” section as shown below:

Set the location and the name you want to give to it : here the name is “Keypad” and the location is

“Entrance”.

Warning : To validate the name field you have to click elsewhere on the screen with the mouse.

The badge reader is now saved and registered on your system.

Registering the badges

To register the first Badge, present it at the front centre of the Badge reader until you hear a beep. The

Badge appears in the “Keyfobs and badges” section.

You can now set the owner’s name in the field next to the Badge serial number. Register the next Badge

the same way.

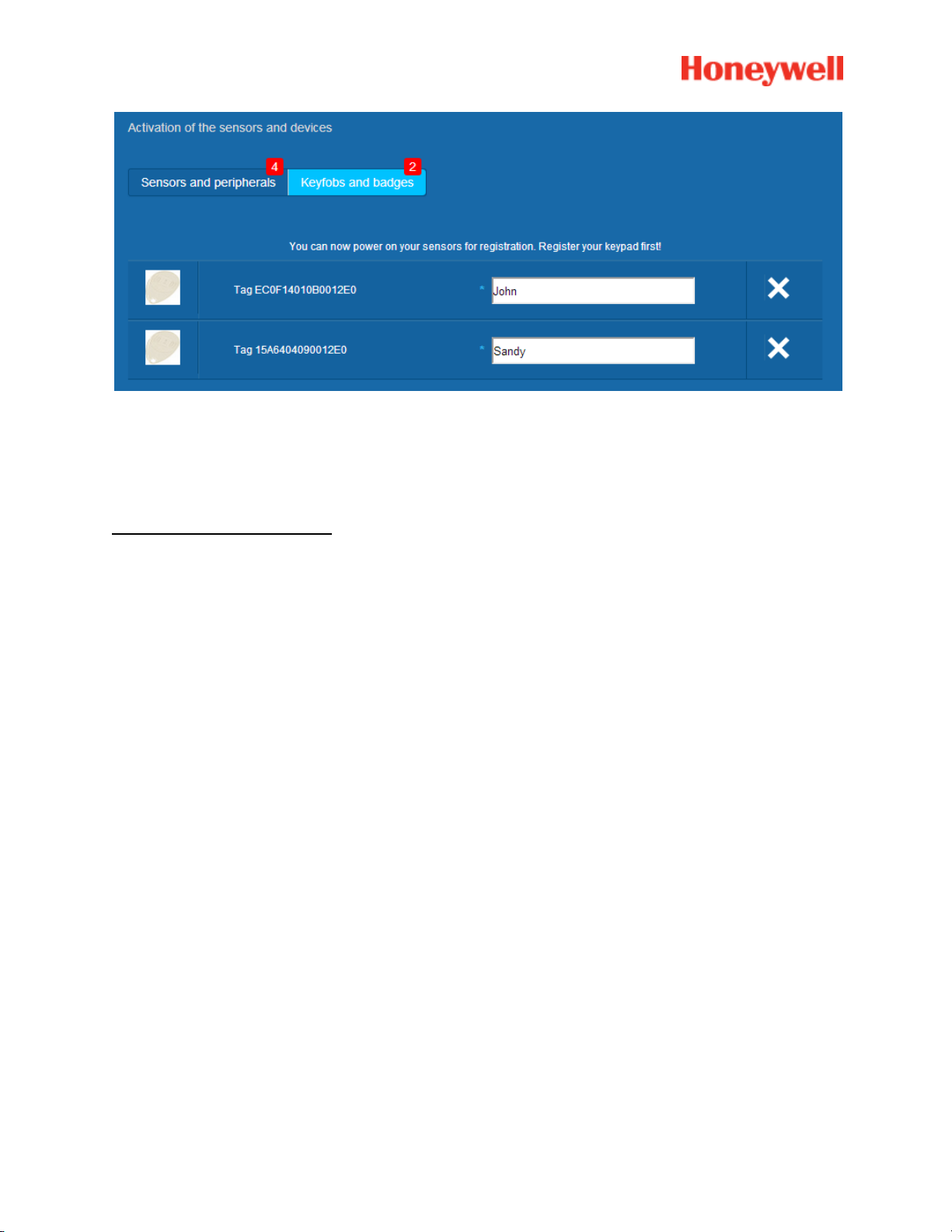

Here both “John” and “Sandy” ‘s badges have been registered.

The badges are now saved and registered on your system.

Registering the Door Contact

1. Pull out the black piece on the door contact as shown

on the picture

2. Fix the door contact and the magnet using the double-

sided tape. Mount the magnet (smallest piece) on the

moving part of the door while the door contact is

mounted on the fixed part of the door.
