Honeywell Code Encryptor II Manuel utilisateur

Installation Manual

Street Smart Security

Now with

Automatic Alarm

Recognition

Patent Pending - Part #CE2Y

Code Encryptor II

Locationofthecontrolmoduleisthemostimportantdeterminingfactorforrangeand

reliability of your Code Encryptor. Select a location that is as centrally located as pos-

sible.Keepinmindthatyourcustomerwillwanttocontroltheoperationofthegarage

doorfrom thedriveway, andwill alsoexpect theuse ofthe remotefor alarmOn/Off

in the area of entry and exit.

SincetheCodeEncryptorusesthecommunicationbuswiresfromthekeypad,youmay

want to place the receiver in or near the garage to easily control the following

• Easy connection to the garage door push button

• Easy visual LED status mounting location

• Easy connection to the keypad wires for complete alarm control

Although you can wire at the panel, it may reduce labor by installing the Code

Encryptor II receiver at the point of entry. In most cases that is the garage which will

provide an easy installation for garage door Open/Close, status indicator and alarm

controls through the keypad. DO NOT MOUNT THE CONTROL MODULE IN

THE ALARM PANELS METAL ENCLOSURE.

Recommended

placement for

Code Encryptor

CODE

ENCRYPTOR

Garage

Basement

Bedroom

Attic

Point of Entry

Wiring Diagram

Yellow Connect to yellow of keypad

*Moose panels connect to

white of keypad

Green Connect to green of keypad

Gray (-) Channel 2 Timed Output

Red/White Channel 2 N/O relay

(Garage Door Pushbutton)

White Channel 2 Common

(Garage Door Pushbutton)

Brown Channel 3 Common

(5amp)

Brown/White Channel 3 N/O

(5amp)

Blue/Green Channel 3 N/C (5amp)

Red +12VDC

Black (-) Ground

Purple LED (-) Output

Button 1 Alarm ON/OFF/STAY**

Button 2 Garage Door OPEN/CLOSE

Button 3 PANIC OUTPUT

Hold for 3 seconds

RELAY OUTPUT

Press and Release

**Press and hold for 3 seconds to

activate “STAY” mode

Button 1

Button 2

Button 3

Installation

Red Aux +

Black Aux -

Yellow Keypad Data Line

Green Keypad Data Line

CODE

ENCRYPTOR

Alarm Panel

+ -

Aux

Black Red

123

456

789

Green Yellow LED

Program

Button

Channel 3

Jumpers

Alarm

Keypad

Wiring and Auto Recognition

COMPLETE STEPS 1-8

Step 1) Unplug the receiver from the wire harness.

Step 2) Wire the Red, Black, Yellow and Green to the keypad.

RED Connect to Keypad Red or Aux (+)

BLACK Connect to Keypad Black or Aux (-)

GREEN Connect to Keypad Green

YELLOW Connect to Keypad Yellow

*Moose ZX200/400/900/950 Connect to the White wire.

NOTE: You can make these connections at the panel or at the keypad

itself. If you place the Code Encryptor II in the garage or any other

location away from the panel you may choose to wire the Code

Encryptor II directly to the keypad.

Step 3) Make sure the alarm panel is powered up and operating.

Step 4) While watching the LED light on the Control module, plug the receiver into

the Code Encryptor II harness.

Step 5) The LED will blink 1 time on power up, after 2 seconds COUNT the flashes

that you see. The corresponding flashes will indicate which panel the Code

Encryptor II has detected.

*If you are using a DSC 1550 or a Caddx 8980E see page 16.

Automatic Recognition Continued:

Number of Flashes Alarm Panel detected by the CE II

1 No Alarm connected (CE II defaults to relay mode)

SEE PAGE 15 “Default Mode”

2 Napco 1000E Series (including 1008E, 1016E, etc.)

3 Moose Z880/Z900/Z950

4 Caddx 8600E, 8980E

5 Ademco Non Addressable

6 Ademco Addressable

7 DSC 1555/1565/5010 (Power 832)

8 DSC 1550, 2525, 2550, 3000

9 Moose ZX200/ZX400

10 Moose Z1100/Z1100E, ADT A910

Go to Mandatory Programming (Steps 6, 7 and 8)

NOTE: If the CEII does not detect correctly,

call Technical Toll Free 888-768-2846

7am-5pm PST

Mandatory Programming

Programming a User Code is mandatory when using the Code Encryptor II. This

gives the Code Encryptor microprocessor a User Code to arm and disarm the panel.

Step 6) Verify that the four-digit code you plan to teach the Code Encryptor II is a

valid four-digit user code. Example: From the keypad use that four-digit

code to arm the panel. If the panel arms, that is a good code. If it does

not, program that user code into the alarm panel. – The Code Encryptor II

uses that four-digit code to arm and disarm the panel, thus that code must

be valid.*

Step 7) Press and HOLD the program button on the receiver. The light will come

ON and stay ON for three seconds then turn OFF. Once the light turns

off, RELEASE the program button, the light will begin to flash rapidly.

Step 8) Using the keypad, slowly and firmly enter the four-digit user code. After

the fourth entry the LED will stop flashing. This code has now been

entered into the Code Encryptor’s non-volatile memory. The Code

Encryptor will remember this user code in the event of a power failure. To

change to a new user code, repeat steps 7 and 8 above.

*NOTE: We recommend using a user code that the customer cannot

change. If the user code that is programmed into the CE Module is

changed, the Code Encryptor II will not disarm the alarm panel.

Mandatory Programming Continued

Press and Release button #1 Alarm “Away”

Press and Release button #1 Alarm “Disarm”

Press and Hold for 3 seconds Alarm “Stay” or “Bypass”

NOTE: The Code Encryptor II will arm in the AWAY mode even if you

are outside the house. You do not have to arm the alarm before you

exit. We do however recommend that you Arm the alarm system with-

in sight of the status LED or keypad to verify that the alarm has

received and responded to your remote request.

SEE PAGE 16 FOR DSC 1550 AND CADDX 8980E.

The Code Encryptor II on the following panels self enroll themselves as a specific

keypad address code.

• Ademco addressable Address #3

• Moose ZX200/ZX400 addressable Address #4

DO NOT USE ANY OF THESE ADDRESS CODES IF YOU ARE USING ONE OF THE

ABOVE PANELS. EXAMPLE: If you are using an Ademco Addressable, no keypads

can use address #3 since the CE II will automatically enroll itself as address #3.

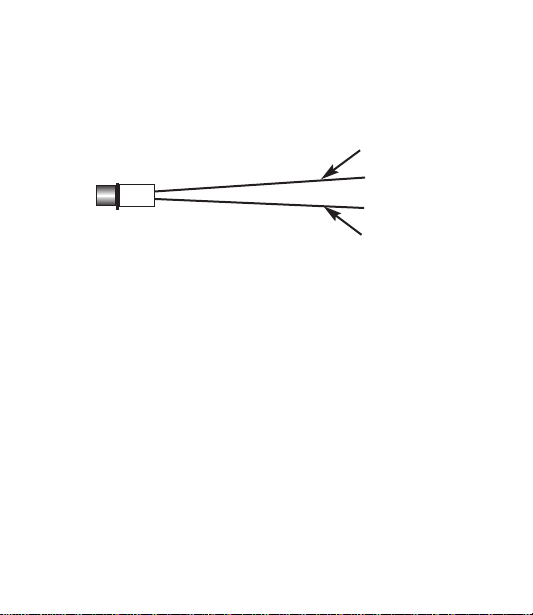

LED Wiring

DO NOT CONNECT LED DIRECTLY TO GROUND!

The LED is a low voltage type and must run through the Code Encryptor II. If you

attempt to connect the purple wire directly to ground (-) the LED will burn and will

NOT operate again.

Go TO Channel 2 Outputs

Purple-

Connect to purple

of the wire harness.

Red (Aux+)

Channel 2 Outputs

(Every time button #2 is pressed, two outputs happen simultaneously.)

Output #1 Momentary Contact Closure for Opening and Closing

garage door (See Garage Door Interface)

Output #2 500ma (-) output for 3 minutes, (See Channel 2 Timed Output)

Garage Door Interface

All garage doors have a wall mounted push button that activates the door via a

two-wire connection. Make your connection at the push button switch or at the

garage door motor where these two wires terminate. The Code Encryptor II will

interface with this connection by attaching the red/white and white wires from the

Code Encryptor II to these two wires. If you choose to connect to the motor, trace the

wires from the push button to the motor to determine the proper connection point.

Most garage doors (except MOM Crusader models) use terminals #1 and #2. For

MOM Crusader models, use terminals #2 and #3.

Garage Door Motor

Terminals

1 2 3

Red/White

(Channel 2 output)

White

(Channel 2 common)
