POLYCARBONATE DOME CAMERA

PrimaView®HD16 www.honeywellvideo.com

The HD16 provides the same great aesthetics and durability of the Honeywell

PrimaView Series combined with a 5 to 50 mm Vari-focal Auto Iris lens. With a

low profile designed for in-ceiling or pendant applications, the HD16 provides

installation flexibility. The enclosure converts instantly between a flush or surface

mount and is available with an optional pendant or wall arm mount.

Vandal-resistant and lightweight, the polycarbonate dome is tough enough to

withstand the impact from an 8 lb sledgehammer. And as an extra security

feature, an adjustable dome insert conceals the camera components without

affecting light sensitivity or picture quality. Installation is a snap with the 360

degree camera position.

Market Opportunities

The PrimaView HD16 series is the ultimate solution for virtually any indoor or

outdoor surveillance. These cameras are perfect for locations that require a

camera able to withstand vandal-prone environments and provide long range

views, such as, schools, malls, airports, and freeways. They’re tough, adaptable,

and affordable.

Features

• Polycarbonate housing

• Choose from a wide range of

cameras, including Color, True

Day/Night, Wide Dynamic and Wide

Dynamic True Day/Night

• Spot monitor output

• 12 VDC or 24 VAC with line lock

• Choose from the most popular

transmission media (Coaxial or UTP)

integrated inside the camera

• 5 - 50 mm Vari-focal Auto Iris lens

• Weather sealed for indoor and

outdoor locations—IP66 rated

• Instantly converts to a flush or

surface mount

SPECIFICATIONS

PrimaView®HD16

Operational Image Sensor Number of Pixels

(H x V) Minimum

Illumination Horizontal

Resolution Power

Consumption

Color 1/3” CCD

510 H x 492 V

(standard resolution)

250K total pixels 0.6 lux @F1.7 350 TVL 3.5W

768 H x 494 V

(high resolution)

380K total pixels 0.7 lux @F1.7 480 TVL 3.5W

True

Day/Night 1/3” CCD True

Day/Night

510 H x 492 V

(standard resolution)

250K total pixels 0.2 lux @F1.7 350 TVL 3.5W

768 H x 494 V

(high resolution)

380K total pixels 0.3 lux @F1.7 480 TVL 3.5W

Wide Dynamic 1/3” CCD Wide

Dynamic 768 H x 494 V

380K total pixels 1.0 lux @F1.7 480 TVL 4.5W

Wide Dynamic

True

Day/Night

1/3” CCD Wide

Dynamic TDN 768 H x 494 V

Dynamic TDN

380K total pixels 0.4 lux @F1.7 480 TVL 4.5W

www.honeywellvideo.com

True Day/Night The incorporation of a moving mechanical IR filter within the camera ensures true 24 hour surveillance,

providing high quality color images during the day and similar quality black and white images at night when used with

or without IR lighting.

Wide Dynamic A processing technology that allows a video camera to automatically adjust for environments with

high contrast and changing light conditions. Each frame is processed optimally. For example, in shadowed areas

the exposure is increased and in bright areas the exposure is decreased so that all the details in the scene are

light-corrected in the image.

Wide Dynamic True Day/Night Combine the processing technology of the WDR cameras with the moving mechanical

IR filter to ensure a precise picture in any lighting condition.

SPECIFICATIONS

PrimaView®HD16 www.honeywellvideo.com

Operational

Video Standard NTSC

Scanning System 525/60 Lines

Image Sensor 1/3" Sony Interline CCD Sensor

Video Output 1.0 Vp-p Coax @ 75 Ohms,

1.0 Vp-p UTP @ 100 Ohms

Sync System 12 VDC: Internal

24 VAC: External (Line Lock)

S/N Ratio Better than 51 dB

Auto Gain Control Off/on switch (4 – 26 dB max)

ALC Auto Iris: DC drive

Automatic Electronic

Shutter 1/60 - 1/100,000

White Balance AWB/ATW/Indoor (3200°K),

Outdoor (6500°K), Push Lock

Dynamic Range

(Wide Dynamic models only) Better than 52 dB

BLC Center window weighted

On/Off, switchable

Lens Type 5-50 mm (F1.7) VFAI CS Mount

Angle of View Tele: 6.9º (D), 5.5º (H) 4.1º (V)

Wide: 63º (D), 48º (H), 35º (V)

Electrical

Input Voltage 24 VAC/12 VDC

Input Range 17 – 28 VAC

11 – 16 VDC

Surge Suppression Internal transformer

Power Consumption 4.5 W (max)

Mechanical

Dimensions

(D x H) 7.5” x 5.3”

(191 mm x 134.5 mm)

Weight 2.0 lb (0.9 kg) max

Construction Housing: Polycarbonate

Dome: Hard coated polycarbonate,

clear dome with insert

Finish: Matte texture, off-white

Connectors Video Output: BNC Connector

(Coax), Tinned Leads (UTP)

Power Input: Tinned leads, (Coax),

2.1 mm Barrel (UTP)

Environmental

Temperature Operating: -13°F to 122°F (-25°C to 50°C)

Storage: -31°F to 140°F (-35°C to 60°C)

Relative

Humidity 0% to 95%, non-condensing

Rated IP66

Regulatory

Emissions FCC, CE (EN55013)

Immunity CE (EN50130-4)

Safety EU: 73/23/EEC LVD, UL 2044

3.4" (86 mm)

5.3" (134 mm)

7.5”(190 mm)

Side View

5.43”(138 mm)

Accessories:

Mounts

HD16-PK Pendant Mount

HD16-WK Wall Mount

Optional Dome Kits

HDRK16T Tinted Dome (reduces light sensitivity

by 54%)

HDRK16C Clear Dome (supplied with unit)

IR Illuminators

LumaView®Series 200 W and 75 W bulb IR illuminator

Puck Series LED IR illuminator

Power Supplies

UL Listed Fused Smart Fused Description

HPTV2404UL HPTV2404 HPTV2404CB 4 A, 4 Output

HPTV2408UL HPTV2408 HPTV2408CB 4 A, 8 Output

HPTV2416UL HPTV2416 HPTV2416CB 8 A, 16 Output

Transformers

HPT2420 24 VAC, 20 VA Class 2 plug-in with thermal

cut-out

HPT12DC500 12 VDC, 500 mA plug-in regulated 2.1 mm

coaxial plug UL Listed/CSA Certified

SPECIFICATIONS

L/HD16/D

March 2007

PrimaView®HD16 www.honeywellvideo.com

Honeywell Security

Honeywell Video Systems

2700 Blankenbaker Pkwy, Suite 150

Louisville, KY 40299

1.800.796.CCTV

www.honeywell.com

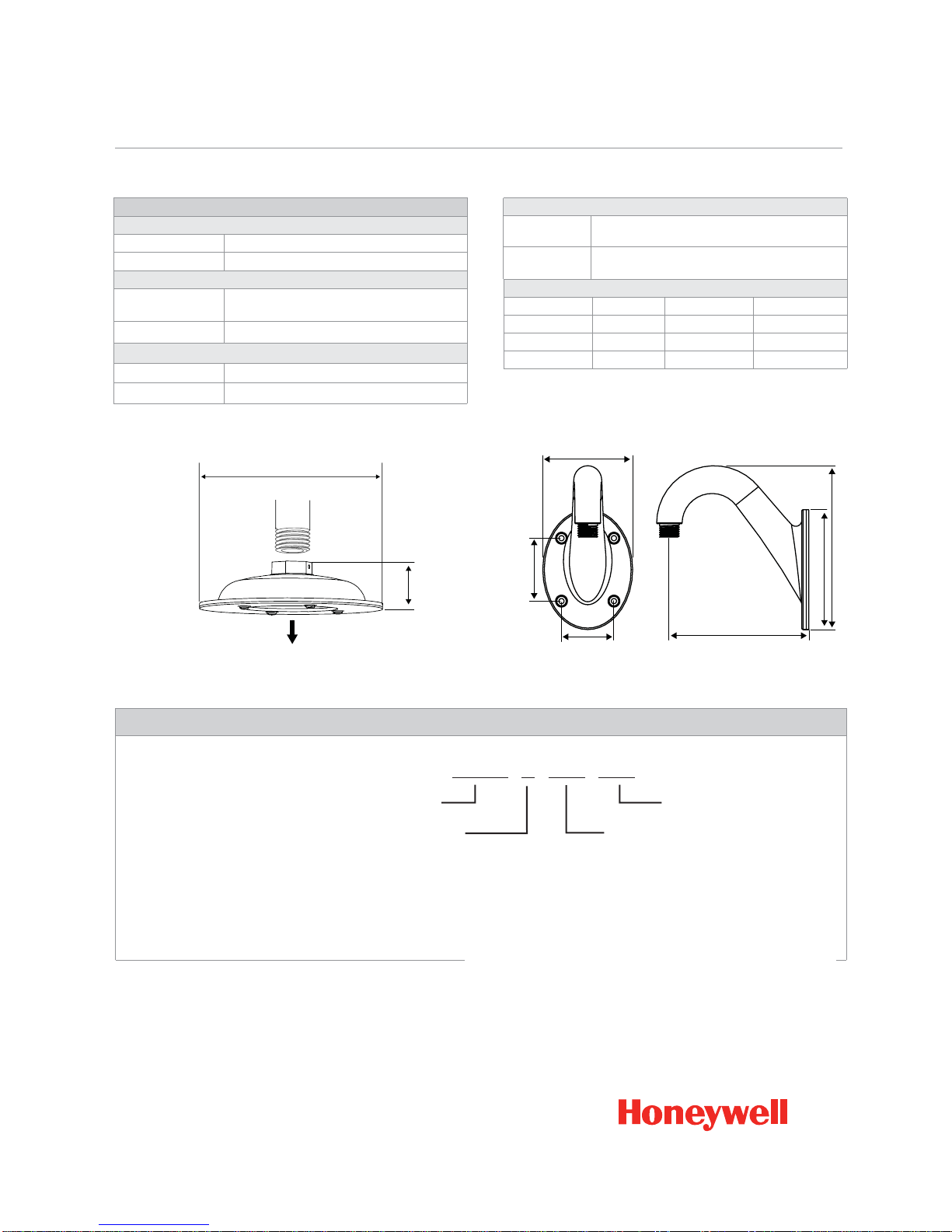

6.14”(156 mm)

1.61”

(41 mm)

(Pipe, not

included)

Mounts to back of HD16

4.72”(120 mm)

2.75”

(70 mm)

3.3”(84 mm)

7.36”(187 mm)

6.3”(160 mm)

8.62”(219 mm)

HD16-PK HD16-WK

Ordering

HOW TO ORDER Model

HD16

Camera Technology

C Color

D True Day/Night

W Wide Dynamic*

DW Wide Dynamic True Day/Night*

Resolution

480 TV Lines

350 TV Lines

Interface

T UTP

C Coax (BNC)

HD16 TDW 480

* Wide Dynamic and Wide Dynamic True Day/Night

available in 480 TV Line configuration only

Note: IR illuminator technology only works with True Day/Night cameras
