Honeywell HCD95534 Manuel utilisateur
User Guide
HCD95534 HCD95534X
NTSC PAL
HCD95534
True Day/Night
IR Camera
Document 800-01802 – Rev B – 02/09
2
Revisions
Issue Date Revisions
A 11/08 New document
B 02/09 Corrected illumination length to 125-150
ft (40 - 46 m).
Document 800-01802 Rev B 3
02/09
Warnings
Installation and servicing should be performed only by qualified and
experienced personnel to conform to all local codes and to maintain your
warranty.
WARNING! 12 VDC/24 VAC models require the use of CSA
Certified/UL Listed Class 2 power adapters to ensure
compliance with electrical safety standards.
Changes or modifications not expressly approved by
the manufacturer could void the user’s authority to
operate the equipment.
Caution To prevent electric shock and risk of fire hazards do not
use power sources other than that specified.
Explanation of Graphical Symbols
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE THE COVER.
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL
THIS SYMBOL INDICATES THAT
DANGEROUS VOLTAGE
CONSTITUTING A RISK OF
ELECTRIC SHOCK IS PRESENT
WITHIN THE UNIT.
THIS SYMBOL INDICATES THAT
IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS
ACCOMPANY THIS UNIT.
CAUTION
4
FCC Compliance Statement
Information to the User: This equipment has been tested and found to
comply with the limits for a Class A digital device. Pursuant to Part 15 of the
FCC Rules, these limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct
the interference at his own expense.
Caution Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
Manufacturer’s Declaration of Conformance
The manufacturer declares that the equipment supplied with this guide is
compliant with the essential protection requirements of the EMC directive
2004/108/EC and the Low Voltage Directive LVD 2006/95/EC, conforming to
the requirements of standards EN 55022 for emissions, EN50130-4 for
immunity, and EN 60950 for Electrical Equipment safety.
Document 800-01802 Rev B 5
02/09
Important Safety Information
• Read and keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
• Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus.
Precautions
• Please ensure that your installation area can support the weight of the
camera.
• Do not install the camera in extreme temperature conditions. Only use
the camera where temperatures are between -13°F and 122°F (-25°C
and 50°C). Be especially careful to provide ventilation when operating
under high temperatures.
• Do not aim the camera towards an extreme light source to prevent
damaging the CCD.
• Do not touch the camera bezel (front glass plate).
• Do not drop the camera or subject it to physical shock.
• Do not expose the camera to radioactivity.
• Do not use a strong or abrasive detergent when cleaning the camera.
Caution The light emitted from the near-infrared light emitting
diodes (LEDs) provides illumination over a wide area.
This light is not considered a risk to the unshielded
human eye. However, as with any light source, it is
recommended that normal precautions be taken to
avoid unnecessary exposure. For example, avoid
staring into the beam or viewing directly with optical
instruments at close range.
Note IR LEDs could be warm after prolonged use.
6
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Unpack Everything . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Attaching the Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Positioning the Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Lens Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Adjusting the Zoom and Focus of the Lens . . . . . . . . . . . . . . . . . . 9
Camera Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Camera Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connecting the Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Setup Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
SETUP Menu Functions . . . . . . . . . . . . . . . . . . . . . . . . . 12
SPECIAL Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
SPECIAL Menu Functions. . . . . . . . . . . . . . . . . . . . . . . . 14
Adding a Camera Title Display . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Configuring Sync Control/Line-lock . . . . . . . . . . . . . . . . . . . . . . . 16
Setting Up Motion Detection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Configuring Privacy Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Warranty and Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Mounting Template . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Document 800-01802 Rev B 7
02/09
Introduction
The Honeywell HCD95534 Color IR camera is designed for exceptional value
and performance and is ideally suited for use in day-to-day surveillance
applications. The off-the-shelf feature set is designed for high picture quality
in standard applications and the HCD95534 requires little to no adjustment
after installation.
Figure 1 Camera Overview
Features
• High resolution 530 TVL 1/3” CCD provides a high-quality picture in low-
light conditions
• 26 IR LEDs for illumination up to 125~150 ft. (40~47 m) depending on
scene reflectivity, DSS on
•5
–50 mm F1.6 IR corrected Vari-focal lens with external controls for
zoom and focus
• External access for camera On-screen Display (OSD) menu and day
night threshold controls
• Digital Noise Reduction (DNR) minimizes video noise in low light
• Digital Slow Shutter (DSS) for improved light sensitivity to extend the
range of the light that the camera can detect in low-light conditions
• Automatic day/night switching with adjustable threshold level control
• 12 VDC or 24 VAC operation
Sunshield
Lens adjustment
Camera settings
(behind access cover)
Mounting bracket
IR LED
5–50 mm IR
corrected
vari-focal lens
Photo cell
8
Before You Begin
Unpack Everything
Check that the items received match those listed on the order form and
packing slip. The HCD95534 packing box should include, in addition to this
User Guide:
• One HCD95534 camera
• Four mounting screws
• One video test cable
• One allen wrench
• One adapter plate for 4S mounting box
If any parts are missing or damaged, contact the dealer you purchased the
camera from or call Honeywell Customer Service (see the back of this
manual).
Note A Phillips screwdriver and a flathead screwdriver may assist your
installation.
Installation
The HCD95534 camera is designed for installation on a wall or ceiling. The
HCD95534 is weather sealed for indoor or outdoor locations.
Attaching the Camera
1. Position the camera to the desired mounting location on a wall or ceiling.
Be sure the location is solid on a flat, smooth surface (for example, a
crossbeam).
2. Using the supplied mounting template, mark the four screw holes for
installation.
3. Using four screws appropriate to your installation, mount the camera at
the marked holes.
The mounting bracket can be separated from the camera housing for
easier installation. This is done by unscrewing and removing the thumb
screw on the bracket. Replace and tighten the thumb screw after
installation is complete.
Document 800-01802 Rev B 9
02/09
Note To ensure a waterproof installation, the notch in the camera base
that the power and video connections exit through should be facing
down.
If the power and video connections exit the top of the base (wall
mounted only), water may pool in the camera base. To minimize
moisture entering the base, apply appropriate sealant around the
notches and any other gaps between the camera base and the
mounting surface.
Positioning the Camera
Caution Do not swivel and position the camera without the
mounting bracket firmly in place.
Loosen the thumb screws and move the camera into position. Swivel the
camera to capture the desired field of view. Tighten the thumb screws to set
the position.
Lens Setup
Adjusting the Zoom and Focus of the Lens
The zoom and focus adjustment is located on the underside front end of the
camera housing. Use a flathead screwdriver to adjust the zoom and/or focus.
Figure 2 Lens Controller
Zoom adjustment screw
Turn counter-clockwise for wide angle
Turn clockwise for telephoto
Focus adjustment screw
Turn counter-clockwise for near focus
Turn clockwise for far focus
10
Camera Settings
Camera Functions

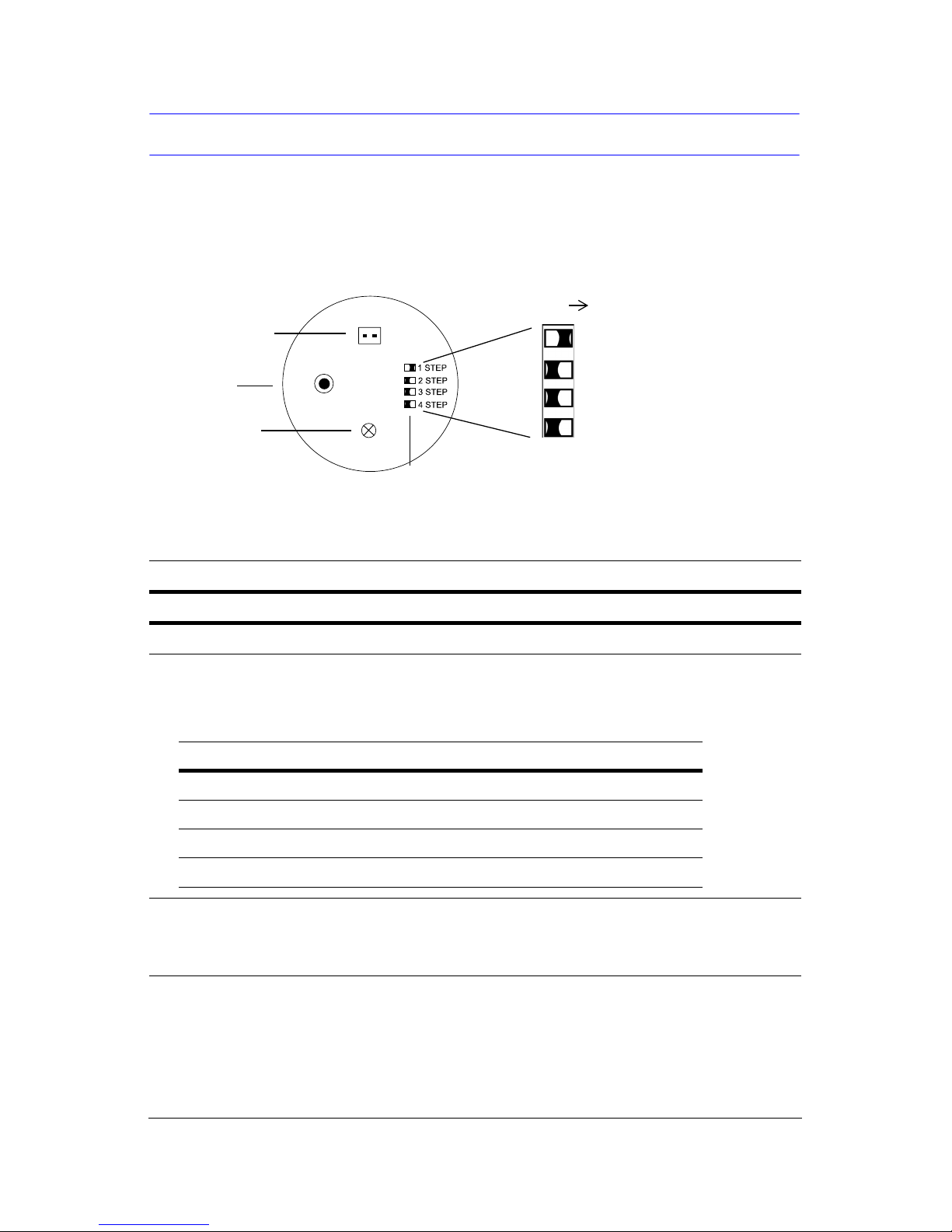

Figure 3 Camera Controller
Legend
# Description
1Video-test monitor output connector
2LUX-level adjustment DIP switches. Only one switch should be on at a
time. They modify the point at which the lux threshold (level of light)
changes the mode of operation (color or B/W).
3LED-level adjustment screw. Increase (turn clockwise) or
lower (turn counter-clockwise) the IR LED brightness in night (B/W)
mode.
4Camera OSD control (four position plus center push)
LED-LEVEL
VIDEO-TEST
LUX LEVEL
DOWN
UP
LEFT RIGHT
SETUP (MENU)
PUSH DOWN
1
3
4
ON
1 STEP
2 STEP
3 STEP
4 STEP
2
STEP Color to B/W (LED on) B/W to Color (LED off)
1 11–12 lux 12–13 lux
2 8–9 lux 10–11 lux
3 6–7 lux 7–8 lux
4 1–3 lux 3–5 lux
Autres manuels pour HCD95534
2
Table des matières
Autres manuels Honeywell Caméra de sécurité
Honeywell
Honeywell HCC334L Manuel utilisateur
Honeywell
Honeywell HD62 Manuel utilisateur
Honeywell
Honeywell equIP HFD6GR1 Manuel utilisateur
Honeywell
Honeywell CAHBC720PI60V Manuel utilisateur
Honeywell
Honeywell HCD95534 Manuel utilisateur
Honeywell
Honeywell PrimaView HCGC48 Manuel utilisateur
Honeywell
Honeywell HB73 Manuel utilisateur
Honeywell
Honeywell HD3DH Manuel utilisateur
Honeywell
Honeywell HD4CH Manuel utilisateur
Honeywell
Honeywell HBD7S(X) Manuel utilisateur
Honeywell
Honeywell HEV28C Manuel utilisateur
Honeywell
Honeywell HISD-1181W Manuel utilisateur
Honeywell
Honeywell Performance HQA HD72HD4 Series Manuel utilisateur
Honeywell
Honeywell ACUIX ES Manuel utilisateur
Honeywell
Honeywell 30 Series Manuel utilisateur
Honeywell
Honeywell HD51 Manuel utilisateur
Honeywell
Honeywell HD4VC4HR Manuel utilisateur
Honeywell
Honeywell HC60WZ2E30 Manuel utilisateur
Honeywell
Honeywell HCD484L Manuel utilisateur
Honeywell
Honeywell HBD92SX Manuel utilisateur
