5804BD

TWO-WAY WIRELESS KEY

USER GUIDE

About 5804BD

5804BD is a four-button remote control for your alarm system. 5804BD can send a command to the alarm system,

such as to arm or disarm, as well as receive system status. Two LEDs and a speaker are used to indicate system

status. 5804BD is typically used for arming, disarming, and controlling devices. Check with your installer to

understand which functions the buttons have been assigned on your unit.

Operating the Buttons

Activating a Button

To activate a function, press and hold the appropriate button down until the yellow LED flashes (2 beeps will be

heard), and then release it.

NOTE: Transmission will not be successful if the key is not within range of the system’s receiver. If 5804BD does

not receive system status from the panel for approximately five seconds, it will generate a long (one second) beep.

Requesting System Status

You can check system status before arming or disarming your system.

Check the system status by momentarily pressing and releasing any button. The yellow LED will flash after you

release the button (one beep will be heard). After a second or two, the device will display the system status

through the LEDs and speaker (see the System Status Indications Table, below). If 5804BD does not receive

system status from the panel for approximately five seconds, it will generate a long (one second) beep and shut

itself down. It will also shut itself down if you do not press a button within five seconds of receiving a status update.

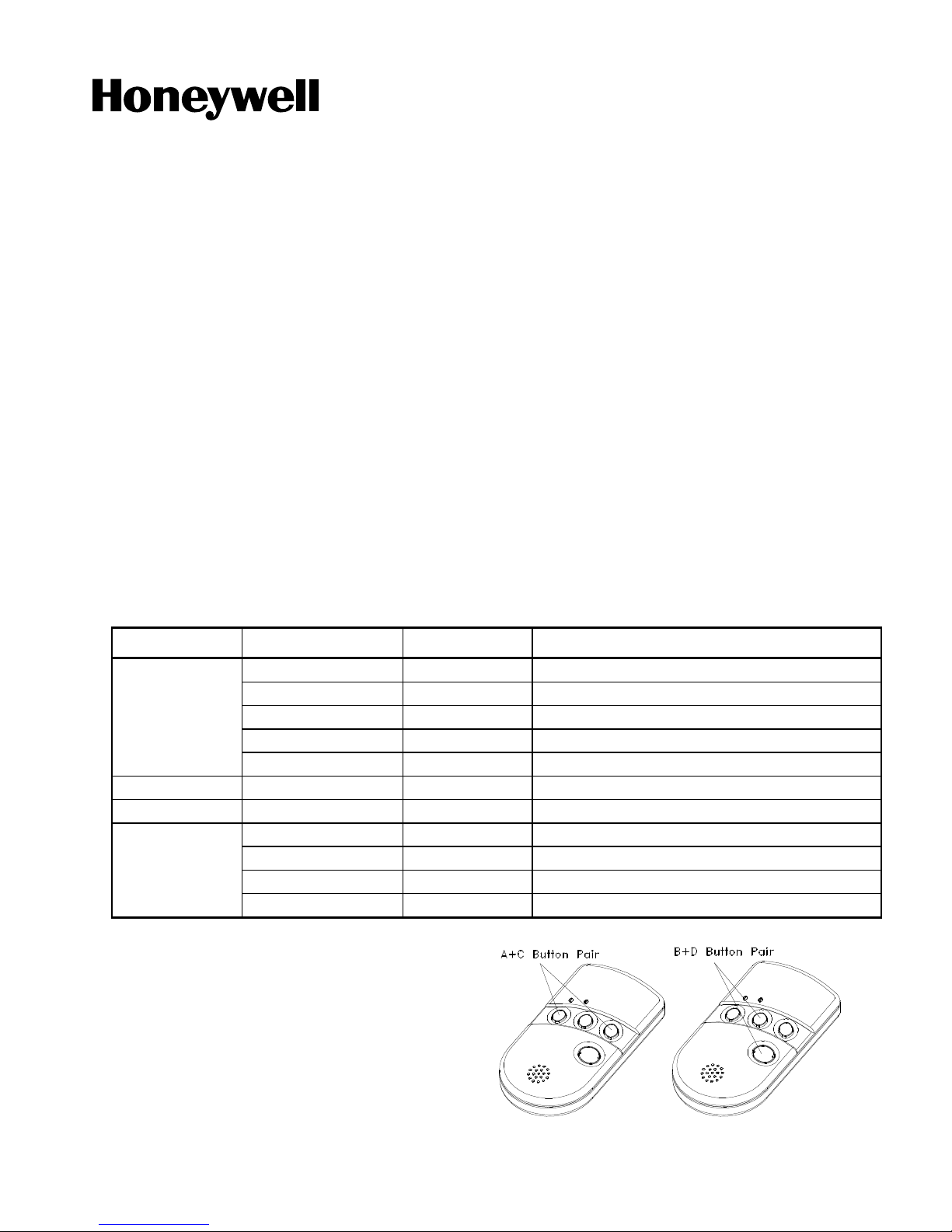

System Status Indications Table

LED LED Condition Sounds System Status

On Steady 2 Beeps Armed Away or Maximum

On Steady 3 Beeps Armed Stay or Instant

Flashing Pulsing Fire Alarm in progress

Flashing Steady Armed, Burglary Alarm in progress

Red

Flashing Silent Alarm Memory

Yellow (right) Flashing Silent Indicates RF transmission

Red & Green Alternately Flashing Silent In Enter House ID Mode

On Steady 1 Beep Disarmed, Ready to Arm

Flashing Silent Disarmed, Not Ready to Arm

Flashing Pulsing System in Trouble Condition

Green

Flashing 1 Beep System Not Ready

Multiple Button Operations

The 5804BD can generate the same responses as

keypad key pairs of [*] + [#] and [*] + [1] by

depressing “A” + “C” and “B” + “D”

button pairs,

respectively.

You must depress the button pair for

at least 2 seconds for the 5804BD to reco

gnize the

button pair command. These button pairs

allow you

to activate additional keypad functions

depending

on control panel programming. Check with

your

installer to understand which functions the buttons

have been assigned on your unit.

Failure of Replaceable Batteries

This wireless key has been designed to provide several years of battery life under normal conditions. The

expected battery life is a function of the device environment, usage and type. Ambient conditions such as high

humidity, high or low temperatures, or large temperature fluctuations may reduce the expected battery life.

This device will report a low battery condition to the control panel as a trouble condition, when the batteries need to

be replaced. In addition the yellow LED will not flash when a button is pressed. However, if the device is unused

for a long period of time, it may fail to operate as expected. Regular testing and maintenance will keep the system

in good operating condition for the lifetime of the product.

Low Battery Indication

When the unit goes into a Low Battery condition, the yellow LED will not flash when a button is pressed. Change

both batteries immediately.

To Replace the Batteries

Removing or Inserting the Unit from a Belt Clip

LIMITATIONS STATEMENT

Signals sent by wireless transmitters may be blocked or reflected by metal objects before they reach the alarm receiver. Even if the

signal path has been recently checked during a weekly test, blockage can occur if a metal object somehow blocks the signal path.

Wireless button type transmitters that have visual and audible indications of status must be used to confirm that the desired action

(such as arming) has occurred after pressing a function button on any of these transmitters. Be sure to listen for appropriate

audible and visual indications that such action has occurred. Otherwise, you could inadvertently leave yourself or your premises

unprotected.

External factors such as humidity, high or low temperatures, or constant activation of a programmed button may reduce battery life

in a given installation. If the button unit is used infrequently, activate it regularly (once per week) to confirm operation. A button type

transmitter will report a low battery condition to the alarm control when a low battery status is detected.

















N8547V1 04/09 Rev. A

2 Corporate Center Drive, Suite 100

P.O. Box 9040, Melville, NY 11747

www.honeywell.com/security

1. Remove the screw from the back case.

2. Remove case back by using the blade of a small screwdriver to pry open.

3. Place batteries as shown on diagram. Use CR2430 or DL2430 Lithium

batteries only.

4. Close case by snapping case front and back together.

5. Replace the screw to secure the case.

WARNING!

Improperly installing the batteries will cause damage

to the batteries.
