Honeywell ScanPal EDA52-0 Manuel utilisateur



ColetordeDadosHoneywellScanPalEDA52



O Honeywell ScanPal EDA52 é um computador móvel de classe

empresarialquefornece conectividadeconfiávele seguraentre

funcionáriosdalinhadefrenteesistemasdenegóciosdeback‐

end.Eleéprojetadoparausoemaplicativosdevarejo,transporte

elogística,manufatura,saúdeeserviçospúblicos.

OScanPalEDA52éapróximageraçãodecomputadoresmóveis

da série ScanPal da Honeywell, equipado com o mais recente

processador Qualcomm Snapdragon octa‐core de 2,0 GHz e

conectividadesemfiorobustapormeiodecomunicaçãoNFC,Wi‐

Fi5eBluetooth.



www.bztech.com.br

ScanPal™ EDA52 Series

Quick Start Guide

EDA52-A-EN-QS-01 Rev B

11/22





Agency Models

EDA52 series: EDA52-0, EDA52-1

Note: EDA52 mobile computers come with either a six-pin I/O

connector or a two-pin connector with a USB-C port depending on

the model. Due to variations in model configurations, your

computer may appear different than illustrated.

Out of the Box

Make sure that your shipping box contains these items:

• EDA52 mobile computer

• Rechargeable li-ion battery

• USB charging cable (Two-pin model only)

• Hand strap (optional)

If you ordered accessories for your mobile computer, verify that

they are also included with the order. Be sure to keep the original

packaging in case you need to return the mobile computer for

service.

Memory Card Specifications

Honeywell recommends the use of Single Level Cell (SLC)

industrial grade microSD™ or microSDHC™ memory cards with

mobile computers for maximum performance and durability.

Contact a Honeywell sales representative for additional

information on qualified memory card options.

Computer Features

Microphone

Power Button

Battery Status/

Notification LED

Touch Panel

Scan Button

Scan Status LED

Imager Window

(LED/Laser Aperture)

Front Camera

Note: Hand strap not shown.

Nano SIM and/

or MicroSD Card

Slot

* Six-pin connector or Two-pin with a USB port, depending on model.

Battery Cover

Microphone

Battery Cover

Latch

Speaker

Laser Safety

Label Location

Camera Lens

and Flash

Scan Button

Volume Button

Six-pin

I/O Connector *

USB port with Two-pin

I/O Connector *

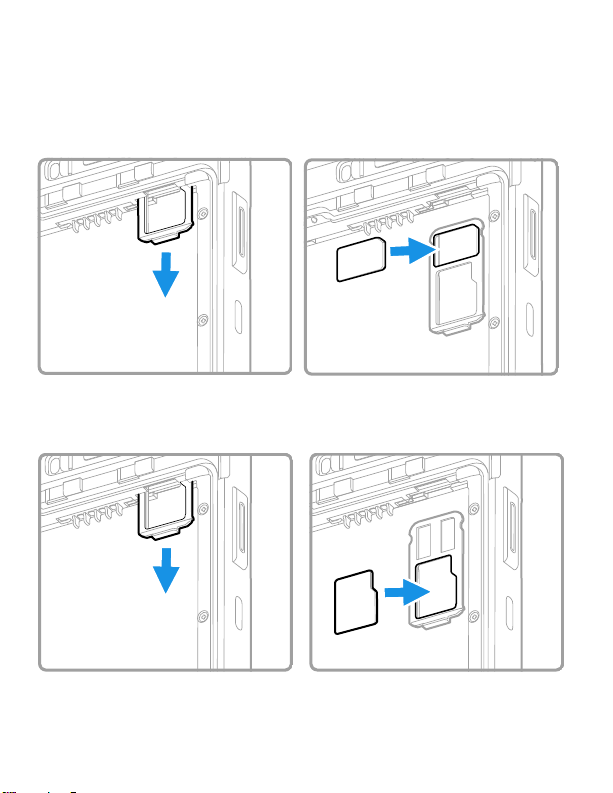

Install a Nano SIM Card (WWAN Models)

Either a nano-SIM card or embedded SIM (eSIM) is used to

activate the phone and connect to a mobile network. eSIM is

available on select models only. Refer to the user guide for

additional information.

Install a microSD Card (Optional)

Note: Format the microSD card before initial use.

Note: Always power off the computer before attempting to install or

remove a card.

About the Battery

The mobile computer ships with a 3.8 VDC, 17.1 watt-hour

Li-ion battery manufactured for Honeywell International Inc.

We recommend use of Honeywell Li-ion battery

packs. Use of any non-Honeywell battery may result

in damage not covered by the warranty.

Nous recommandons l’utilisation de batteries Li-ion

de la marque Honeywell. L’utilisation d’une batterie

d’un autre fabricant est susceptible de provoquer des

dommages non couverts par la garantie.

Ensure all components are dry prior to placing the

battery in the computer. Mating wet components

may cause damage not covered by the warranty.

Assurez-vous que tous les composants sont secs avant

d’insérer la batterie dans l’ordinateur. L’insertion de

composants humides risque de provoquer des

dommages non couverts par la garantie.

Before you attempt to use, charge or replace the

battery in the device, carefully read all labels,

markings and product documentation provided in the

box or online at sps.honeywell.com. To learn more

about Battery Maintenance for Portable Devices, go

to honeywell.com/PSS-BatteryMaintenance.

Avant d’essayer d’utiliser, de charger ou de remplacer

la batterie de l’appareil, lisez attentivement toutes les

étiquettes, marquages et documentation du produit

fournis dans la boîte ou en ligne à sps.honeywell.com.

Pour en savoir plus sur l’Entretien de Batteries pour

Appareils Portables, consultez-le honeywell.com/

PSS-BatteryMaintenance.

Install Battery

Install the Hand Strap

3 4

1 2
