Honeywell 8690i Manuel utilisateur

8690i

Mini Wearable Mobile Computer

Quick Start Guide

8690i-EN-QS Rev (a)

10/20





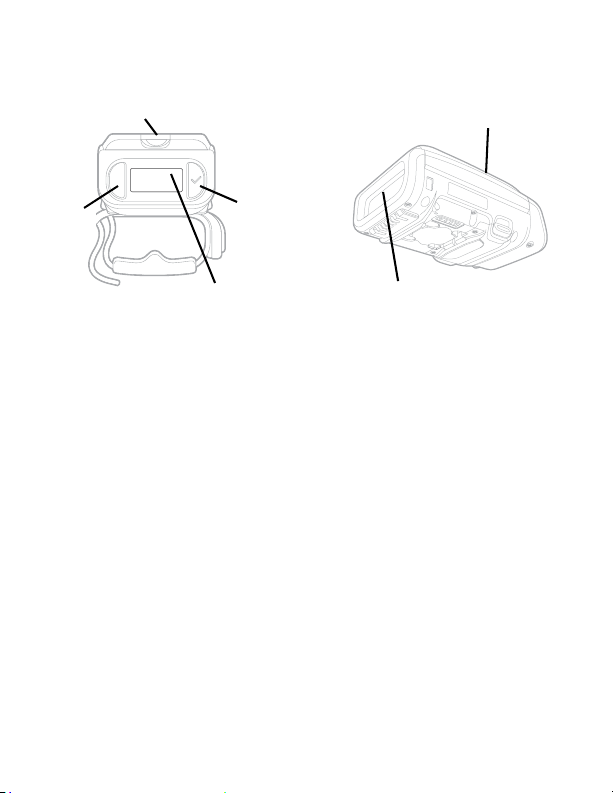

Overview

Note: The battery must be fully charged before the first use. An

MB4-BAT-SCN07 or an MB4-SCN07 Charging Station

must be purchased separately.

95%

Battery

Right 

button

Left 

button

Scanner

User window

Battery latch

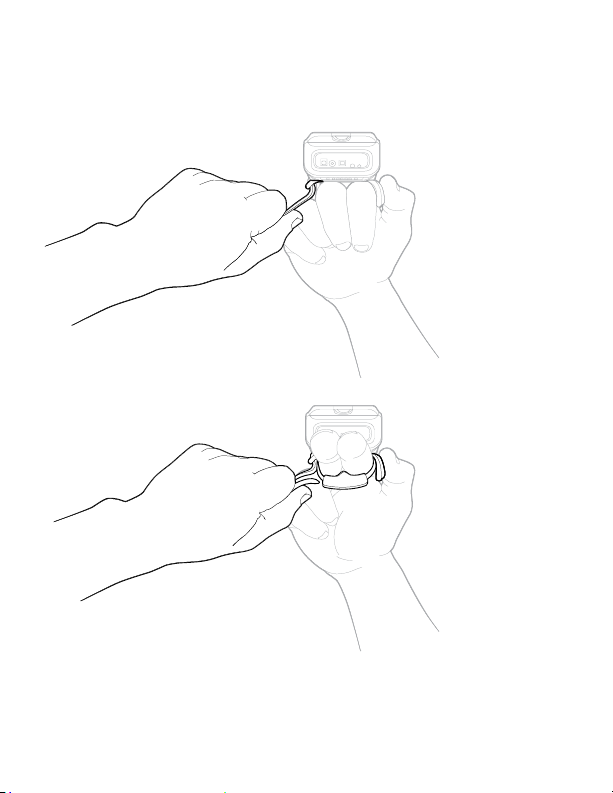

Attach the Scanner to Your Hand

Pull the finger strap to secure it and tuck the excess strap length

into the finger guide channel.

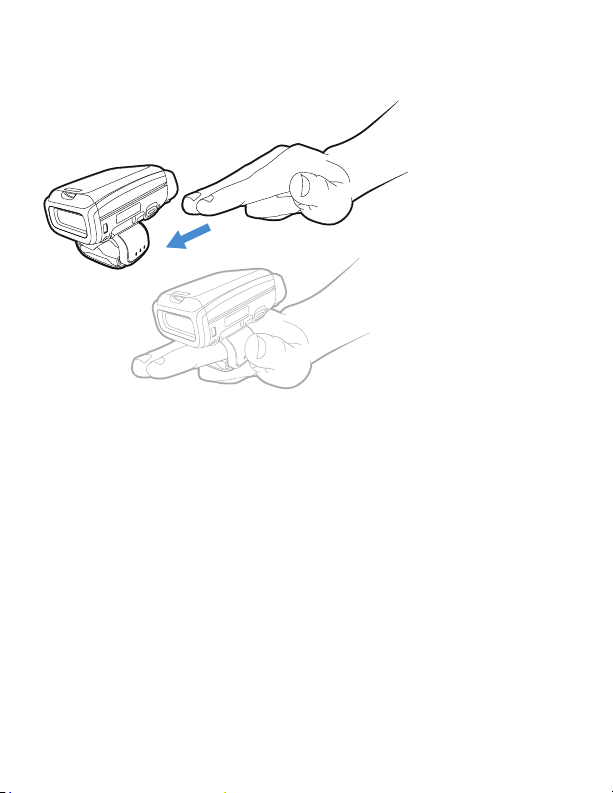

Right or Left Handed Operation

To release the finger trigger, turn over the scanner. Slide the

latch toward the user window to release the finger trigger. Turn

the finger strap around and snap it into place to change the

operation to the correct hand.

Power Up the Scanner

Press the trigger to power up the scanner. The battery, WiFi, and

Bluetooth status appear in the window.

User Window

The user window displays prompts for using the scanner in your

environment. The buttons to the left and right of the window are

used to scroll through the windows or to enter responses to

screen prompts.

• Press both the right and left buttons at the same time to view

the WiFi, Bluetooth, and battery status.

• Press and hold the left button for 6 seconds to restart the

scanner.

95%

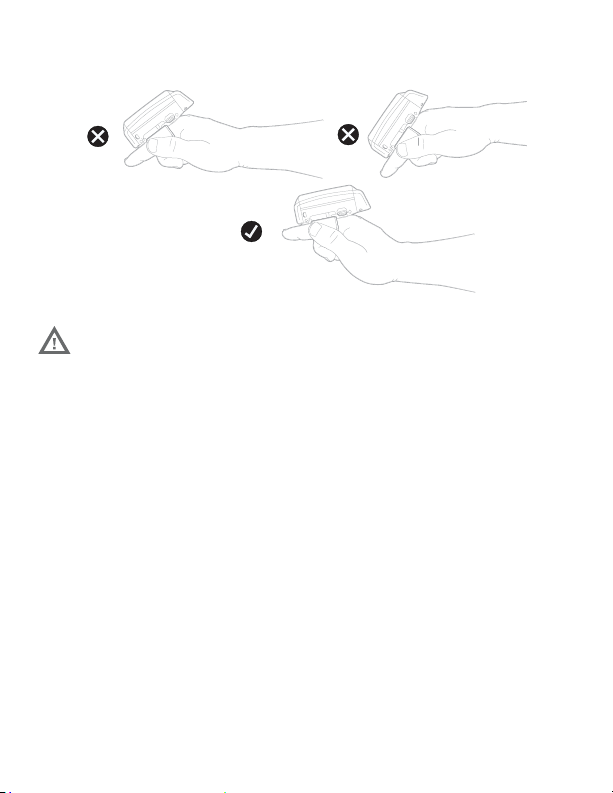

Wrist Position When Scanning

How to Scan a Bar Code

The 8690i scanner has a view finder that projects a bright aim-

ing pattern. This aiming pattern should be centered over the bar

code, but it can be positioned in any direction for a good read.

Connect the Scanner via Bluetooth®

Pair with a PC or Laptop Bluetooth Serial Port: Host

Reconnect Mode

The 8690i can pair with host Bluetooth devices such as personal

computers, laptops, and tablets. In this mode, the host will 

continually attempt to connect with the scanner. If the scanner

and the host become disconnected, the host will manage the

reconnection.

Warning: Do not stare directly into the laser beam.

1. Scan the Host Reconnect Mode bar code, below.

2. Set your host device so it searches for other Bluetooth

devices. (Refer to your host device’s User’s Guide for pairing

instructions.)

3. Once your host device has located the scanner, select the

8690i scanner name from the list displayed.

Note: Refer to the 8690i User’s Guide if your host device displays

a PIN.

The Bluetooth symbol appears in the scanner window when the

scanner pairs with a host.

Pair with a PC or Laptop Bluetooth Serial Port: Scanner

Reconnect Mode

In this mode, the scanner will continually attempt to connect

with the host. If the scanner and the host become disconnected,

the scanner will manage the reconnection.

Host Reconnect Mode

1. Scan the Scanner Reconnect Mode bar code below.

2. Set your host device so it searches for other Bluetooth

devices. (Refer to your host device’s User’s Guide for pairing

instructions.)

3. Once your host device has located the scanner, select the

8690i scanner name from the list displayed.

Note: Refer to the 8690i User’s Guide if your host device displays

a PIN.

The Bluetooth symbol appears in the scanner window when the

scanner pairs with a host.

Pair with a PC or Laptop Bluetooth: HID Keyboard Mode

In this mode, the 8690i pairs with a Bluetooth device using a

HID keyboard.

Scanner Reconnect Mode

1. Scan the Bluetooth HID Keyboard Connect bar code

below.

2. Set your host device so it searches for other Bluetooth

devices. (Refer to your host device’s User’s Guide for pairing

instructions.)

3. Once your host device has located the scanner, select the

8690i scanner name from the list displayed.

Note: Refer to the 8690i User’s Guide if your host device displays

a PIN.

The Bluetooth symbol appears in the scanner window when the

scanner pairs with a host.

Disconnect from the Host

Once your scanner has been connected to a host, you must dis-

connect it in order to communicate with a different device. Scan

the Bluetooth Disconnect bar code to unlink the scanner from

the currently linked host.

Bluetooth HID Keyboard Connect

Bluetooth Disconnect
