Honeywell TRADELINE HE360 Manuel

69-2631ES-01

HE360 Humidifier and

Installation Kit

HE360 HUMIDIFIER AND INSTALLATION KIT

69-2631ES—01 2

WELCOME

To the comfortable world of humidified air. When you use your Honeywell humidifier,

notice that your skin is not as dry, and that your scratchy throat and irritated nasal

passages that aggravate allergies and asthma are steadily improving.

You have also taken the first step in reducing the zapping you create when you walk on

your carpet and then touch your TV, computer, metal door knob or your pet. Your

furniture and woodwork are also benefitting from the difference that humidified air

makes.

Congratulations! You have just made a great investment in improving the comfort of

your home.

APPLICATION

This kit contains your new Honeywell HE360 Humidifier, H8908 Humidistat and all the

accessories required for installation.

INSTALLATION

Preparing for the Installation

Be sure to identify all the required (Table 1) accessories (included) and make sure the

appropriate tools are available before beginning the installation.

Included Accessories

Table 1. Included Accessories.

Quantity Accessory

20 ft (6.2m) 18 gauge, two-strand thermostat wire

20 ft (6.2m) 1/4 in. (6.35 mm) OD feed water tubing

10 ft (3.1m) 1/2 in (12.7 mm) ID drain tubing

HE360 HUMIDIFIER AND INSTALLATION KIT

3 69-2631ES—01

Required Tools

Tools required for installation include:

• Tin snip.

• Screwdriver.

• Adjustable or open-end wrench.

• Drill, punch or awl.

• Level.

Determining Best Location for Humidifier

CAUTION

Temperature and Static Pressure Hazard.

Can cause property or equipment damage.

Locate humidifier where ambient temperature is between 32°F (0°C) and

160°F (71°C).

Do not install humidifier where freezing temperatures could occur.

Be sure supply plenum static pressure is no greater than 0.4 in. wc and water

pressure is no greater than 124 psi.

• Select a location for the humidifier on the supply (warm air stream) plenum. See

Fig. 1.

• Select a location that cannot damage the air conditioner A-coil during installation.

• Do not locate the humidifier on the furnace body.

• Allow adequate clearance in front of and above the humidifier so you can easily

remove the cover to perform routine maintenance.

— Mount the humidifier at least 3 in. (78 mm) above the furnace body to allow

adequate space for the solenoid valve and drain line.

— Mount the humidifier in a conditioned space to prevent freezing.

1 bag Connecting and mounting hardware:

Wire nuts (4)

No. 8 sheet metal screws (18)

Drain tube clamp

Feed tube mounting clamps (6)

Brass inserts (2)

Plastic compression rings (2)

1 Pressure switch

1 H8908 Humidistat

1 bag Saddle Valve Assembly:

Saddle valve and top clamp (1)

Threaded bottom clamp (1)

Bolts (2)

Rubber gasket (1)

Eyelet (1)

Plastic bushing (1)

Table 1. Included Accessories.

Quantity Accessory

HE360 HUMIDIFIER AND INSTALLATION KIT

69-2631ES—01 4

Fig. 1. Typical humidifier installation locations.

Selecting Water Supply Location

• Use either hard or soft water in the humidifier and either hot or cold water. The

water flow rate, with the humidifier running, is 3.5 gal/hr (13 liters/hr) to flush the

pad and provide moisture for evaporation.

• Make sure that the 20 ft (6.2m) of feed water tubing provided is adequate to

connect the water supply (saddle valve) with the humidifier solenoid valve.

Locating Closest Floor Drain

• Select location with access to a floor drain to provide drainage for air conditioner

condensation and humidifier drainage.

• If you do not have a drain available, we recommend that you install the Honeywell

Whole House Drum or Disk Humidifier. Make sure that the 10 ft (3.1m) of drain

tubing is adequate to reach from the humidifier drain connection to the floor drain.

Selecting Location for Humidistat

• Select a location for the humidistat on the return plenum or on the wall in the living

space.

— Mounting on the return plenum is the easiest installation for the control wiring

circuit.

For return duct mounting, the humidistat should be mounted upstream from the

humidifier or bypass so that it is properly sensing the relative humidity of the living

space. Locate the control at least 8 in. (203 mm) upstream from the humidifier in the

return air duct. (See Fig 2.)

M12808A

HORIZONTAL

DOWN

FLO

LOWBOY

RETURN

HIGHBOY

RETURN

HE360 HUMIDIFIER AND INSTALLATION KIT

5 69-2631ES—01

Fig. 2. Selecting duct location for humidistat.

Locating Closest 120V Electrical Outlet

• Select location with access to an outlet. If not available, contact an electrician to

have one installed.

• Make sure that the humidifier cord is adequate to reach from the humidifier to the

outlet.

• Make sure that the 20 ft (6.2m) of thermostat wire is adequate to reach from the

humidifier solenoid, to the pressure switch, to the humidistat.

Installing the Humidifier

WARNING

Hazardous Voltage

Can cause personal injury or equipment damage.

Do not cut or drill into any air conditioning or electrical accessory.

CAUTION

Sharp Edges Installation Hazard.

Can cause personal injury.

Wear gloves and safety glasses.

1. Turn off power to the air handing system at the circuit breaker.

2. Draw a level line on the plenum in the location

chosen for the humidifier. (Leveling assures optimal humidifier performance.)

3. Locate the template (form number 69-2641 included in the box).

4. Tape the template in position and trace around the template.

5. Remove the template and carefully cut the rectangular opening.

6. Disassemble the humidifier; remove the cover and take out the humidifier pad

assembly. See Fig. 3.

ALTERNATE LOCATION

RETURN

AIR

RETURN

AIR

6 in. (152 mm)

MINIMUM 15 in. (381 mm)

MINIMUM

BEST

LOCATION

RETURN AIR DUCT M12831

HE360 HUMIDIFIER AND INSTALLATION KIT

69-2631ES—01 6

Fig. 3. Disassembling humidifier.

7. Position the securing clips as shown in Fig. 4.

Fig. 4. Position securing clips.

8. Make sure the humidifier housing is level, then position it in the opening so the

plastic tabs are in place on the lower sheet metal edge of the opening. Use pli-

ers, as necessary, to flatten cut edges. See Fig. 5.

9. Push in securing clips until completely seated.

10. Drill holes and install the three sheet metal screws on the top of the humidifier

housing. Secure the housing with the three remaining screws.

M12809

COVER

ASSEMBLY

HUMIDIFIER

PAD ASSEMBLY

FEED TUBE NOZZLE

WATER

DISTRIBUTION TRAY

HUMIDIFIER

HOUSING

THUMB

SCREW

M12813

CLIP CLIP

HE360 HUMIDIFIER AND INSTALLATION KIT

7 69-2631ES—01

Fig. 5. Installing humidifier on duct.

11. Reinstall the humidifier pad assembly in the humidifier housing.

IMPORTANT

Be sure to reconnect the water feed tube and ensure that the tube is not

pinched or kinked.

12. Hinge the cover in place and secure with the thumbscrew located at the bottom

of the cover.

Connecting the Plumbing

Use hot or cold water and either hard or softened water in the humidifier.

1. Shut off the water.

DUCT

LEVEL

SHEET METAL

SCREWS (4)

PLASTIC

TABS (2)

DRAIN TUBING M20204

OPENING

TO AIR DUCT

HE360 HUMIDIFIER AND INSTALLATION KIT

69-2631ES—01 8

CAUTION

Chemical Hazard.

Can cause personal injury or equipment damage.

Do not use any line connected to an air conditioner.

Do not use gas line.

2. Use the self-piercing saddle valve (included) to tap into the water supply line at

the location selected. See Fig. 6. If tapping into galvanized pipe, drain line and

pre-drill 3/17 in. tap for saddle valve.

NOTE: The saddle valve is not designed to regulate water flow. The valve is either

open or closed.

IMPORTANT

To prevent debris from clogging the solenoid in-line filter, be sure to install the

saddle valve handle pointing toward the ceiling.

Fig. 6. Installing the saddle valve.

3. Use 1/4 in. (6 mm) OD tubing and connect the saddle valve to the inlet side of

the solenoid valveon the humidifier (see Fig. 7).

a. Place the brass compression nut over the tubing.

b. Install brass insert into end of tubing.

c. Slide the plastic compression ring over the tubing. (Discard copper compres-

sion ring provided with valve.)

NOTE: To prevent leaking, use plastic (Delrin) sleeve rings with plastic tubing. Use

copper sleeve rings only with copper tubing.

d. Insert the tubing into the solenoid valve fitting and support the valve while

tightening the compression nut.

M20175

SCREW DRIVER

WATER LINE

HE360 HUMIDIFIER AND INSTALLATION KIT

9 69-2631ES—01

NOTE: Do not over-tighten the compression nut. Moderate tightness prevents leak-

ing.

e. Repeat steps a. through d. for solenoid valve fitting.

f. Secure tubing with clamps provided.

Fig. 7. Installing feed tubing.

4. Connect a 1/2 in. (13 mm) drain tube to

the humidifier drain fitting and run to the

floor drain (see Fig. 8).

a. Slide the drain clamp over the tub-

ing.

b. Push the tubing over the drain nip-

ple on the humidifier.

c. Hand-tighten the clamp around the

tubing to secure the humidifier drain.

d. Fasten the drain tubing (can use

duct tape) along the route to prevent

movement and ensure downward

slope for correct drainage.

NOTE: Cut tubing to correct length so the

tubing terminates at the drain.

Fig. 8. Installing the drain tubing.

Installing the Pressure Switch

IMPORTANT

Do not install the switch in an area where temperature exceeds rating of

-40°F to 190°F (-40°C to 88°C).

M20176

BRASS COMPRESSION NUT

PLASTIC

COMPRESSION RING

BRASS INSERT

M20177

HE360 HUMIDIFIER AND INSTALLATION KIT

69-2631ES—01 10

1. Disconnect power from the humidifier before installing.

2. Mount the switch vertically with pressure connectors facing down, using pro-

vided self-tapping screws to secure the switch to the duct.

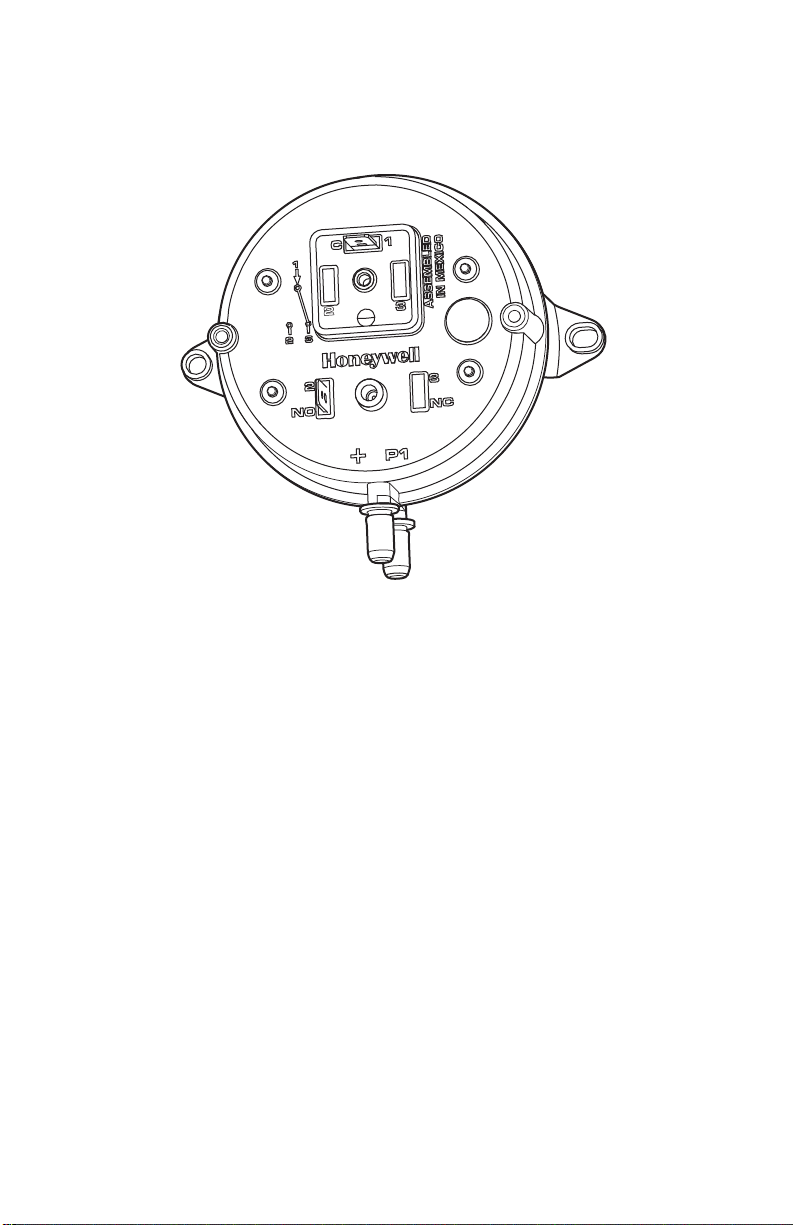

Fig. 9. Pressure switch—oriented vertically.

M27300

Autres manuels pour TRADELINE HE360

Table des matières

Langues :

Autres manuels Honeywell Humidificateur

Honeywell

Honeywell HUL535B Manuel utilisateur

Honeywell

Honeywell QuietCare HCM-630 Series Manuel utilisateur

Honeywell

Honeywell HCM-6009 - QuietCare Lon Console Humidifier Manuel utilisateur

Honeywell

Honeywell TrueSTEAM Manuel utilisateur

Honeywell

Honeywell Enviracaire Elite HE365A Manuel utilisateur

Honeywell

Honeywell HCM-6009 - QuietCare Lon Console Humidifier Manuel utilisateur

Honeywell

Honeywell HE120A1010 - Whole House Humidifier Manuel utilisateur

Honeywell

Honeywell HCM-525 Series Manuel utilisateur

Honeywell

Honeywell HUL430 series Manuel utilisateur

Honeywell

Honeywell TrueSTEAM HM512 Guide de planification

Honeywell

Honeywell HCM6011I - QuietCare Console Humidifer Manuel utilisateur

Honeywell

Honeywell Enviracaire Elite HE365A Manuel utilisateur

Honeywell

Honeywell ULTRA GLOW COOL MIST HUL530 Series Manuel utilisateur

Honeywell

Honeywell HWM-340 Series Manuel utilisateur

Honeywell

Honeywell TrueEASE HE100 Manuel d'utilisation

Honeywell

Honeywell HH950E Manuel utilisateur

Honeywell

Honeywell HEV355 Manuel utilisateur

Honeywell

Honeywell BH-860E Manuel utilisateur

Honeywell

Honeywell HE360A - Whole House Powered Humidifier Manuel utilisateur

Honeywell

Honeywell HCM 800 - PermaFresh Cool Moisture... Manuel utilisateur

Honeywell

Honeywell HUT-300 Series Manuel utilisateur

Honeywell

Honeywell HM509VPIAQ - TrueSTEAM 9 GPD Humidifier PRO... Manuel utilisateur

Honeywell

Honeywell TrueSTEAM Series Manuel utilisateur

Honeywell

Honeywell HE240 Manuel utilisateur

Manuels Humidificateur populaires d'autres marques

Boneco

Boneco H300 Manuel utilisateur

Bionaire

Bionaire CM1 Manuel

Air-O-Swiss

Air-O-Swiss AOS 7131 Manuel

KING

KING K 5002 Rainbow Manuel utilisateur

Crane

Crane EE-6902 Manuel utilisateur

Glaziar

Glaziar Ness Manuel utilisateur

Philips

Philips DreamStation Go Dimensions

Stadler Form

Stadler Form Hera Manuel utilisateur

Hunter

Hunter 31206 Manuel utilisateur

TaoTronics

TaoTronics TT-AH004 Manuel utilisateur

adorini

adorini Cigar Heaven Manuel utilisateur

Lanaform

Lanaform Aroma Manuel utilisateur

Aprilaire

Aprilaire 800 Series Manuel utilisateur

Pyle

Pyle SereneLife PHUMDIF8 Manuel utilisateur

Trotec

Trotec B 200 Manuel utilisateur

Pure Humidifier

Pure Humidifier EC Series Manuel utilisateur

Crane

Crane EE-864 Manuel utilisateur

air&me

air&me Solnan Manuel utilisateur
