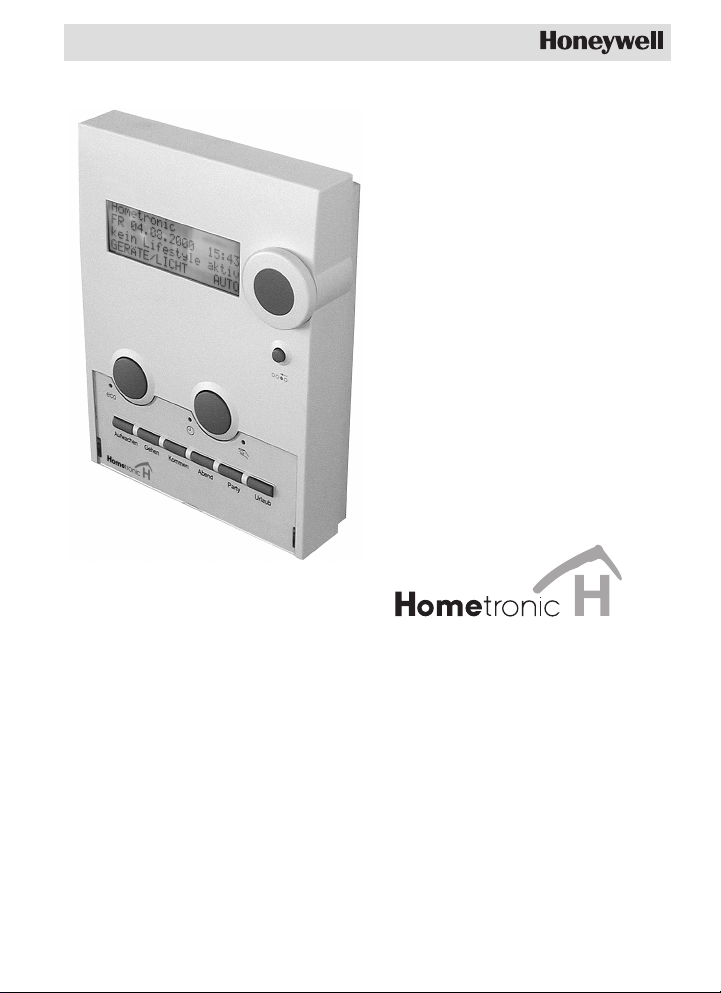

Honeywell HCM 200D Mode d’emploi

Hometronic

Manager

HCM 200d

Operation

Hometronic – An Overview

Operating elements

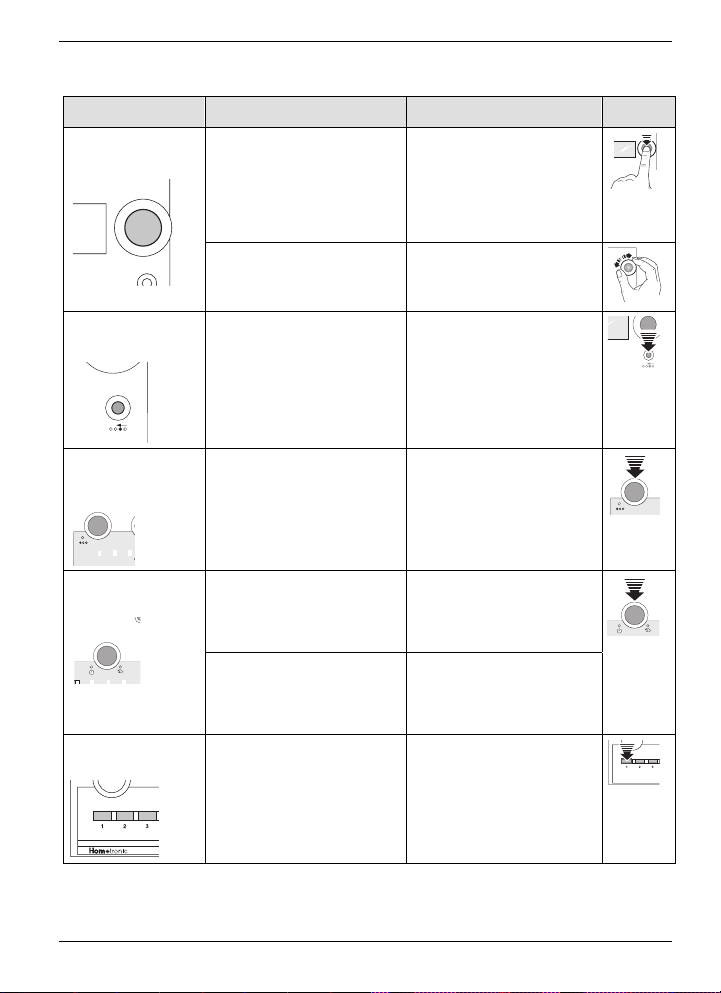

With ... You can: ... To do so you must:

• change to the main

• call up submenus

and values

• confirm inputs

►... press the Dial

button!

... the

Dial button

• navigate through

menus

• change values

►... turn the Dial

button (to the left or

right)!

... the

Back button

• move up one menu

level

• reject changes

(which you have

not confirmed)

►... press the Back

button!

... the

eco button

• change between

normal and econ-

omy temperature

►... press the eco

button!

• change between

automatic and

manual mode

►... press the

Auto/Manual but-

ton!

... the Auto/

Manual button

• deactivate an ac-

tive lifestyle

►... press the

Auto/Manual but-

ton 2x!

... the Lifestyle

buttons

• activate a lifestyle ►... press the Life-

style button!

Hometronic – An Overview

Information on these instructions

Congratulations! With the Hometronic you have chosen a mod-

ern, comfortable home automation system.

Comfort, economy and security simply by pressing a button –

Hometronic ensures your well-being by simple means.

This brochure is intended to familiarize you with handling your

system, but can also be of use if any questions arise later.

Please keep it in a safe place!

Getting started

Fold out the left-hand cover, where the operating and display

elements are explained. Leave the cover folded out while reading

further.

The Section "Getting started" from Page 23 onwards familiarizes

you with the basic operation.

Specific search

You are already familiar with your Hometronic, but wish to look

up a specific topic?

• Technical terms are identified by an * and are explained in

the glossary from Page 116.

• Help on any problems can be found from Page 111 onwards.

Symbols used

In addition to the symbols for operating the Hometronic Manager

the following symbols are also used:

Information (depending on the configuration of your Hometronic)

Hint

For your information

Hometronic – An Overview

Display and operating elements

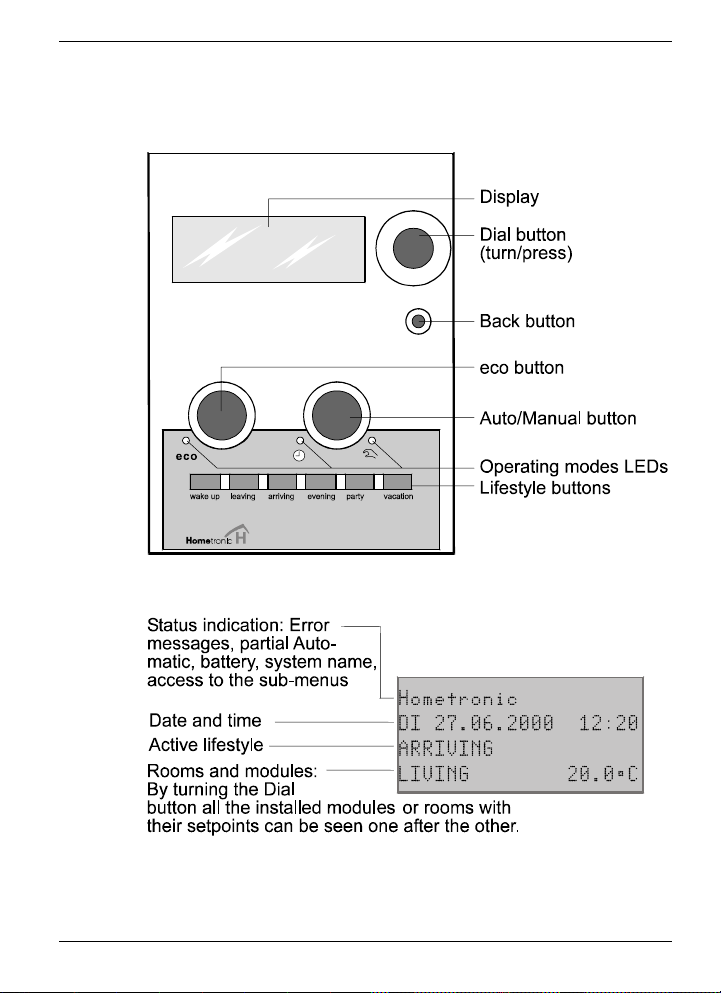

Display: The standard display

Contents

Information on these instructions II

Getting started II

Specific search II

Symbols used II

Display and operating elements III

Display: The standard display III

Hometronic – An Overview 6

Safety note 6

Software version 6

Hometronic: Living comfort with a system 7

Comfort: The home automation system 8

Cosiness: Heating and shading 8

Overview: Consumption metering 8

Safety: Presence simulation and wind protection 8

Important information on: Operating modes and

functions 9

Automatic mode 9

Lifestyle mode 10

eco mode (economy mode) 11

Partial automatic mode 12

Manual mode 12

Functions 12

Temperature control with HCM 200d and storey

controller 20

Boiler feedback 21

Hometronic – An Overview

Display and operating elements

Operation 23

Getting started 23

Changing batteries 23

Setting date and time 24

Reading and noting the version number 25

Selecting operating modes 27

Activating Automatic mode 27

Activating Lifestyle mode 27

Activating eco mode (economy mode) 32

Activating partial Automatic mode 32

Activating Manual mode 33

Activating functions 34

Activating presence simulation 34

Activating sun protection function 35

Activating automatic brightness control 36

Activating wind protection 37

Disabling Hometronic Manager 37

Setting room parameters 37

Reading system values 39

Changing to "Display" submenu 39

Reading sensor values 40

Reading room temperature 40

Reading heating consumption 41

Reading consumption of a metering unit 42

Status display 43

Radiator controller HR 50 44

Setting radiator controller HR 50 44

Setting up remote access to HR 50 45

Remote access to radiator controller HR 50 45

Contents

Room temperature sensor HCF 22 and setpoint adjuster

HCW 22 47

Installing HCW 22 or HCF 22 and assigning it to a

room 47

Removing assignment to a room 48

Thermostat control with boiler feedback 50

Installing collection relay 50

Uninstalling collection relay 51

Installing boiler relay 52

Deinstalling boiler relay 53

Adaptation 54

Saving and getting system settings 54

Changing to the "Settings" submenu 54

Saving system settings 55

Getting system setting 56

Adapting time programs 57

Changing to the "Time programs" submenu 57

Changing an entry 58

Deleting an entry 59

Deleting all entries 61

Inserting entries 62

Copying entries 64

Copying all entries 65

Adapting lifestyles 67

Changing to the "Lifestyles" submenu 67

Changing setpoints of a module or room 68

Deleting a module or a room from a lifestyle 69

Assigning a module or a room to a lifestyle 70

Assigning values to a free lifestyle 72

Hometronic – An Overview

Display and operating elements

Adapting sun protection function of a shutter 73

Assigning a shutter to a sensor 73

Adapting opening width of a shutter 75

Adapting slat inclination 77

Setting temperature-dependent sun protection

(shading) of a shutter 78

Setting response delay of shutters 80

Adapting automatic brightness control 83

Assigning lamps to a brightness sensor 83

Changing brightness values (threshold values) 84

Adapting lamp brightness to brightness values 85

Adapting wind protection 87

Adapting thermostat control 88

Installing stages of thermostat control 88

Setting stages of thermostat control 90

De-installing stages of thermostat control 91

Temperature control via sensor/contact switch 93

Assigning room to a sensor 93

Adapting setpoint of a sensor 95

Reading setpoint of a sensor 96

Adapting daylight saving time 97

Adapting basic system settings (parameters) 99

Changing to the "Parameters" submenu 99

Adapting a parameter 100

Changing names 101

Changing to the "Change name" submenu 101

Renaming lifestyles, modules and rooms 101
