RIO 54” CEILING FAN

MODEL #50195

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-877-361-3883, Monday - Thursday, 8 am - 6 pm, EST and Friday,

8 am - 5 pm, EST.

Español p. 19

WELCOME

PREPARATION

Before beginning the assembly of this product, ensure

that all parts are present. Compare all parts with the

package contents list and hardware contents list. If

any part is missing or damaged, do not attempt to

assemble the product.

After opening the top of the carton, remove the

mounting hardware package from the foam inserts,

then remove the motor from the packaging and

place it on a soft surface, such as a carpet, to avoid

damage to the nish.

Estimated Assembly Time: Under 60 minutes

Tools Required for Assembly (not included): Electrical

Tape, Phillips Screwdriver, Pliers, Safety Glasses,

Step Ladder, and Wire Strippers

Helpful Tools (not included): AC Tester Light, Tape

Measure, Wiring Handbook, and Wire Cutters

CARE AND MAINTENANCE

At least twice each year, lower the canopy to check

the downrod assembly, and then tighten all screws

on the fan. Clean the motor housing with only a soft

brush or lint-free cloth to avoid scratching the nish.

Clean the blades with a lint-free cloth. You may

occasionally apply a light coat of furniture polish to

wood blades for added protection.

Important: Shut off the main power supply before you

begin any maintenance tasks. Do not use water or a

damp cloth to clean the ceiling fan.

FAN WEIGHT

The net weight of this fan is: 15.7 lbs. (7,12 kg).

TABLE OF CONTENTS

ATTACH YOUR RECEIPT HERE

Serial Number

Purchase Date

Care and Maintenance ........................2

Package Contents ...........................3

Safety Information ...........................4

Mounting Options ............................5

Mounting Bracket Installation ...................6

Standard or Angle Mounting Instructions . . . . . . . . . .7

Closemount Instructions......................10

Wiring ....................................11

Canopy Installation..........................12

Blade Installation ...........................12

Light Kit Installation .........................13

Operating Instructions .......................14

Replacement Parts List ......................16

Troubleshooting ............................17

Limited Lifetime Warranty.....................18

PACKAGE CONTENTS

Unpack your fan and check the contents. You

should have the following items:

1. Downrod

2. Canopy

3. Mounting Bracket

4. Canopy Cover

5. Yoke Cover

6. Motor Housing

7. Light Kit

8. Glass Shade

9. Bulb (2)

10. Receiver

11. Blade (5)

12. Loose parts bags containing (not shown):

Mounting hardware, blade attachment

hardware, electrical hardware, pull chains, wire

connectors, etc.

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate, or install the product.

• Before you begin installing the fan, disconnect the power by removing fuses or turning off the

circuit breakers.

• Make sure that all electrical connections comply with local codes, ordinances, the National Electrical

Code, and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring handbook if

you are unfamiliar with installing electrical wiring.

• Make sure the installation site you choose allows a minimum clearance of 7 ft. (2,14 m) from the blades

to the oor and at least 30 in. (76 cm) from the end of the blades to any obstruction.

DANGER

WARNING

When using an existing outlet box, make sure

the outlet box is securely attached to the building

structure and can support the full weight of

the fan. Failure to do this can result in serious

injury or death. The stability of the outlet box is

essential in minimizing wobble and noise in the

fan after installation is complete.

To reduce the risk of re or electric shock, do not

use the fan with any solid-state speed-control

device or control the fan speed with a full-range

dimmer switch.

To reduce the risk of re, electric shock, or personal

injury, mount the fan to an outlet box marked

“ACCEPTABLE FOR FAN SUPPORT” and use the

mounting screws provided with the outlet box. Most

outlet boxes commonly used for the support of

lighting xtures are not acceptable for fan support

and may need to be replaced. Consult a qualied

electrician if in doubt. Secure the outlet box directly

to the building structure. The outlet box and its

support must be able to support the moving weight

of the fan, at least 35 lbs. (15,88 kg).

WARNING

CAUTION

To reduce the risk of re, electric shock, or

personal injury, do not bend the blade arms

when installing them, balancing the blades, or

cleaning the fan. Do not insert objects between

the rotating fan blades.

Read all instructions and safety information

before installing your new fan. Review the

accompanying assembly diagrams.

Be sure the outlet box is properly grounded or

that a ground (green or bare) wire is present.

MOUNTING OPTIONS

DANGER

Turn off the circuit breakers and the wall switch to

the fan supply line leads. Failure to disconnect

the power supply prior to installation may result in

serious injury or death.

Fig. 1

Fig. 2

Fig. 3

1. Your fan has 3 mounting options:

• Standard (Fig. 1)

• Angled (Fig. 2)

• Closemount (Fig. 3)

Note: The fans in gures 1 through 3 are not the actual

fan in your package, they are representation of the 3

different mounting options.

Important: If using the angle mount, check to ensure

the ceiling angle is not steeper than 10°.

Helpful Hint: Downrod style mounting is best suited for

ceilings 8 ft. or higher. For taller ceilings you may

want to use a longer downrod (sold separately).

Angle style mounting is best suited for angled or

vaulted ceilings. A longer downrod is sometimes

necessary to ensure proper blade clearance.

Closemount-style mounting is more suitable for

ceilings lower than 8 ft. (2,44 m) high.

2. Ensure that the blades of the fan are 30 in. (76 cm)

from any obstruction.

3. Check the downrod length to ensure the blades will

be at least 7 ft. (2,14 m) above your oor.

! !

5. Secure the mounting bracket to the outlet box using

screws and washers provided with the outlet box

(not included) (Fig. 5).

Note: It is very important that you use proper hardware

when installing the mounting bracket as it supports

the fan.

Important: If using the angle mount, ensure that the

open end of the mounting bracket is installed facing

the peak of the ceiling.

Fig. 4

Fig. 5

Mounting

Bracket

Canopy

Washer

Mounting

Bracket

Screws

4. Loosen all four mounting bracket screws. Remove

the two mounting bracket screws and washers from

the round holes of canopy. Set aside for later use.

Detach mounting bracket from canopy (Fig. 4).

Mounting Bracket

Screw

Washer

MOUNTING BRACKET INSTALLATION

Set Screw

STANDARD OR ANGLE MOUNTING INSTRUCTIONS

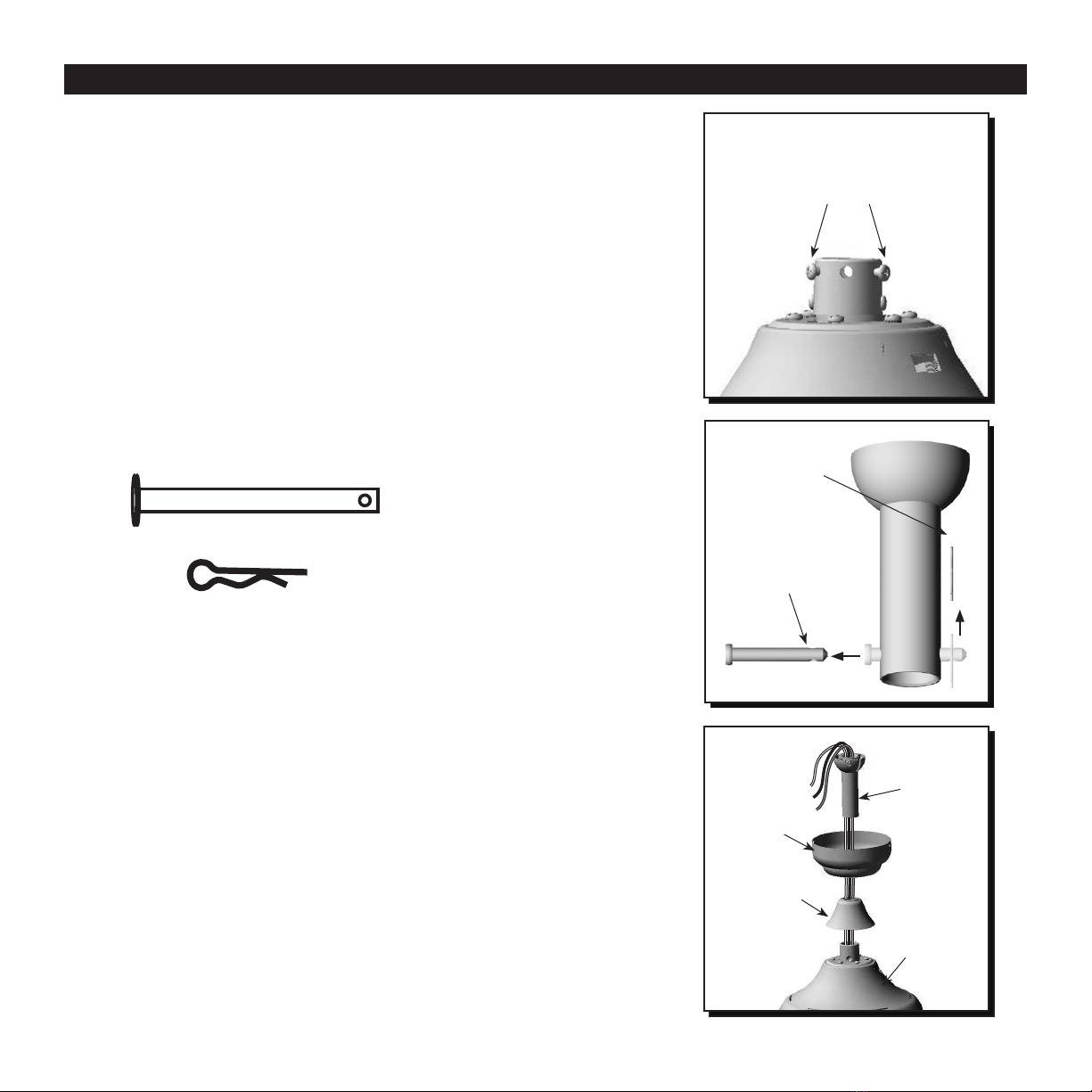

7. Remove the downrod pin and downrod clip from

the downrod (Fig. 7).

Downrod

Clip

Downrod

Fig. 7

Fig. 6

Fig. 8

Downrod

Canopy

Yoke

Cover

Motor

Housing

Downrod Pin

Downrod Clip

8. Thread the wires from the motor housing through

the yoke cover, canopy and out the top of the

downrod (Fig. 8).

6. Partially loosen the two set screws in the yoke at

the top of the motor housing (Fig. 6).

Fig. 10

Cut Wires

STANDARD OR ANGLE MOUNTING INSTRUCTIONS

9. Slide the downrod into the yoke of the motor

housing, align the holes, and reinstall the downrod

pin and downrod clip. Then retighten the set

screws (Fig. 9).

10. Depending on the length of downrod you use, you

may need to cut the lead wires back to simplify the

wiring. If you decide to cut back the lead wires,

it is suggested that you do so in the following

manner: Take the lead wires and make sure that

you have pulled them all the way through the top

of the downrod and measure 8 in. of lead wire, and

then cut the excess wire off with wire cutters (not

included) (Fig. 10).

11. If you cut back the lead wire in Step 10, strip 1/2

in. of insulation from the end of each wire. Twist

the stripped ends of each strand of wire within the

insulation with pliers (not included) (Fig. 11).

Note: If you did not cut back the lead wires in Step 10,

Step 11 is not necessary and you may proceed to

Step 12 instead.

Downrod

Set Screw

Downrod

Clip

Fig. 9

Fig. 11

Stripped

Wires

Downrod Pin

Downrod Clip

Mounting

Bracket

Downrod

Ball

Tab

Slot

Fig. 12

STANDARD OR ANGLE MOUNTING INSTRUCTIONS

13. Insert the receiver into the mounting bracket with

the at side toward the ceiling (Fig. 13).

Mounting

Bracket

Receiver

Fig. 13

12. Install the downrod ball into the mounting bracket

opening. Align the slot in the ball with the tab in the

mounting bracket. The downrod should not rotate if

installed correctly (Fig. 12).

Closemount

Screws

Spring

Washer

Motor

Housing

Fig. 15

CLOSEMOUNT INSTRUCTIONS

16. Raise the fan and place the canopy on the

mounting bracket hook for wiring. Insert the

receiver into the mounting bracket with the at side

facing the ceiling (Fig. 16).

Canopy

Receiver

Hook

Canopy

Cover

Fig. 14

Fig. 16

14. Remove the canopy cover from the bottom of the

canopy (Fig. 14).

Helpful Hint: The downrod, hanging ball, and canopy

cover are not used in this type of installation.

Closemount Screw Spring Washer

15. Align the canopy with the closemount screw holes

in the top of the motor housing. Secure the canopy

to the top of the motor housing by installing three

closemount screws and spring washers into the top

of the motor housing (Fig. 15).

Ceiling

Table des matières

Autres manuels Honeywell Ventilateur

Honeywell

Honeywell HT-900 Series TURBO FORCE Manuel utilisateur

Honeywell

Honeywell BIRNHAM Manuel utilisateur

Honeywell

Honeywell HT-908 Series TECH FORCE Manuel utilisateur

Honeywell

Honeywell 10288 Manuel utilisateur

Honeywell

Honeywell DreamWeaver HTF400 Series Manuel utilisateur

Honeywell

Honeywell HT-800 Series Manuel utilisateur

Honeywell

Honeywell Bonterra Manuel utilisateur

Honeywell

Honeywell QUIETSET HS1655E Manuel utilisateur

Honeywell

Honeywell TrueFRESH VNT5150H1000 Manuel utilisateur

Honeywell

Honeywell QUIETSET HT354E Manuel utilisateur

Honeywell

Honeywell HT-22 Manuel utilisateur

Honeywell

Honeywell HYF260W Series Manuel utilisateur

Honeywell

Honeywell HO-1100RE Manuel utilisateur

Honeywell

Honeywell QUIETSET HT354E Manuel utilisateur

Honeywell

Honeywell HT-800 Series Manuel utilisateur

Honeywell

Honeywell 50206 Manuel utilisateur

Honeywell

Honeywell SALERMO Manuel utilisateur

Honeywell

Honeywell HY-200 Series Manuel utilisateur

Honeywell

Honeywell HT-800E Manuel utilisateur

Honeywell

Honeywell WICKER PARK Manuel utilisateur

Honeywell

Honeywell QUIETSET HS1655 Series Manuel utilisateur

Honeywell

Honeywell HT900E Manuel utilisateur

Honeywell

Honeywell HYF260B Series Manuel utilisateur

Honeywell

Honeywell HSF1640 Series Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
