PREFACE
This manual is intended for use in support of day-to-day operation of the
Honeywell DCP 100T Digital Controller Programmer. For information on
installation, commissioning, configuration etc., refer to the associated
Installation Manual (see below).
Associated Documents
Title Document No.
DCP 100T Digital Controller Programmer Installation ManualEN1I-6241
In normal operation, the operator must not remove the
controller from its housing or have unrestricted access to
the rear terminals, as this would provide potential contact
with hazardous live parts.
Installation and configuration must be undertaken by
technically competent servicing personnel. This is covered
in the Installation Manual (see above).
Contents
1INTRODUCING THE DCP 100T1-1
2FRONT PANEL CONTROLS, INDICATORS
AND DISPLAYS2-1
2.1Controls2-1
2.2 Indicators2-2
2.3Displays2-3
2.4Alarm Status Indication2-4
2.5Viewing Program and Controller Parameters2-4
3PROGRAMS3-1
3.1Selecting and Running a Program3-1
3.2Changing the Program Timebase3-1
3.3Holding a Program Manually3-1
3.4Jumping to the Next Segment3-1
3.5Viewing Program Progress/Status3-2
3.6 Aborting a Program3-3
3.7 “End of Program” Indication3-3
3.8 Viewing Program and Controller Parameters3-3
4ADJUSTING THE SETPOINT4-1
5USING THE SELF-TUNE FACILITY5-1
6USING THE PRE-TUNE FACILITY6-1
7MANUAL CONTROL7-1
8DEFINING AND VIEWING A PROGRAM
(PROGRAM DEFINE MODE) 8-1
(iii)
8.1Entry into Program Define Mode8-1
8.2Parameters Common to All Programs (Global) 8-2
8.3Parameters which Apply to a Specific Program
as a Whole 8-3
8.4Parameters in Any/Each Segment In
a Specific Program8-5
8.5Using Join, Repeat and End Markers
and Cycling Programs8-6
8.6Basic Rules to Remember8-8
8.7Exiting Program Define Mode 8-8
9DEFINING THE CONTROLLER PARAMETERS
(CONTROLLER DEFINE MODE)9-1
9.1Controller Parameters9-2
9.2 Base Mode Displays9-10
9.3 Loop Alarm And Loop Alarm Time9-10
9.4 Exiting Controller Define Mode9-11
Illustrations
Figure 2-1Front Panel Controls2-1
Figure 2-2Front Panel Indicators2-2
Figure 2-3Front Panel Displays2-3
Figure 2-4Alarm Status Display2-4
Figure 8-1 Guaranteed Soak Operation 8-4
Figure 9-1 Proportional Band and Deadband/Overlap9-7
Figure 9-2 Alarm Operation9-8
Figure 9-3Alarm Hysteresis Operation9-9
(iv)
1INTRODUCING THE DCP 100T
The DCP 100T Digital Controller Programmer is a powerful, easy-to-use 1
4
-DIN
setpoint programmer with full PID control capability (complete with Self-Tune and
Pre-Tune facilities). Its standard features are:
•Up to eight programs of up to 16 free-format (e.g. dwell, ramp, join or
end) segments each.
•Facility to join programs to one another in any sequence (maximum
program length 121 segments).
•User can change currently-running program segment.
•Delayed Start of Program facility.
•End of Program relay output.
•Universal input - thermocouple, RTD (Pt100) or DC linear
- user- selectable).
•Universal power supply (90 - 264V ac 50/60Hz).
•Configurable from front panel.
•Comprehensive front panel displays.
•Front panel sealing to NEMA 4 standard.
•Behind-panel depth only 100mm.
Optional features include:
•Remote control and selection of program (plug-in option).
•Up to four Event relay outputs (plug-in option).
•Second control output.
•Recorder output (setpoint or process variable).
•RS485 serial communications.
•User-definable program tag names
•Real Time Clock
1-1
•Support software (Off-Line Configurator, On-Line Graphic Program Editor) -
operates via RS485 communications link.
The Digital Controller Programmer has four operating modes:
Base Mode: Day-to-day PID control operations with no program running. In
this mode, a program may be selected to run.
Program Run Mode: A selected program is running, held or waiting for a
pre-defined delay before starting. In this mode, the operator can view
status and program information.
Program Define Mode 1
: Used to view/create/edit programs. This mode is
entered either from Base Mode (selected program may be edited/created)
or from Program Run Mode (currently-running program may be edited).
Controller Define Mode
2
: Used to define the Controller characteristics.
1 -2
1Entry via Lock Code; also optional Program Lock prevents changing of program definitions
while a program is running.
2Entry via a Lock Code.
2FRONT PANEL CONTROLS,
INDICATORS AND DISPLAYS
2.1CONTROLS
2-1

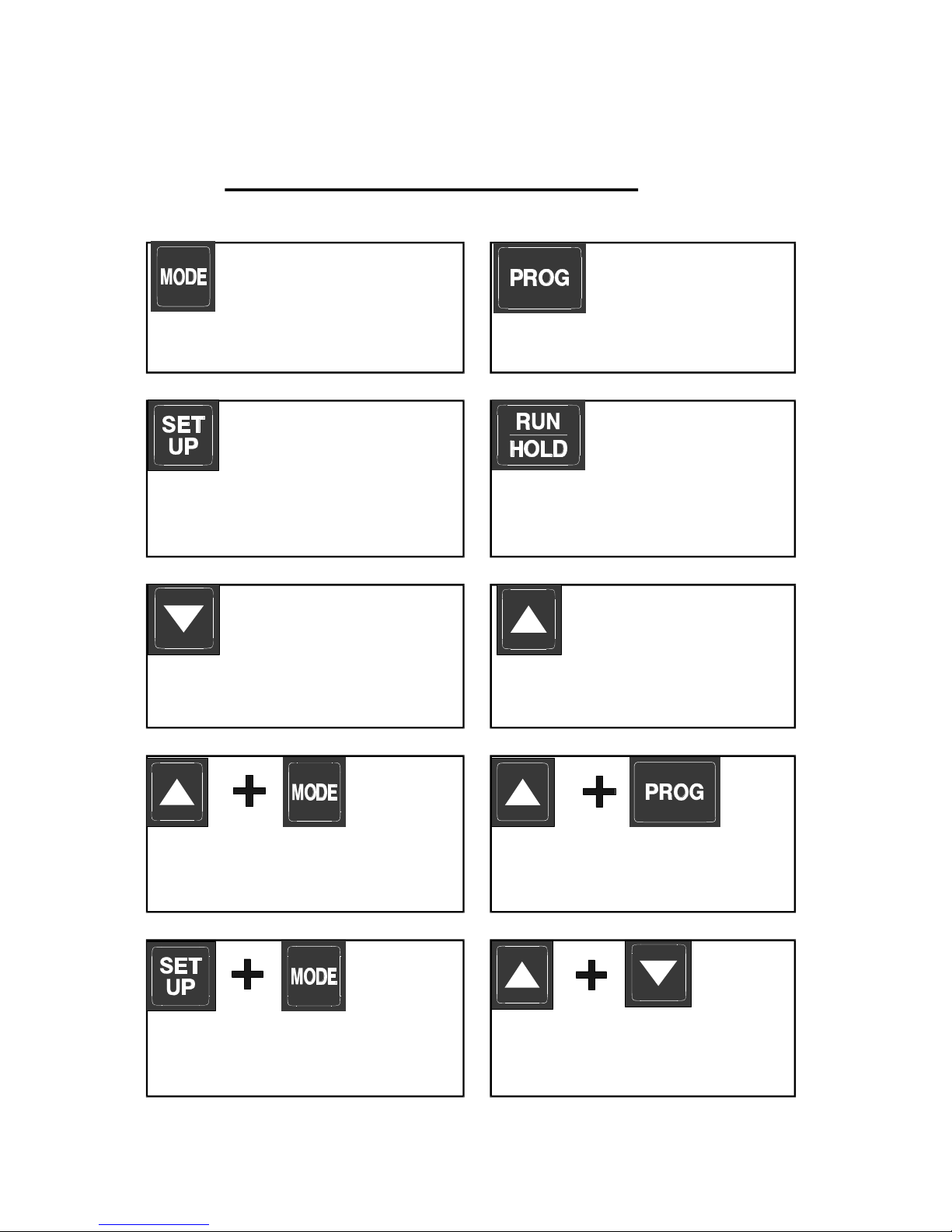

Figure 2-1Front Panel Controls
MODEkey
Changes mode of instrument.
SET UPkey
Displays the next parameter in
sequence (indicated by Message
display - see Subsection 2.3).
Up key
Increments displayed parameter
value/cycles through options.
Down key
Decrements displayed parameter
value/cycles through options.
Program key
Cycles through Program
Numbers.
Run/Hold key:
Runs, holds or aborts current
program.
Selects/de-selects Self-Tune and
Pre-Tune (when Message Display
shows appropriate message).
Jumps to next segment, when a
program is running.
Selects/de-selects Manual Control
(see Section 7).
Sets a segment to Soak when
defining a program.
2.2INDICATORS
2.2.1Control Status Indicators
AT ON - Self-Tune active; flashing - Pre-Tune active
ALMFlashes when any alarm active
OUT1ON when primary control outputis active
OUT2ON when secondary control output (if fitted) is active.
MANON when Manual Control is selected.
2.2.2Run Status Indicators
RUN ON - Program running or (if HLD ON also) program held
Flashing - Program in Delayed state.
HLDON - Program Held
Flashing - Program in Guaranteed Soak
x60OFF - Timebase = hours/minutes
ON - Timebase = minutes/seconds
2.2.3Event Indicators
Each indicates the status (active or inactive) of a user-defined
event (OFF = inactive, ON = active).
2.2.4Mode Indicators
SETON when Controller Define Mode or Program Define Mode
is entered; flashes when viewing parameters in Controller
Define Mode or Program Define Mode after entry from
Base Mode
PRGON when Program Define Mode is entered.
2-2
2.3DISPLAYS
2-3

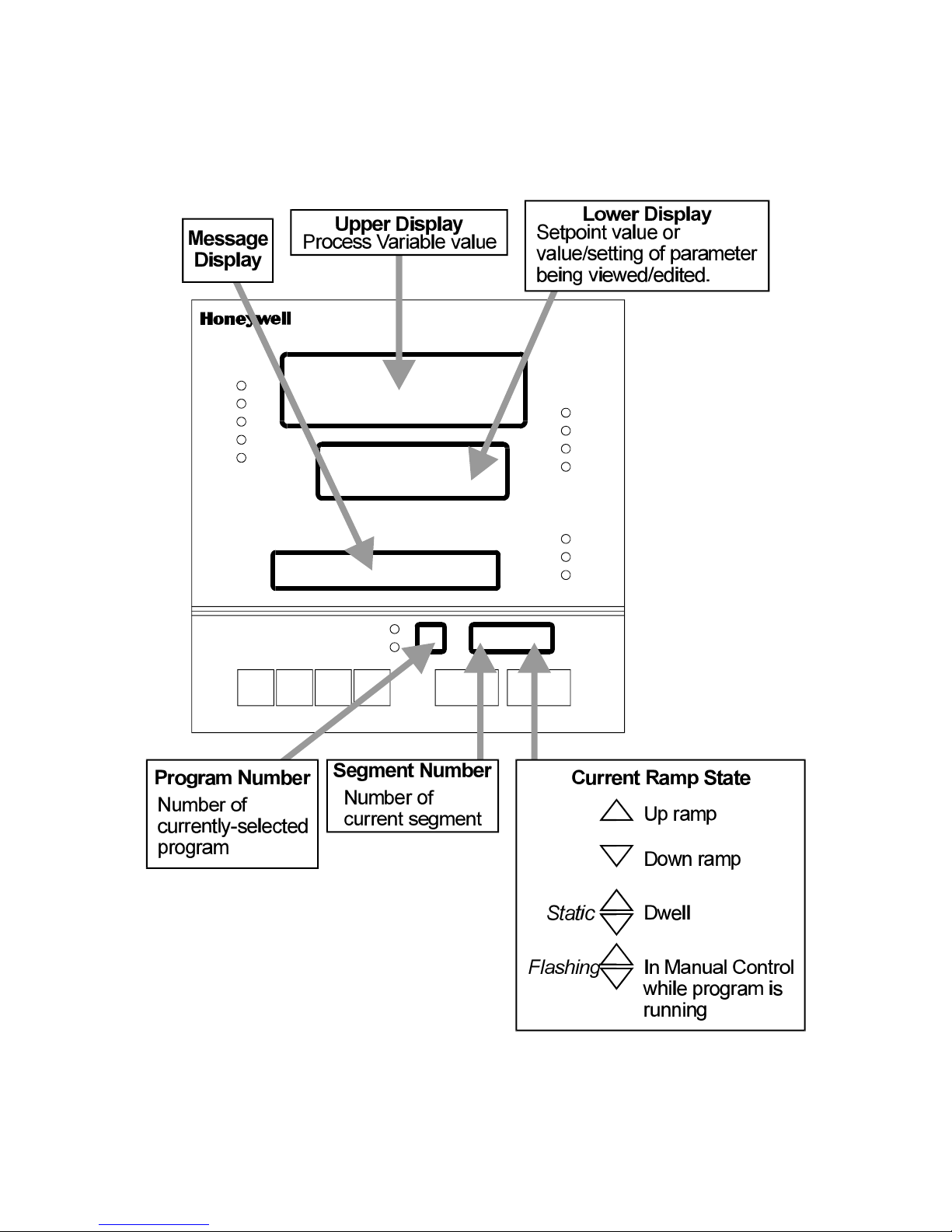

Figure 2-2Front Panel Displays
