Honeywell Fire-Lite IPOTS-COM Manuel technique

IPOTS-COM IP/POTS Digital Communicator

Product Installation Document

PN LS10184-000GE-E:B 6/6/2018 18-244

1 Description

The IP/POTS Communicator card transmits system status (alarms, troubles, AC loss, etc.) to a Central Station via the public switched

telephone network and/or Internet protocol. It also allows remote programming or interrogation of the control panel using AlarmNet®.

2 Installation

2.1 50 Point and 198 Point Panel Installation

1. Disconnect all power from the fire panel.

2. Remove the two screws at the bottom of the board that are used to attach the board to the chassis.

3. Replace the screws with two 3/4” standoffs from the hardware kit.

4. Insert the plastic PCB spacer into the hole marked “Communicator Support”.

5. Install the 5” cable from the hardware kit into the header on the main PCB marked “Communicator” and the header on the IPOTS-COM

labeled “Main Board Int” as shown below.

6. Holding the IPOTS-COM on an angle, align the pins on the plastic keypad bezel to the holes on the sides of the communicator.

7. Lay the IPOTS-COM flat and snap it onto the PCB spacer.

WARNING: THIS SYSTEM CONTAINS STATIC SENSITIVE COMPONENTS

WEAR A PROPER GROUNDING WRIST STRAPAND WORK ON A STATIC-SAFE WORKSPACE TO PROTECT

ELECTRONIC ASSEMBLIES.

RTN- OUT-

COMMUNICATOR

DISPLAY

24V

RTN+OUT+

BATTERY

N/L2EARTHH/L1

USB-A

CNO NC

CNCNO

SUPV

TRBL

ALRM

ANN-LC

SLC

RMT SYNC

ANN-BUS PRI

ANN-BUS SEC

NAC4NAC3

NAC2

NAC1

Remove screws and install standoffs

Insert PCB spacer

Plastic pins

Cable

header

2IPOTS-COM Installation Document — P/N LS10184-000GE-E:B 6/6/2018

8. Reinstall the screws removed in step 2 into the standoffs at the bottom of the IPOTS-COM.

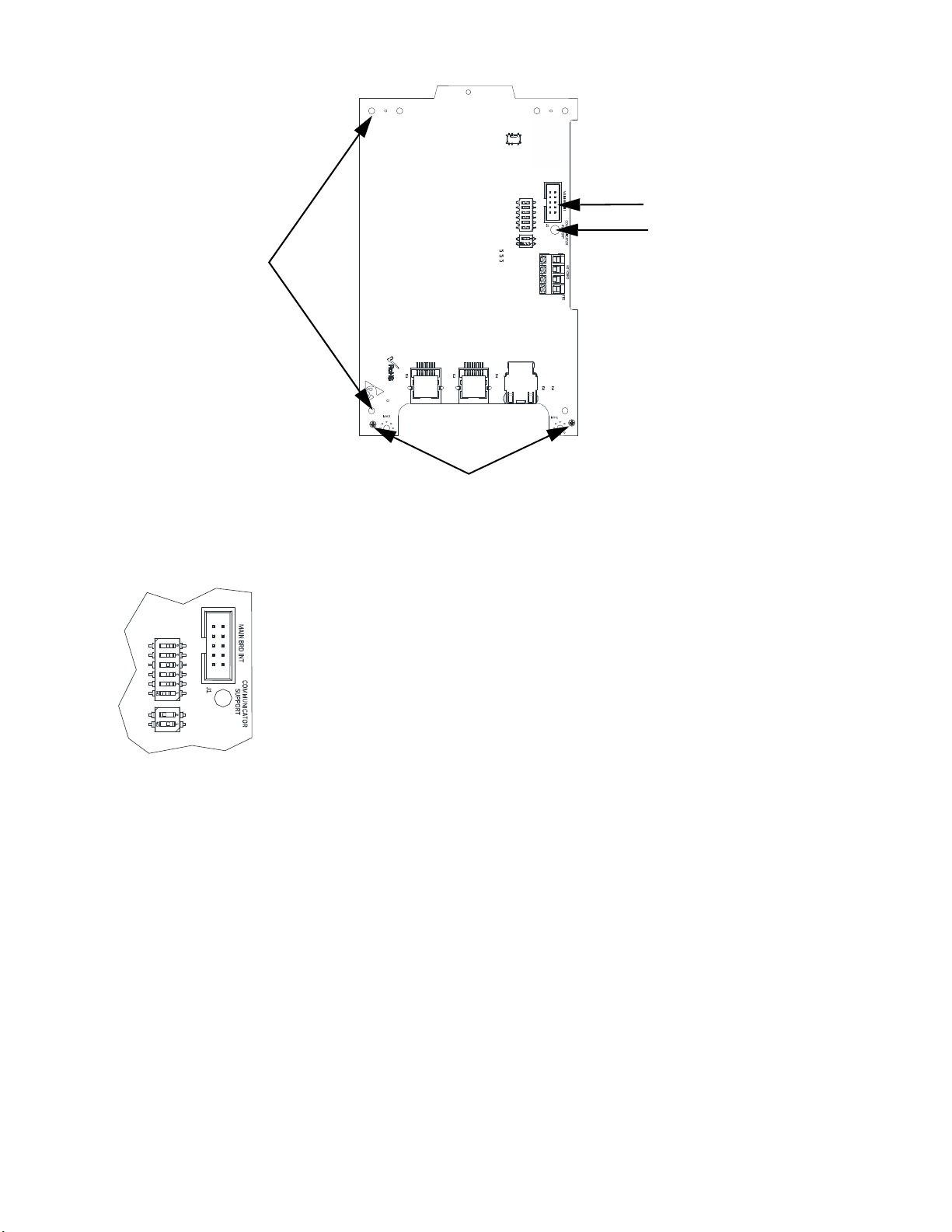

3 Dip Switches

There are two configurable dip switches on the IPOTS-COM communicator.

SW2

SW3

SW1

LED1

LED2

LED3

LED4

LED5

LED6

LED7

LED8

ETH

LINE2

LINE1

Align holes onto plastic pins

Cable header

Snap onto PCB spacer

Reinstall screws into standoffs

SW2

SW3

SW2

SW3

SW2: 6-position dip switch- FUTURE USE- No configuration necessary.

SW3: 2-position dip switch- Factory Settings- Do not change unless instructed to do so by Honeywell.
