Revision 3 Jun/2004 006-18236-0000

Multi-Function Display

KMD 550/850

Terrain Function(EGPWS)

Pilot’s Guide Addendum

For Software Version 01/13 or later

KMD 550-850 EGPWS PG R3 7/1/04 2:45 PM Page 17

The information contained in this manual is for reference use only. If

any information contained herein conflicts with similar information

contained in the Airplane Flight Manual Supplement, the information in

the Airplane Flight Manual Supplement shall take precedence.

WARNING

Prior to export of this document, review for export license requirement is

needed.

reserved.

Reproduction of this publication or any portion thereof by any means without

the express written permission of Honeywell International Inc. is prohibited. For

further information contact the Manager, Technical Publications; Honeywell

Business & General Aviation; One Technology Center; 23500 West 105th

Street; Olathe, Kansas 66061. Telephone: (913) 782-0400.

KMD 550-850 EGPWS PG R3 7/1/04 2:45 PM Page 18

R-1

Revision History

Manual KMD 550/850 Terrain Function (EGPWS) Pilot’s

Guide Addendum

Revision 3, June 2004

Part Number 006-18236-0000

Summary

Added Geodetic Sea Level (GSL)

Miscellaneous corrections

REV Hist 7/1/04 2:35 PM Page 1

R-2

Revision History

Manual KMD 550/850 Terrain Function (EGPWS) Pilot’s

Guide Addendum

Revision 2, September 2001

Part Number 006-18236-0000

Summary

Complete manual revision

Miscellaneous corrections

REV Hist 7/1/04 2:35 PM Page 2

R-3

Revision History

Manual KMD 550/850 Terrain Function (EGPWS) Pilot’s

Guide Addendum

Revision 1, April 2001

Part Number 006-18236-0000

Summary

Added Auto Pop-Up feature

Miscellaneous corrections

REV Hist 7/1/04 2:35 PM Page 3

Revision History

Manual KMD 550/850 Terrain Function (EGPWS) Pilot’s

Guide Addendum

Revision 0, October 2000

Part Number 006-18236-0000

Summary

This is the original release of this publication.

R-4

REV Hist 7/1/04 2:35 PM Page 4

Rev 2 September/2001 KMD 550/850 Terrain Addendum

Table of Contents

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

NORMAL OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

KMD 550/850 TERRAIN PAGE (EGPWS) OPERATIONAL CONTROLS . . .3

EGPWS OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

TERRAIN AWARENESS DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

EXAMPLE FLIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

TERRAIN INHIBIT SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

SET FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

ERROR MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

ALTITUDE MONITORING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

LOSS OF VALID EGPWS DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

NO DATA RECEIVED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

INCONSISTENT POSITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

KMD 550-850 EGPWS toc R3 7/1/04 2:35 PM Page i

Rev 2 September/2001 KMD 550/850 Terrain Addendum

Table of Contents

Intentionally left blank

KMD 550-850 EGPWS toc R3 7/1/04 2:35 PM Page ii

KMD 550/850 Terrain Addendum

Rev 3 Jun/2004

INTRODUCTION

The Terrain Function of the Bendix/King KMD 550/850 Multi Function

Display allows for the display and control of several models of

Honeywell Enhanced Ground Proximity Warning Systems (EGPWS).

EGPWS provides terrain display, situational awareness, terrain alerting

and warning, and obstacle alerting and warning to the pilot. It is intended

to give advanced alerting and warning to the pilot to help reduce the

possibility of Controlled Flight Into Terrain (CFIT).

This Pilot’s Guide Addendum describes the operation of the KMD

550/850 display for controlling the EGPWS sensor. The detailed descrip-

tion of the general operation of the KMD 550/850 is contained in the

other sections of the KMD 550/850 Pilot’s Guide. For detailed informa-

tion on the proper use and interpretation of the displayed EGPWS data

please reference the pilot’s guide that is provided with the EGPWS

sensor.

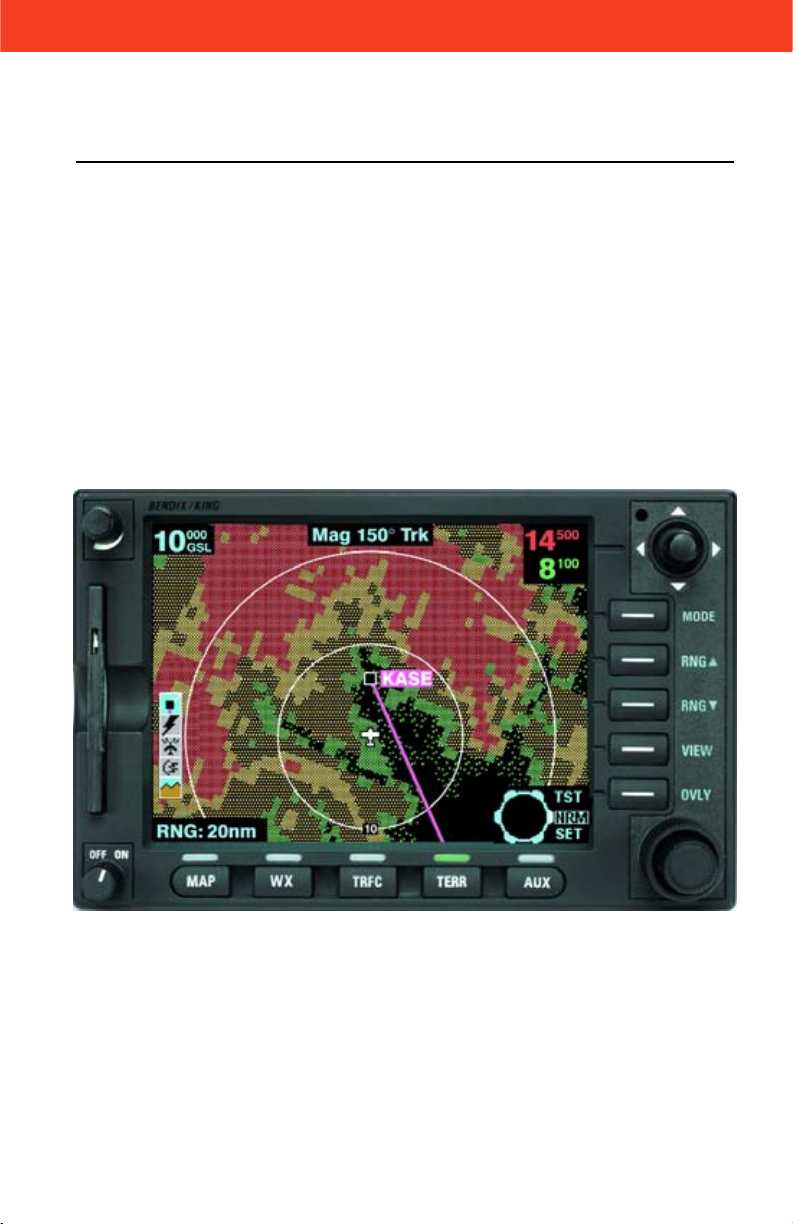

The Bendix/King KMD 550/850 is shown below with the Terrain Page

selected.

KMD 550-850 EGPWS PG R3 7/1/04 2:49 PM Page 1

KMD 550/850 Terrain Addendum

Rev 3 Jun/2004 2

NORMAL OPERATION

To display the terrain page press the TERR function

select key.

The following illustration defines the data that appears

on the Terrain Display Page:

1 Display Range - RNG:###nm

2 Terrain Awareness State - Displays EGPWS TEST when self-test is active, TERR

FAIL when terrain is INOP due to a fault, TERR N/A when terrain is not available

(no fault) and TERR INHBT when Terrain Awareness Warnings have been manually

inhibited. The terrain picture will be blacked out if the state is TERR FAIL or TERR

N/A (Some installations will also be blacked out for TERR INHBT).

3 Aircraft Symbol - Stylized airplane except in north-up mode when it is a plus

symbol. Indicates present position.

4 Outer Rotary Knob (not present for all installations) - Allows selection of Normal

(NRM), Test (TST) or Settings (SET) mode. Default is Normal.

5 Range Rings - Outer ring radius is selected range, inner ring radius is one half

the selected range. Value of inner ring displayed at bottom of inner ring in 360°

views and at the left edge of the inner ring in 120°views.

6 EGPWS Peaks Elevation (not present for all installations) - Maximum peaks

elevation displayed over Minimum peaks elevation, #####

7 GPS Flight Plan Overlay - Current GPS flight plan.

8 Display Orientation - When in magnetic heading-up orientation, Mag###°Hdg;

when in true heading-up orientation, Tru###°Hdg; when in magnetic track-up

orientation, Mag###°Trk; when in true track-up orientation, Tru###°Trk; when in

north- up orientation, NORTH

9 EGPWS Geometric Altitude (not present for all installations) - ##### MSL (Mean

Sea Level) or ##### GSL (Geodetic Sea Level) depending on system configuration.

10Check Altitude Flag Window - CHECK ALT

11 Icon Bar - Icons representing data available (black) and displayed (color).

1 4
