Teach-In and Operation
Contents
1
Contents
Overview 3
Application 3
Housing 4
Teach-in 5
Connecting the switching module 5
Activating the Teach-in mode at the switching module 5
Assignment to Hometronic Manager HCM 200 7
Assigning socket switching module HS 20 to Hometronic
Manager as a device 8
Installing socket switching module HS 20 to Hometronic
Manager as a collection relay 9
Successful Teach-in 11
Failed Teach-in 12
Operation 14
Operating the socket switching module manually 14
Controlling the socket switching module with the Hometronic
Manager 14
Device switch HS 20 as a collection relay of thermostat
control 15
Appendix 16
Glossary 16
Overview
2
Technical data 17
Information to the customer 18
Help with problems 19
Notes 20
Overview
3
Overview
For your information
Technical terms are explained in the glossary (Page 15). They are
identified in the text by an *.
Application
The socket switching module HS 20 is a switching module for electrical
switchgear. It can be switched on and off from the Hometronic Manager*
or by using the Hometronic remote control*.
The switching module is simply plugged into a earth contact type socket.
The device to be switched is plugged into the switching module.
For information on how the socket switching module can be
used for the thermostat control, read from Page 9 on.
You can change the switching state of a connected switchgear by
•the integrated button
•the Hometronic Manager:
–with a "Time program" or a "Lifestyle"
–with the "Presence simulation" operating mode
•the remote control.
The switching state ON/OFF is indicated by a green LED*.
Note: In several countries an adapter is required to connect the earth
contact type plug of the switching module to the power supply.
Overview
4
Housing
Length: 153 mm
Width: 63 mm
Height: 39 mm
(housing without plug)

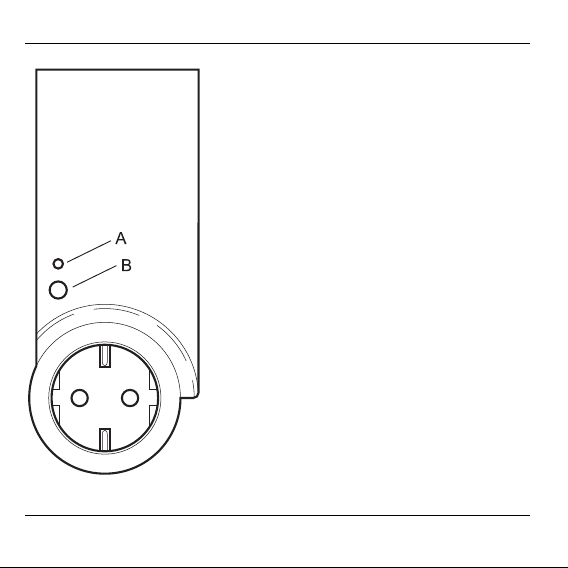

A: Status display (green LED)
B: Button for manual operation and
Teach-in
Teach-in
5
Teach-in
The new Hometronic components first have to be assigned to the
Hometronic Manager before they can be taken into operation. This
process is called the "Teach-in". The Hometronic Manager and the
new components exchange data during the procedure.
Caution!
The socket switching module has a radio receiver
whose function can be impaired by metallic objects!
► When selecting the operating site ensure that there is
sufficient distance to metallic objects, such as steel
reinforcements, metallic wallpaper, etc.
► Keep at least 30 cm distance from the next socket
switching module.
Connecting the switching module
► Plug the switching module into a socket.
The LED of the switching module flashes.
Activating the Teach-in mode at the switching module
Note: The Teach-in module remains active for a maximum of 4
minutes. Then the switch module changes automatically back to
normal mode.
Teach-in
6
LED display during the Teach-in
Display LED on
LED off Status
LED flashes rapidly Teach-in not carried out
LED flashes
Teach-in mode
(duration 4 minutes)
LED off Teach-in successful
LED lights up green
with short breaks Teach-in failed
Note: The Teach-in mode can be aborted by pressing the button at
the switching module briefly.
► Keep the button pressed for about 10 seconds until the LED flashes
green evenly.
Teach-in
7
Assignment to Hometronic Manager HCM 200
Switching to "Settings" submenu of Hometronic Manager
The Hometronic Manager is in automatic mode.
The display* at the Hometronic Manager
shows the standard display (example):
HOMETRONIC
WE 29.10.1999 11:15
No Lifestyle active
LIVING 20.0 C
► Press the Dial button.
The cursor* flashes in the lowest line.
HOMETRONIC
WE 29.10.1999 11:15
No Lifestyle active
LIVING 20.0 C
► Turn the Dial button to the right until
"Menu" is selected.
► Press the Dial button.
The following text is displayed:
LIFESTYLE
TIME PROGRAMS
DISPLAY
SETTINGS
► Turn the Dial button to the left until
"Settings" is selected.
► Press the Dial button.
The following text is displayed:
INSTALLATION
DE-INSTALLATION
FUNCTION EXTENSION
SENSOR FUNCTION
The Hometronic Manager is in the "Settings" submenu.
Teach-in
8
Assigning socket switching module HS 20 to Hometronic
Manager as a device
► Change to the "Settings" submenu as on Page 7.
► Turn the Dial button to the until
"Settings" is selected.
► Press the Dial button.
The following text is displayed:
HEATING/COOLING
SHUTTERS
DEVICES/LIGHT
SENSOR
► Turn the Dial button to the left until
"Devices/Light" is selected.
The following text is displayed:
HEATING/COOLING
SHUTTERS
DEVICES/LIGHT
SENSOR
► Press the Dial button again.
The following text is displayed:
MODULE-1
MODULE-2
MODULE-3
MODULE-4
► Turn the Dial button to the left in order
to select the module which is to be
installed (in this case Module 2).
MODULE-1
MODULE-2
MODULE-3
MODULE-4
