INSTALLATION INSTRUCTIONS

Place Bar Code Here

62-0211-01

C7021P / C7023P / C7041P

Button Probe Sensors

10K OHM NTC TYPE II / TYPE III & 20K OHM NTC

MODEL SELECTION

The button probe sensor is available in the following

models to meet most application needs:

• C7021P2004: 10K Ohm NTC Type II

• C7023P2004: 10K Ohm NTC Type III

• C7041P2004: 20K NTC Ohm

MORE INFORMATION

To see the complete line of Honeywell sensors,

download the Sensor Product Overview brochure

(63-9285) from customer.honeywell.com.

INSTALLATION

When Installing this Product...

1. Read these instructions carefully. Failure to follow

them could damage the product or cause a

hazardous condition.

2. Check ratings given in instructions and on the

product to ensure the product is suitable for your

application.

3. Installer must be a trained, experienced service

technician.

4. After installation is complete, check out product

operation as provided in these instructions.

Mounting

The Button Probe Sensor design simplifies mounting into

a variety of standard structural materials. See Fig. 1 for

dimensions.

The locking nut can be used to secure the probe.

See Fig. 2.

The plastic spacer helps insulate the probe from drywall,

wood, or other material in which the probe is mounted.

See Fig. 3. The spacer is sized to fit snugly into 1/2 in.

metal conduit. See Fig. 4.

NOTES:

— The plastic spacer is threaded for easy

installation.

— Use of both the locking nut and spacer

requires cutting spacer to shorter length.

Mounting Recommendations

Determine the proper location based upon the following:

— Mount the probe to an inside wall approximately 54 in.

(1372 mm) from the floor (or in the specified location)

to allow exposure to the average zone temperature.

— Do not mount the probe to an outside wall, a wall

containing water pipes, or near air ducts.

— Avoid locations exposed to register discharge air, or

radiation from lights, appliances, or the sun.

C7021P / C7023P / C7041P BUTTON PROBE SENSORS

Automation and Control Solutions

Honeywell International Inc.

1985 Douglas Drive North

Golden Valley, MN 55422

yourhome.honeywell.com

® U.S. Registered Trademark

62-0211—01 M.S. Rev. 06-11

Printed in the U.S.A.

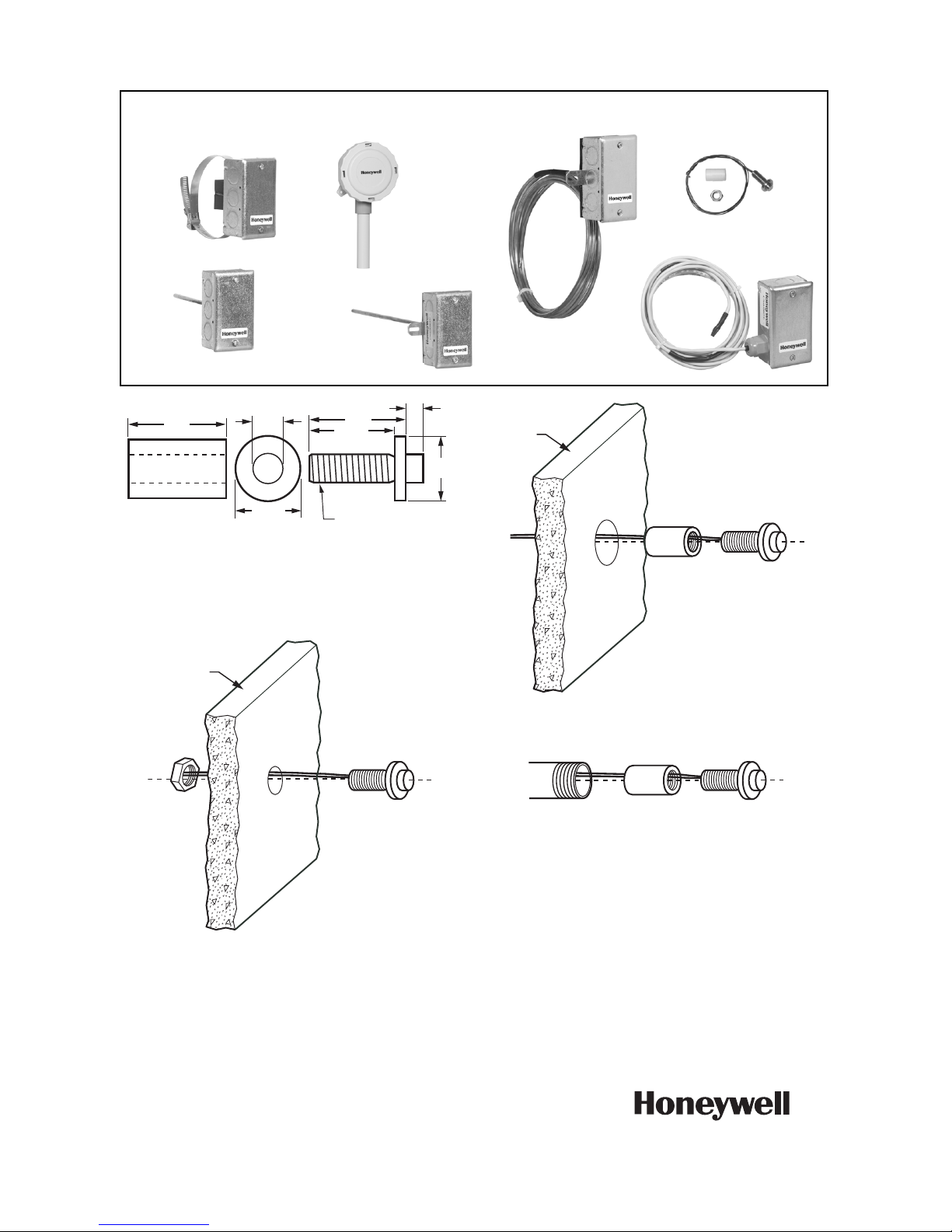

Fig. 1. Dimensions of the Button Probe Sensor

in in. (mm).

Fig. 2. Mounting sensor in wall with nut only.

Fig. 3. Mounting sensor in wall with spacer only.

Fig. 4. Mounting sensor in conduit.

C7021D,

C7023D,

C7031D,

C7041D

Immersion

C7021F,

C7023F,

C7031G,

C7041F

Outdoor

Be sure to take advantage of the entire line of quality Honeywell C7021/C7023/C7031/C7041 Sensors

C7021P,

C7023P,

C7041P

Button

Probe

C7021R,

C7023R,

C7041R

C7021J,

C7023J,

C7031J,

C7041J

AVERAGING

Duct Cable

Duct

Rigid

Copper

C7021K,

C7023K,

C7041K

Strap-on

C7021B/C,

C7023B/C,

C7041B/C

Duct

1 (26)

11/16

(18)

5/8 (16)

M22821

5/16

(8)

SPACER SENSOR

1 (26)

7/8 (22)

3/16 (4)

3/8 IN.-16 THREAD

M22799

WALL

M22798

WALL

M22797

By using this Honeywell literature, you agree that Honeywell will have no liability for any damages arising out

of your use or modification to, the literature. You will defend and indemnify Honeywell, its affiliates and

subsidiaries, from and against any liability, cost, or damages, including attorneys’ fees, arising out of, or

resulting from, any modification to the literature by you.
