Honeybee CNC Operation Manual

Honeybee CNC

Microbee & Microbee Plus

Quick Start Guide

Honeybee CNC Operation Manual

Create Program From Library

Procedure to create a new program from the Shape Library and load into temporary Run Memory.

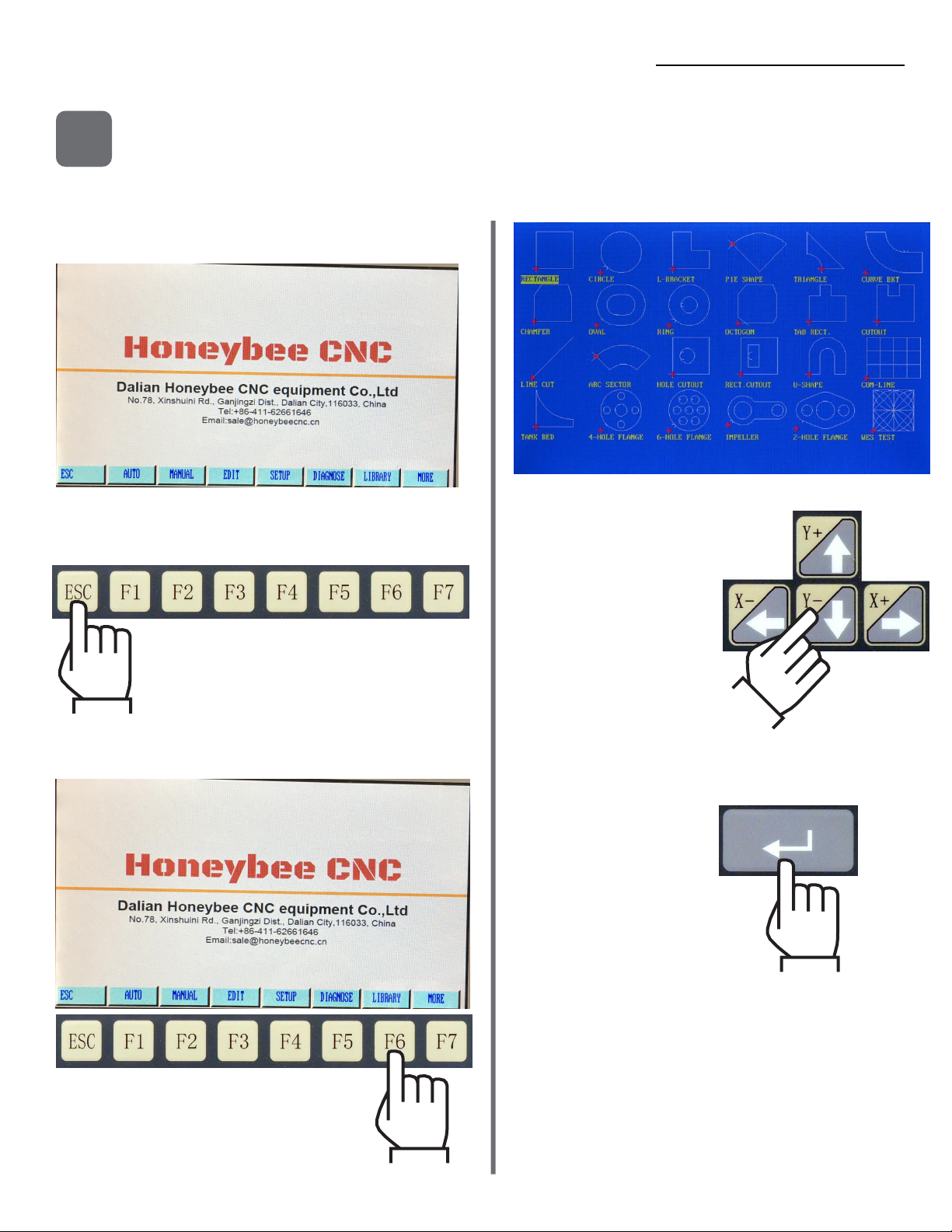

Start from the Main Menu (pictured below).

If the control is not showing the Main Menu

(pictured above), press [ESC] key until the

Main Menu is reached.

Select desired shape

using Arrow Keys.

Make selection by

pressing [Enter].

Press [F6] LIBRARY.

Honeybee CNC Operation Manual

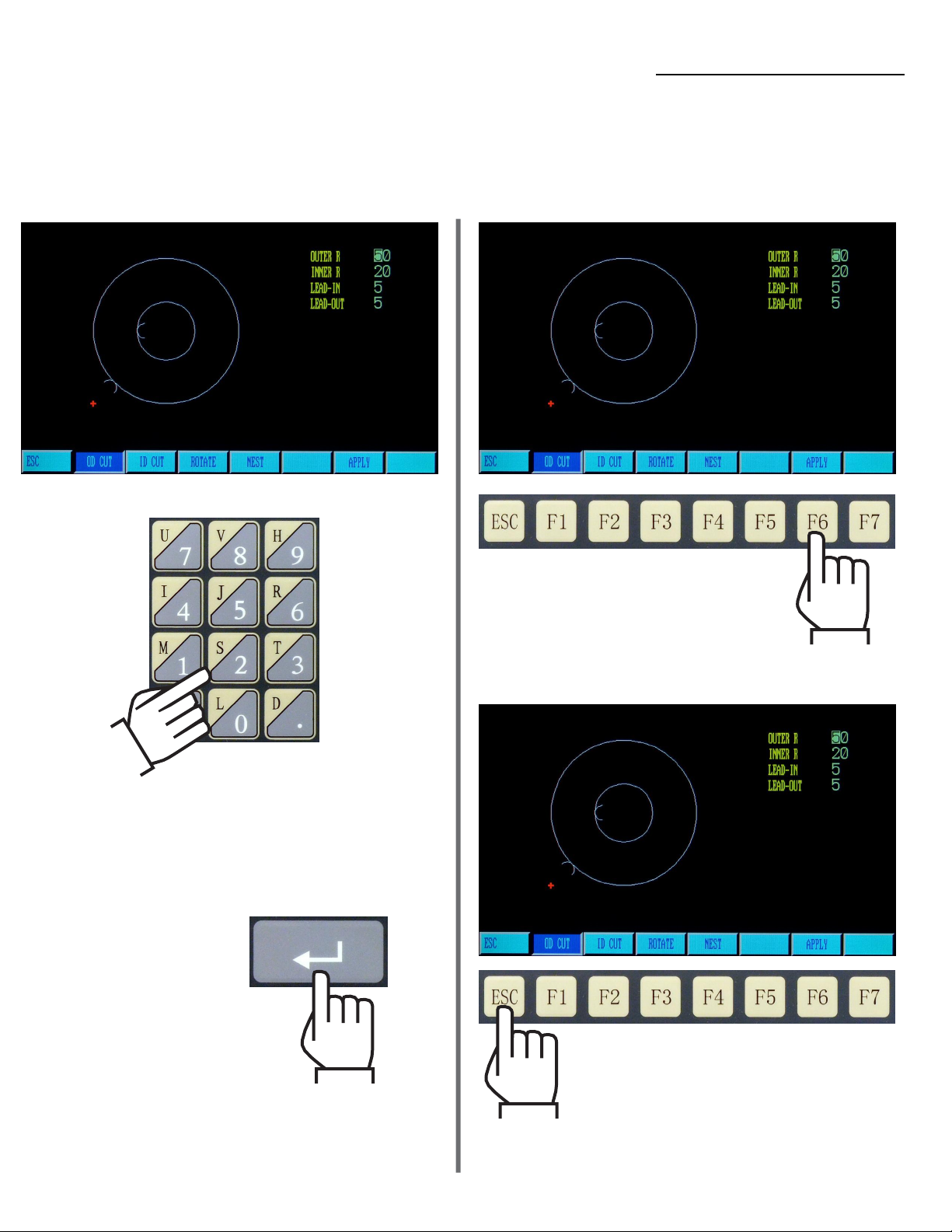

Press [F6] APPLY to preview

part.

Type desired dimensions

on number pad, press [Enter]

to finish each entry.

When finished, press [ESC].

The part is stored in temporary

Run Memory. The part can

be cut immediately by going

directly to procedure 5, “Run the

Program”.

Honeybee CNC Operation Manual

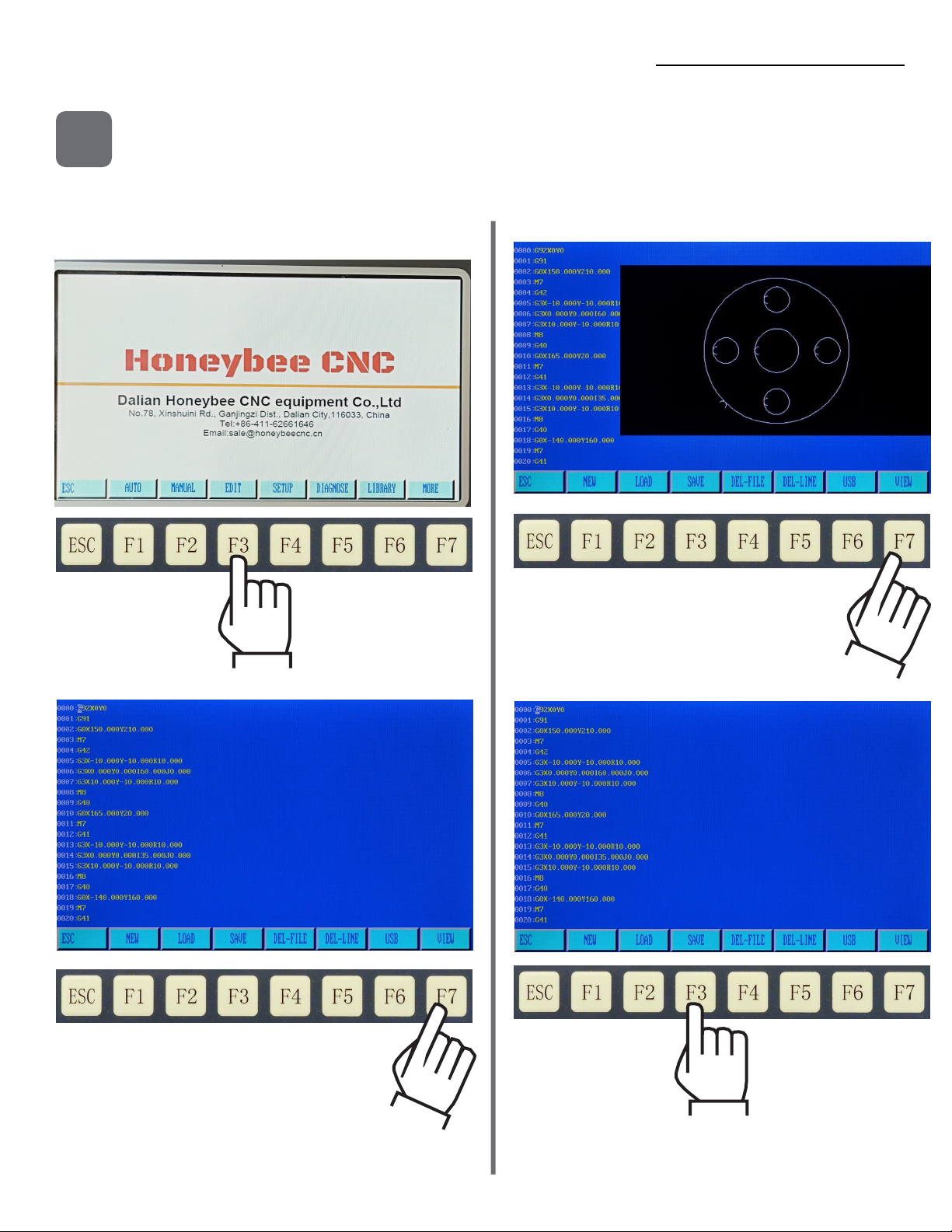

Press [F3] EDIT.

Verify part is correct, then press

[F7] VIEW again to close the

preview window.

Press [F7] VIEW to preview

program.

Press [F3] SAVE.

Save the Program

Procedure to store a program from temporary Run Memory into permanent Internal Storage.

Honeybee CNC Operation Manual

Type file name on

number pad.

File Naming:

The program name and extension should not

exceed 12 characters.

It is recommended to use a file name with

numbers only, up to 7 characters, plus “.TXT”

as the extension.

Be sure to use an extension, or the control

may be unable to recall the file.

When finished,

press [Enter].

The file will be saved to permanent

Internal Storage.

When finished, press [ESC] to

return to main menu.

Honeybee CNC Operation Manual

Load Program from Memory

Procedure to recall a program from permanent Internal Storage into temporary Run Memory.

Use up and down arrow keys

to highlight name of desired

program.

Press [Enter] to select

desired program.

The selected program is opened in the editor.

Press [F2] LOAD.

Press [F3] EDIT.

Honeybee CNC Operation Manual

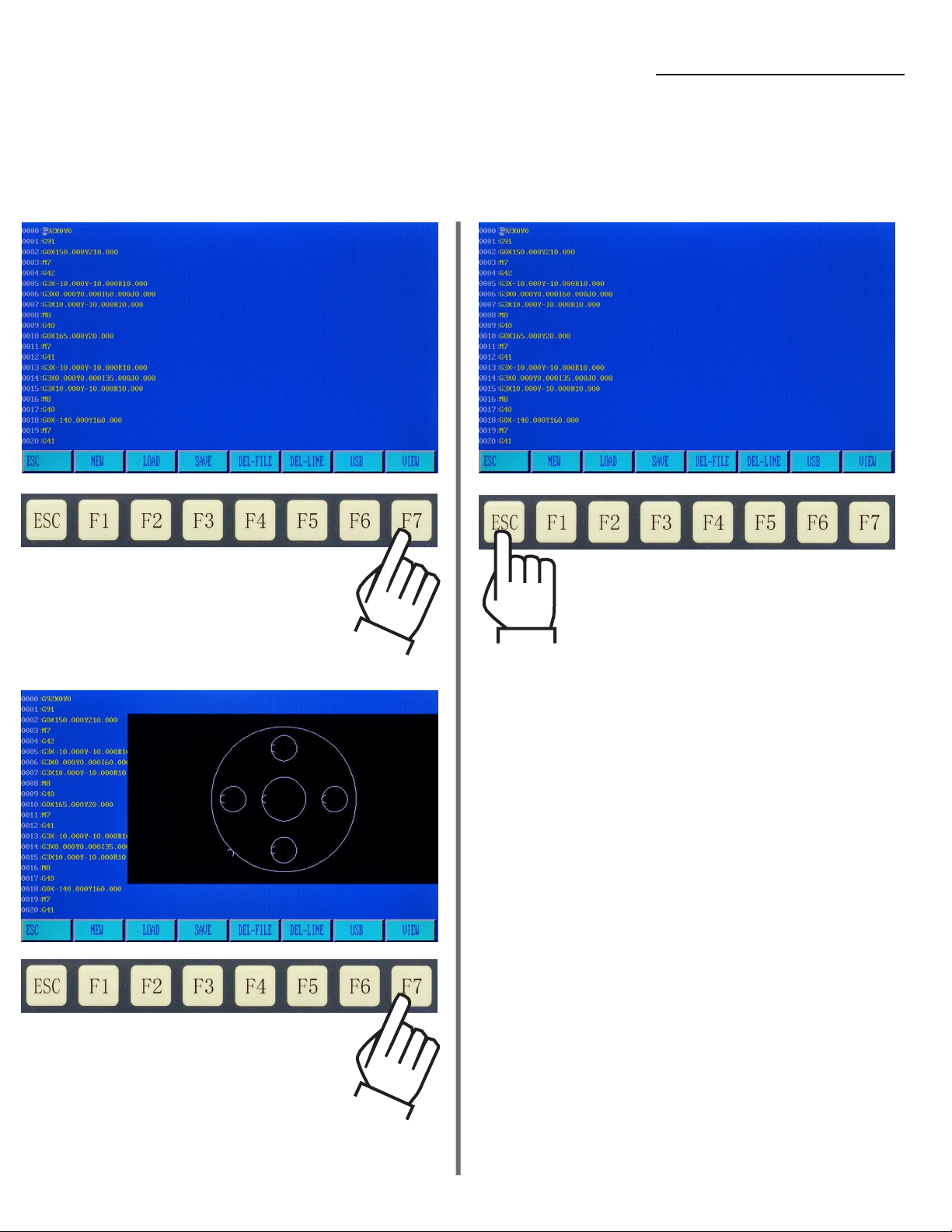

Press [F7] VIEW to preview

program.

When finished, press [ESC].

The part is stored in temporary

Run Memory.

Press [F7] VIEW again to

turn off preview.

Honeybee CNC Operation Manual

Press [F3] EDIT.

Press [F1] LOAD.

Press [F6] USB.

Load Program from USB

Procedure to load a program from a USB disk onto the Microbee or Microbee Plus CNC.

The contents of the USB disk are read and

displayed. If an error occurs, check the USB

drive and re-format if necessary.

USB disks used with the machine must be

formatted as “FAT” or “FAT32” file systems.

Honeybee CNC Operation Manual

Use up and down arrow keys

to highlight name of desired

program.

Press [Enter] to select

desired program.

The selected program is opened in the editor.

To run the program directly from

USB drive without storing in

memory, press [ESC]. The part is

stored in temporary Run Memory.

Press [F3] SAVE to

store program in

permanent Internal

Storage.

Honeybee CNC Operation Manual

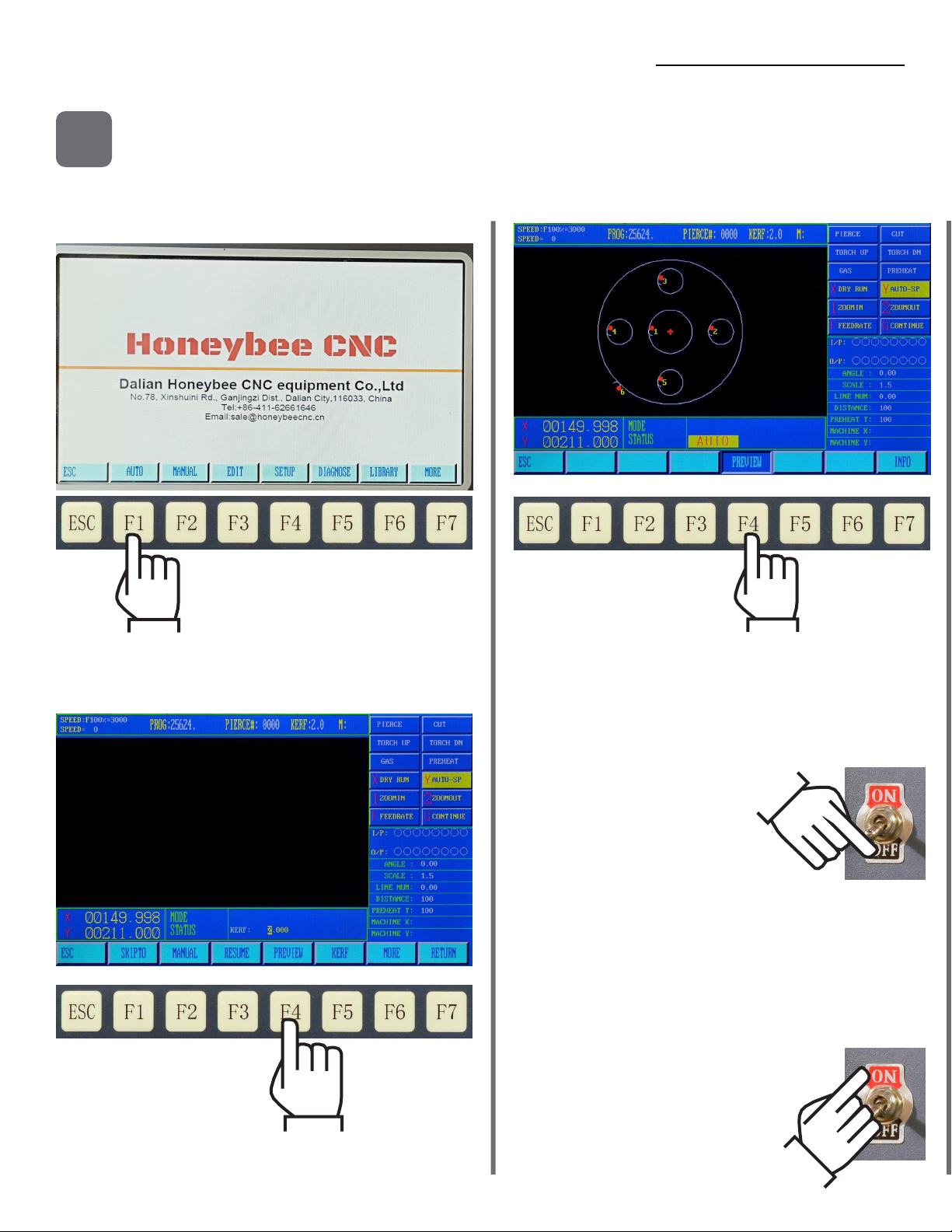

Press [F1] AUTO.

Press [F4] PREVIEW

again to return to

Automatic Mode menu.

Run the Program

Procedure to execute a program that has been loaded into temporary Run Memory.

If part looks correct, then proceed.

Switch Drive Enable to OFF.

Manually position the torch to the starting

point.

Make sure the plasma or oxy-fuel torch is

set up correctly, with proper consumables.

Switch Drive Enable to ON.

Press [F4] PREVIEW to

verify the correct part

is loaded.
