40cm Misting Fan
User Manual
Model No.: LB-FS-40
Item No.: 900285
Rev 3
Note: The specifications and/or components of this appliance are subject to change without prior notice.
Page 2 of 16
1Safety Instructions.........................................................................3
2Components ...................................................................................5
3Assembly ........................................................................................6
3.1 Base .................................................................................................................. 6
3.2 Fan Head / Controller Assembly.................................................................... 8
3.3 Fan Blade and Safety Grille............................................................................ 8
3.4 Misting Generator and Water Tank.............................................................. 10
4Filling the Water Tank..................................................................12
5Setting the Fan Head Angle.........................................................13
6Fan, Timer and Misting Generator Operation ............................13
6.1 Using the Fan and Timer Function .............................................................. 13
6.2 Using the Misting generator......................................................................... 14
6.3 Oscillating Function...................................................................................... 15
7Care and Cleaning........................................................................15
8Storage..........................................................................................15
9Warranty Against Defect .............................................................16
Page 3 of 16
1 Safety Instructions
When using electrical appliances, basic safety precautions should always be followed,
including the following:
•Carefully read this instruction manual before using appliance.
•Keep appliance out of reach of young children.
•This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
•Children should be supervised to ensure that they do not play with the appliance.
•Ensure children and babies do not play with plastic bags or any packaging materials.
•Do not disassemble the appliance. There are no user serviceable parts inside.
•VERY IMPORTANT:
Ensure that appliance does not get wet (water splashes etc.).
Do not use appliance with wet hands.
Do not immerse appliance in water or other liquids or use near sinks, baths or showers.
•Always operate the appliance from a power source of the same voltage, frequency and
rating as indicated on the product identification plate.
•Position the power supply lead properly so that they will not be walked on or pinched by
items placed on or against them.
•Use appliance only for its intended use. Appliance is intended for household use only
and not for commercial or industrial use.
•Do not use appliance if it has been dropped or any part of appliance (including cord or
plug) has been damaged.
•If the supply cord is damaged, it must be replaced by qualified electrical person only or the
product must be disposed.
•The use of accessories not intended for use with this appliance may cause injuries to
the user or damage to the appliance.
•Do not install the unit on other appliances, on uneven surfaces or where it could be
subject to: heat sources (e.g. radiators or stoves), direct sunlight, excessive dust or
mechanical vibrations.
•Appliance should not be used outdoors, placed near a hot gas or electrical burner or
placed in a heated oven.
•Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus that produce heat.
Page 4 of 16
•Do not operate appliance underneath or near flammable or combustible materials (e.g.
curtains). Keep at least 300mm clearance around sides, back, front and top.
•Unplug this apparatus during lightning storms or when unused for long periods of time.
•If water is spilt on the floor, immediately wipe it up and dry the floor so as to prevent any
injury from slipping over etc.
•Be careful when using the fan with the mist function on some types of surfaces as
depending on the environmental conditions (i.e. Humid days) the mist may cause the
surface to become wet and slippery. Keep the surface dry at all times to prevent any
injury from slipping over etc.
•Do not block any ventilation openings.
•Turn off and unplug before cleaning or storing.
•Any type of servicing, apart from ordinary cleaning, must be carried out by qualified
electrical person only. There are no user serviceable parts in this appliance.
•If this appliance is used by a third party, please supply the instruction manual with it.
•Do not misuse the cord. Never carry the appliance by the cord or pull to disconnect it
from the outlet. Instead, grasp the plug and pull to disconnect.
•Do not insert or allow foreign objects to enter the grille openings as this may cause
damage to the appliance and/or injury to the user.
•No liability can be accepted for any damage caused by non-compliance with these
instructions or any other improper use or mishandling of appliance.
Additional Safety Instructions
If using an extension cord:
•The technical specifications of the extension cord must match or exceed the technical
specifications of this appliance.
•Do not allow the cord to hang over the edge of the work surface or to come into contact
with stoves or other hot surfaces.
•If the cord or plugs are worn or damaged, do not use.
•Unplug from the power socket by grasping the plug body - do not pull on the cord.
Read and Save These Instructions
Page 5 of 16
2 Components
Safety Grille
Fan Blade
3 Speed and Mist
Function Push
Button Control
Base
Water tank
Tilt Adjustable Neck
Mist Aperture
Timer
Misting
Generator
Flexible Mist Hose
Page 6 of 16
3 Assembly
Your Pedestal Fan has been boxed unassembled to minimise packaging waste.
Each part is designed to fit together and be disassembled easily for cleaning or
storage.
3.1 Base
•To Assemble the Posts to the Base, first place the Heavy Base Weight on a flat
level surface.
•Place the flat metal plate (with the two holes) in the recess as shown.
•Take the Two Posts and remove the screws from the ends.
•Place the post ends (the ends which the screws were removed from) into the holes
in the metal plate.
Page 7 of 16
•Whilst holding the posts in place, tip the Base up so that the underneath can be
accessed.
•Take the domed Washer and the Screw and fit as shown.
•Using the small spanner supplied, tighten the screw.
•Repeat on the other post.
•Stand the Base on the floor.
•Take the Plastic Base Cover and slide on over the Posts then push all the way
down.
Page 8 of 16

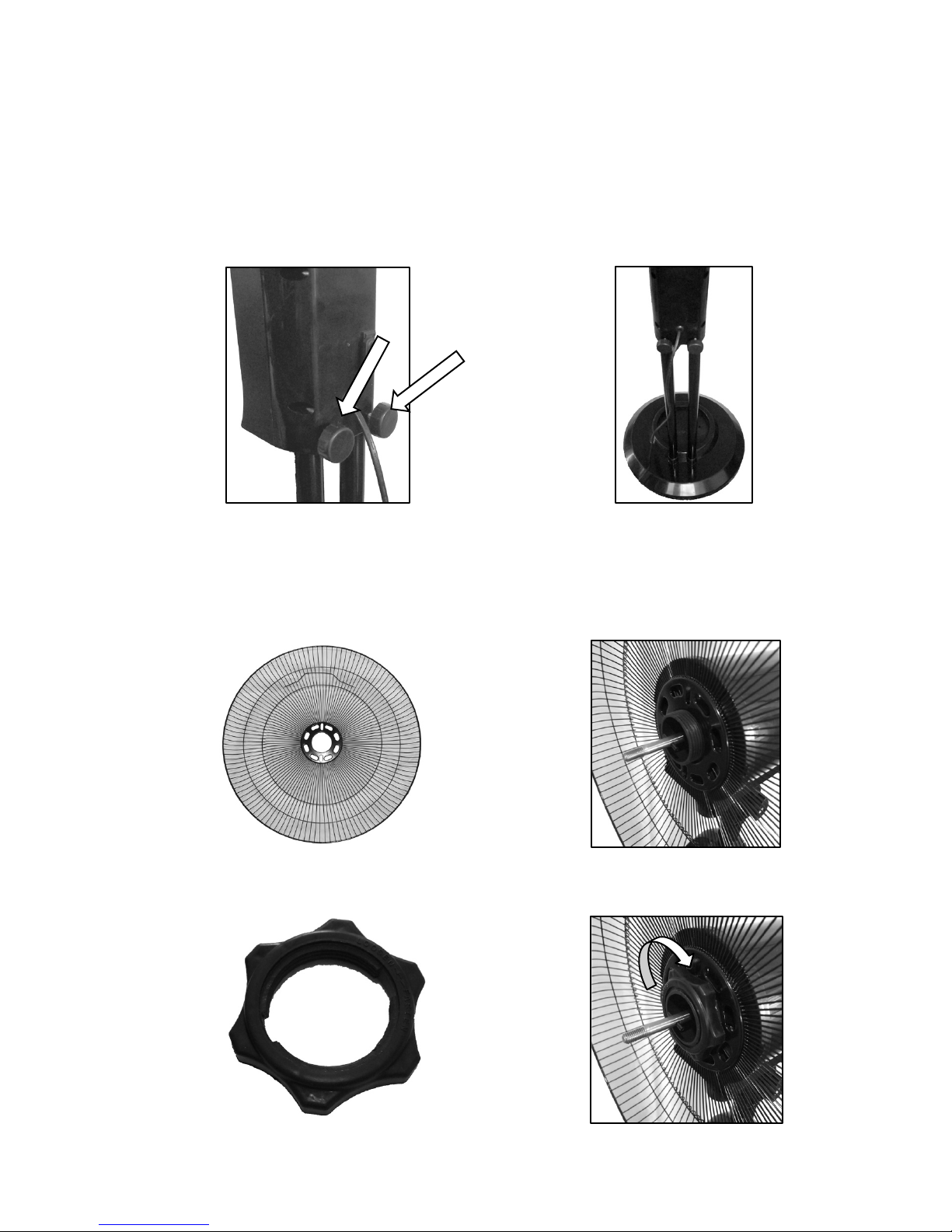

3.2 Fan Head / Controller Assembly
•Take the Fan Head / Controller assembly and unscrew the two thumb screws
located on the back. Do not fully unscrew otherwise the two nuts will fall off.
•Locate the two holes on the underneath of the Fan Head / Controller assembly onto
the two posts and push down until it stops.
•Tighten the two Thumb Screws until they are secure.
3.3 Fan Blade and Safety Grille
•Place the Back Grille over the threaded section on the Fan Head, ensuring the wire
handle on the back of the grille it at the top.
•Take the plastic nut and screw on to secure the grille
Page 9 of 16
•Place the Fan Blade onto the motor spindle.
Note: The groove in the rear centre of the fan blade aligns with a T-bar on the motor
spindle to ensure correct positioning.
•Fix the blade into place by gently hand tightening the spinner anticlockwise onto
the end of the motor spindle. The spinner nut is self-tightening when the motor
starts so do not force it, just nip it up.
•Fit locating tab on the front Grille over the rear grille at the top.
Page 10 of 16
•Open up all locking clips on the front safety grille by rotating outward
•Place the Front safety grille into position and secure it by closing the clips over the
outer rim. The screw and nut at the bottom of the grille must be fitted.
3.4 Misting Generator and Water Tank
•Place the Misting Generator onto the Base ensuring it is seated properly in its
recess.
•Sit the water tank on top of the Misting Generator.
