19591A

4-04

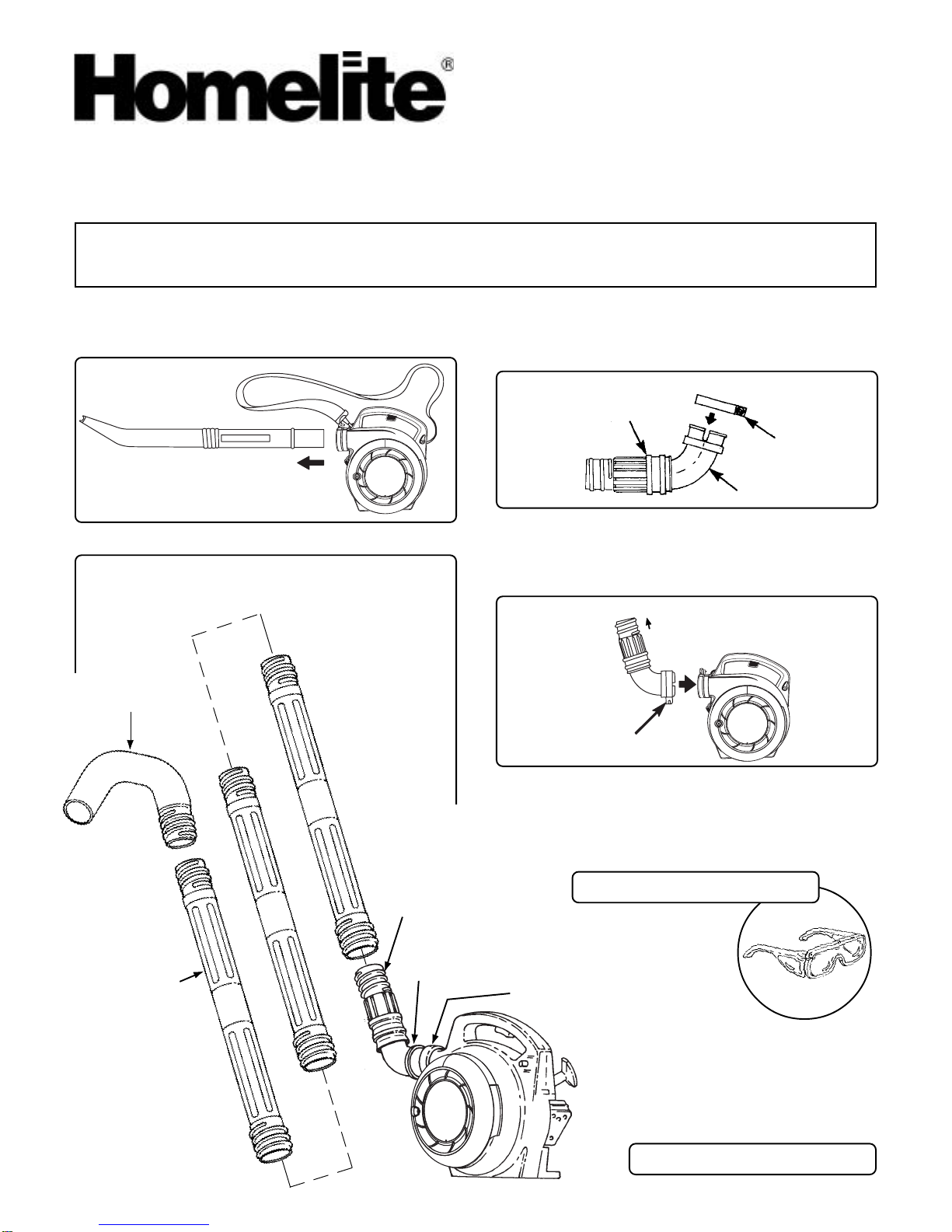

INSTRUCTION SHEET

GUTTER MAINTENANCE KIT

READ ALL SAFETY INSTRUCTIONS INYOUR OWNER'S MANUAL

KIT DOES NOT INCLUDE BLOWER

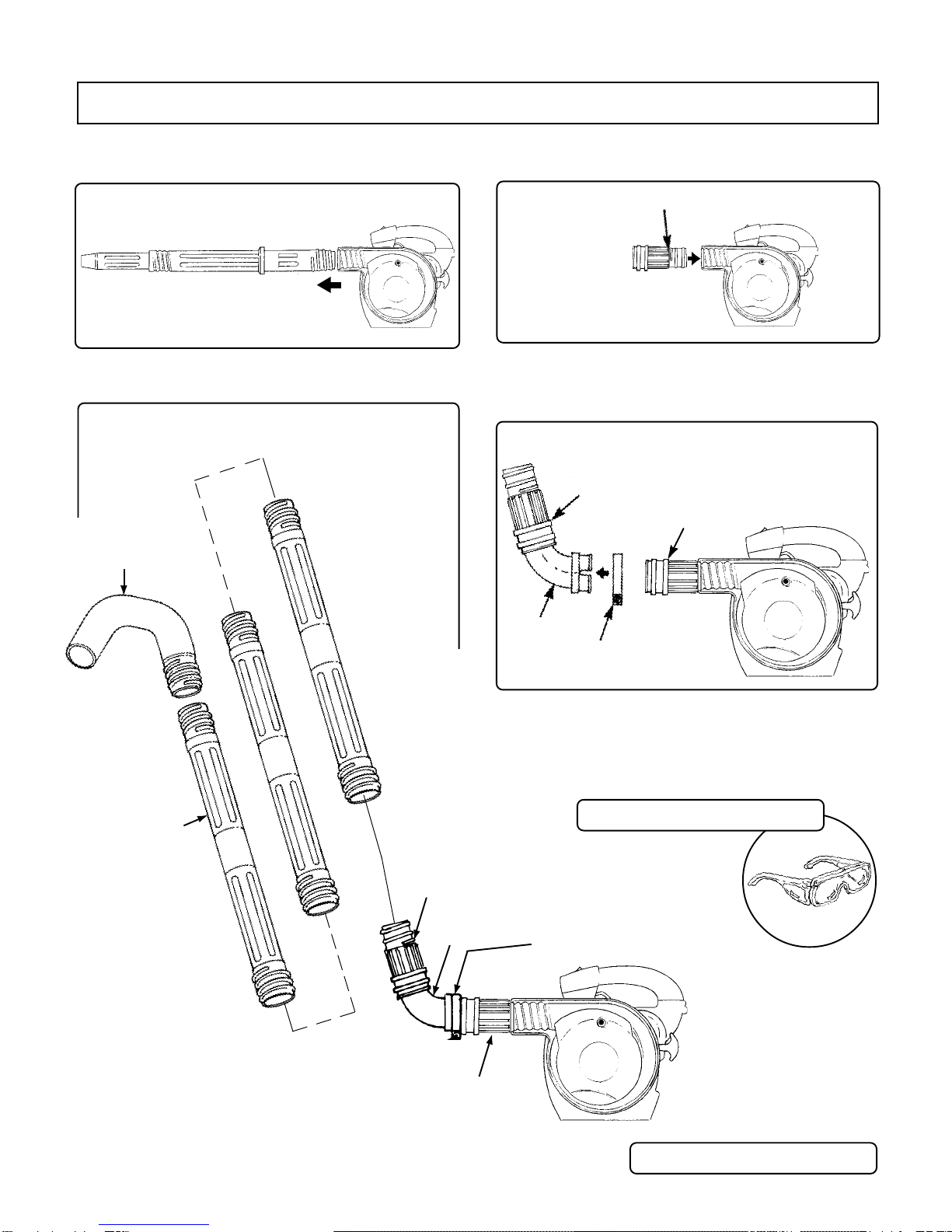

1. Make sure blower has been turned off. Remove all tube

attachments from the blower. (See illustration 1.)

REMOVE

2. Make sure adapter is free to rotate on the elbow. Loosen

clamp and install over exposed end of elbow. (See illustra-

tion 2.)

3. Attach above assembly (as shown in illustration 3) over

blower exhaust until elbow clamp groove matches blower

groove. Align assembly so adapter end points upward.

Tighten clamp screw.

4. Attach full elbow threaded joint onto straight tube. Continue

attachingstraighttubesuntilthepreferredlengthisacquired.

Make sure all joints are screwed tightly into position or the

blower may vibrate and push tubes apart. (See illustration

4.)

WEAR EYE PROTECTION!

ILLUSTRATION 1 ILLUSTRATION 2

ILLUSTRATION 3

UPPER ELBOW

SWIVEL ADAPTER

CLAMP

CLAMP SCREW

SWIVEL ADAPTER POINTS

UPWARD

For models:

HB180, HB180V, HB180VI, HB180VGK, HB290, HB290V, HB390, HB390V, HB390VI, Yard Sweeper, UT08929A, UT08930A,

UT08120, UT08931, UT08932, UT08934, Vac Attack II,Yard Broom II

STRAIGHT TUBE

(As required)

LARGE

CLAMP

UPPER

ELBOW

SWIVEL

ADAPTER

FULL

ELBOW

ILLUSTRATION 4

READ ALL SAFETY INSTRUCTIONS INYOUR OWNER'S MANUAL

STRAIGHTTUBE

(As required)

LARGE

CLAMP

UPPER

ELBOW

1. Make sure blower has been turned off. Remove all tube

attachments from the blower. (See illustration 1.)

3. Loosen clamp and place over exposed end of upper elbow.

Install swivel onto adapter. (See illustration 3.) Swivel

adapter must be free to rotate on the elbow.

2. Turn adapter clockwise to screw into blower housing until

tight. (See illustration 2.)

4. Attach full elbow threaded joint onto straight tube. Continue

attaching Straight Tubes until the preferred length is ac-

quired. Make sure all joints are screwed tightly into position

or the blower may vibrate and push tubes apart. (See illus-

tration 4.)

ILLUSTRATION 1 ILLUSTRATION 2

ILLUSTRATION 4

SWIVEL

ADAPTER

FULL

ELBOW

REMOVE

ADAPTER

KIT DOES NOT INCLUDE BLOWER

WEAR EYE PROTECTION!

ADAPTER

SWIVEL ADAPTER POINTS

UPWARD

ILLUSTRATION 3

UPPER

ELBOW

SWIVEL ADAPTER

CLAMP

ADAPTER

For models:

d25mhv, z25mhv, d30mha, d30mhv, i25mhv, i30mhv, BVM160, HB25150, HB30160, Vac Attack
