ASSEMBLY & INSTRUCTION MANUAL

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

INcjd070_UK_IT_ES_PT

820-257

Warning: risk of ﬁre, electric shock, physical injuries and material

damage.

Before using this appliance,always follow the safety advice during

assembly, use and maintenance.

SAFETY ADVICE (Use)

- This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or lack

of experience and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way and understand

the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without

supervision.

- Children of less than 3 years should be kept away unless continuously

supervised.

Children aged from 3 years and less than 8 years shall only switch on/off

the appliance provided that it has been placed or installed in its intended

normal operating position and they have been given supervision or

instruction concerning use of the appliance in a safe way and understand

the hazards involved. Children aged from 3 years and less than 8 years

shall not plug in, regulate and clean the appliance or perform user

maintenance.

CAUTION - Some parts of this product can become very hot and

cause burns. Particular attention has to be given where children and

vulnerable people are present.

- If the supply cord is damaged, it must be replaced by the manufacturer,

its service agent or similarly qualiﬁed persons in order to avoid a hazard.

- CAUTION: In order to avoid a hazard due to inadvertent resetting of the

thermal cutout, this appliance must not be supplied through an external

switching device, such as a timer, or connected to a circuit that is

regularly switched on and off by the utility.

- WARNING: In order to avoid overheating, do not cover the heater

- The heater must not be located immediately below a socket-outlet.

- Means for disconnection having a contact separation in all poles must

be incorporated in the ﬁxed wiring in accordance with the wiring rules.

- The heater must be installed at least 1.8 m above the ﬂoor.

- Means for disconnection having a contact separation in all poles must

be incorporated in the ﬁxed wiring in accordance with the wiring rules.

- Do not use this heater in the immediate surroundings of a bath,a shower

or swimming pool.

=Power

=Mode Section

=Heating on half power (1000W)

=Heating on full power (2000W)

P = Weekly programming

=Open window Mode

°C = Setting temperature

= swing

= Timer (Turn-on/Turn-off)

Stand-by mode

Installation:

The fan heater must be installed on a wall before operating. Don’t try to use it without

installation.

The installation sequence of the fan heater is as follows:

1. Find a space to install the fan heater (See Figure ).

2. Drill two holes of the dimension of the expansible tubes ¢ - 8 mm - in the wall (See

Figure ) - D= 394mm

3. Insert the expansible tubes into the holes and tighten them with the screws

provided ﬁrmly.

NOTE: Fasten the screws tightly. Do not fasten the screw into the expansible tube

thoroughly; the length of the bare parts should be 10 mm.

4. Mount the fan heater to the wall . Make sure the two holes located on the back of

the heater do aim at the above two screws, then push the heater backwards to the

wall, and then downwards till the unit is stable.

The controls:

ON-OFF

- Press the ON -OFF switch to switch the appliance ON (I) or OFF (O).

Regular function operation

Temperature setting and

ErP function Conﬁrm

Weekly time & window

open detection operation

Part 1 Regular function

FAN and HEATING (by control panel)

- Press the button to select one of the following mode

Stops by going into standby Fan without heating Heating on half power

(the fan stops 30 seconds

after the stand-by).

Heating on full power with swing Heating on full power

The default setting temperature is 23°C when the light °C is off

FAN and HEATING (ONLY by remote control)

- Press to switch on the appliance.

- Press to select one of the following modes :

Fan without heating Heating on half power

Heating on full power with swing Heating on full power

- Press again to switch off the appliance.

Stops by going into standby

(the fan stops 30 seconds after the stand-by).

TEMPERATURE CONTROL (ONLY by remote control)

- Press to switch on the appliance.

- Press + or - to set the setting temperature from 10°C to 49°C

(the light °C is on). If room temperature

15°C, setting temperature 25°C, the display as the picture

- Press to cancel the temperature setting

(the light °C is off) and to choose the heating on half power ( ) or full power ( ).

The heater working on full power when the room temperature is 4°C lower than the

setting temperature.

.The heater working on half power when the room temperature is between 0° and 2°C

lower than the setting temperature.

The heater switches off when the room temperature is higher than the setting

temperature. the fan working 30 seconds to make inside cool to protect component,

then fan stop, the unit enter into standby.

.The heater switches on again when the room temperature falls 2°C below the setting

temperature.

TURN-ON, TURN-OFF (by control panel and remote control)

Turn-on in stand-by mode:

- Press to set the appointment turn-on time in 1-12 hours (the

light is on).

.The display automatically decreases 1 hour for each hour passed.

When the appointment power-on time arrived, the product will

automatically turns on. The default setting temperature is 23°C.

.If not setting the setting temperature and weekly program, the unit

will automatically turn-off after continuous-by.

For example to set appointment turn-on time to 8 hours

Turn-ofﬁnrunning mode

Press to set the appointment turn-on time in 1-12 hours (the light is on)

When the appointment power-off time arrived, the product will automatically turns off.

The default setting temperature is 23°C

For example to set appointment turn-off time to 8 hours

SET SET

5 seconds

Part 2 Weekly time and Window open detection

SET CURRENT TIME (ONLY by remote control)

- Press to switch on the appliance.

- Press SET to display the hour.

- Press + or - to set the current hour (00 to 23).

- Press SET again to display the minute.

- Press + or - to set the current minute (00 to 59).

- Press SET again to display the day of week.

- Press + or - to set the current day (d1= Monday,d2=Tuesday,d3=Wednesday,

d4 = Thursday, d5 = Friday, d - Press OK to conﬁrm the setting).

For example, Wednesday 9:30 , Setting temperature = 25°C :

To check the current time and setting temperature, press SET again.

If main switch off or power cutoff , it need reset the time

.The current time must be set before any programming.

- Press to switch on the appliance.

1- Press P to enter into weekly program setting (the light P is on).

2- Press DAY to set the day of program activation (d1, d2,d7...),

3- Press EDIT to set the time period number (P1, P2,...P6),

4- Press TIME/ON to set the turn-on time (00, 01, 02...,24,)

Cannot set to minutes.

5- Press TIME/OFF toset theturn-offtime (00, 01, 02,..., 24)

Cannot set to minutes.TIME/OFF can not be less than TIME/ON.

6- Press + or - to set the setting temperature of this time period.

PressP Day EDIT Time/On Time/Off OK

7- Press OK to conﬁrm the setting.

8- Repeat steps 3 to 7 to set another time period number for the same day.

Up to 6 programs are available for each day of the week.

9- Repeat steps 2 to 8 to set the others days of the week.

- Press P to active the weekly program (the light P is on), or to disable it (the lightP

is off).

- After the above setting are completed and P program is work, pressDAY / EDIT

TIME/ON and TIME/OFF to check the setting time of each dayand time period.

.When the turn-on time is same as the turn-off time, the appliance is instand by

mode.

f the setting temperature is not set, the default setting temperature is 23°C. If room

temperature higher 23°C, the appliance is not switch on.

.Theweeklyprogramiserasedwhenthe switch is off.

For example: Setting Monday 1st period working time 7:00 to 13:00

- Press to disable the open window mode (the light is off).

The appliance will resume to previous working mode.

During open window mode, if the room temperature drops from about 5°C to 10°C

in less than 10 minutes, the appliance will stop working and enter into stand by

mode. Press again to switch on the appliance.

.If open-window mode and weekly timer program simultaneously, if the appliance

turn off in weekly time, the appliance is not turned on. If it already turn on in weekly

timer, the appliance working as the setting temperature under open-window mode.

For example: when window open detection function on, the weekly working time

already setting before: it's Monday morning A.M 9:00--10:00 , desired temperature

28 degree, the window open only working A.M 9:00--10:00 , the unit will cut off

when temperature reduce to 23°C or more lower . Other time, the unit not working,

just in standby.

SET OPEN WINDOW (ONLY by remote control)

- Press to switch on the appliance, heating for a

moment

until stability.

- Press to active the open window mode (the light

is on).

- Press + or - to set the setting temperature for the

open windows function.

REMOTE CONTROL

The remote control requires 1 CR2025 3V lithium battery (not included)

Important: Follow the instructions of use and the recycle rules given on the

battery packaging.

1- Open the battery compartment by sliding the cover down.

2- Insert the battery into the compartment,

observing the polarity in the diagram (see below drawing).

3- Close the battery compartment.

NOTE: the remote control buttons perform the same functions as those on the

control panel on the unit.

Maintenance and cleaning

- Warning : Never use detergent, chemicaldamage plastic parts.

- WARNING : Let the appliance cool down completely before handling or

cleaning.

- To prevent risk of ﬁre or electrocution inside the appliance.

- Clean the outside wall of the appliance by rubbing it gently with soft, damp

cloth, either with or without soap.

- Regularly clean the air inlet and outlet vents of the fan.

Environmental protection

This symbol is known as the ‘Crossed-out Wheelie Bin

Symbol’. When this symbol is marked on a product or battery, it means

that it shoul general household waste. Some chemicals contained

within electrical/electronic products or batteries can be harmful to

health and the environment. Only dispose of electrical/

electronic/battery items in se which cater for the recovery and

recycling of materials contained within. Your co-operation is vital to

ensure the success of these schemes and for the protection of the

environment.

Disposal of an exhausted batteries

To preserve natural resources, please batteries properly.

Consult your local waste authority for information regarding available recycling

and /or disposal options.

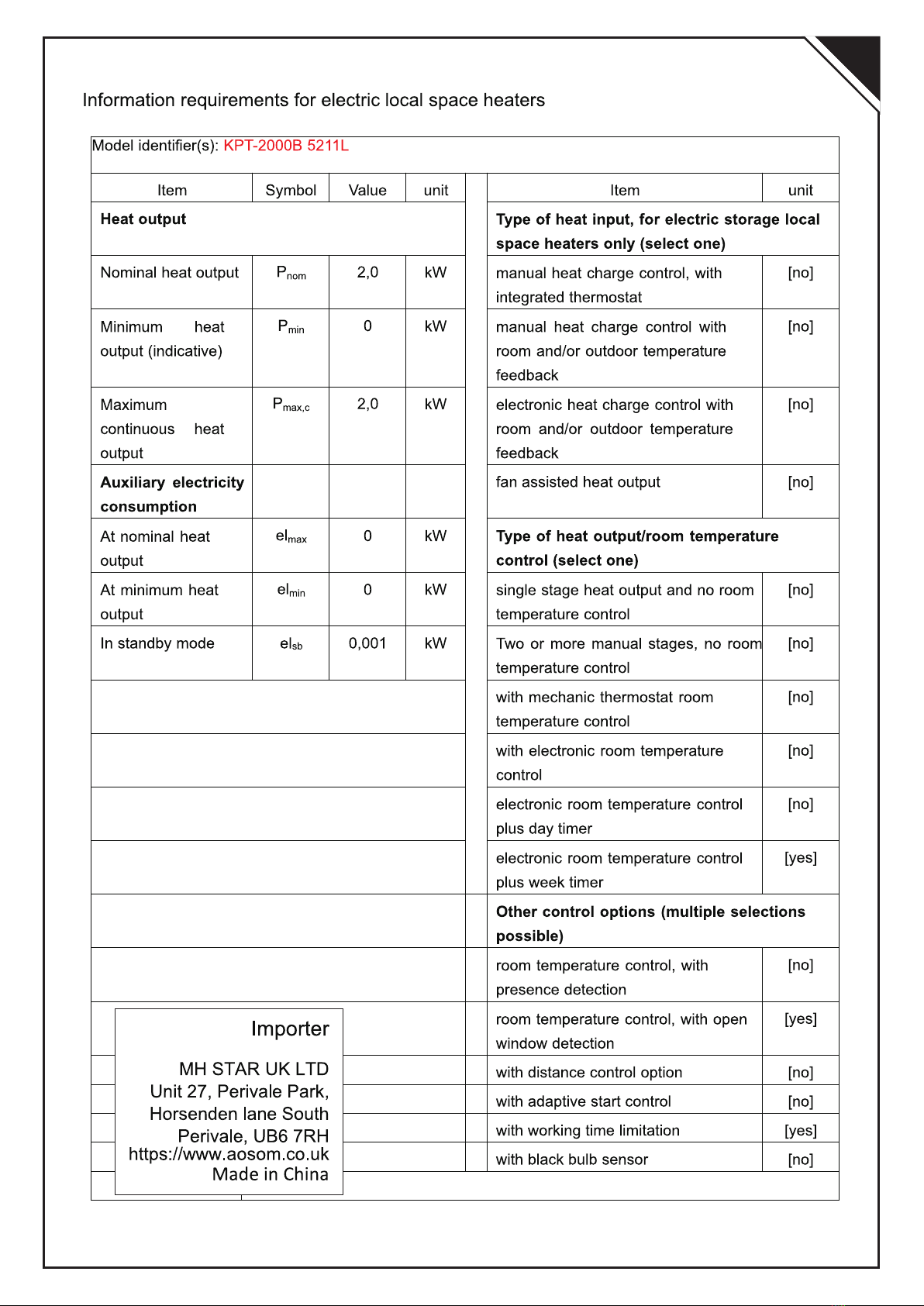

Technical Speciﬁcation

- Reference : 820-257

- Rating power : 2000W

- Power : 220-240V ~ 50Hz

- Class II

- Waterproof:IP22 Protected against 15 degree angle falling drops of water

(condensation).

Table des matières

Langues :

Autres manuels HOMCOM Chauffage

HOMCOM

HOMCOM EV-100 Manuel utilisateur

HOMCOM

HOMCOM HY-200CR Manuel utilisateur

HOMCOM

HOMCOM 850-224V90 Manuel utilisateur

HOMCOM

HOMCOM 820-317V90 Manuel utilisateur

HOMCOM

HOMCOM 820-335V90WT Manuel utilisateur

HOMCOM

HOMCOM 820-271 Manuel utilisateur

HOMCOM

HOMCOM 820-281V70 Guide d'installation

HOMCOM

HOMCOM 820-247 Guide d'installation

HOMCOM

HOMCOM 820-316V00 Manuel utilisateur

HOMCOM

HOMCOM 820-252V70 Guide d'installation

HOMCOM

HOMCOM KPT-2000B 4505L Guide d'installation

HOMCOM

HOMCOM 820-258V80 Guide d'installation

HOMCOM

HOMCOM 820-244 Manuel technique

HOMCOM

HOMCOM 820-246V70 Guide d'installation

HOMCOM

HOMCOM 820-260V70 Manuel

HOMCOM

HOMCOM 820-296V90 Manuel utilisateur

HOMCOM

HOMCOM 820-250V70 Guide d'installation

HOMCOM

HOMCOM 820-276 Manuel utilisateur

HOMCOM

HOMCOM 820-249V70 Guide d'installation

HOMCOM

HOMCOM 850-223V90 Manuel utilisateur

HOMCOM

HOMCOM 820-314V00 Manuel utilisateur

HOMCOM

HOMCOM 820-336V70 Manuel utilisateur

HOMCOM

HOMCOM 820-293V90 Manuel utilisateur

HOMCOM

HOMCOM 820-260V80 Fiche technique

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
