Holux GR-239 Manuel utilisateur
English
GR-23
9
User Manual
Bluetooth GPS Receiver
i
About This Manual
Thank you for choosing Holux GR-239 Bluetooth GPS Receiver. This
manual helps you to familiarize yourself with this product to best suit your
needs. Keep this manual for future reference.
Warranty
The GPR-239 Bluetooth GPS Receiver is warranted to be free from defects
in material and functions for a period of one year from the date of purchase.
If there is a product failure of within this period (under normal conditions), a
replacement will be provided at no charge to the customer.
Copyright Information
No part of this manual, including the products and software described in it,
may be reproduced, transmitted, transcribed, stored in a retrieval system,
or translated into any language in any form or by any mean, without the
express written permission of Holux Technology, Inc.
Copyright© 2006 Holux Technology, Inc. All Rights Reserved.
Safety Information
•When using this product, heed the safety precautions to reduce the risk
of fire, electric shock, or personal injury.
•Read and understand all instructions.
•Unplug this unit from the cigarette lighter adapter before cleaning. Use
a dampen cloth for cleaning. Do not use liquid or aerosol cleaners.
•Do not disassemble the device. The product contains no user-
replaceable parts.
ii
Table of Contents
1. Product Overview.........................................................................1
2. Package Contents........................................................................2
3. Main Features ...............................................................................3
4. Getting Started .............................................................................4
4.1. Hardware Overview ...............................................................4
4.2. Using the GR-239 ..................................................................5
4.3. Data Port................................................................................6
4.4. Connecting the Antenna ........................................................7
4.5. Bluetooth Installation .............................................................7
4.6. Installing the Testing Program............................................ 10
4.7. Connecting to a Notebook .................................................. 14
4.8. Driver Installation ................................................................ 15
5. Troubleshooting........................................................................ 17
6. Specifications............................................................................ 18
1
1. Product Overview
The
HOLUX
GR-239 Bluetooth GPS Receiver is a complete GPS
solution featuring Bluetooth and UART interface for high sensitivity to
tracking signals. The GR-239 design is based on SiRF Star III Single Chip
Architecture and is powered directly from a cigarette lighter, which saves
the trouble of charging the device.
The GR-239 is a dual-function GPS receiver. It not only transmit
satellite information through the PDA or Notebook with Bluetooth capability
but is also a G-Mouse GPS receiver and through a USB data cable to
deliver satellite signal to the device without Bluetooth capability.
This positioning application meets your needs with car navigation,
mapping, surveying, security, agriculture and features needed. The GR-239
connects to other device through Bluetooth or Serial Port Profile (SPP). It
supports NMEA 2.2 output protocol, which helps to save satellite
information such as the satellite signal status, the last location, date and
time of last use.
With low power consumption, the GR-239 tracks up to 20 satellites at
a time, re-acquires satellite signals in 100 ms and updates position data
every second. Trickle-Power allows the instantaneous start and Push-to-Fix
permits users to obtain a quick position fix even if the receiver is usually off.
2
2. Package Contents
Congratulations on your purchase of the GR-239 Bluetooth GPS Receiver.
Before you start using your GR-239 Bluetooth GPS Receiver, check that
your package contains the following items. If anything appears to be
missing or damaged, contact your local Holux dealer or distributor for a
replacement.
GR-239 Bluetooth
GPS Receiver Warranty card Tool CD
MMCX Active antenna (optional) USB data cable (optional)
* USB data cable can be used for data transfer between GR-239 and
Notebook / PC.
3
3. Main Features
•Compact design integrated with cigarette lighter adapter for easy
use in car.
•20 parallel satellite-tracking channels for fast acquisition and
reacquisition. *c
•Supports NMEA0183 v2.2 data protocol or SiRF binary code.
•100% compatible with Bluetooth™ Serial Port Profile (SPP).
•Designed with SiRF Star III Single Chip architecture which draws
power from car battery; no power adapter required.
•Function as a G-Mouse GPS receiver through a USB data cable to
deliver satellite signals to device directly.
•Features MMCX Active antenna for getting better satellites signal.
4
4. Getting Started
This section describes the driver installation procedure, gives a brief
introduction of the hardware and software, and covers the installation of
testing program. Read this section carefully to learn more about your
Bluetooth GPS receiver.
4.1. Hardware Overview
4.1.1 Front View
4.1.2 Rear View
GPS
(Orange LED)
Bluetooth
(Blue LED)
Power
Switch
Locking
Screw
A
ntenna
Connector
5
4.1.3 LED Status
LED Name Status Definition
Flashing once per second Offline/ Searching
Bluetooth device
Bluetooth
(Blue LED)
Flashing once every three
seconds
Transferring data
Constant light on Acquiring satellitesGPS
(Orange LED) Flashing once per second Position fixed

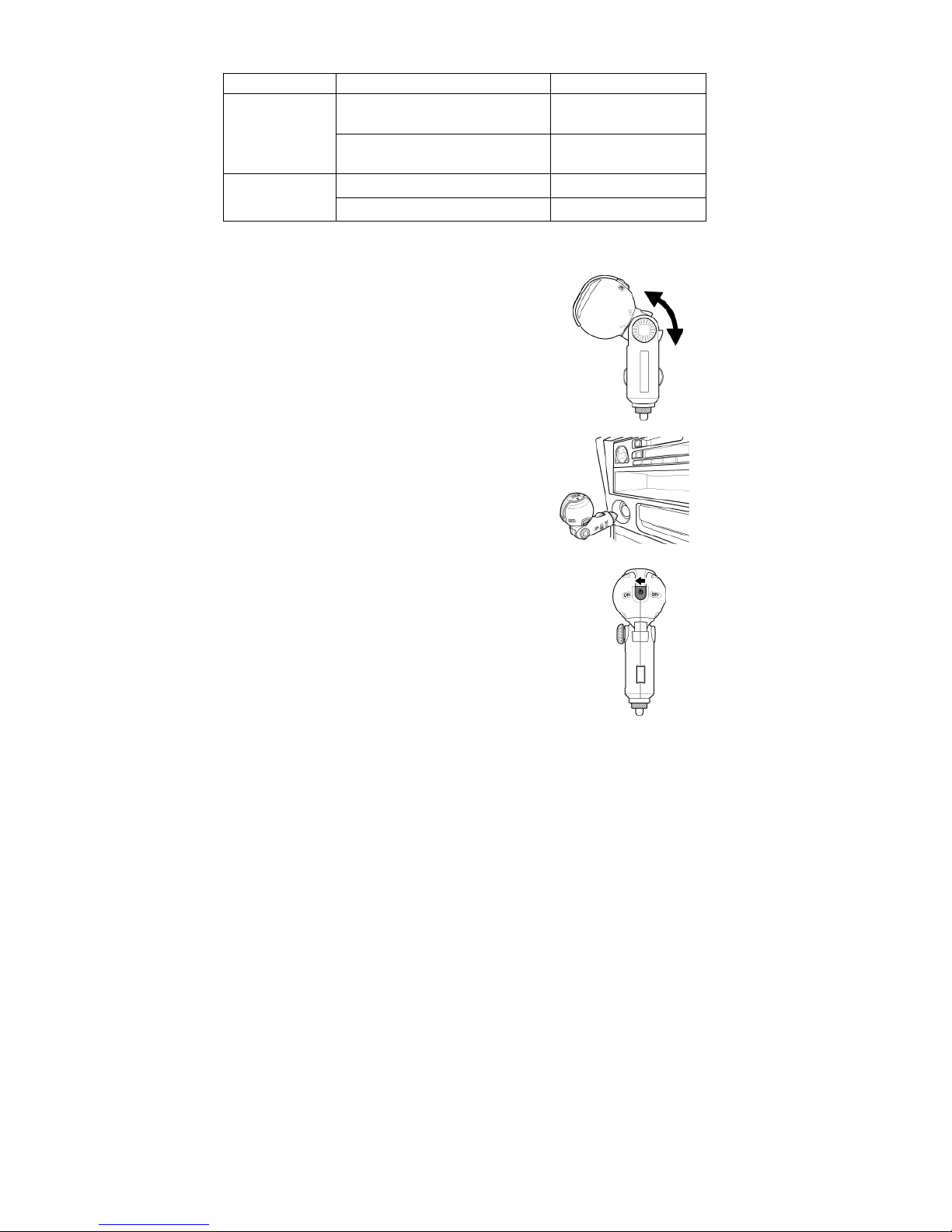

4.2. Using the GR-239
1. Adjust the Receiver Head.
•Carefully unscrew the locking screw
on the side of the receiver.
•Move the receiver head to the
required position.
•Screw the locking screw back tightly.
2. Insert the Receiver.
•Insert the GR-239 into the lighter
slot of your car.
•Adjust the receiver head vertically
by 90 degrees.
3. Switch on the Power.
Slide the power switch to the ON position.
4. Establish Bluetooth Link.
•Refer to 4.5 Bluetooth Installation in the user
manual for further details if you have any
problems establishing the link.
6
WARNING:
Do not place the GR-239 under strong sunlight for a
long time. Do not place it in a high temperature
environment, or near heat radiating devices such as
a stove or radiator. Doing so will cause the device to
malfunction.
4.3. Data Port
Below listed the description of the GR-239 USB data port.
PIN Function Signal and description
1 GND Power and system ground.
2 NC N/A
3 TXD
Data output pin. Transfers data to
external device. (Output voltage
range: CMOS 3.0V Level)
4 RXD
Data input pin. Transfers data from
external device to GPS. (Input
voltage range: CMOS 3.0V Level)
5 NC N/A
PIN 5PIN 1
