Hologic Faxitron Core Manuel utilisateur

Quick

Set-up

Guide

CHECK THE CONTENTS

The Faxitron Core system

is contained in 1 BOX:

CONTENTS

Faxitron Core unit

Faxitron Core Quick Start Guide

1 x System monitor with stand

1 x Computer

1 x Monitor Cable

1 x Keyboard

1 x Mouse

25 x Faxitron Core Specimen Trays

2 x Keys

2 x USB Vision Cable

1 x Network Cable

3 x Power Cords

1 x System Install Flash Drive

(Includes User Manual)

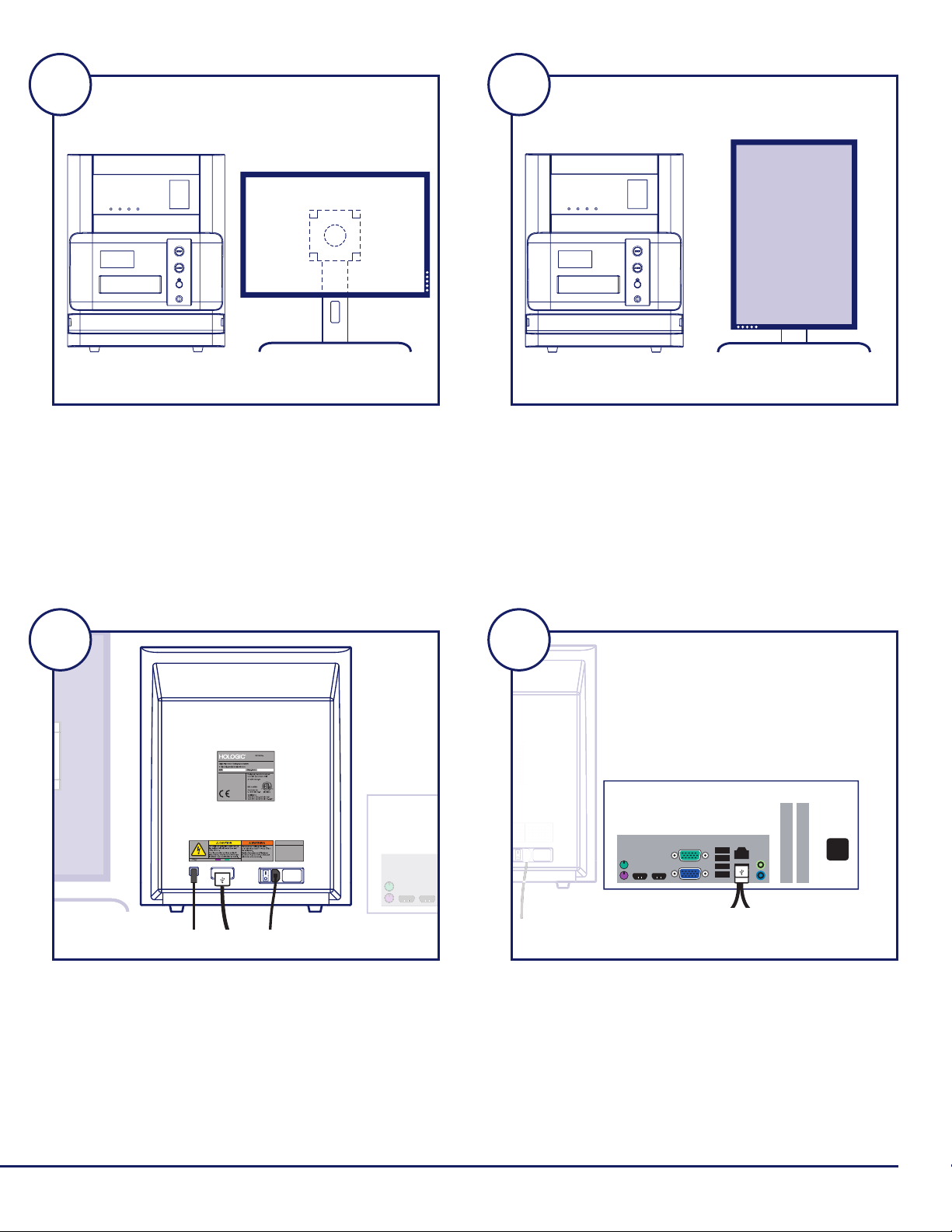

STEP ONE

Open the BOX and remove the top layer of packaging

to allow access to lift the Faxitron Core out safely.

Please check the Faxitron Core for damage (cracked

or broken plastics, damaged LCD screen, etc.)

The system weighs close to 50lbs, please obtain

assistance to safely lift the Faxitron Core from the box

and place it at the desired location.

STEP FOUR

Remove and set aside the document package, specimen

trays, keyboard, and mouse. Remove all cords and cables

from the box. Remove the computer and place near the

Faxitron Core unit and monitor.

Connect the Power Cord and Monitor Cable to the

monitor. Image shown is an approximation and may vary

slightly.

Please check the box arrived with

no signiﬁcant visible damage to any

of the items.

If there is damage, please call the

Hologic support team on:

+1-800-447-1856

Débrancher le Pouvoir avant

de remplacer des fusible.

INPUT VOLTAGE

120VAC 60Hz 150W MAX

FUSE

3AG Long Lag Time

3.00A 250V or equivalent

Faxitron Bioptics, LLC

3440 E. Britannia Drive, Suite 150

Tucson, Arizona 85706, USA

T +1-520-399-8180

F +1-520-399-8182

E [email protected]

www.faxitron.com

FAXITRON CORE

STEP FIVE

Locate USB Cables and Power Cord, and connect to the

back of the Faxitron Core unit as shown.

STEP SIX

Connect the other ends of the USB Cables to the

computer as shown. Be sure to plug the USB Vision

Cable into the port labeled “Vision USB”.

STEP TWO

Remove the monitor and stand. Remove the protective

bag from the monitor and set aside.

STEP THREE

Rotate the monitor 90˚ clockwise.

The buttons will be on the bottom as shown.

USB

Cable

USB

Cable

Power

Cable

USB Vision and

Camera cables

STEP SEVEN

Connect the Monitor Cable and Power Cord to the back

of the computer as shown.

Unpack keyboard and mouse and connect to the back of

the computer as shown.

Connect the Power Cord to the back of the computer as

shown. Plug the computer, monitor and X-ray unit power

cords into a power receptacle.

STEP EIGHT

Locate the Faxitron Core key and insert into the Key

switch on the front of the unit.

Turn on the computer and monitor and allow Windows

to start up.

Turn on the power switch on the back of the

Faxitron Core unit.

Turn Key clockwise to ON.

Double click the Core icon.

The system will detect the Faxitron Core unit and

automatically begin calibration.

For system operation, consult the Quick Start Guide.

7 8

POWER

CABLE

MONITOR

CABLE

MOUSE &

KEYBOARD

04-4047-00 Rev 032 (08/21) ©2021 Hologic Inc. All rights reserved. Hologic, CoreVision, Faxitron, The Science of Sure and associated logos are trademarks and/or registered trademarks of Hologic, Inc., and/or its

subsidiaries in the United States and/or other countries. This information is intended for medical professionals in the U.S. and other markets and is not intended as a product solicitation or promotion where such

activities are prohibited. Because Hologic materials are distributed through websites, eBroadcasts and tradeshows, it is not always possible to control where such materials appear. For speciﬁc information on

what products are available for sale in a particular country, please contact your local Hologic representative.

Faxitron Core system also known as CoreVision® System.
