Congratulations on your purchase of the WS-Bag! Since positive word

of mouth is the best way to grow our business, we want your install to go as

smoothly as it was designed to. If you have any questions or concerns, we are

here to help. Email or call us during regular business hours. If you still need

help, then please consider a professional installation by your dealer.

Hogtunes Contact Information

Email: [email protected]

USA Tel: 608-554-7631 •Canada Tel: 705-719-6361

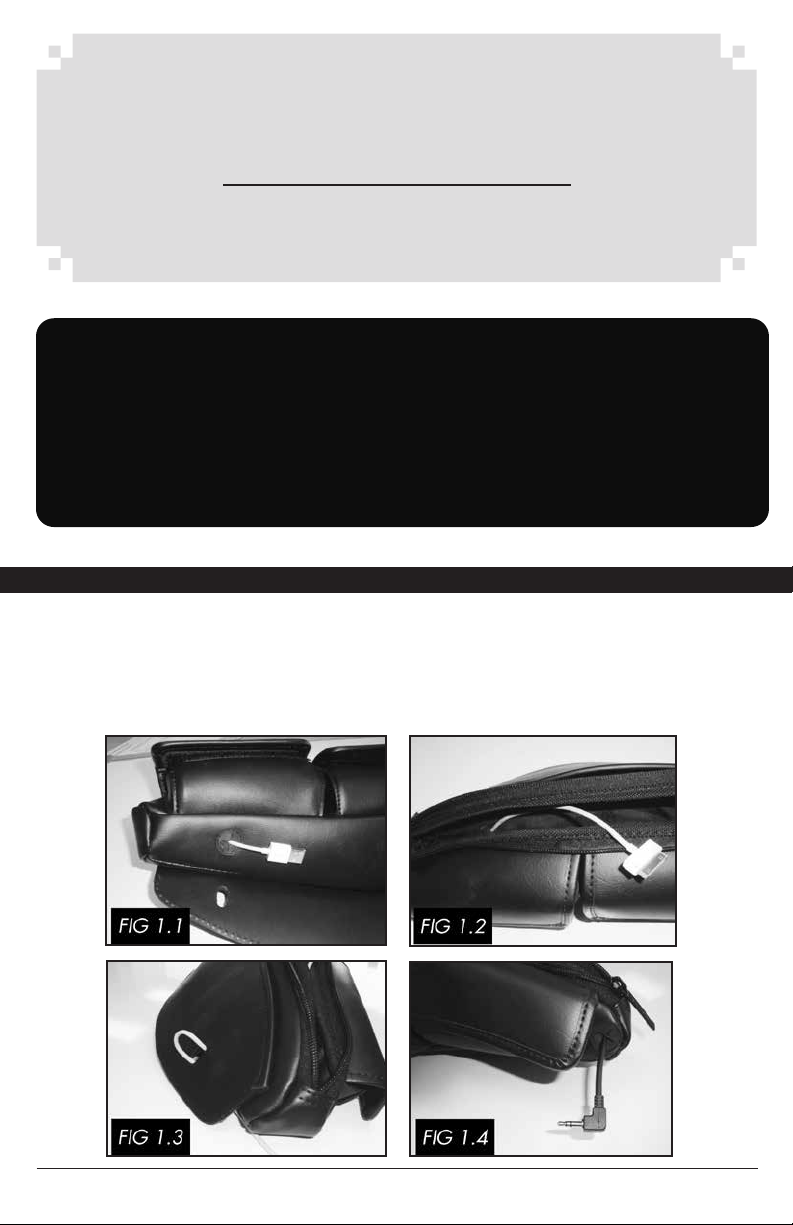

On the underside of the bag, there is a “X” grommet to allow a USB cable to pass

into the bag and an audio cable as per Fig 1.4. Skip to next page if not using.

From inside the zippered pouch, push the standard USB cable through as shown

in Fig 1.1. Pull all the slack through leaving enough slack for your USB powered

device as shown in Fig 1.2.

IMPORTANT: When mounted, MAKE SURE the bag does not obscure your

view of the road or surroundings. Install the bag so it will not shift or move while

riding with or without anything in the bag. Make sure the mounted bag will not

contact any controls or moving parts of your bike. Before riding, secure any cargo

inside the bag, taking special care with eyeglasses. Make sure all ﬂaps/zippers etc

are in the closed position. Your Hogtunes WS-BAG is designed to slip in between

the windshield and the inner dash of your bikes fairing. Care must be taken when

mounting the bag so it stays ﬁrmly secured to your bike!

PREPARING THE BAG FOR INSTALLPREPARING THE BAG FOR INSTALLPREPARING THE BAG FOR INSTALL

WS-BAG INSTALLATIONWS-BAG INSTALLATIONWS-BAG INSTALLATION

Make a “U” as shown in Fig 1.3. This allows your USB to go around the top lip of

your fairing when installing the bag. On the far right of the bag is a 2nd “X”

grommet that allows Hogtunes audio cable to pass out of the bag to the “aux in”

on the radio. With USB power, and the audio out to the aux in, the zipper pouch

is the ideal place to have your audio device for long rides!

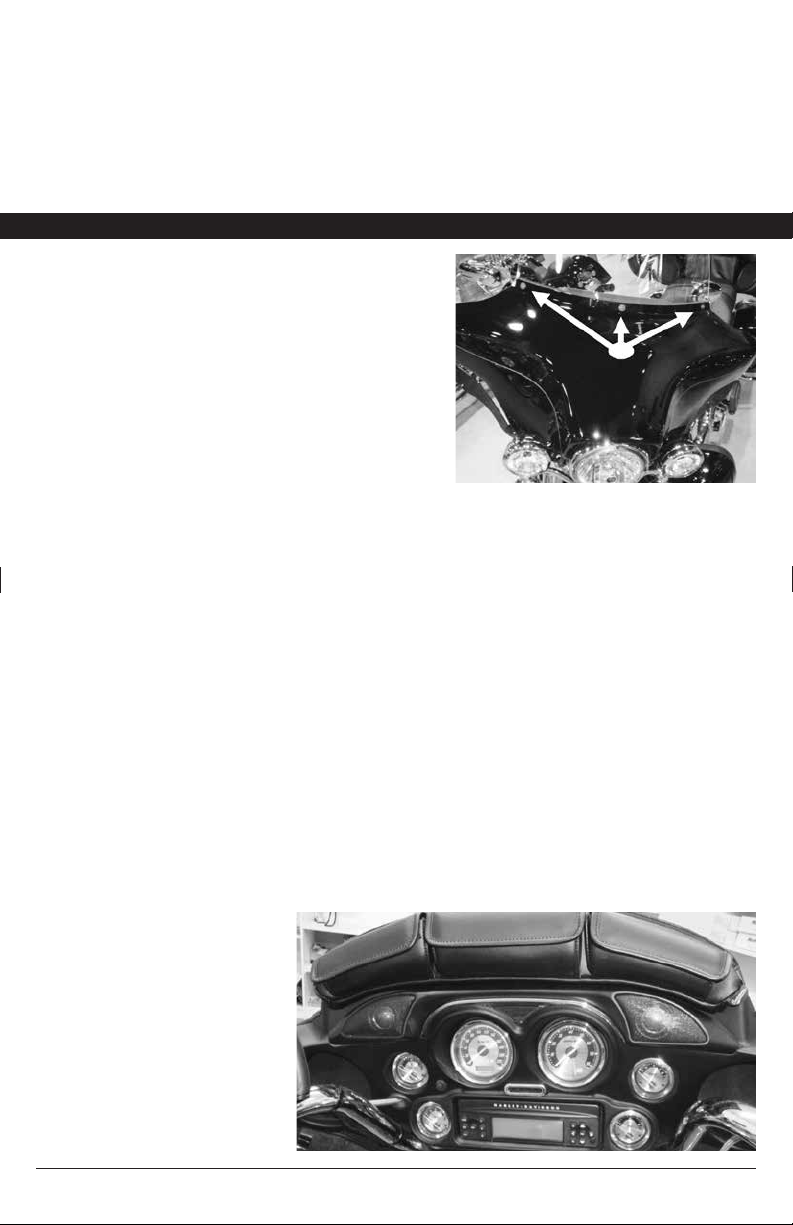

Step#1: Locate the 3 screws highlighted by

white arrows in the image below.

These are the screws that “clamp”

the windshield between the bikes

inner and outer fairing. In most

cases, the 3 screws will only need to

be loosened before moving to Step

#2, but may need to be removed

depending on the bike.

Step#2: Slide the lower, backing portion of the windshield bag down between

the inner dash and the windshield. NOTE: If using the USB cable option,

you may need to loosen all 7 fairing screws to allow the outer fairing to

pull back far enough to get the “U” around the top lip of the inner fairing

as shown in Fig 1.3. Once the bag is in place, take any slack out of the

loop.

Step#3: Align the center hole in the outer fairing, and windshield molding

(if present) with the center “slot” in the windshield bag and the center

threaded insert of the inner fairing.

Step#4: Loosely re-install the 3 screws. Check the ﬁt and alignment of the

windshield and the bag before tightening the screws securely.

Step#5: Make sure that none of the parts of the bag will touch or interfere

with anything that can impair the operation of the bike! It is your

responsibility to make sure the installation of the bag does not create an

unsafe, or illegal

situation.

NOTE: After 50 miles of

riding (80km), recheck the

mounting of the bag to

make sure it is still securely

mounted to the fairing.

Hogtunes products will play much louder than the

Original Equipment, which can be a distraction to

the rider and/or passenger. Please use caution

when adjusting or playing your stereo

at high volume, especially in trac.

You are a valued customer so please:

Ride Alert

Arrive Alive!

Version 1.2

www.hogtunes.com
