HobbyZone FireBird Manuel utilisateur

Instruction Manu

™

Welcome to the

HobbyZone™

world of fun!

Hey, nice move!You just snagged the

world’s neatest radio control aircraft—

the Firebird from HobbyZone. Our

mission at HZ is to make sure you have

a great experience with your ‘Bird—

to have safe fun and learn a few things

along the way.

You’re going to be surprised how

easy it is to fly a radio control airplane.

There’s one catch, though.You gotta’

read and FOLLOWTHE DIRECTIONS.

Try it our way first —then you can get

creative!

Ready to get started? So are we.

Let’s go!

WHOA, THERE.

READ THIS!

STEP 1. Charge Aircraft Battery

• Attach the connector—push until

you feel a“click.” Plug charger into

a 110V AC wall outlet.

• Charge battery for 2 hours.

DO NOT OVERCHARGE.

• See “Warnings and Safety”

on page 24.

OPTIONAL ACCESSORY

The FireBird Fast Field Charger charges your

FireBird’s aircraft battery in just 20-30 minutes

from a car’s cigarette lighter. Please contact

your retailer for availability.

Stock no. HBZ1020 Suggested Retail $17.95 3

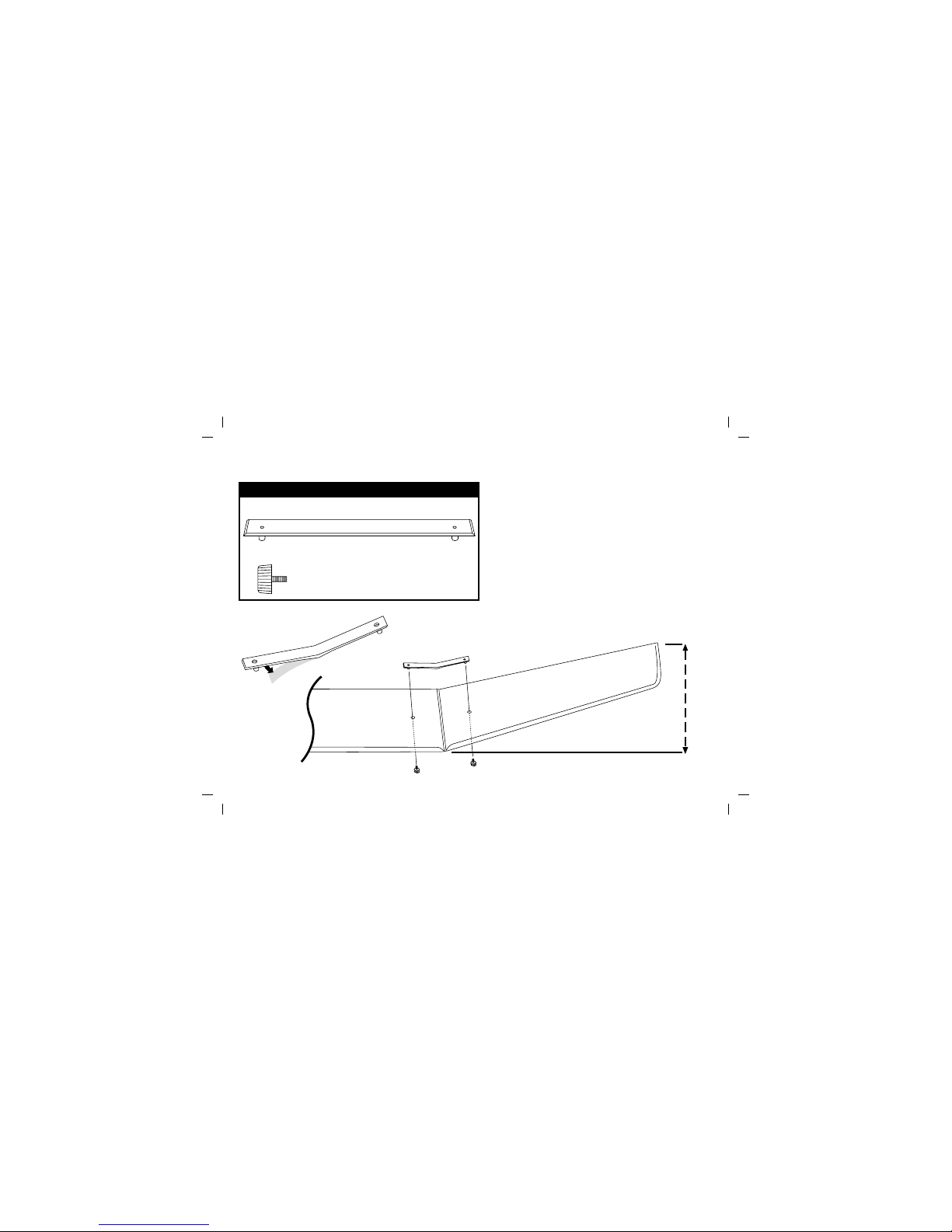

STEP 2. Wing Assembly

Wing Brace (x2)

Wing Screw (x4)

Needed for STEP 2

•Lay wing flat on table, place book on center

section to hold it flat.

•Position wing tip 2" above table top by

placing transmitter under wingtip.

•Remove sticky tape backing from wing

brace and attach as shown.

•Insert wing screws and fasten very tightly

until screw stops.

•Repeat with other wing brace

•It is VERY IMPORTANT to secure wing

braces so both wing tips are the same

2" height.

STEP 3. Wing Brace Tape

Brace tape (x4) - located on decal sheet

as shown, labeled #1

Needed for STEP 3 •MAKE SURE wing tip is positioned at

2" height.

•Add wing brace tape (4 yellow rectangles

located on decal sheet) directly over

wing brace. Press firmly.

•Repeat with other wing brace.

™

STEP 4. Wing Cap

•Locate wing center marked by molded “dots.”

•Determine front of wing.

•Locate front of wing cap (see above).

•Remove sticky tape backing from wing cap.

•Align wing cap evenly over the wing

center. Be sure it’s centered.

Press firmly.

FRONT EDGE Wing cap, full-size side view. Note

that front edge has more “curve.”

IMPORTANT: Make sure the front of the center

cap is over the front of the wing.The angled edge is

the front.

FRONT

Wing

Center

Wing

Cap

STEP 5. Propeller

Propeller

Needed for STEP 5

•Push prop firmly into place

on motor shaft.

STEP 6. Hatch Cover Fastener

•Remove thumbscrew installed in front

top of fuselage

•Install thumbscrew in canopy hole as

shown in order to secure canopy.

STEP 7. Wing Mounting

Needed for STEP 7

IMPORTANT

•Center wing on fuselage EXACTLY.

•Secure wing in place with at least

4 rubberbands (1 per side and

2 crossing) or poor flying will result.

Rubber bands (x4)

Remember: straight edge is rear!

STEP 8. Decals

Decal Sheet - the numbers on this page

refer to the corresponding number on

the decal sheet.

Needed for STEP 8

™

Fuselage (repeat on both sides)

NOTE: Decals wrap around to underside of fuselage.

Main Wing

Tail

™
