HMN M2 Mini El-Tip Manuel utilisateur
IMPORTANT!
WHEN CHARGING, DO NOT TURN ON THE SWITCH
BEFORE THE CHARGER IS CONNECTED TO THE
CHAIR.
THE BATTERY SHOULD BE CHARGED 24 HOURS
THE FIRST TIME.
WHEN THE BATTERY HAS RUN DOWN THERE IS A
BEEP SOUND FROM THE CONTROL BOX WHEN THE
ELECTRICAL PARTS ARE IN USE.
WHEN THE BEEP SOUND COMES, YOU HAVE TO
RECHARGE THE BATTERY AS IT CAN BE DAMAGED
IF YOU LET IT RUN 100 % OUT OF POWER.
(IF THE BATTERY HAS RUN OUT OF POWER, YOU
CANNOT USE THE ENGINE BY PUTTING THE
CHARGER IN THE WALL PLUG AND THE CHAIR.
A FULL RECHARGE TAKES TYPICALLY 8 HOURS.)
IF THE LIGHTBOLT ON THE CHARGER LIGHTS
GREEN WHEN CONNECTED, IT IS DUE TO A
MALFUNCTION OF THE BATTERY, AND THEREFORE
IT NEEDS TO BE CHANGED.
DO NOT CHARGE THE CHAIR WHILE BEING USED IN
AREAS WITH WATER.
DO NOT USE THE ELECTRICALL FUNCTIONS ON
THE CHAIR WHILE SPRAYING WITH WATER.
User guide for Shower/Commode chair M2 Mini El-Tip.
Intented for use a bathing, showering and toilet visit.
(2/5)

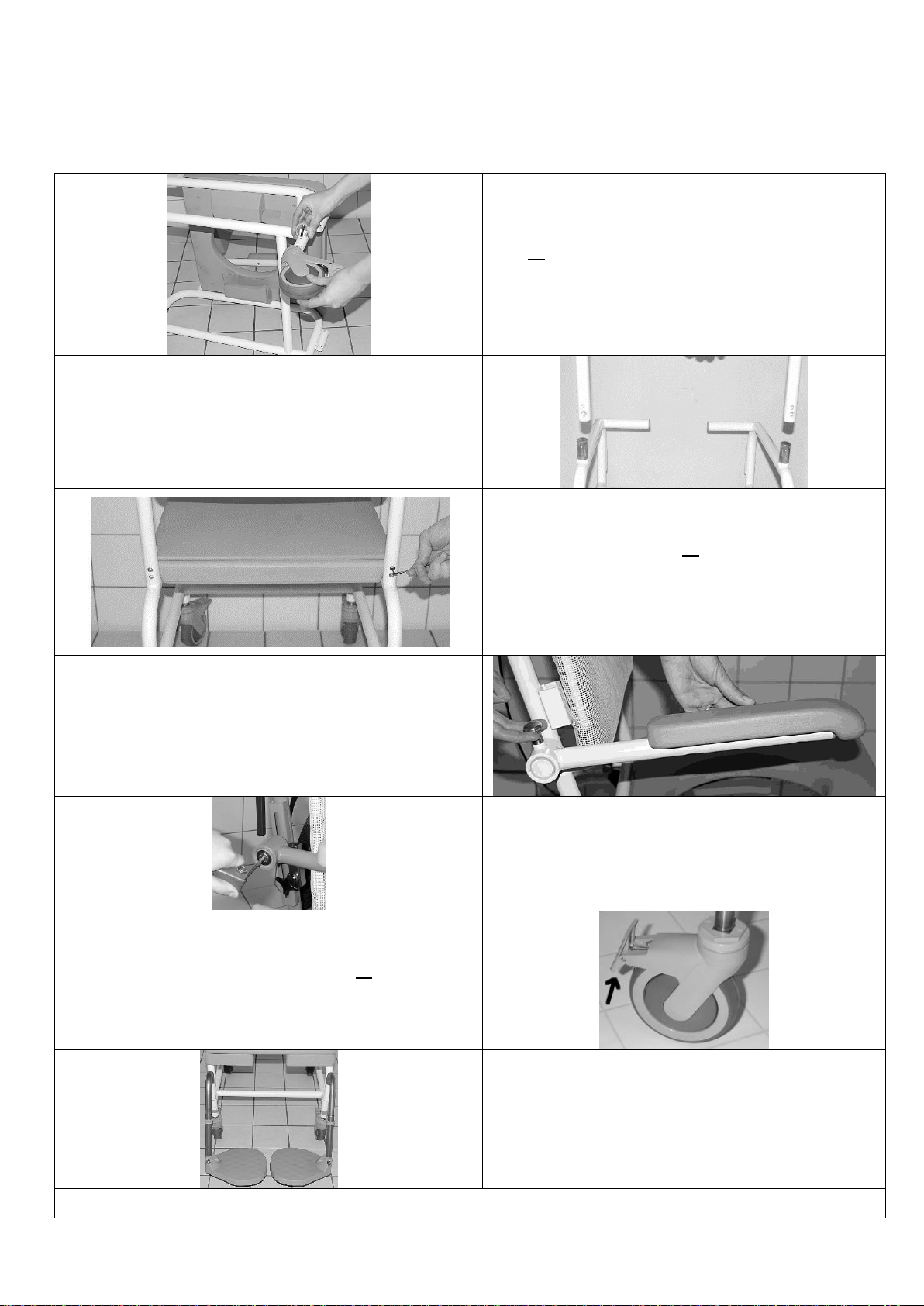

Assembly of wheels:
Lay down the chair. Take the clips out of the leg
and inser the wheels into the frame. Make sure
that all 4 wheels are in the same height position
before inserting the clips.
Turn the chair over for easier assembly of the
wheels.
Mounting the back:
Attach the back into the frame.
Assembly the back:
Insert the 4 screws and tighten with an Allen
wrench. Make sure that all 4 screws are securely
tightened.
Remember to retighten the screws after a month.
The screw shall be discarded after the mounting
and you shall use the screws to the next mounting.
(Art. No 800290)
Mounting/Disassembly of armrest
Pull the snap release and then you can tilt the
armrest.
Adjustment of armrests
The height of the armrest are adjusted by
loosening the umbraco screw and then moving
the armrest to the wished height and then
tightening the screw again.
Looking the wheels:
Before use of the chair bathing, showering or lifting
persons into the chair, make sure that all 4 wheels are
locked.
To lock the chair, press down the grey plate as shown
on the picture to the left.
Mounting the footrests:
Adjust the height of the footrests by taking the clips
out, placing the footrests in the wished position
and putting the clips back in.
Footrests are to be placed on the front of the frame
in the footrests holders.
Continued on page 3
User guide for Shower/Commode chair M2 Mini El-Tip.
Intented for use a bathing, showering and toilet visit.
(3/5)

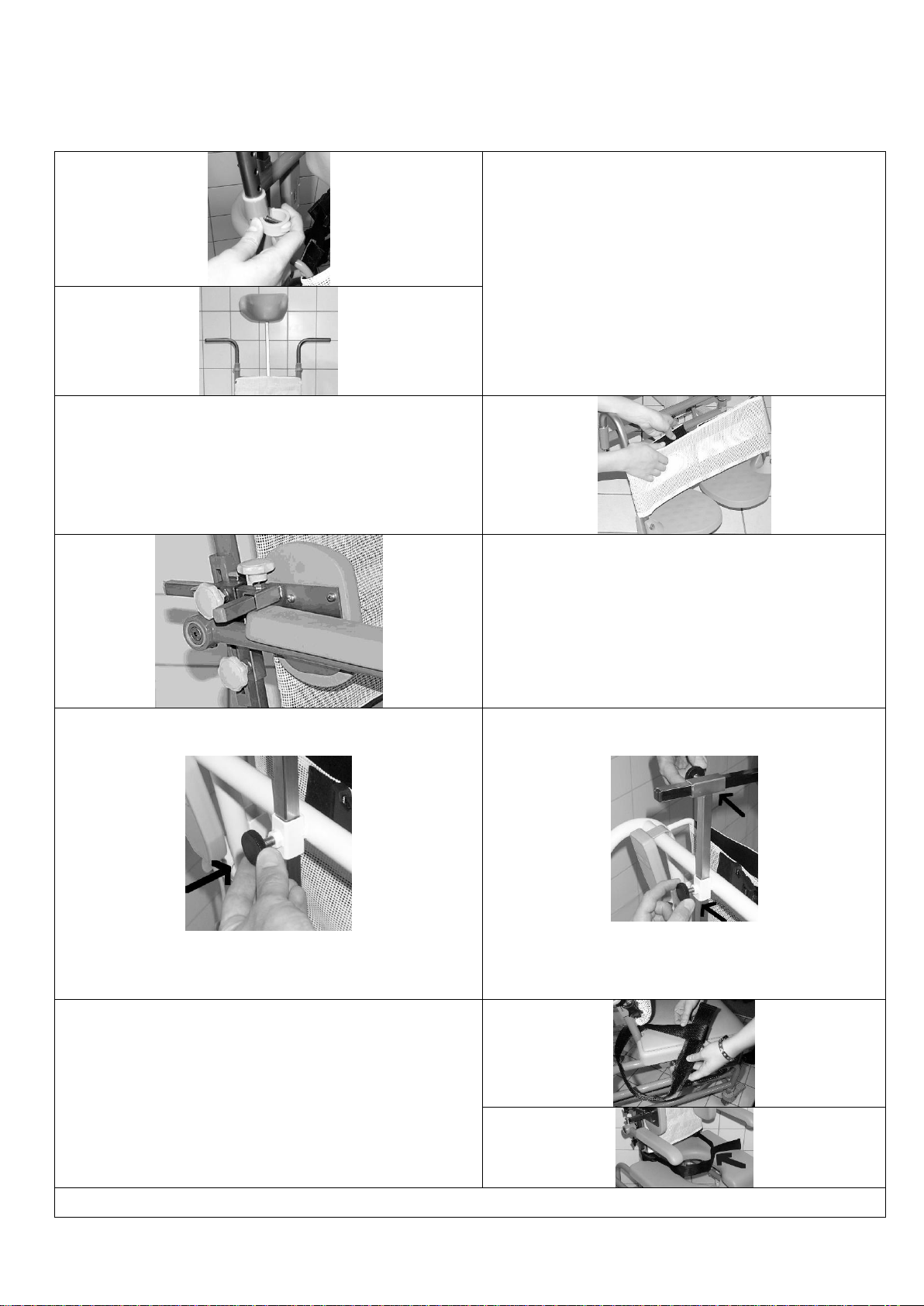

Adjusting of push handles
Take out the clips and move the handle to the
wished position. Put the clips back in.
NB! There are holes so the handles can be
angled backwards or to the sides so the chair
is easier to maneuver.
Mounting of calf support
The calf support is fastened with Velcro tape on the
backside. The depth and the calf support is adjusted
by fastening the Velcro tape further in or further out.
Care: Washable at max. 80 degrees
Mounting of side supports
The side supports are put in the square tube on
the chair frame. Height/Depth/Width is adjusted by
loosening the finger screw and then holding the
side support in the wished position and then
tightening the finger screw again. If wished you
can place the foam pillow horizontal
Adjusting the headrest
(Art. No. 310221)
The height of the headrest is adjusted by loosening
the finger screw and tightening it again when the
height is right.
Adjusting H+D headrest
(Art. No. 310222)
The height and depth of the headrest is adjusted
by loosening the two finger screws and then
tightening them again once they are in the right
position.
Mounting of hipstrap
The two pars are mounted on the back rest tubes. The
hipstrap is closed and opened with Velcro.
Continued on page 4
User guide for Shower/Commode chair M2 Mini El-Tip.
Intented for use a bathing, showering and toilet visit.
(4/5)

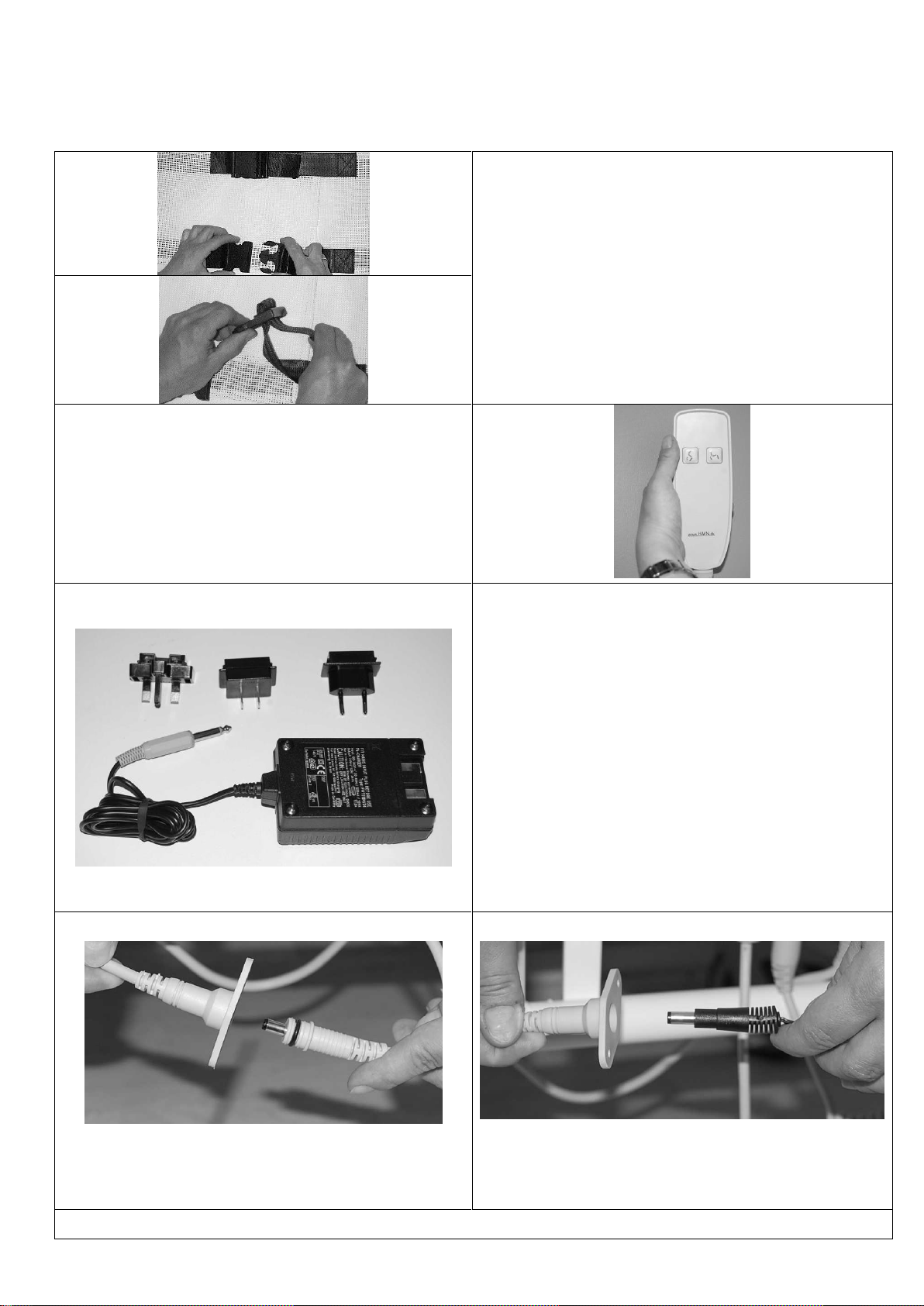

Adjusting the back rest
You open the back by pressing the two plastic
taps with your left hand, and then with your right
hand you pull the buckle out.
The depth of the back is adjusted by pulling the
webbing and then tighten it.
Care: Washable at maximum 80 degrees.
Tilting
For going up or down the chair is tilted by using
the remote-control.
If the user is not able to hold on to the armrest
by himself, the helper must lay the users hands
on his lap before tilting the chair
Charging the battery
Depending on region plug type 1, 2 or 3 slides
into the charger.
Afterwards you put the transformer in the socket
and turn on the power.
A full charge takes approximately 8 Hours.
When the batteri is running out of power you will
hear a “beep” sound.
When the battery is being charged, the light bolt
on the charger lights orange.
When the battery has been fully charged, the
light bolt on the battery will light green.
Note: If the light bolt on the charger lights green,
when it is being connected, it is due to a
malfunction, and it needs to be changed.
Charging the battery
With the one hand, you grab around the
charging plug (Socket) on the chair and with the
other hand you pull out the connecting cable for
the battery.
Charging the battery
With the one hand, you grab around the
charging plug (Socket) on the chair and with the
other hand, you push the plug from the
transformer in place.
Continued on page 5
User guide for Shower/Commode chair M2 Mini El-Tip.
Intented for use a bathing, showering and toilet visit.
(5/5)

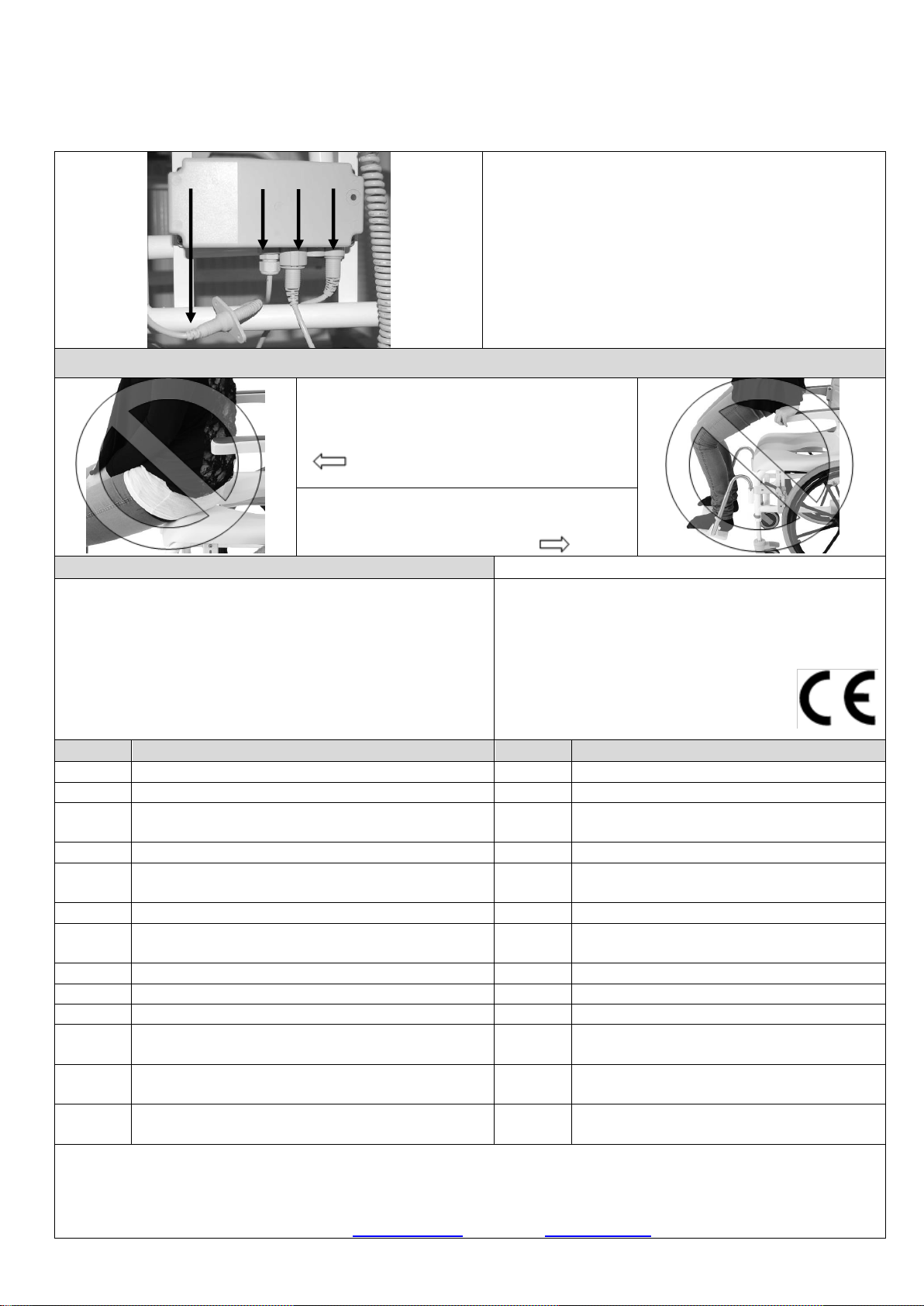

Cables
1. Plug for battery
2. Cable for battery
3. Cable for remote control
4. Cable for actuator (“engine”)
WARNING
Do not sit on the outer 10 cm of the
seat that the chair can tip forward.
Do not stand on the footrests
Art. No:
310502/310502-B
Max. Load 80 kg
Attention! Push the Clips to the bottom when adjusting heights.
2 Years complaint rights against manufacturing errors.
Terms of claim for frame.
HMN grants 5 years claim rights against frame break-down for all
M2 Shower/commode chairs and stainless steel shower stools. The
warranty applies for production and material break downs, and can
only be used if the products have been in normal use. Please note
that the normal
Cleaning:
The product can be cleaned with regular cleaning without
non-abrasive detergent. Wash and dry the product after the
cleaning. The product can be washed up to 85° degrees in 3
minutes.
This product is CE marking which means the
product complies with EU legislations and
enables the free movement of the product in
the European market.
Art. No
Spare Parts
Art. No
Spare Parts
800179
Mini seat (light grey)
310081
Finger screw for head support holder
800180
Seat cover
800186
Push handle, 1 pcs
310065
Clips for height adjustment, grey
800187
Umbra co screw for height adjustment
for armrest, 1pcs
310165
Clips for height adjustment, magenta
800191
Pu foam pillow for head rest (light grey)
800181
Pu foam pillow for armrests, 1 pcs (light
grey).
800192
Pu foam pillow for side support (light
grey)
800012
Screw for fastening of armrest pillows.
800193
Finger screw for side support (round)
310076
Nylon bush for armrests
800267
Remote control (including wire and
plug)
800082
Bolt for armrest
800269
Control box
800013
Nylon bush for leg
800270
Battery box incl. battery
800182
White net weave back rest for Mini
800268
Actuator (”engine”)
800183
Armrest set with pu foam pillows, set w/ 2
pieces
800280
Transformer (Euro plug)
800181
PU foam for the armrest
800272
Bolt with nut for fastening of actuator
(on top)
800184
100 mm wheel with leg, 1 pcs.
800271
Bolt for fastening of actuator (below
bottom)
HMN A/S
Midtager 22, 2605 Brondby, Denmark
Tel. +45 43 96 24 00, Fax. +45 43 96 26 92
