HIVE® 295 MHz GDO RECEIVER
USER MANUAL
V.2.1.17
Part NO: 295GDO
1. ACCESS THE CIRCUIT BOARD

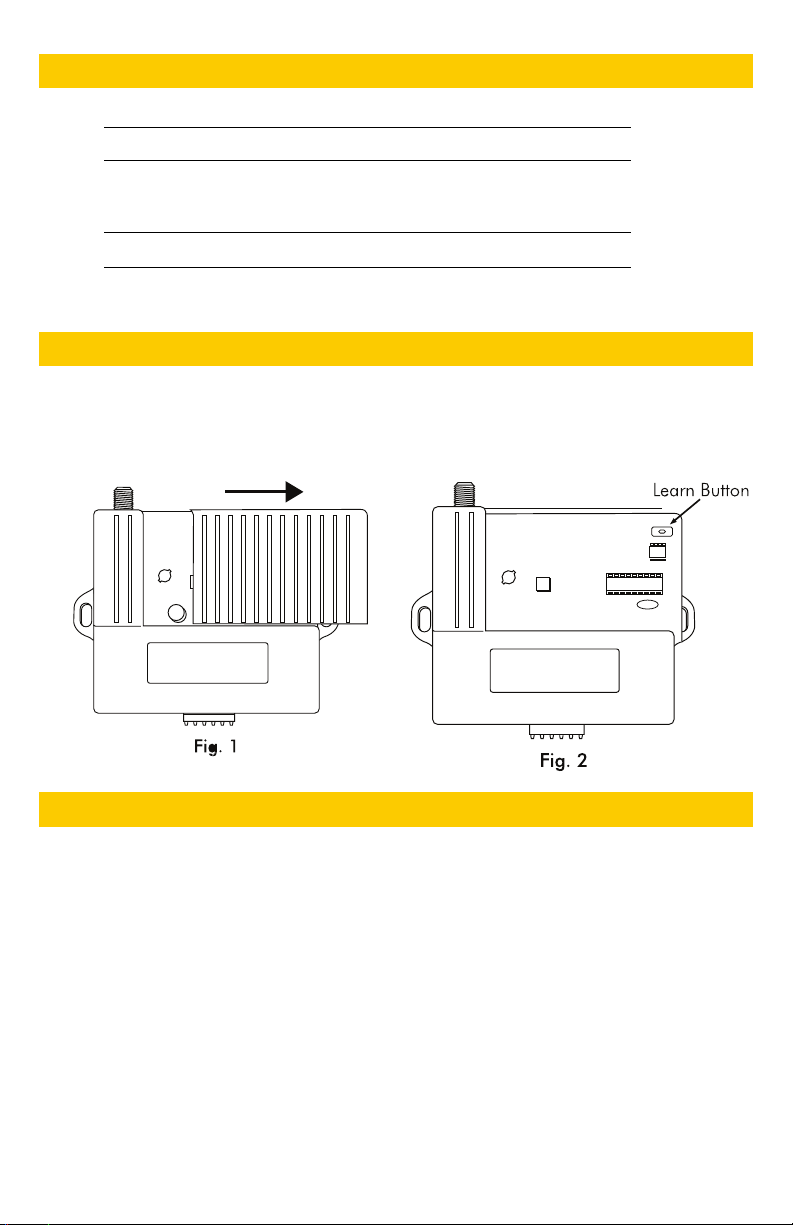

Open the access door by sliding it to the right. See Fig 1.
You can now see the circuit board and Learn button. See Fig 2.
The Hive receiver will automatically detect volage between 12-24 V, either AC or DC.
TECHNICAL SPECIFICATIONS
2. TRANSMITTER LEARNING
FOR COMM1:
a. Press the Learn button for .5 sec.
b. Red LED will blink slowly
c. Release the Learn button and press the first button on the transmitter
d. The red LED will blink rapidly to confirm the first button has been learned successfully, at
which point the first button will control COMM1 of the receiver.
FOR COMM2:
a. Press the Learn button for .5 sec
b. Red LED will blink slowly
c. Press the learn button again for .5 sec
d. The red LED will turn off and the green LED will start blinking slowly
e. Release the learn button and press the second button on the transmitter
f. The green LED will blink reapidly to confirm the second button has been learned success-
fully, at which point the second button will control COMM2 of the receiver.
Output Load MAX: 15A/125AC
Input Load: 12-24VAC/DC Auto Detecting
Power Supply Consumption:
Relay Active: 70mA
Relay Not Active: 32mA
Max Applicable Power: 25VDC
Operating Temperature: -40°F to 158°F
3. FUNCTIONS
ERASING TRANSMITTERS FROM MEMORY
Press the Learn button for 10 sec, and all LEDs will blink rapidly to confrim all transmitters
held in memory have been erased.
FUNCTION MODES
Pressing button 1: COMM1 will send .7 second pulse
Pressing button 2: COMM2 will send .7 second pulse
Pressing buttons 1 + 2: COMM3 will send .7 second pulse
Current of relay: 10A
Can learn up to 50 Transmitters
Carrier frequency: 295MHz
Operational voltage: 12 or 24 AC or DC
PIN CONNECTORS
FOR COMM3:
a. Press the Learn button for .4 sec, the red LED will blink slowly
b. Press the learn button again for .5 sec, the red LED will turn off and the green LED will start
blinking slowly
c. Press the learn button again for another .5 sec, the green LED will turn off
d. The yellow LED will start blinking slowly
e. Release the Learn button and press 1 + 2 buttons simultaneously on the transmitter
f. The green LED will blink rapidly to confirm the 1+ 2 buttons have been learned successful-
ly, at which point the 1 + 2 buttons will control COMM3 of the receiver.
6. INSTALLATION
A. Mount the receiver in a safe and convenient location on your instllation. Remember to take care to avoid
items that may cause interference with the receiver such as electric motors, etc. The receiver can be
attached with either the mounting screw holes of the housing or by using industrial strength velcro.
B. Install the coax antenna (provided) by screwing it onto the antenna mount which protrudes from the top
of the housing.
C. After you have completed the installation check for operational range from various areas around the
installation. If the range is less than desired, try re-positioning the antenna, receiver, or both and re-test the
range.
7. WARRANTY
The warranty period of this product is 24 months, beginning from the manufacturing
date. During this period, if the product does not operate correctly, due to a defective
component, the product will be repaired or replaced at the sole discretion of Transmitter
Solutions. This warranty does not extend to the product casing which can be damaged
by conditions outside of the control of Transmitter Solutions.
EXCEPT AS SET FORTH ABOVE, TRANSMITTER SOLUTIONS MAKES NO WARRANTIES REGARDING
THE GOODS, EXPRESS OR IMPLIED, INCLUDING WARRANTY OF MERCHANTABILITY OR WARRANTY
OF FITNESS FOR A PARTICULAR PURPOSE. BUYER MAKES NO RELIANCE ON ANY REPRESENTA-
TION OF TRANSMITTER SOLUTIONS, EXPRESS OR IMPLIED, WITH REGARD TO THE GOODS AND
ACCEPTS THEM “AS-IS/WHERE-IS”. TRANSMITTER SOLUTIONS SELLS THE GOODS TO BUYER ON
CONDITION THAT TRANSMITTER SOLUTIONS WILL HAVE NO LIABILITY OF ANY KIND AS A RESULT
OF THE SALE. BUYER AGREES THAT TRANSMITTER SOLUTIONS SHALL HAVE NO LIABILITY FOR
DAMAGES OF ANY KIND, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES,
INCLUDING INJURIES TO PERSONS OR PROPERTY, TO BUYER, ITS EMPLOYEES OR AGENTS, AS A
RESULT OF THE SALE. BUYER ALSO AGREES TO HOLD TRANSMITTER SOLUTIONS HARMLESS
FROM ANY CLAIMS BUYER, OR ANY THIRD PARTY, MAY HAVE AS A RESULT OF BUYER’S USE OR
DISPOSAL OF THE GOODS. BUYER HAS READ THIS DISCLAIMER AND AGREES WITH ITS TERMS IN
CONSIDERATION OF RECEIVING THE GOODS.
