HITWAY BK6 Manuel utilisateur
Operation Manual
Model: BK6
V2022.0.1

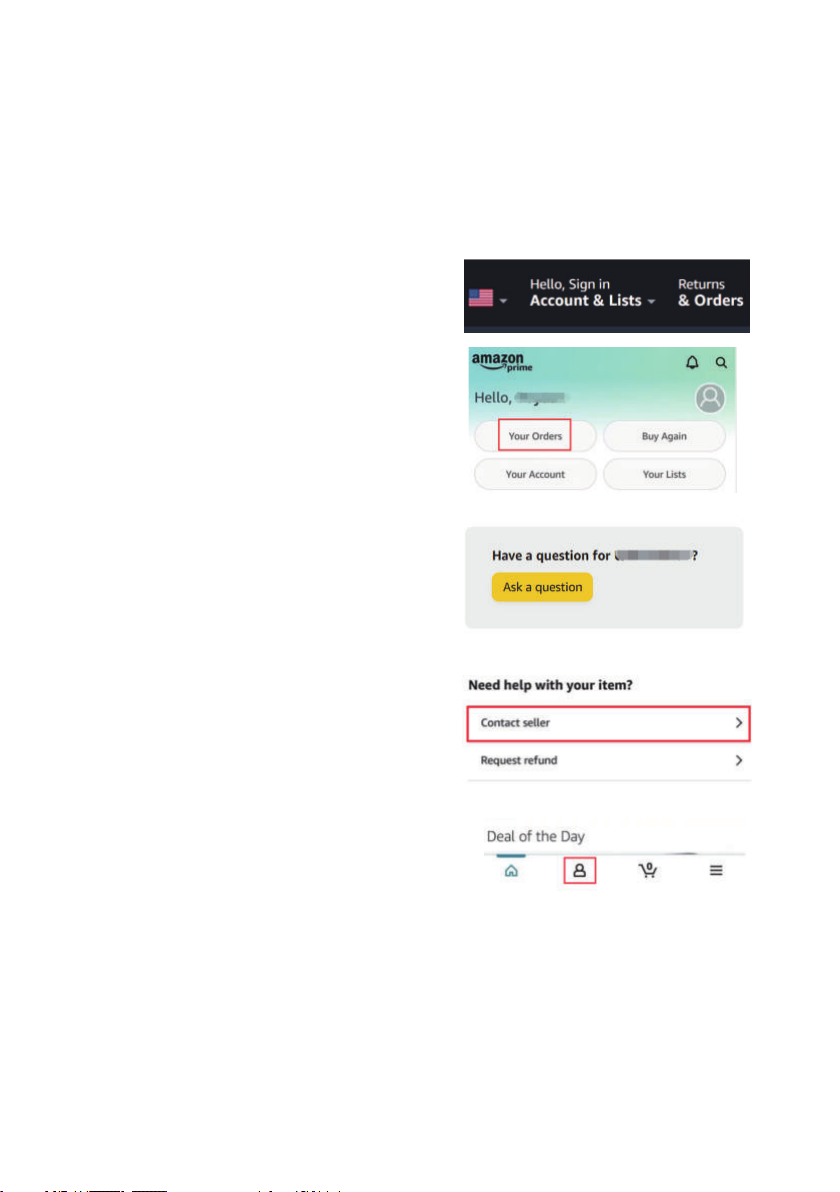

HOW TO CONTACT US ON AMAZON?
Step 1: Log in to your Amazon account.
Step 2: Go to Your Orders. Select
Problem with order in the list.
Step 3: Click the "Ask a Question" button.
Choose your topic from list displayed.
Step 4: Select Contact seller.
*If you purchased HITWAY products by other platforms or channels, please
also find the corresponding seller contact support. Thanks for your
support and patience!
LANGUAGE LIST
EN........................1
DE........................13
FR........................25
ES........................37
IT.........................49
NL........................61
PL.................................73
ATTENTIONS
Battery and Charging:
Charge at 0℃～45℃, discharge at -20℃～60℃, keep the battery dry. Do not put the battery
in acidic or alkaline liquid. Avoid rain and keep away from fire, heat and high temperature
environment. It is strictly forbidden to connect the positive and negative poles of the battery
reversely. It is strictly forbidden to damage,disassemble the battery or cause short-circuit.
Please use the specific original charger for charging, with charging time no more than 6
hours and the charging current no larger than 2A. When not in use for a long time, please
store the battery in a cool and dry place, and charge the battery for five hours every month.
The user must follow the manual instructions when charging, otherwise the consequences
will be at his own risk. Pay attention to the battery type and applicable voltage that the
charger can charge, and it is strictly forbidden to mix. When charging, it should be placed in
a ventilated environment. It is strictly forbidden to charge in residential buildings, enclosed
spaces, or under sunshine and in high temperature environments. When charging, plug in
the battery first, then connect to power supply socket; after charge gets full, cut off the
socket first, and then unplug the battery. When the green light is on, the power supply should
be cut off in time, and it is forbidden to connect the charger to the AC power supply for a long
time without charging. During the charging process, if the indicator light is abnormal, there is
a peculiar smell, or the charger casing is overheated, stop charging immediately, and repair
or replace the charger. During the use and storage of the charger, pay attention to avoid
foreign objects entering, especially water or other liquids, so as to avoid a short circuit inside
the charger. The charger should not be carried with the bike as much as possible. If it is
necessary to carry it, it should be placed in the toolbox after the shock absorption treatment
is done. Do not disassemble or replace the accessories in the charger by yourself.
Ride:
Do not use it until you read the instructions carefully and understand the performance of the
product; do not lend it to people who can't manipulate the product for riding. Before riding the
bicycle, check whether the brakes are working. When you brake, please activate the rear
brake firstly, and then the front brake. Pay attention to the brake tightness. If the brake is too
loose, use an Allen key to tighten it. Pay attention to increasing the braking distance when
riding in rain or snow. Suitable age: Riding between 16 and 65 years old. Please be sure to
wear a safety helmet when riding a bicycle, follow the traffic rules, and do not drive on
motorized lanes and roads with many pedestrians. Please check the tire pressure before
riding. The recommended tire pressure is 35～40 PSI. When riding on downhill and
non-paved roads, make sure the speed do not exceed 15KM/h. When using the motor,
please be careful not to hit it vigorously and keep the rotating shaft lubricated. It is not
allowed to ride with more than the maximum load of the body (the maximum load is 120 KG)
After use, the bike can not be parked in the building hall, evacuation stairs, safety exits, and
English / German / French / Spanish / ltalian / Dutch / Poland
(1)
℃～℃℃～℃～must be parked correctly in accordance with the safety rules.
Liability statemen:
After riding, please store the bike in a place without sunlight and rain, not in a residential
building; Regularly check the motor and brake;
Regularly check bike’s screw , especially those need to be tightened, and tighten them
regularly. Recommended torque: (unit: kgf. cm) Steering handlebar screws 60-80, stem
screws 175 ~ 200, seat cushion screws 175 ~ 200, wheel screws 320 ~ 450; The front and
rear wheels of the vehicle should align with the central axis of the front fork or frame;
Regularlly check if there is scratches, cracks or excessive wear in tires. The inner tube and
valve should be perpendicular to the wheel hub and not crooked. Damaged or excessively
worn tires need to be replaced immediately, please find a professional technician to
replace your tires, if your tires accidentally puncture and leak, please contact a profession-
al technician for repair or replacement.
Maintenance:
The company reserves the right to modify and interpret the product models, specifications
or related information mentioned in this manual;
The functions of a specific model mentioned in this user manual are only applicable to that
specific model;
The product models, specifications or related information mentioned in this user manual
are subject to any modification or change without prior notice;
Without the prior written permission of the company, the contents of this manual may not
be copied, modified, reproduced, transmitted or published in any form. Please read this
manual carefully before using the product, and operate in accordance with the manual,
otherwise the company will not be responsible for product damage or personal and
property damage caused by improper use or mistakes.
English / German / French / Spanish / ltalian / Dutch / Poland
(2)
English / German / French / Spanish / ltalian / Dutch / Poland
(3)
1 Instrument
2 Handlebars
3 Brake levers
4 Front reflectors
5 Telescopic risers
6 Vertical pipe adjust-
ment quick release
7 Folding risers
8 Riser adjustment quick
release
9 Headlights
10 Front fenders
11 Tires
12 Disc brakes
13 Wheels
14 Tire reflectors
15 Suspension front
fork
16 Disc brakes
17 Frame folding
quick release
18 Sprockets
19 Batteries
20 Folding pedals
21 Chain
22 Rear derailleur
23 Drive motor
24 Rear fenders
25 Rear hanger
26 Tail lights
27 Rear seats
28 Charging ports
29 Seatpost adjustment
quick release.
30 Seat tube
31 Seat pack
Figure 1 (Whole vehicle diagram)
PRODUCT FUNCTION DIAGRAM
Note: The product upgrade may cause the actual product you receive to be different from
the sample in the photo, please don't worry, the specific functions are the same and will not
affect your normal use.
English / German / French / Spanish / ltalian / Dutch / Poland
(4)
1. Charging: Unscrew the plastic cover on the battery (Picture 1), connect the charger to
start charging, when the battery is full and the indicator light of the charger changes from
red to green, it means it is fully charged.
(Picture 1)
(Picture2) (Picture 3)
2. Power on: refer to Picture 2, turn on the battery switch; refer to Picture
3, press and hold button to turn on/off .
Function introduction:
English / German / French / Spanish / ltalian / Dutch / Poland
(5)
3. Power display: After powering on, the dashboard lights up to display
the power, and the power is divided into 5 grids, corresponding to high,
medium and low power.
4. Headlights: refer to Picture 3, long press the button to turn
on/off the headlights.
5. Start: power-assisted riding, short press to adjust to 1st gear
after power on, step on the bicycle sprocket, start the motor to assist. If
motor assistance is not required, turn off the power or turn off the
battery or set the gear to 0.
English / German / French / Spanish / ltalian / Dutch / Poland
(6)
PRODUCT PARAMETERS
Outlook &
Dimension
Performance
Parameters
Parameter
Body Material
Color
Unfolding Size
Folding Size
Hub Form
Wheel Size
Standard Version
Aluminum alloy
Matte Black
1680mm*560mm*1200mm
900mm*500mm*790mm
Spoked wheel
20 inches
Gross/Net
Maximum Load
Maximum Speed
Mileage
Maximum Climbing Angle
Proper Temperature
Waterproof Level
32kgs/26kgs
120kg
25Km/h
35KM-90KM(At 75kg and 25°C,
the pure electric mileage can
reach 35KM, and the mopedmileage
depends on the load and riding style)
25 degree
-10～45℃IP54
Package Size 960mm*380mm*745mm
English / German / French / Spanish / ltalian / Dutch / Poland
(7)
Electrical Specifi-
cations
Battery Type
Battery Capacity
Battery Rated Voltage
Motor Rated Power
Motor Form
Motor Type
Motor Rated No-Load Speed
Charger Output
Charger Input
Undervoltage Protection
Value
Overcurrent Protection Value
Charging Time
18650 lithium ion power battery
11.2AH
36V
250W
Assist mode
20 inch/high speed gear/spoke
wheel brushless motor
400±10r/min
42V 2.0A
100~240V 50/60Hz 3.0A
29V
15A±1A
4-5 hours
Features
Instrument Display
Front Lighting
Braking Method
Tire Specifications
Front Fork Shock fork
Gear 7 Speeds transmission
Multifunctional LCD screen
YES
Front disc brake +
Rear disc brake
Pneumatic tires
Tire：20×3.0
Air Valve：20×3.0 The inner
tube valve is AV
Remarks:
The factors, including Battery power capacity, load, tire pressure, road conditions, chain and
lubrication between wheel and axle, etc.will affect the maximum speed; the cruising distance
indicated in this manual file is the test result from the riding test conducted uninterruptedly
with load of 60kg, at the speed of 15-25km/h, and on the flat and hardened road surface,
from full charge to full power consumption.; Driving habits, temperature, load, tire pressure,
road condition and other factors will affect the actual cruising distance.
