Hitron HCGI-P61DNFxW2 Manuel utilisateur

PRODUCTION RELEASE & REVISION

REV DESCRIPT'N/BUYER DWG No PARTS No. BY CHK DATE

TITLE

SIZE REV.

SCALE

MATERIAL

UNLESS OTHERWISE SPECIFIED

ALL DIMENSIONS ARE IN MM.

- TOLERANCE

LABEL +/- 3

MANUAL +/- 5

GUIDE +/- 5

COLOR

DATE

DRAWN

CHKED

APPROVALS

PARTS LIST

DESCRIPTION/MATERIAL

ITEM QTY

DO NOT SCALE

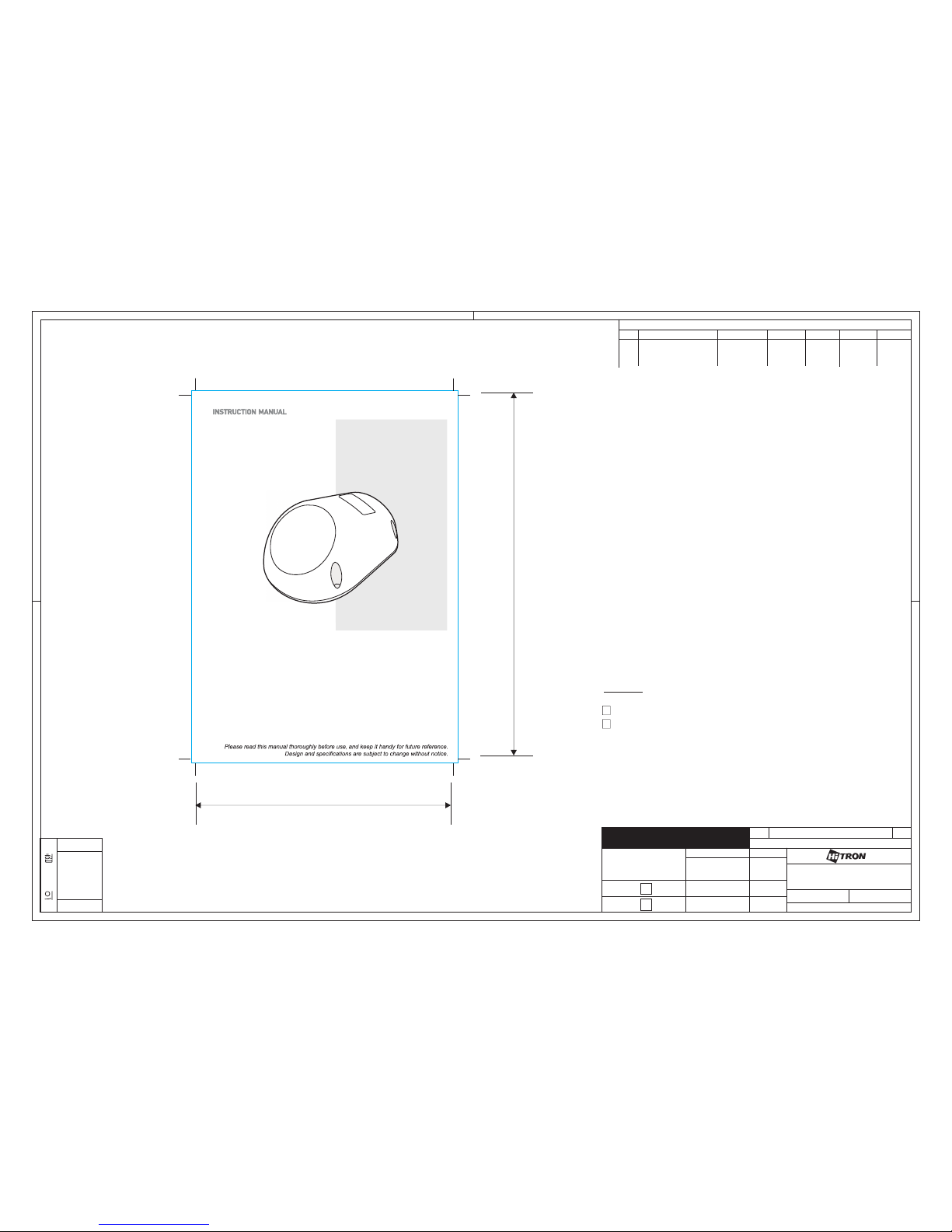

Manual Instruction

50303866

NOTES

1.MODEL:HCGI-P61DN(P)FxW2/ NO BRNAD

2.MATERIAL: 2

모조지100g/m WHITE

3.COLOR: BLACK

4.SIZE:105(+/-5)mm x 148(+/-5)mm

5.LABEL: -------------

전자

장석원

105(+/-5)mm

148+/-5)mm

J.Y.LIU

M.J.KWON

K.H.JUNG

A INITIAL ------------------- 50303866 J.Y.LIU M.J.KWON 15-04-13

15-04-13

3-AXIS INFRARED - LED PLASTIC

DOME CAMERA

WDR Super High

Resolution

Day & Night

Camera

3-AXIS INFRARED - LED PLASTIC

DOME CAMERA

WDR Super High

Resolution

Day & Night

Camera

FCC COMPLIANCE STATEMENT

CE COMPLIANCE STATEMENT

CAUTION : Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

WARNING : This is a Class A product. In a domestic environment this product may cause

radio interference in which case the user may be required to take adequate measures.

FCC INFORMATION : This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the user

will be required to correct the interference at his own expense.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5.. Do not block any ventilat ion openings. Install in accord ance with the manufacturer`s

instructions.

6. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

7. Only use attachments/accessories specified by the manufacturer.

8. Use only with the ca rt, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

9. CAUTION - THESE SERVICING IN STRUCTIONS ARE FOR USE BY

QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF

ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER THAN

THAT CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU

ARE QUALIFIED TO DO SO.

10. Use satisfy clause 2.5 of IEC60950-1/UL 60950-1 or Certified/Listed Class 2

power source only.

11. Indoor use only.

EXPLANATION OF GRAPHICAL SYMBOLS

IMPORTANT SAFETY INSTRUCTIONS

LIMITATION OF LIABILITY

THE INFORMATION IN THIS PUBLICATION IS BELIEVED TO BE ACCURATE IN ALL

RESPECTS, HOWEVER, WE CANNOT ASSUME RESPONSIBILITY FOR ANY

CONSEQUENCES RESULTING FROM THE USE THEREOF. THE INFORMATION

CONTAINED HEREIN IS SUBJECT TO CHANGE WITHOUT NOTICE. REVISIONS OR NEW

EDITIONS TO THIS PUBLICATION MAY BE ISSUED TO INCORPORATE SUCH CHANGES

TABLE OF CONTENTS

INTRODUCTION 5

CONNECTIONS 6

Heater/RubberWashers/Desi-Pack 7

ADVANCED MENU 11

SPECIFICATIONS 16

EXTERNAL DIMENSION 17

VIDEO OUT CHECK

SETUP MENU 8

SWITCHS SETTING

The camera provides a high-quality image using SONY Wide Dynamic 1/3”

Super-HADII PS 960H CCD and digital signal processing LSI chips.

1/3" Super-HADII PS 960H CCD

Wide Dynamic Range (~x512) -Double shutter+ATR-EX2

Super high-resolution of 720TV lines

Digital Noise Reduction- 2D,3D

Day & Night(Auto, Day, Night)

Sens-Up (~x256)

Various Detection Methods (zone detection, motion trace, face trace, mine area,

absent detection, cross object counting, entrance counting)

Intelligent scene recognition - Provide the best image automatically for every scene

Privacy Mask or Mosaic (MAX. 15 area /4-point polygonal/transparency)

E-Zoom

White pixel detection and compensation

Digital Effect-FLIP (H/V reverse, inverse)

Defog(Auto) - Detects foggy condition automatically and

provides high contrast picture

IR Optimizer

Coaxial communication (Coaxitron by Pelco)

Operates in 12VDC

1. Lens : 2.5 ~ 12mm

2. Power : DC12V input: Red (+)

If using DC 12V power, use a power supply capable of supplying 5 Watts.

3. Video: BNC (Yellow) connector

4. Audio : BNC (White) connector(Option)

BOTTOM

TOP

REMINDER:

Never aim the camera

directly into the sun.

(Option)

Heater Kit

Power Supply 12V DC

Power Consumption 10W

o o

Heater ON at 41 F (5 C)

o o

Heater OFF at 59 F (15 C)

HEATER (IF APPLICABLE)

HEATER

Power Cable

(DC 12V)

Rubber Washers(Waterproof)

Mount position

TOP CASE

BOTTOM CASE

Accessories:

Torx wrench(4)

Rubber washers(4) M4 plastic anchors(4)

M4x20 pan-head screws(4)

Desiccant pack

Recommended

location

Desiccant Pack

Accessories:

Poly Bag

Desiccant Pack

Double-Sided Tape

Top Case

The six modes can be selected.

CUSTOM /FULL AUTO / INDOOR / OUTDOOR / BACK LIGHT / ITS

CUSTOM

This mode turns off the auto scene recognition. All functions can be set and adjusted manually

FULL AUTO

This mode supports various shooting scenes. It is not specialized to any particular scene, so it

allows average shooting in any situation.

INDOOR

This mode is specialized to indoor scenes, such as indoor shop surveillance. It allows natural

shooting with high contrast.

OUTDOOR

This mode is specialized to outdoor scenes, such as road surveillance. It features high contrast

and resolution, and allows shooting with high visibility even in foggy outdoor conditions.

BACKLIGHT

This mode is specialized to scenes that mix indoor and outdoor conditions, such as entranceway

surveillance.

It allows shooting with high visibility and a high dynamic range, even under backlighting

conditions.

ITS

This mode is specialized to scenes where moving subjects enter the picture, such as traffic

surveillance scenes. It allows high-resolution shooting of moving subjects with low blur.

1. Scene Select function

2. Picture Adjust function

This Camera system provide functions that enable users to easily adjust the image quality to suit

the image output device used.

Brightness - Adjusts the brightness

Contrast - Adjusts the image contrast (light and shade differences).

Sharpness - Adjusts the apparent resolution

Hue - Adjusts the hue

Color Gain - Adjusts the intensity (brilliance) of the colors

3. EZOOM (Electronic Zoom)

EZoom - ON / OFF

MAG - Magnification rate = ZOOM (0~255)

PAN - Horizontal position settings

TILT -Vertical position settings

4. DIS (Digital Image Stabilizer)

Digital Image Stabilizer (DIS) function internally detects shaking of the image due to camera

shaking, and performs digital compensation processing inside the DSP to suppress this shaking

and stabilize the image output.

5. PRIVACY MASK

The mask function hides one or more areas which the user does not want to be displayed on the

screen. This SET is capable of outputting 15 masks to the display. Each of these 15 masks can be

set with its own display area, color, darkness and mosaic processing.

AREA SEL - Select mask area (1-15).

DISPLAY - Mask to ON or OFF

POSITION

COLOR - Sets the color blend:

RED/ GREEN/ BLUE/ YELLOW/ CYAN/ MAGENTA/ WHITE/ BLACK

TRANSP - Sets the brightness blend ratio: 0%, /50%/75%/100%

MOSAIC - Sets the mosaic to ON or OFF.

6. MOTION DET (Motion Detection)

By using the motion detection function, it is possible to create surveillance cameras which are

capable of detecting moving objects. The motion detection function identifies motion and outputs

motion information when the difference in brightness exceeds a specific level between frames(2VD).

DETECT SENSE

Sets the motion detection threshold.

INTERVAL

Sets the MD detection interval. Subjects are detected when an interval exceeding the set number

of fields has elapsed from the previous motion detection.

BLOCK DISP

Motion detection result frame display selection

Outputs the results of the motion detected in each block

MASK AREA

MD (Motion Detection) setting menu, for setting the no-detection area.

The active point (MASK AREA 1~96) is displayed. Move the point with 4-arrow keys. Press

[ENTER] key is to finish edit point. (No-detection area)

MONITOR AREA

Sets the position of the monitoring frames in pixel or line increments

7. SYS SETTING

7-1. SYNC MODE

External synchronization is a function with synchronization of the phase between an output video

signal and an external reference signal. Use line lock mode to minimize color rolling.

INT

In this mode, synchronization is not implemented with a multiple number of cameras.

7-1. LENS

Manual Select the Lens Manual type

7-2. FLIP

Select digital Flip / Rotate state

Off / V(Top / bottom reversal) / H(Left / right reversal) / HV(Rotation by 180 degrees)

7-3. LCD / CRT

Seclect Monitor mode.
