Thank you for purchasing a

Hitachi front loading washing machine.

Please read this Instruction Manual

carefully for proper operation of the

machine.

Instruction Manual

Washing Machine

Front Loading Content

Safety Instructions

Safety Instructions ........................ 2

Product Description ...................... 7

Installation

Installation ..................................... 8

Quick Start ..................................... 12

Operation

Model

BD-70CVE

BD-80CVE

Before Each Washing ...................

Detergent Dispenser .....................

Control Panel .................................

Option ............................................. 16

Other Function ............................... 17

Programs ........................................ 18

Washing Program Table ................ 19

Cleaning And Care ........................ 21

Maintenances

Troubleshooting ...........................

Technical Specifications ...............

Specification ..................................

Please keep this Instruction Manual for

future reference.

Safety Instructions

For your safety, the information in this manual must be followed

to minimize the risk of fire or explosion, electric shock, or to

prevent property damage, personal injury or loss of life.

Explanation of the symbols:

WARNING

！

This combination of symbol and signal word indicates

a potentially dangerous situation which may result in

death or serious injuries unless it’s avoided.

This combination of symbol and signal word indicates

a potentially dangerous situation which may result in

slight or minor injuries or damage to property and the

environment.

This combination of symbol and signal word indicates

a potentially dangerous situation which may result in

slight or minor injuries.

NOTE

WARNING

！

The electric shock!

●If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

CAUTION

！

Safety Instructions

● Children should be supervised to ensure that they do not

play with appliance.

● Animals and children may climb into the machine. Check

the machine before every operation.

● Kids should be supervised that they do not play with

the appliance.

● Do not dismantle, repair or modify the appliance.

This could cause malfunction, fire, electric shock or injury.

For repair, please contact your local service center.

● The new hose-sets supplied with the appliance are to be

used and that old hose-sets should not be reused.

● Before any maintenance the device, unplug the appliance

from the mains.

● Always unplug the machine and turn off the water supply

after use.

● Do not pour water on the machine when it is running.

This could cause an electric shock.

● To ensure your safety, power plug must be inserted into an

earthed three-pole socket. Check carefully and make sure

that your socket is properly and reliably earthed.

● Make sure that the water and electrical devices must

be connected by a qualified technician in accordance with

the manufacturer's instructions and local safety regulations.

● Do not insert the plug with a wet hand.

● Use the rated mains voltage and do not connect another

plug at the same socket.

● Do not use a mains plug adaptor or an extension cable.

● This appliance is not intended for use by persons

(including children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

Risk to children!

Risk of explosion!

Installing the product!

Safety Instructions

●Glass door may be very hot during the operation. Keep

kids and pets far away from the machine during the

operation.

● Remove all packages and transport bolts before using

the appliance. Otherwise, serious damage may result.

● Plug must be accessible after installation.

● Do not wash or dry articles that have been cleaned in, washed

in, soaked in, or dabbed with combustible or explosive

substances (such as wax, oil, paint, gasoline, degreasers,

dry-cleaning solvents, kerosene, etc.) This may result in

fire or explosion.

● Beforehand thoroughly rinse items of washing by hand.

● This washing machine is for indoor use only.

● It isn't intended to be built-in using.

● The openings must not be obstructed by a carpet.

● Washing machine shall not be installed in bath room or

very wet rooms as well as in the rooms with explosive

or caustic gases.

● The washing machine with single inlet valve only can be

connected to the cold water supply. The product with

double inlet valves should be correctly connected to the

hot water and cold water supply.

● Plug must be accessible after installation.

CAUTION

！

● The installation of the appliance should be done by the

manufacturer’s dealer or service agent.

● If there is a water outage or you remove the water supply hose

and reattach it, turn off the tap and press the Start/Pause button,

then turn on the tap slowly after 40 seconds.

Air pressure could damage the washing machine if there is a lot

of air in the water pipe.

Risk of damaging appliance!

Operating the appliance!

Safety Instructions

●Remove all packages and transport bolts before using

the appliance. Otherwise, serious damage may result.

●Your product is only for home use and is only designed

for the textiles suitable for machine washing.

●Do not climb up and sit on top cover of the machine.

●Do not lean against machine door.

●Do not put heavy objects on the washing machine.

1. Transport bolts shall be reinstalled to the machine by

a specialized person.

2. The accumulated water shall be drained out of the

machine.

3. Handle the machine carefully. Never hold each protruded

part on the machine while lifting. Machine door can

not be used as the handle during the conveyance.

4. This appliance is heavy. Transport with care.

●Please do not close the door with excessive forces. If it

is found difficult to close the door, please check if the

clothes are put in or distributed well.

●It is forbidden to wash carpets.

●Before washing the clothes at first time, the product

shall be operated in one round of the whole procedures

without the clothes inside.

●Flammable and explosive or toxic solvents are forbidden.

Gasoline and alcohol etc. shall not be used as detergents.

Please only select the detergents suitable for machine

washing, especially for drum.

●Cautions during Handling Machine:

Packaging/Old appliance

Safety Instructions

●Make sure that all pockets are emptied. Sharp and rigid

items such as coin, brooch, nail, screw or stone etc. may

cause serious damages to this machine.

●Please check whether the water inside the drum has

been drained before opening its door. Please do not open

the door if there is any water visible.

●Be careful of burning when the product drains hot

washing water.

●Never refill the water by hand during washing.

●After the program is completed, please wait for two

minutes to open the door.

This marking indicates that this product should not be

disposed with other household wastes throughout the

EU. To prevent possible harm to the environment or

human health from uncontrolled waste disposal, recycle

it responsibly to promote the sustainable reuse of

material resources. To return your used device, please use

the collection systems or contact the retailer where the

product was purchased. They return and can take this

product for environmental safe recycling.

●Do not wash waterproof items such as raincoats, wet suits,

ski suits, sleeping bags, cushions, pillows, shoes, etc.

The washing machine may not work properly, or the items

may cause injury or damage the machine.

●If detergent, fabric softener or bleach spills on the surface of

the machine, clean it up with a damp cloth immediately.

The plastic or steel parts of the washing machine may get

damaged.

●Do not place heat sources near the washing machine.

This may cause deformation of the machine.

Drum

Power Supply Cord

Control Panel

Detergent Dispenser

Service Filter

Door

Water Supply Hose

Top Cover

Drain Hose

Installation

NOTE

Product Description

The product line chart is for reference only, please refer to real product as

standard.

Accessories

Transport

Bolts

Supply Hose Drain Hose Support

※Optional

Instruction Manual

(4pcs.)

Installation area

WARNING

！

Unpacking the washing machine

WARNING

！

Remove transport bolts

WARNING

！

Installation

Stability is important to prevent the product from

●

wandering!

Make sure that the product should not stand on

the power cord.

●

W 20mm>

Before installing the machine, the location characterized

follows shall be selected:

1. Rigid, dry, and level surface

2. Avoid direct sunlight

3. Sufficient ventilation

4. Room temperature is above 0°C

5. Keep far away from the heat resources such as coal or gas.

●

●Packaging material (e.g. Films, Styrofoam) can be

dangerous for children.

There is a risk of suffocation ! Keep all packaging

well away from children.

1. Remove the cardboard box and styrofoam packing.

2. Lift the washing machine and remove the base packing.

foam is removed with the bottom one together. If not, lay the unit down with side

surface, then remove the small foam from the unit bottom manually.

Make sure the small triangle

3. Remove the tape securing the power supply cord and drain hose.

4. Remove the inlet hose from the drum.

●

You must remove the transport bolts from the backside before using the product.

You’ll need the transport bolts again if you move the product, so make sure keep

them in a safe place.

Please take the following steps to remove the bolts:

1. Loosen 4 bolts with spanner and then remove them.

2. Stop the holes with transport bolts.

3. Keep the transport bolts properly for future use.

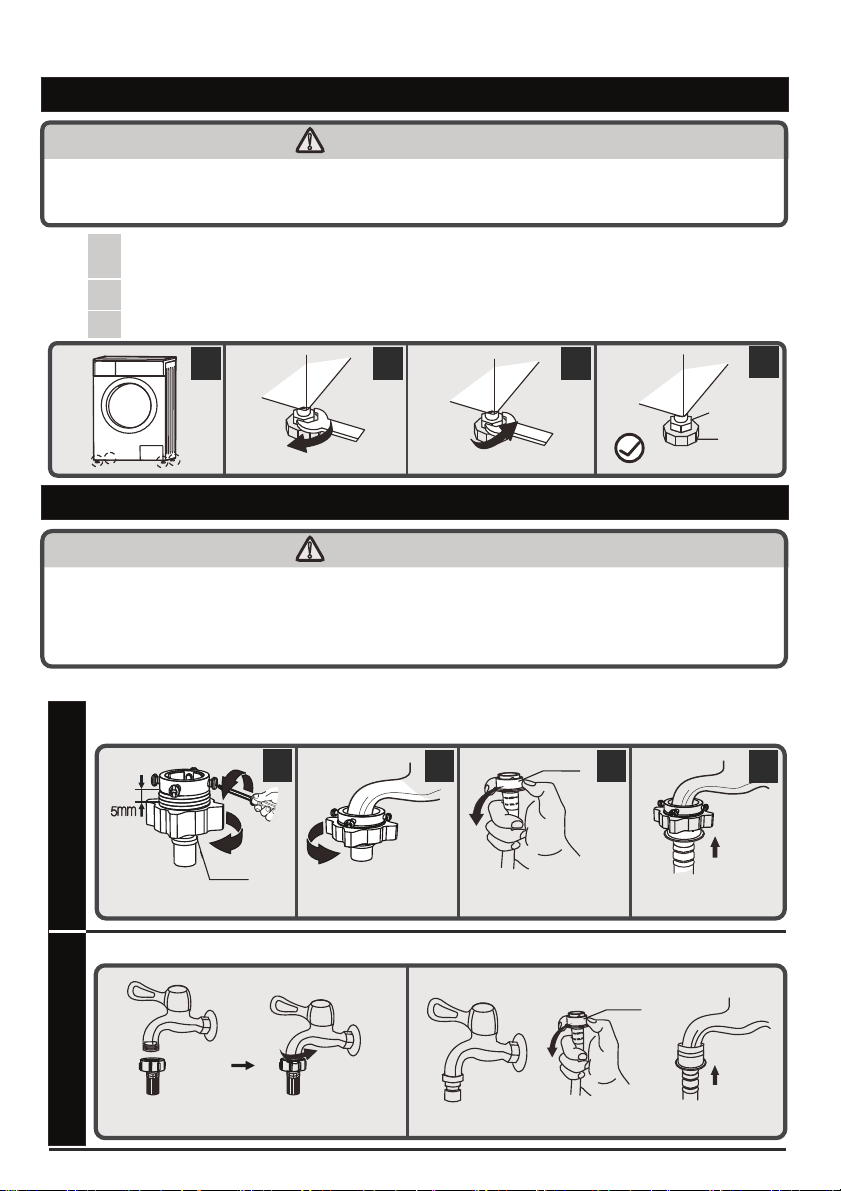

Leveling the washing machine

WARNING

！

1 2 3 4

Connect Water Supply Hose

WARNING

！

1234

Installation

●The lock nuts on all four feet must be screwed tightly against the housing.

1. Check if the legs are closely attached to the cabinet. If not, please turn them to

their original positions tighten the nuts.

2. Loosen the lock nut turn the feet until it closely contacts with the floor.

3. Adjust the legs and lock them with a spanner, make sure the machine is steady.

Raise Lower

Lock nut

foot

●To prevent leakage or water damage, follow the instructions in this chapter.

Do not kink, crush, modify or sever water inlet hose.

●

For the model equips hot valve, connect it to hot water tap with hot water supply

●

hose. Energy consumption will decrease automatically for some program.

Connect the inlet pipe as indicated. There are two ways to connect the inlet pipe.

Connection between ordinary tap and inlet hose.

clamp nut

Loosen clamp nut and

four bolts

Tighten clamp nut

Press slide bushing,

insert inlet hose into

connecting base

Slide Bushing

Connection finished

Connection between screw tap and inlet hose.

Tap with threads and inlet hose

Slide Bushing

Special tap for washing machine

●Check the alignment of the washing machine with level, and adjust the feet if it’s aligned.

Drain Hose

WARNING

！

WARNING

！

Installation

Water Supply Hose

Water Inlet Valve

●Do not kink or protract the drain hose.

Position drain hose properly, otherwise damage might result of water leakage.

●

There are two ways to place the end of drain hose:

Water

trough

Min.60cm

Max.

100cm

1.Put it into the water trough. 2.Connect it to the branch drain pipe of

the trough.

NOTE

If the machine has drain hose support, please install it like the following.

●

Trough

Hose Retainer

Bind

Max.100cm

Min.60cm

Max.100cm

●

When installing drain hose, fix it properly with a rope.

If drain hose is too long, do not force it into washing machine as it will cause

abnormal noises.

Hose Connector

Rubber Seal

●Connect the other end of inlet pipe to the inlet valve at the backside of product

and fasten the pipe tightly clockwise.

●Optimum water pressure is 0.05~1.0MPa.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hitachi Rondelle

Hitachi

Hitachi PS-70J TH Manuel utilisateur

Hitachi

Hitachi AJ-S60TXP Manuel utilisateur

Hitachi

Hitachi NW-80AS Manuel utilisateur

Hitachi

Hitachi HWF-800X Fiche technique

Hitachi

Hitachi PS-70AP Manuel utilisateur

Hitachi

Hitachi SF-P80CJ Manuel utilisateur

Hitachi

Hitachi BD-W70MSP Guide produit

Hitachi

Hitachi BD-W75TV Guide produit

Hitachi

Hitachi SF-P90P Manuel utilisateur

Hitachi

Hitachi SF-P75XB Guide produit

Hitachi

Hitachi AJ-S55GZ Manuel utilisateur

Hitachi

Hitachi PS-120LJ TH Manuel utilisateur

Hitachi

Hitachi NW-75WYSP Manuel utilisateur

Hitachi

Hitachi BD-W80PAE Guide produit

Hitachi

Hitachi BW-V80AS Manuel utilisateur

Hitachi

Hitachi HB-B101 Manuel utilisateur

Hitachi

Hitachi PS-T800BJ TH Manuel utilisateur

Hitachi

Hitachi Twin-tub PS-99BSP Manuel utilisateur

Hitachi

Hitachi BD-90YFVEM Manuel utilisateur

Hitachi

Hitachi BD-60CE Manuel utilisateur

Hitachi

Hitachi SF-250ZFVAD Manuel utilisateur

Hitachi

Hitachi SF-P105JJ Manuel utilisateur

Hitachi

Hitachi PS-80JS TH Manuel utilisateur

Hitachi

Hitachi PS-100LJ TH Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
