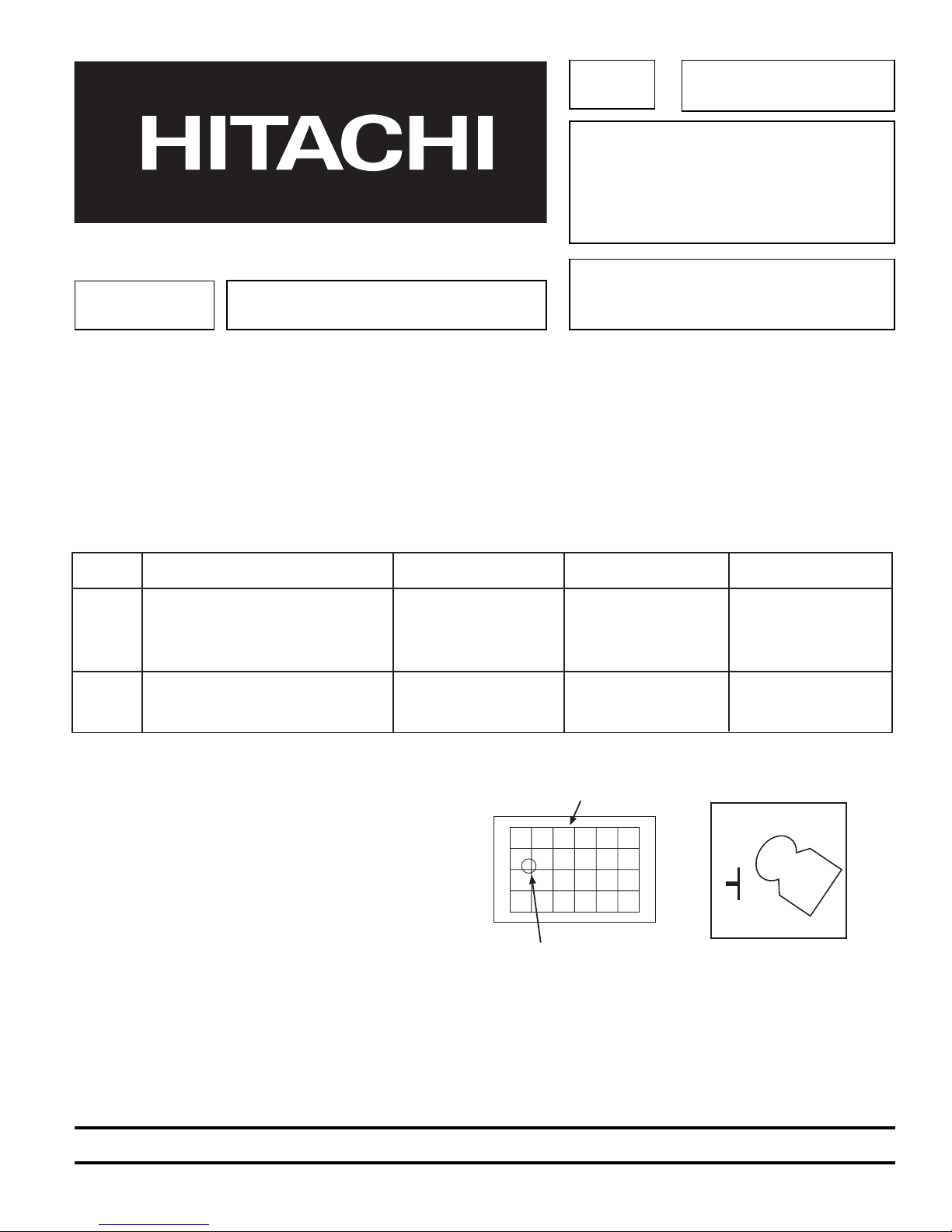

Hitachi 36SDX01SR Manuel utilisateur

Models 36SDX01SR/36SDX01S and 36SDX88B are in the same Solid State Color Television fam-

ily. The main difference between the 36SDX01SR/36SDX01S and 36SDX88B is the control panel

and the CRT. Please refer to model 36SDX88B schematics, assembly, wiring, test and trou-

bleshooting information when servicing models 36SDX01SR/36SDX01S. Refer to Service Manual

PA No. 0110 issued in December 1998.

36SDX01SR/MM1R

36SDX01S/MM1T

No. 0140

R/C: CLU-433FC

Please refer to Service Manual PA No. 0110 when adjusting 36SDX01SR/36SDX01S. The only difference is the Chopper Voltage as

stated below.

SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT

SOLID STATE COLOR TELEVISION

MAY 2000 HHEA-MANUFACTURING DIVISION

NTSC MM1R/MM1T

SERVICE MANUAL

ADJUSTMENT

# CHOPPER VOLTAGE ADJUSTMENT VGA MODE=112±0.5V VGA MODE=112±0.5V VGA MODE=105±0.5V

(PA No. 0110 SECTION 2.3.1 PAGE 47) DTV MODE=124±0.5V DTV MODE=124±0.5V DTV MODE=120±0.5V

SVGA MODE=140±0.5V SVGA MODE=140±0.5V SVGA MODE=135±0.5V

SYMBOL

NO. DESCRIPTION 36SDX88B/MM1 36SDX01SR/MM1R 36SDX01S/MM1T

RT01 FOCUS ADJUSTMENT SAME AS STATED SAME AS STATED SEE BELOW

(PA No. 0110 SECTION 3.3 PAGE 81) IN PA No. 0110. IN PA No. 0110.

5. Vertical Line Adjustment

Adjust Focus on Cross-Hatch Circle Pattern focusing

the point as shown in the right figure.

6. Adjust RT01 focusing only at vertical line so that it

becomes the most thick; the adjustment point which

can be seen the clearest without any saturation.

Concentration point:

Inner point of the circle as shown in the fight figure.

Note:

Adjust Horizontal Center Focus again after adjusting

Vertical Focus.

The end of

Cross-Hatch

The second vertical line from

the left end.

RT01

CPT PWB

REAR VIEW

36SDX01S/MM1T ONLY

This parts list only gives parts which are different from the service manual PA No. 0110. Components having special safety charac-

teristics are identified by a on the parts list in this Service Data and its supplements and bulletins. Before servicing the chassis,

it is important that the service technician read and follow the ÒSafety PrecautionsÓ and ÒProduct Safety NoticesÓ in this Service Manual.

Do not degrade the safety of the receiver through improper servicing.

REPLACEMENT PARTS LIST

CG08 CAP 2125 CHIP 100000PF-K B 25V TA 0893027R -- --

D611 ZENER DIODE 2339825M 2339825M 2339837M

DG09 ZENER HZS12 (C3) 0.005A 2339889M -- --

DG12 DIODE 1SS254TZ/1SS270TA 2344041M -- --

DG13 DIODE 1SS254TA/1SS270TA 2344041M -- --

E801 CRT SOCKET EY00411 EY00411 2698675

ESF FOCUS SCREEN LEAD EZ01001 EZ01001 EZ01003

EVV CONNECTOR (VM) 2973695S 2973695S 2976645

EWK 3P CONNECTOR 2973715S -- --

SYMBOL

NO. DESCRIPTION 36SDX88B/MM1 36SDX01SR/MM1R 36SDX01S/MM1T

(5) Select MOVIE RATINGS MPAA (PG-13) and TV

RATINGS (TV-Y7/ALL BLOCK)

(6) Check that Picture & audio should be blocked as

follows

“RATING BLOCKED” is displayed when picture is

blocked.

(7) Same check as (1) to (6) should be applied for

PINP sub picture. Main picture should receive a

channel without V-chip signal. Sub picture should

receive a channel with V-chip signal.

NOTE: User setting rating & receive signal rating are

displayed on top area of the screen when

RECALL button is pressed.

1st line : User setting rating.

2nd line : Receive signal rating.

Receive Signal TV-PG MPAA PG TV-Y7-FV

Picture/Audio BLOCK UNBLOCK UNBLOCK

Condition

Receive Signal TV-PG MPAA PG TV-Y7-FV

Picture/Audio BLOCK UNBLOCK BLOCK

Condition

PARENTAL CONTROL (V-Chip) operation check

Preparation for Adjustment

(1) Receive a channel with V-Chip signal.

(2) Push MENU and select CUSTOM menu by using

왗 or 왘button.

(3) Select PARENTAL CONTROL by using 왖or 왔

button.

(4) Press 왘button to set PARENTAL CONTROL

mode.

(5) Enter “7777” for SECRET CODE.

(6) Select MOVIE RATINGS and TV RATING by

using 왖or 왔button.

(7) Press 왘 button to set MOVIE RATINGS and TV

RATINGS.

Adjustment Procedure

(1) Select MOVIE RATINGS MPAA (PG) and TV

RATINGS (TV-14/ALL BLOCK)

(2) Check that Picture & audio should be blocked as

follows

“RATING BLOCKED” is displayed when picture is

blocked.

(3) Select MOVIE RATINGS MPAA (PG-13) and TV

RATINGS (TV-14/ALL BLOCK)

(4) Check that Picture & audio should be blocked as

follows

“RATING BLOCKED” is displayed when picture is

blocked.

Receive Signal TV-PG MPAA PG TV-Y7-FV

Picture/Audio UNBLOCK BLOCK UNBLOCK

Condition

36SDX01SR/MM1R AND 36SDX01S/MM1T ONLY

I001 MAIN MICRO-CONTROLLER CP05361 CP05362 CP05362

JY91 3P(SW) PIN JACK WITH S ES00022 -- --

JY91 JACK 03P HORIZONTAL -- ES00261 ES00261

JY92 JACK S-TERMINAL -- ES00271 ES00271

K400 JUMPER WIRE (0.5 L=52MM) 2974432M -- --

K406 JUMPER WIRE (0.5 L=52MM) 2974432M -- --

K411 JUMPER WIRE (0.5 L=52MM) 2974432M -- --

K412 JUMPER WIRE (0.5 L=52MM) 2974432M -- --

K421 JUMPER WIRE (0.5 L=52MM) 2974432M -- --

K442 JUMPER WIRE (0.5 L=52MM) 2974432M -- --

K481 JUMPER WIRE (0.5 L=52MM) 2974432M -- --

K482 JUMPER WIRE (0.5 L=52MM) 2974432M -- --

K8A1 JUMPER WIRE (0.5 L=52MM) 2974432M -- --

K8A2 JUMPER WIRE (0.5 L=52MM) 2974432M -- --

KT01 JUMPER WIRE (0.5 L=52MM) -- -- 2974432M

KT02 JUMPER WIRE (0.5 L=52MM) -- -- 2974432M

KT03 JUMPER WIRE (0.5 L=52MM) -- -- 2974432M

KT04 JUMPER WIRE (0.5 L=52MM) -- -- 2974432M

KT05 JUMPER WIRE (0.5 L=52MM) -- -- 2974432M

N201 INSTRUCTION BOOK QR27362 QR45391 QR45391

N203 V-CHIP REFERENCE GUIDE -- H462678 H462678

PVV PLUG PIN SUB MINI 2902262 2902262 2902261

PWK PLUG PIN SUB MINI 3P 2902262 -- --

R624 RESISTOR 0700056M 0700056M 0700062M

R625 RESISTOR 0700056M 0700056M 0700062M

R627 RESISTOR 0700054M 0700054M 0700058M

R627 RESISTOR 0700054M 0700054M 0700053M

RG18 1.2K OHM (1/16 W) 0195902R 0700042M 0700042M

RG30 RES.-CARBON FLM 1/16W 100-JB 0700027M -- --

RG40 10K OHM (1/16 W) 0195925R 0700054M 0700054M

RKJ1 RES 2125 CHIP 1/16W 000 TAPE 0195250R -- --

RKJ2 RES 2125 CHIP 1/16W 000 TAPE 0195250R -- --

RKJ3 RES 3216 CHIP 1/8W 000 TAPE 0195248R -- --

RKJ4 JUMPER 0195250R 2974432M 2974432M

RKJ5 JUMPER 0195250R 2974432M 2974432M

RT01 VARIABLE RESISTOR 20MΩ-- -- AW00241

SYMBOL

NO. DESCRIPTION 36SDX88B/MM1 36SDX01SR/MM1R 36SDX01S/MM1T

This parts list only gives parts which are different from the service manual PA No. 0110. Components having special safety charac-

teristics are identified by a on the parts list in this Service Data and its supplements and bulletins. Before servicing the chassis,

it is important that the service technician read and follow the ÒSafety PrecautionsÓ and ÒProduct Safety NoticesÓ in this Service Manual.

Do not degrade the safety of the receiver through improper servicing.

REPLACEMENT PARTS LIST

RL12 RESISTOR 0700033M 0700033M 0700029M

RL18 RESISTOR 0700036M 0700036M 0700032M

SG01 5 KEY PUSH SWITCH 2632851 2633322 2633322

SG02 PUSH SWITCH 2634621 FE10332R FE10332R

SG03 PUSH SWITCH 2634621 FE10332R FE10332R

TH01 FBT BW00757 BW00757 BW02491

UG02 IC TPS831 CZ00781 -- --

V1 PICTURE TUBE DE01351 DE01351 DE01921

(A90AGW14X04) (A90AGW14X04) (M90AHL50X33)

#030 FRONT FRAME QD03492 QD09791 QD09791

#030 BACK COVER Q001574 QD09621 QD09621

SYMBOL

NO. DESCRIPTION 36SDX88B/MM1 36SDX01SR/MM1R 36SDX01S/MM1T

This parts list only gives parts which are different from the service manual PA No. 0110. Components having special safety charac-

teristics are identified by a on the parts list in this Service Data and its supplements and bulletins. Before servicing the chassis,

it is important that the service technician read and follow the ÒSafety PrecautionsÓ and ÒProduct Safety NoticesÓ in this Service Manual.

Do not degrade the safety of the receiver through improper servicing.

REPLACEMENT PARTS LIST

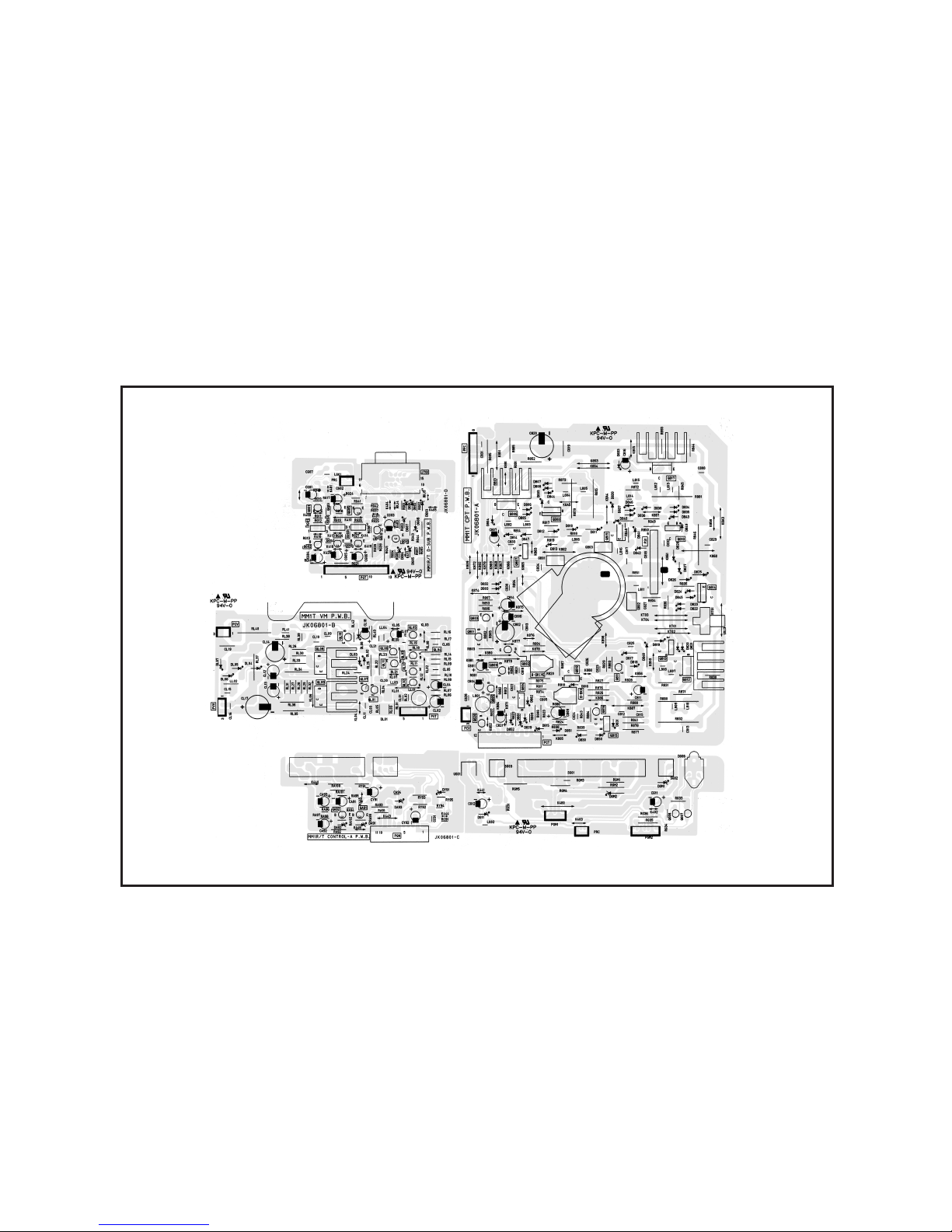

PRINTED CIRCUIT BOARD

CPT P.W.B.

NOTES:

앫 All DC voltage to be measured with a tester (100k액/V). Voltage taken on a complex color bar signal including a standard color bar signal.

앫 Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

POWER DEFLECTION

PRODUCT SAFETY NOTE: Components marked with a and shaded have special characteristics important to

safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service

Manual. DonÕt degrade the safety of the receiver through improper servicing.

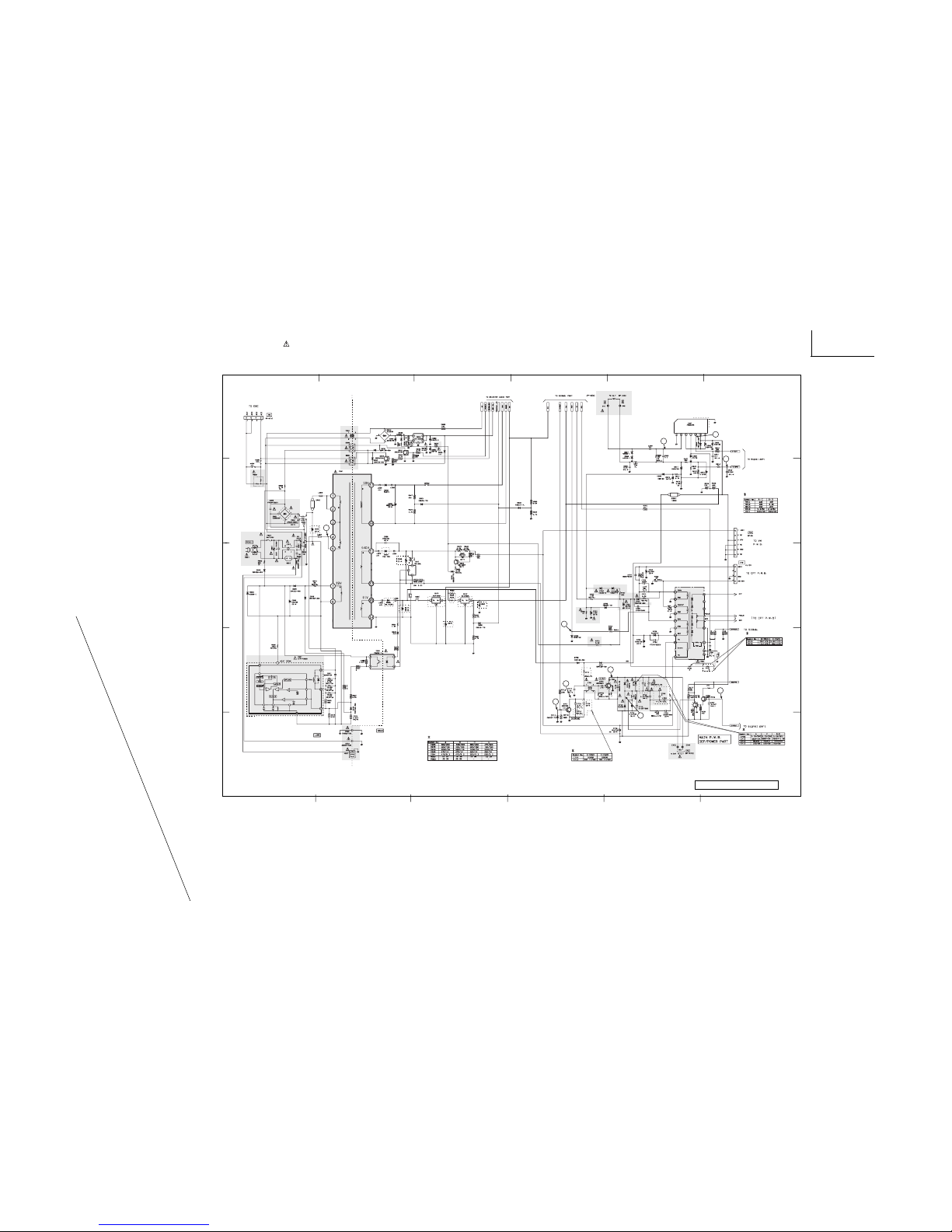

BASIC CIRCUIT DIAGRAM POWER DEFLECTION

SIGNAL 1 OF 3

32456

132456

10 94

앫 All DC voltage to be measured with a tester (100k액/V). Voltage taken on a complex color bar signal including a standard color bar signal.

앫 Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

SIGNAL 1 OF 3

PRODUCT SAFETY NOTE: Components marked with a and shaded have special characteristics important to

safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service

Manual. DonÕt degrade the safety of the receiver through improper servicing.

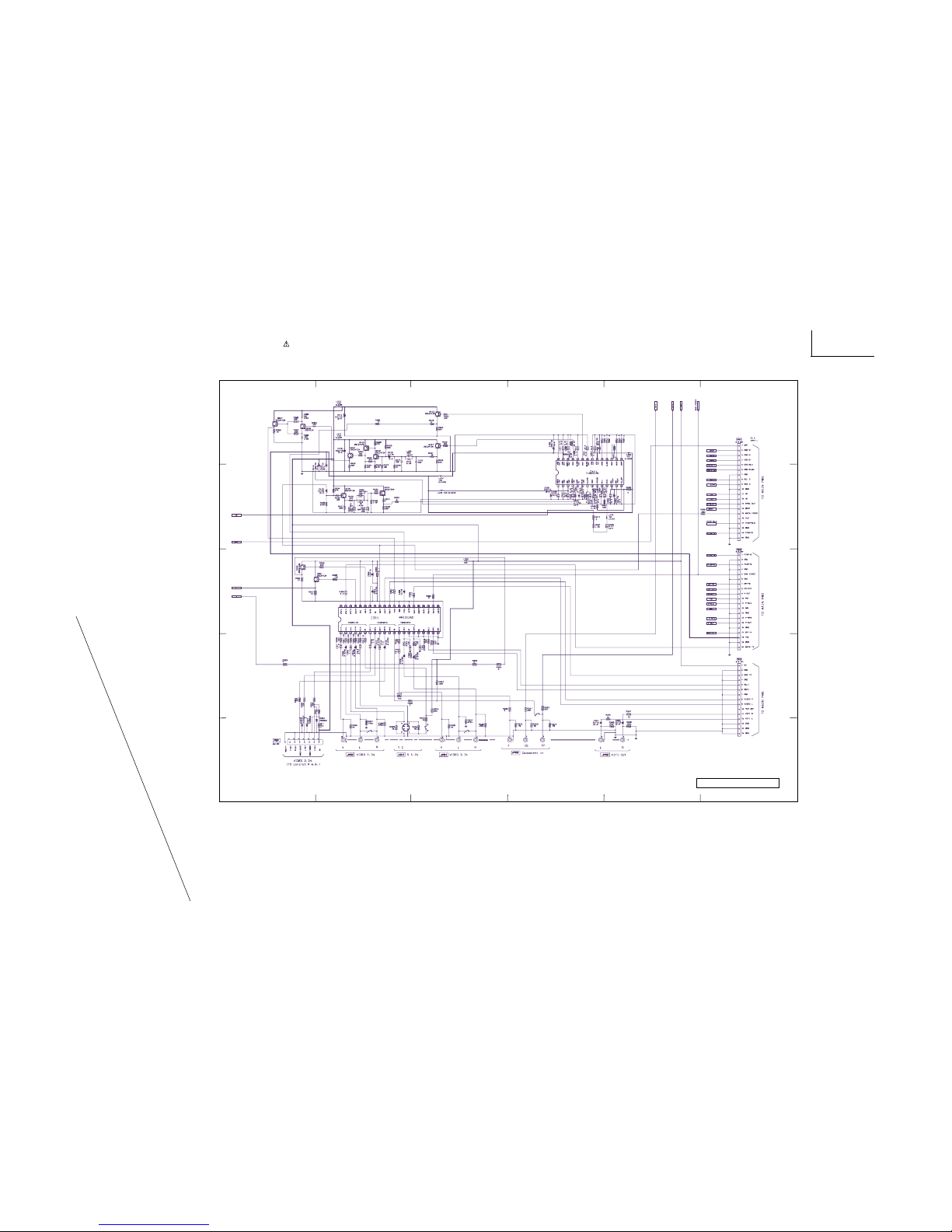

BASIC CIRCUIT DIAGRAM

POWER DEFLECTION

SIGNAL 1 OF 3

32456

132456

앫 All DC voltage to be measured with a tester (100k액/V). Voltage taken on a complex color bar signal including a standard color bar signal.

앫 Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

PRODUCT SAFETY NOTE: Components marked with a and shaded have special characteristics important to

safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service

Manual. DonÕt degrade the safety of the receiver through improper servicing.

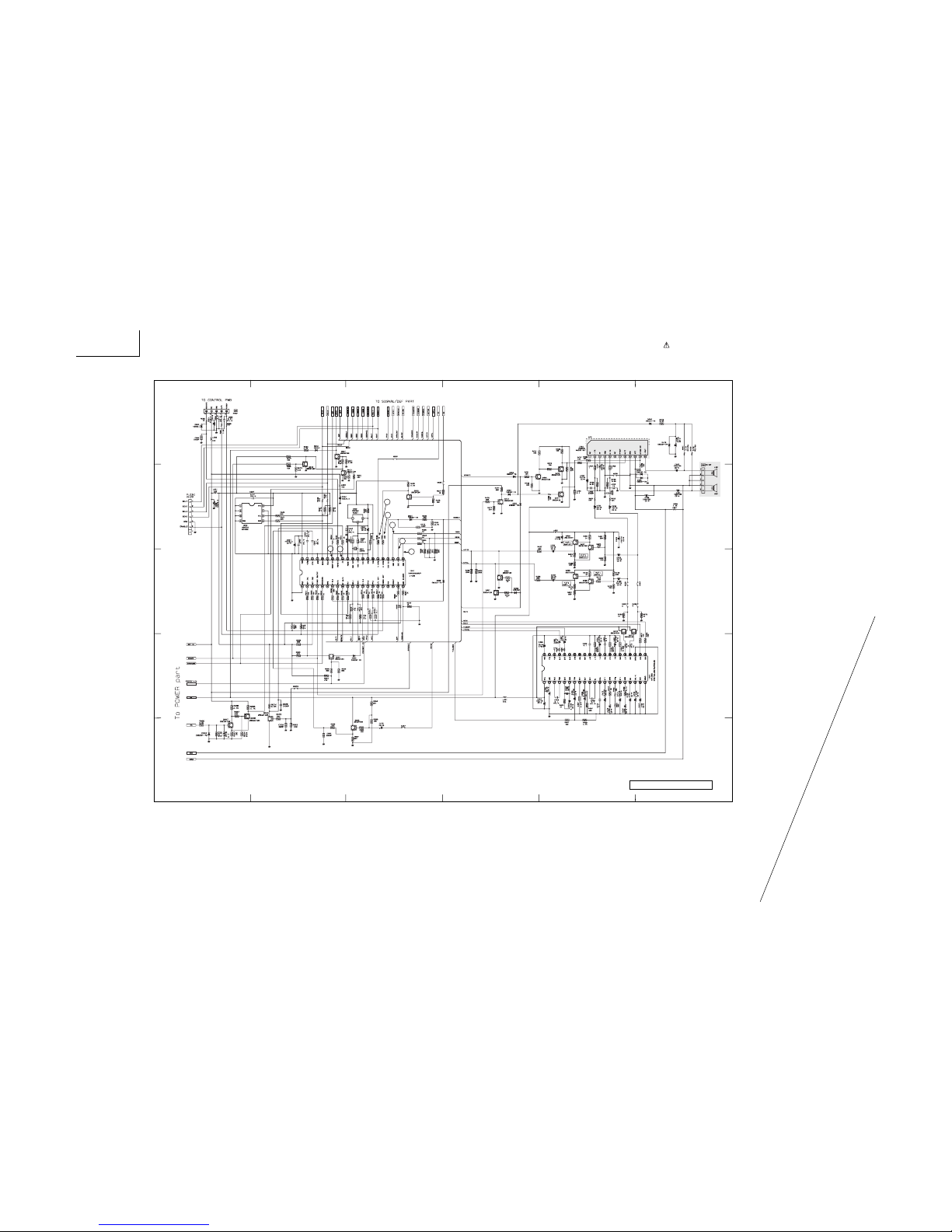

BASIC CIRCUIT DIAGRAM SIGNAL 2 OF 3

SIGNAL 3 OF 3

32456

132456

SIGNAL 2 OF 3

1918

앫 All DC voltage to be measured with a tester (100k액/V). Voltage taken on a complex color bar signal including a standard color bar signal.

앫 Since this is a basic circuit diagram, the value of the parts is subject to be altered for improvement.

PRODUCT SAFETY NOTE: Components marked with a and shaded have special characteristics important to

safety. Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE of this Service

Manual. DonÕt degrade the safety of the receiver through improper servicing.

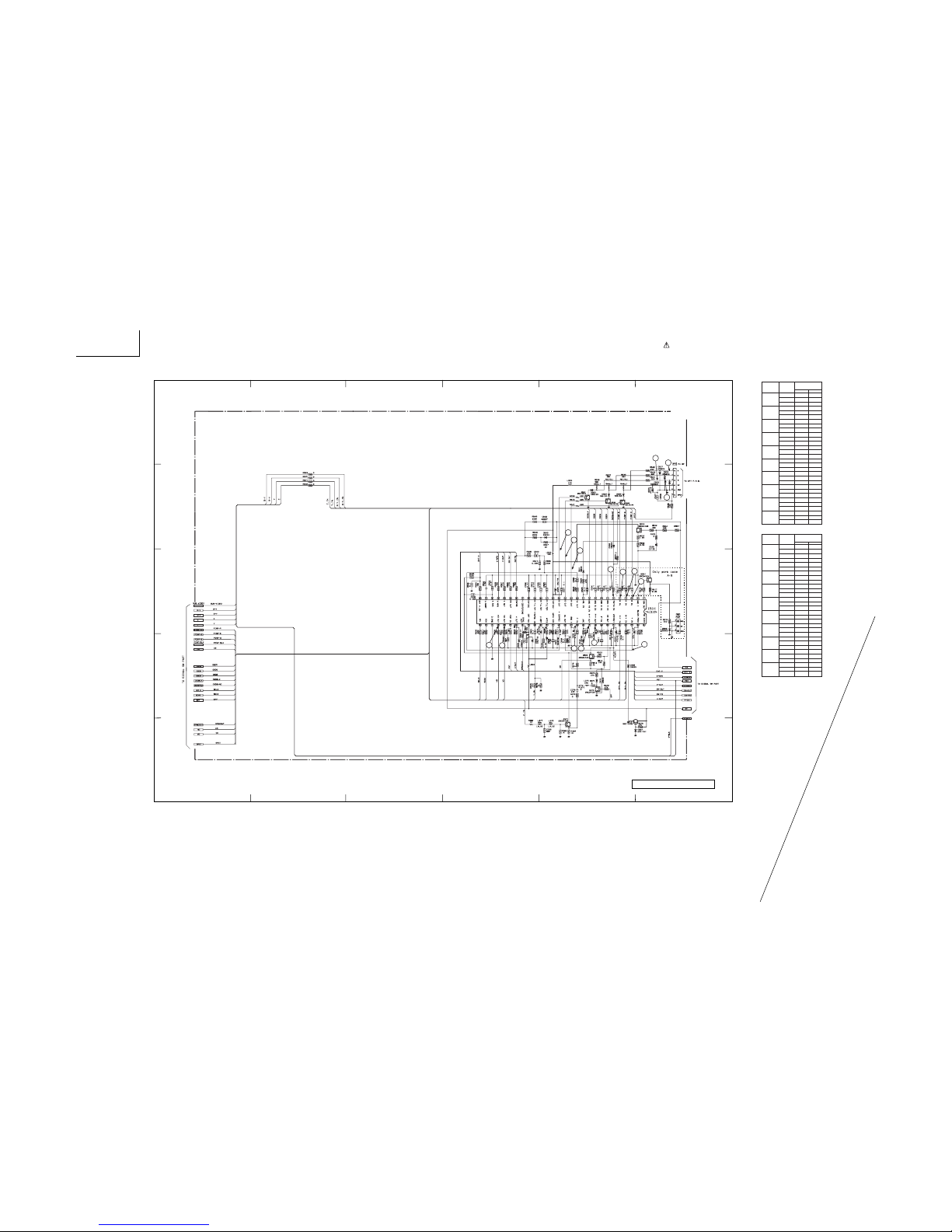

BASIC CIRCUIT DIAGRAM

SIGNAL 2 OF 3

SIGNAL 3 OF 3

32456

132456

SIGNAL 3 OF 3

BNCNC

CNCNC

ENCNC

BNCNC

CNCNC

ENCNC

BNCNC

CNCNC

ENCNC

B 3.8 4.4

C 11.0 10.7

E 3.1 3.7

B 11.2 11.2

C 11.9 6.1

E 11.0 10.8

B 11.8 11.8

C 149.4 1.5

E 11.3 11.2

B 149.6 1.6

C00

E 150.5 1.8

B 151.2 1.8

C 218.4 218.7

E 150.8 1.9

B00

C 11.9 11.8

E00

B 3.6 4.3

C 11.0 10.8

E 2.9 3.6

Q801

Q802

Q803

Q804

Q805

Q806

Q807

Q808

Q809

Q810

CICUIT# PIN# DC voltage

Vdc

TV mode PC mode

B 11.3 11.3

C 11.9 11.9

E 11.0 10.9

B 11.9 11.8

C 152.9 2.0

E 11.3 11.2

B 152.5 110.8

C00

E 153.3 2.3

B 154.6 2.1

C 218.3 218.8

E 154.5 2.1

B00

C 6.0 6.1

E00

B 11.3 11.2

C 11.9 11.9

E 11.0 10.8

B 11.8 11.8

C 162.1 2.2

E 11.3 11.2

B 162.1 2.2

C00

E 162.7 2.4

B 163.4 2.4

C 218.3 218.6

E 163.2 2.5

B 3.5 4.2

C 11.0 10.9

E 2.8 3.4

Q816

Q817

Q818

Q819

Q820

Q811

Q812

Q813

Q814

Q815

CICUIT# PIN# DC voltage

Vdc

TV mode PC mode

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hitachi TV

Hitachi

Hitachi 42PD8900TA Manuel utilisateur

Hitachi

Hitachi 43HAK6150U H Manuel utilisateur

Hitachi

Hitachi C1422R Manuel utilisateur

Hitachi

Hitachi C15F27 Manuel utilisateur

Hitachi

Hitachi CL2848TAN Manuel utilisateur

Hitachi

Hitachi L19VG07U Manuel utilisateur

Hitachi

Hitachi CP2155TA Manuel utilisateur

Hitachi

Hitachi 46F500A Manuel utilisateur

Hitachi

Hitachi C2844S Manuel utilisateur

Hitachi

Hitachi 57S715 Manuel utilisateur

Hitachi

Hitachi 32LD6600 Manuel utilisateur

Hitachi

Hitachi L26DG07U Manuel utilisateur

Hitachi

Hitachi C14D24 Manuel utilisateur

Hitachi

Hitachi 32HYJ46U Manuel utilisateur

Hitachi

Hitachi C2121T Manuel utilisateur

Hitachi

Hitachi 27GX01B-501 Manuel utilisateur

Hitachi

Hitachi 36SDX01S Manuel utilisateur

Hitachi

Hitachi 27AX4B, 27AX3B, 27AX0B Manuel utilisateur

Hitachi

Hitachi 40HXC06U Manuel utilisateur

Hitachi

Hitachi 27UX01B-501 Manuel utilisateur

Hitachi

Hitachi 61SWX10B Manuel utilisateur

Hitachi

Hitachi ULTRAVISION C58M6 Manuel utilisateur

Hitachi

Hitachi C24W410SN Manuel utilisateur

Hitachi

Hitachi 36FX42B Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
