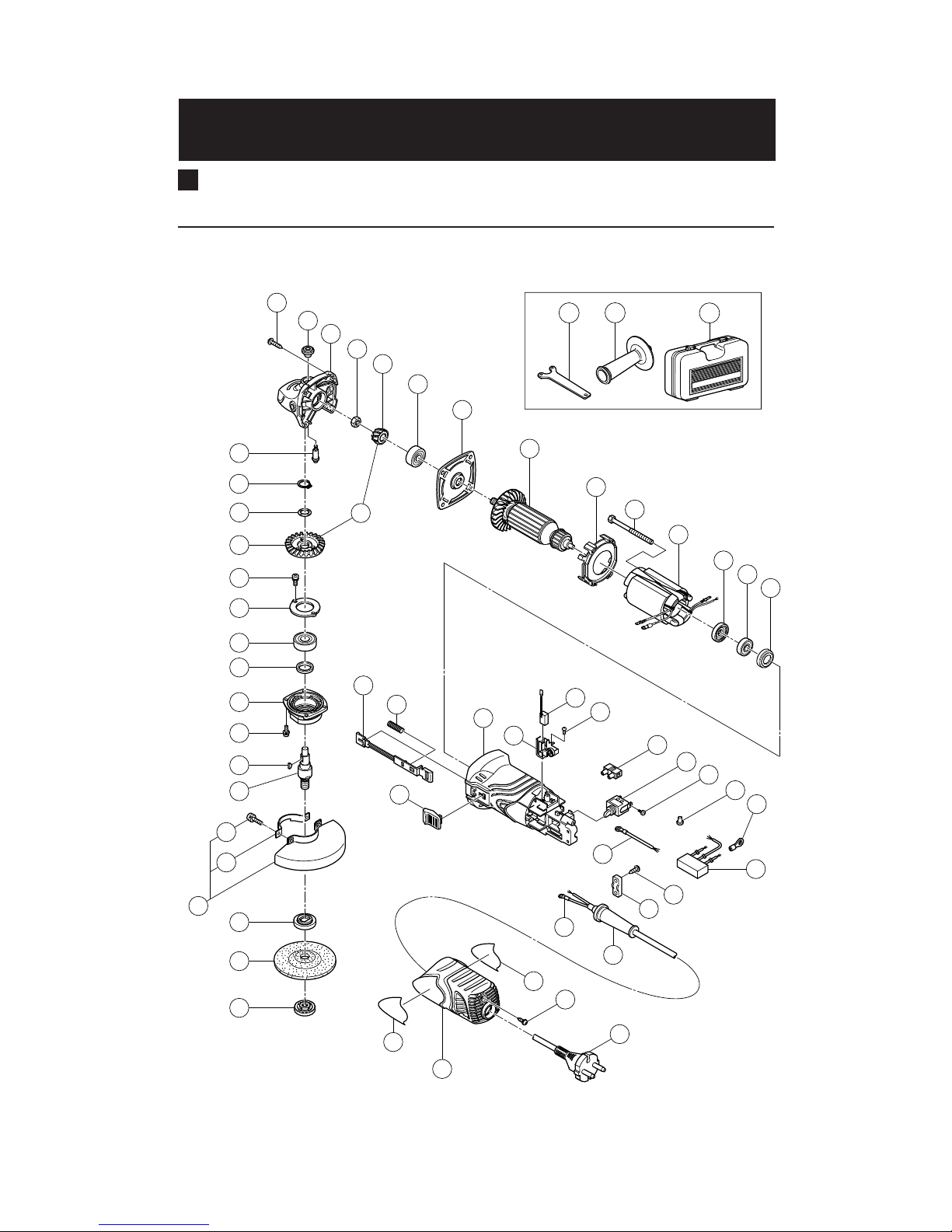

ELECTRIC TOOL PARTS LIST

LIST NO. E289

DISC GRINDER

Model G 10SR3

2007

•

(E1)

Hitachi Power Tools

17 33

502

501 503

*ALTERNATIVE PARTS--- 2 ---

ITEM

NO. CODE NO. DESCRIPTION REMARKS

NO.

USED

PARTS

4 -- 07

G 10SR3

1307-028 TAPPING SCREW (W/FLANGE) D4X25 (BLACK) 4

2301-944 PUSHING BUTTON 1

3327-891 GEAR COVER ASS’Y 1 INCLUD. 2, 15

4309-191 SPECIAL NUT M6 1

5327-889 PINION 1

6628-VVC BALL BEARING 628VVC2PS2-L 1

7327-887 BEARING HOLDER 1

*8360-799C ARMATURE 110V 1

*8360-799U ARMATURE ASS’Y 120V 1 INCLUD. 6, 12, 13

*8360-799E ARMATURE 220V-240V 1

9327-886 FAN GUIDE 1

10 963-712 HEX. HD. TAPPING SCREW D4X65 2

*11 340-702C STATOR 110V 1

*11 340-702G STATOR 110V 1 FOR TPE

*11 340-702D STATOR 120V 1

*11 340-702E STATOR 220V-230V 1

*11 340-702F STATOR 240V 1

12 321-722 DUST SEAL 1

13 626-VVM BALL BEARING 626VVC2PS2L 1

14 309-929 RUBBER BUSHING 1

15 301-943 LOCK PIN 1

16 316-487 RETAINING RING FOR D11 SHAFT 1

17 316-486 WAVE WASHER 1

18 327-890 GEAR 1

19 987-201

SEAL LOCK SCREW (W/SP. WASHER) M4X10

20 316-490 BEARING COVER 1

21 620-1VV BALL BEARING 6201VVCMPS2L 1

22 301-946 FELT PACKING 1

23 316-489 PACKING GLAND 1

24 987-203

SEAL LOCK SCREW (W/SP. WASHER) M4X12

25 302-047 WOODRUFF KEY 1

*26 327-903 SPINDLE 1

*26 327-904 SPINDLE 1 FOR USA, CAN

27 308-386

MACHINE SCREW (W/SP. WASHER) M5X16 (BLACK)

28 301-949 SET PLATE 1

29 301-948 WHEEL GUARD ASS’Y 1 INCLUD. 27, 28

*30 320-497 WHEEL WASHER 1

*30 937-834Z WHEEL WASHER 1 FOR USA, CAN

*31 316-820 D. C. WHEELS 100MMX4T A36Q (25 PCS.) 1 EXCEPT FOR EUROPE, GBR, SYR, CHN

*32 321-795 WHEEL NUT (C) 1

*32 312-048 WHEEL NUT M10XP1.25 1 FOR USA, CAN

33 327-888 GEAR ASS’Y 1 INCLUD. 5, 18

34 327-893 SLIDE BAR 1

35 314-429 SPRING 1

36 314-428 SLIDE KNOB 1

37 327-885 HOUSING ASS’Y 1 INCLUD. 14

38 327-895 BRUSH HOLDER 2

39 999-091 CARBON BRUSH (AUTO STOP TYPE) (1 PAIR) 2

40 328-210 TAPPING SCREW D3X8 4

41 938-307 PILLAR TERMINAL 1

42 314-603 SWITCH (1P SOLDER TYPE) 1

*ALTERNATIVE PARTS --- 3 ---

ITEM

NO. CODE NO. DESCRIPTION REMARKS

NO.

USED

PARTS

4 -- 07

G 10SR3

43 305-499 MACHINE SCREW (W/WASHER) M3.5X6 2

*44 959-140 CONNECTOR 50091 (10 PCS.) 1

FOR EUROPE, GBR, AUS, NZL, CHN, TPE, KOR

*45 980-063 TERMINAL 1 FOR NOISE SUPPRESSOR

*46 317-491 NOISE SUPPRESSOR 1

FOR EUROPE, GBR, AUS, NZL, CHN, TPE, KOR

*46 994-273 NOISE SUPPRESSOR 1 FOR TPE

*47 328-509 INTERNAL WIRE 1

FOR EUROPE, GBR (230V), AUS, NZL, CHN, TPE, KOR

48 HITACHI LABEL 1

49 327-894 TAIL COVER 1

50 NAME PLATE 1

51 307-811 TAPPING SCREW (W/FLANGE) D4X16 (BLACK) 1

*52 500-409Z CORD 1 (CORD ARMOR D8.8)

*52 500-435Z CORD 1 (CORD ARMOR D8.8) FOR GBR (230V)

*52 500-461Z CORD 1 (CORD ARMOR D8.8) FOR GBR (110V)

*52 500-447Z CORD 1 (CORD ARMOR D8.8) FOR SYR

*52 500-470Z CORD 1 (CORD ARMOR D8.8) FOR VEN, TPE

*52 500-240Z CORD 1 (CORD ARMOR D8.8) FOR USA, CAN

*52 500-439Z CORD 1 (CORD ARMOR D8.8) FOR AUS, NZL

*52 500-423Z CORD 1 (CORD ARMOR D8.8) FOR KUW, SIN

*52 500-468Z CORD 1 (CORD ARMOR D8.8) FOR CHN

*52 500-435Z CORD 1 (CORD ARMOR D8.8) FOR HKG

*52 500-468Z CORD 1 (CORD ARMOR D8.8) FOR THA

*52 500-423Z CORD 1 (CORD ARMOR D8.8) FOR KOR

53 980-063 TERMINAL 1 FOR CORD

54 953-327 CORD ARMOR D8.8 1

55 937-631 CORD CLIP 1

56 984-750 TAPPING SCREW (W/FLANGE) D4X16 2

*ALTERNATIVE PARTS

--- 4 --- 4 -- 07

OPTIONAL ACCESSORIES

ITEM

NO. CODE NO. DESCRIPTION REMARKS

NO.

USED

STANDARD ACCESSORIES

ITEM

NO. CODE NO. DESCRIPTION REMARKS

NO.

USED

G 10SR3

Printed in Japan

(070416N)

501 313-933 WRENCH 1

502 318-312 SIDE HANDLE 1

503 319-375 CASE 1 FOR AUS, NZL

601 314-053 SANDING DISCS 100MM C-P24 (10 PCS.) 1

602 314-054 SANDING DISCS 100MM C-P30 (10 PCS.) 1

603 314-057 SANDING DISCS 100MM C-P50 (10 PCS.) 1

604 314-059 SANDING DISCS 100MM C-P80 (10 PCS.) 1

605 314-061 SANDING DISCS 100MM C-P120 (10 PCS.) 1

606 314-051 SANDING DISCS 100MM C-P16 (10 PCS.) 1

607 314-052 SANDING DISCS 100MM C-P20 (10 PCS.) 1

608 314-055 SANDING DISCS 100MM C-P36 (10 PCS.) 1

609 314-056 SANDING DISCS 100MM C-P40 (10 PCS.) 1

610 314-058 SANDING DISCS 100MM C-P60 (10 PCS.) 1

611 314-060 SANDING DISCS 100MM C-P100 (10 PCS.) 1

*612 935-513 WASHER NUT M10XP1.5 1

*612 313-173 WASHER NUT M10XP1.25 1 FOR USA, CAN

613 936-548 WASHER 1

614 936-558Z RUBBER PAD 1

615 302-098 GUIDE BASE 1

616 323-918

DUST COLLECTION ADAPTER (DISC GRINDER)
