Quick Start Guide

SEL SEL

REPEAT

INFO.

DAB/FM

DIO D T SYST E

DIGITAL RADIOAX-M140

CONFIRM

Quick Start Guide

This Quick Start Guide will help you correctly install and set-up your Hi-Fi.

Please read before installation

If this hi-fi has been moved from a cold place to a warm place, DO NOT plug it in for 2-3 hours

(e.g. from a cold car boot to a warm room).

AX-M140 SYSTEM

IMPORTANT: make sure that your unit is connected together (as detailed in this Guick Start Guide ) before switching on at the mains.

AX-M140 SYSTEM

Yo u r h i - f i s h o u l d i n cl u d e . . .

SLEEP/ TIMER

CLK DIM

DA B

(FM r a d io )

DV D pla y er

M P 3 pla y e r

A m p lifie r

R e m ote

co n tr o l

M a in I ns tr u ctio n b o o k

SEL SEL

REPEAT

INFO.

DAB/FM

DIOD T S YSTE

DIGITALRADIOAX-M140

CONFIRM

DIO D T SYSTE

DIGITAL RADIOAX-M140

S p e a k e r s x 2

DA B (FM a e r ia l ) x 1

Ribbon cable x 1

Video cable x 1

S pea k er lea ds x 2 A er ia l a dju s tm en t to o l x 1

Fitting the system connection leads

IMPORTANT: The separate parts of your hi-fi MUST be connected together before the unit is plugged into the mains.

Make sure that all connections are made with your hi-fi system unplugged from the mains.

Position your hi-fi

Stack the parts of your

hi-fi as shown. Position

your hi-fi so that you have

easy access to the back.

Connect together

Using the ribbon cable

supplied, connect the four

separate units together in

the order shown in the

illustration

DAB (FM RADIO)

MP3 PLAYER

DVD PLAYER

AMPLIFIER

Connecting to a TV

NOTE: Some settings might need to be made to your Hitachi AX-M140 to make it compatible with

the settings on your TV

If the unit is connected to a

16:9 wide screen TV, then

set "TV display" to "Wide" in

the function setting menu.

(See page 21 of the instruction

manual)

If the unit is connected to 4:3

normal TV, then set "TV

display" to "Normal/PS

"or "Normal/LB" in the

function setting menu.

(see page 21 of the instruction

manual)

connections to TV

Note: SCART lead not supplied.

(Lead not included)

(Video cable included)

Teminal board for the DVD player

TV Display Settings

If you use your Hitachi AX-M140

outside the UK you will need to

change the television system

settings in the 'TV Type' menu to

either 'multi' for Europe or 'NTSC'

for USA. (PAL for the UK is the

default setting).

See page23 of the instruction

manual.

TV System Settings

Connecting the speakers

Connect the speaker leads between the terminals as shown below.

Connect the leads with a silver

line to the (+) (L) (R) terminals

and leads with a gold line to

the (-) (G) terminals.

This unit has a high power

output and wide dynamic

range . If speakers other

than those supplied are used,

they must be chosen according

to speaker specification, or the

speakers may be damaged.

Before connecting or removing

mains power, please turn off

the power on the unit and turn

the volume to minimum or it

may damage the speaker

IMPORTANT NOTE:

Ditital audio output Connections

Please note: You can only

use coaxial OR optical-they

cannot be used at the same

time.

With digital signal input terminal's DTS,

Dolby Digital signal decode amplifier

With digital signal input terminal's DTS, Dolby

Digital signal decode amplifier terminal board

Connecting to a surround sound amplifier

DVD player connections

Lead not included

VCR Output Scart socket

Note: SCART lead not supplied.

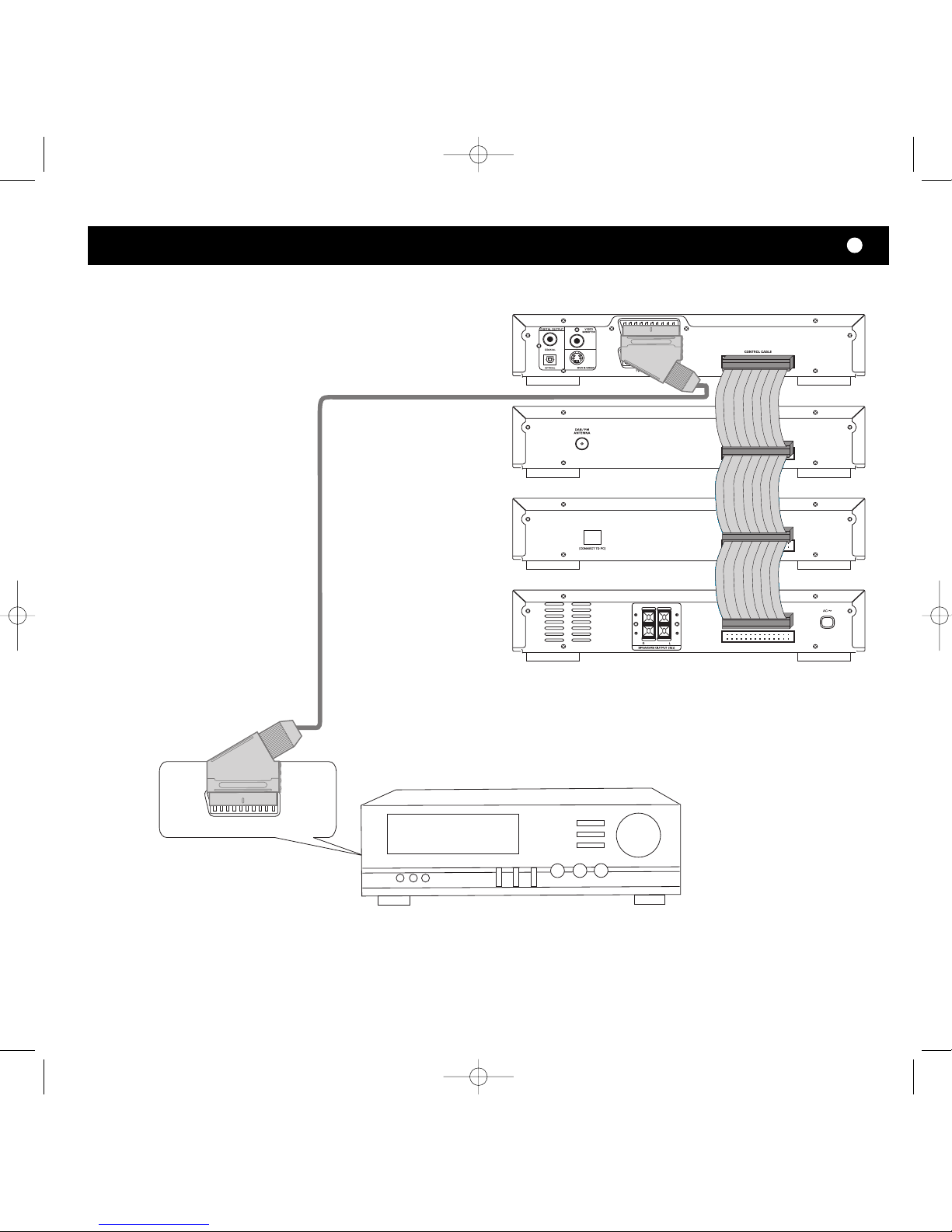

Aux in Connections

VCR Scart Input Socket

Connecting a VCR audio output to your unit

Connecting the Antenna

Screw the antenna (aerial) rod

clockwise onto the antenna

base.

Screw the antenna cable into the

DAB/FM antenna socket Tighten

the antenna by hand or using the

tool provided.

(Note: Do not overtighten, this could

damage the antenna or it's fittings.)

Position the antenna for best reception.

Optional

Connecting to the mains Power

Insert the mains plug into a

wall outlet, switch on and

your system is ready for use.

Caution: Be sure to unplug the

power cord from the outlet when

going away or when the system

is not in use for an extended

period of time.

Note: This product is exclusively available through Dixons Stores Group. In the unlikely event of a

problem with your product please return to the store where your purchase was made.

570-1204D2-02A
