Hitachi R-64W Manuel utilisateur

Instruction Manual

Hitachi Refrigerator

For household use only

Contents Page

Warning and caution for safety........

Preparations before use..................

Installation................................. 4

Before Use................................ 4

Optimal Food Storage............... 4

Preparation for use

Operation

Location of food storage...............

Temperature control.................

How to operation..........................

Freezer Compartment...............

Refrigerator Compartment.........

Defrost Function......................... 6

Cleaning...................................

Troubleshooting..............................

Service Center................................

Maintenance

Model

Thank you very much for purchasing the Hitachi refrigerator.

Before installation and usage,please read the user’s guide carefully

for the correct usage.

Maintenance work must only be carried out at workshop

by well-trained maintenance worker.

Refrigerant

R600a

R-49W

R-64W

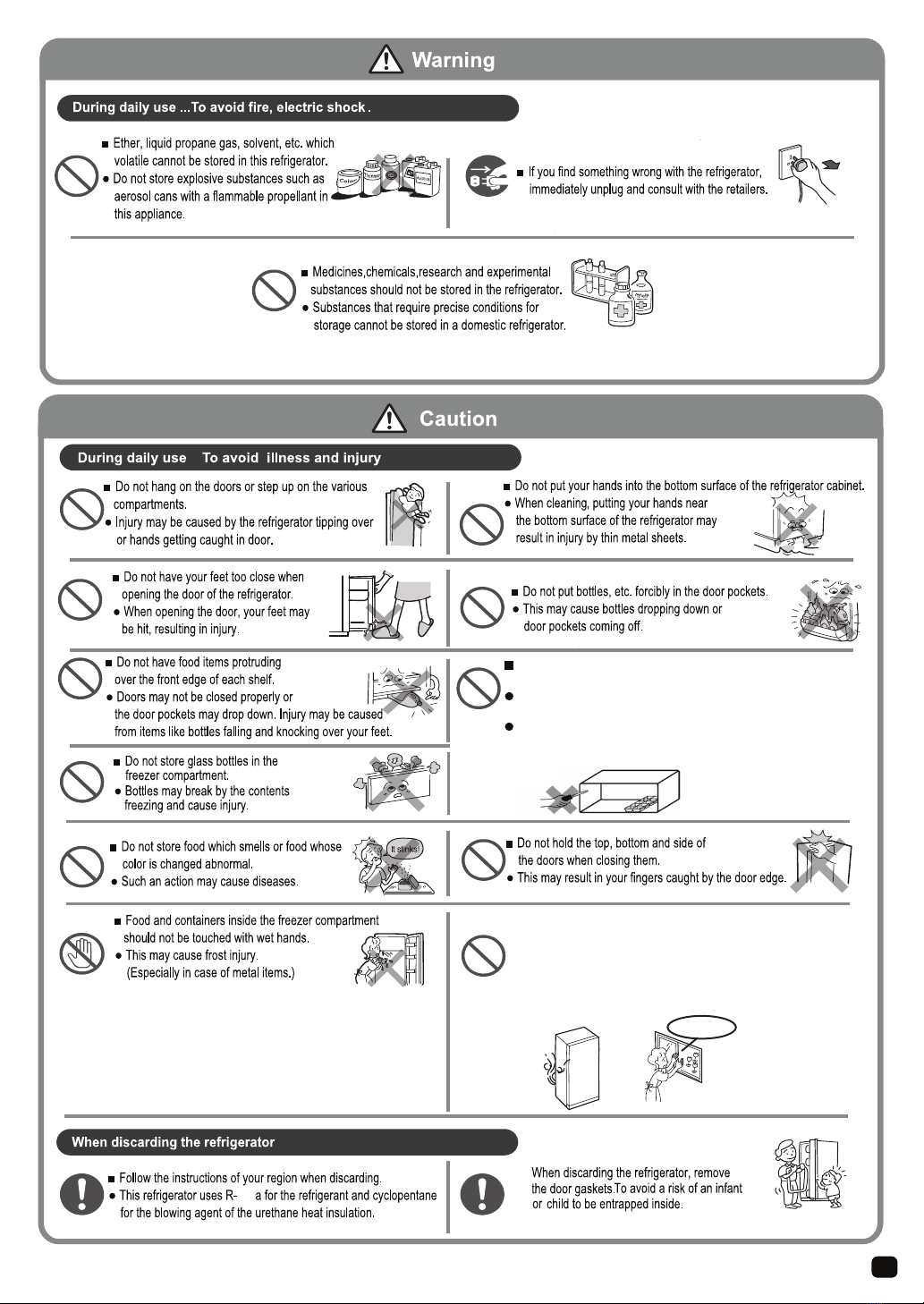

Warnings and Caution for Safety

ryTo avoid harm to the use , other persons or damage to propert , please read and

follow the warnings and cautions below and those given throughout this manual.

The following warnings and cautions are categorized by the level of possible

harm or damage that may occur from ignoring directions.

The symbols are shown as below clearly showing the signiﬁcance of directions.

■ This refrigerator uses ﬂammable refrigerants.

The symbol column below states the precautions on ﬂammable refrigerants.

This symbol denotes the precautions on ﬂammable refrigerants.

Do not install the refrigerator in a place exposed to rain.

This may impair electricity insulation and cause electric shock of ﬁre.

■ Ground this refrigerator to prevent electric shock

and noise interference. Always ground this Earthing

terminal

FIX BY SCREW

refrigerator and install earth leakage circuit breaker

when using it in places with high humidity or moisture.

(Please consult with a retailer or Hitachi Service Center.)

■ If the supply cord is damaged, it must be replaced

by the manufacturer, its service agent or similarly

qualiﬁed persons in order to avoid a hazard.

600

■Do not damage the refrigerant circuit.

● If you happen to damage the refrigerant pipe,

stay away from the refrigerator and avoid

using ﬁre and electrical appliances.

● And, open windows to ventilate and contact retailers

or Hitachi Service Center.

Window open

(Continuance)

Never use an ice pick or other

sharp instrument to take front away.

If a hole is made is the evaporator,

the refrigerant leats and cooling is imparied.

In this case, the actual expenses for

repairing the refrigerating until

will be charged to you.

30 cm.

5 cm. 5 cm.

4 Hrs.

■Do not use door handles when carrying the refrigerator.

■ Never use the carrying handles to hang

up with a chain hoist or similar machines.

● Carry the refrigerator by at least 4 persons for safety reasons.

● Carry it with the doors facing upward.

■Before carrying the refrigerator:

1. Take out all food items and ice cubes.

4. Finally carry the refrigerator with the doors facing upward.

● Secure the doors well with adhesive tapes so they do not open.

● If transporting in a vehicle, do not load the refrigerator on

its side. This could damage the compressor.

2. Lay a protective sheet or cloth to protect the floor from damage

and catch remaining water spilled from the refrigerator.

3. With a large piece of old cloth underneath, tilt the refrigerator

backward to drain water.

● For a floor that may be easily scratched,

lay a protective mat, etc. .

Such as old cloth

When replacing lamps (LED) is required.

■When replacing lamps (LED) is required. Please contact your dealer or Hitachi Service Center.

Preparations before Use

Installation

Before Use

Optimal Food Storage

Chiller

Reciever

●

1℃～5℃

4℃～7℃

●

-2℃～2℃

●

Above temperatures are the approximate values in the conditions of outside temperature 32℃, the setting of the

refrigerator compartment “Normal”, freezer compartment “Normal” while doors being closed and without food storage.

Door pocket temperatures may be little higher than above temperatures.

WETER LEVEL

- The display ﬁgure is 6.4c/f model.

Location of Food Storage

Freezer Compartment

Refrigerator C om partment

Ice Tray

For making Ice Cube

Egg tray

Storage of eggs (8 eggs)

Refrigerator Door Pockets

●Storage of packed small

food and drinks such

as juice,milk ,etc.

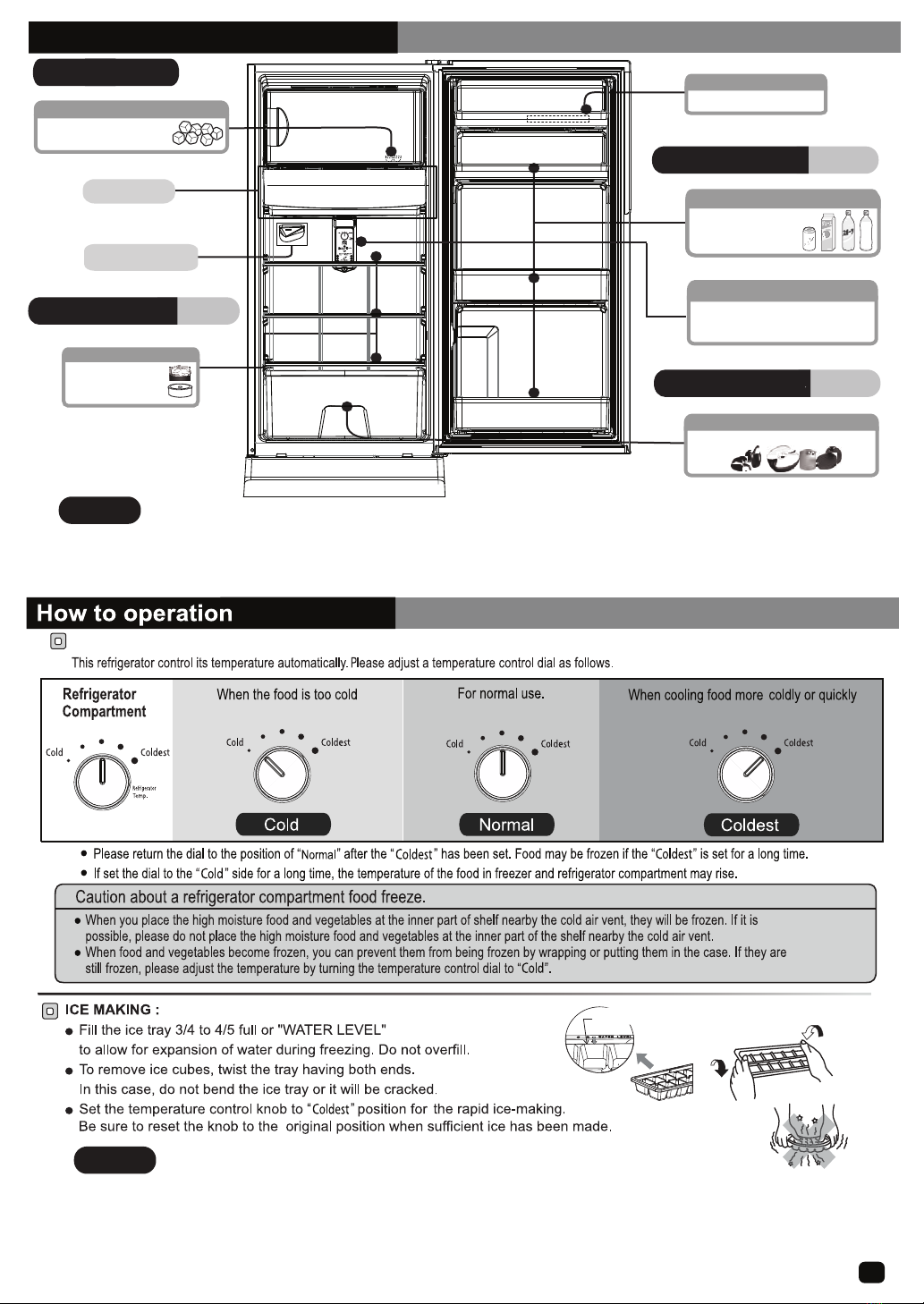

Temperature control

●

Refrigerator temperature control dial

Refrigerator Shelves

●Storage of side

dish, desert ,etc.

Vegetable Drawers

●Storage of fruits and vegetables.

Vegetable Compartment

Temperature control

To remove ice cubes, twist the tray having both ends. In this case, do not bend the ice tray or it will be cracked.

If it has a lot of ice in freezer room , please push the deforst button to clear an ice.

If it has a lot of ice in Drain area , please cleaning that area.

If user always open door or Refrigerator under auto defrost , Some food in freezer room may melt.

Notice

8EGG CASE

Automatic defrosting mode is “ON” (Default setting)

The Refrigerator has 2 mode for defrost, That are Auto defrost mode and Semi-auto defrost mode

กดปุม 1 ครั้ง กดปุม 1 ครั้ง

RECEIVER

CHILLER

Drain

hole

DEFORST MODE

STATUS IS NORMALLY STATUS IS NORMALLYSTATUS IS DEFROSTING

STATUS IS NORMALLY STATUS IS DEFROSTING STATUS IS DEFROSTINGSTATUS IS NORMALLY

When the refrigerator

operates normally, green

lamp is on.

There may be water in chiller from thawed frost in freezer compartment. Thus, the following

actions should be taken.

- Wrap or put your foods in boxes before keeping in chiller.

- In case of long time storing of meat or sh, please put them in freezer

compartment.

- If there is water in chiller, please clean up the drain hole in chiller.

- Please put chiller into its position rmly. Otherwise, there may be

water owing into refrigerator compartment.

- If there is water from chiller owing into refrigerator compartment, please check the positions

of the cone and the drain hole if there are at the same and not blocked.

FREEZER

CHILLER

Normally, the refrigerator can defrost around once a day.

When the refrigerator is

defrosting automatically, the

green lamp is blinking.

After defrosting is nished, the

refrigerator returns to normal

operation and the green lamp

returns to on.

Semi-auto defrosting / Automatic defrosting mode is“o” (Manual defrost)

Manual defrosting during automatic defrosting mode Manual defrosting during manual defrosting mode

Push Defrost Mode button

once to defrost manually.

Push Defrost Mode button

once to defrost manually.

Defrosting status Defrosting status

Blinking

Blinking Green

LED

Green

LED

Blinking

Green

LED LED o

“”

Screw

Ev-drain

Reciever

How to operation (Continue)

Maintenance

Automatic defrosting mode Automatic defrosting modeSemi-auto defrosting mode

How to change defrosting modes.

Switching from automatic to Semi-auto Switching from Semi-auto to automatic

Push Defrost Mode button for

3 seconds to switch its mode.

Push Defrost Mode button for

3 seconds to switch its mode.

Refrigerators are set to automatic defrosting before delivery.

There may be water from defrosting ows into chiller case.

In case of power failure or plug taked-o, the refrigerator will start with automatic defrosting mode.

If defrost mode button is pushed while the temperature in the refrigerator is high,

the lamp will be blinking simultaneously when pushed.

Note

LED o LED o

LED on

Press 3 sec Press 3 sec

LED on

DEFORST MODE (Continue)

Semi-auto defrosting mode

HRPK2312A_INST-B-E-1D-17

About Non-fluorocarbon refrigerator.

● This refrigerator, including refrigerant and the heat insulator, is using hydrocarbon (non-ﬂuorocarbon). The hydrocarbon is a material that does not rip up

the ozone

and have very little inﬂuence on global warming. It is the global environment concern material).

● R600a refrigerant is ﬂammable. But the refrigerant is being sealed up by the refrigerate circuit, and never leak by usual use. In case of the refrigerate circuit

being damaged by any chance, please avoid the use of ﬁre and electric product, open t

he window and ventilate. Afterwards, please contact Hitachi Service Center.

■ This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge

if they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the

■ Children shall not play with the appliance.

■ Children should be supervised to ensure that they do not

play with the appliance or get in.

Children getting inside may not be able to get out.

■ Cleaning and user maintenance shall not be made by children

without supervision.

hazards involved.

When you request repair, please check the refrigerator

well according to Troubleshooting on page 8.

When still abnormal, Please contact the retailer or

local Hitachi Service Center.

Head Office Service Center:

Hitachi Sales (Thailand), Ltd. 333, 333/1-8 Moo 13, Bangna-Trad Road (km7),Bangkaew

, Bangplee, Samutprakarn 10540 Tel. : 0-2335-5455 Fax. : 02- 316-1128

Web Site:http://www.hitachi-th.com E-mail : hitachi-th.com
