Hitachi 14MVX Manuel utilisateur

COLOUR MONITOR

FARBMONITOR

MONITOR EN CO1OR

MONI1OR ACOLORI

MOIWEUR COULEUR

—

14Mvx

USER MANUAL ..=..... .......ml==... =mpagege 2

BEDIENUNGSANLEITUNG .■=..... =.. =..”= seite 8

MANUAL DEL USUARIO . . . . ..m. m==E.m.=p&gina 14

lSTRUZIONI PER~USO= =....== =... =... =”==Pa9 20

MANUEL DE L’UTILISATEUR. ......=. . . . . . page 26

‘- NOTICE

~Tbe information in this d~ument is subject to change without notice.

.- Hitachi assumes no responsibility for any errors that may appear in this docu-

~ment.

COkmr Monitor 14MVX

Operating Chide

Features

The following features are provided with the HITACHI colour

Monitor 14MVX.

Wide compatibility range of graphics standard, VGA, 8514/A,

Super VGA, and Macintosh II Video Card.

Sharp focus and remarkable display quality by new design CRT.

Cubic and Simple design cabinet with Tilt and Swivel base.

No ventilation holes on top of the cabinet for better safety.

LMF and LEF

This version of 14MVX is built to meet Swedish requirements for

Low Magnetic Field and Low Electrostatics Field. Both features

are to reduce the suspected effects of magnetic field and Electro-

statics field to your health down to the TCO recommendation level.

TR+UEMARX ACXNOWLEOGMENT

D3M PC, K/XT, PC7AT. Persd System+, VGA, ad S514/Ame rcp,istcrcd!mdemnrksof Intermtiond Bmhxss Machinm Corporation

ApF4e dMncintosharer+tercd !mdemmksof theApple (bmfmtcr, Lx..

Mncintmh II Video Card is atrademarkof Apple Ccmputcr,Inc..

—

214MVX User Manual

@EIi@ E■

NEVER REMOVE THE BACK COVER E.

Removal of the back cover MUST be carried out only by

qualified personnel. This display monitor contains high voltages

inside.

DO NOT USE IN HOSTILE ENVIRONMENTS

DO NOT expose this display monitor to rain or moisture to

prevent electric shock or fue hazard. This unit is designed to be

used in the office or home environment.

DO NOT subject the unit to vibrations, dust, or corrosive gases.

KEEP IN AWELL VENTILATED PLACE

DO NOT cover this monitor or place anything against the sides.

Ventilation holes are provided on the cabinet to prevent

the temperature from rising. Ventilation holes are also provided

on the bottom of the cabinet.

AVOID HEAT

Avoid placing the unit in direct sunshine or near aheating

appliance.

BE CAREFUL OF MAGNETIC FIELDS

LDO NOT place amagnet, loud speaker system, floppy disk

drive, or anything which will generate magnetism near the unit.

Amagnetic field may cause blurred colours or distortion of the

displayed pattern.

14MVX User Manual 3

@PERATD@

Controls

Front View

,,,

(7) (6) (5) (4) (3) (2) (i)

Rear View

--J

(J) \t

(8)

(1) Power Switch

Use this switch to power ON or OFF by pressing it.

When the power is ON, green light on the knob turns on to indicate.

(2) Contrast Control

Use this to set the foreground brightness of the screen.

(3) Brightness Control

Use this to set the background to black.

Most of the latest application software utilizes coloured background and this control

is usually set at its maximum.

(4) Horizontal Size

Adjust this control to the preferred horizontal width. If the width is too wide, part of

information will be missed from the screen.

(5) Horizontal Position

Adjust this to place the display at the centre of the screen.

414MVX User Manual

(6) Vertical Size

Adjust this control to the preferred height.

(7) Vertical Position

Adjust this to place the display at the centre of the screen.

(8) Signal Cable

Connect the end of the cable to your computer.

(9) Power Cord In-let Connector

Insert proper power cord here.

BEFORE CONNECTING THE MONITOR TO YOUR

COMPUTER, MAKE SURE THE POWER TO THE MONITOR

AND COMPUTER ARE TURNED OFF.

1. Connect the signal cable to your computer’s video output connector. The comec-

tor is compatible with IBM PS/2 series computers and VGA standard graphics

cards for IBM PC, PC/XT, PC/AT, and compatibles. When you are using the

monitor with Apple Macintosh II computer, please obtain an optional converter for

connection from your dealer. Hitachi’s part number for convertec

2. Connect power cord to the monitor then to wall power outlet.

USE PROPERLY APPROVED POWER CORD...HO5VVHZF.

Se-l

3. Power on the monitor then power on your computer. When you switch OFF,

reverse the sequence.

4. Adjust front located user controls to obtain right picture size, location, and

brightness. Display location on the screen and the size may change when you switch

from one application software to another one.

5. Adjust Tilt& Swivel to suit your eye level.

.DO NOT use the monitor with abright background light, direct sunshine, or bright

light into the screen area. These may increase eye fatigue.

14MVX User Manual 5

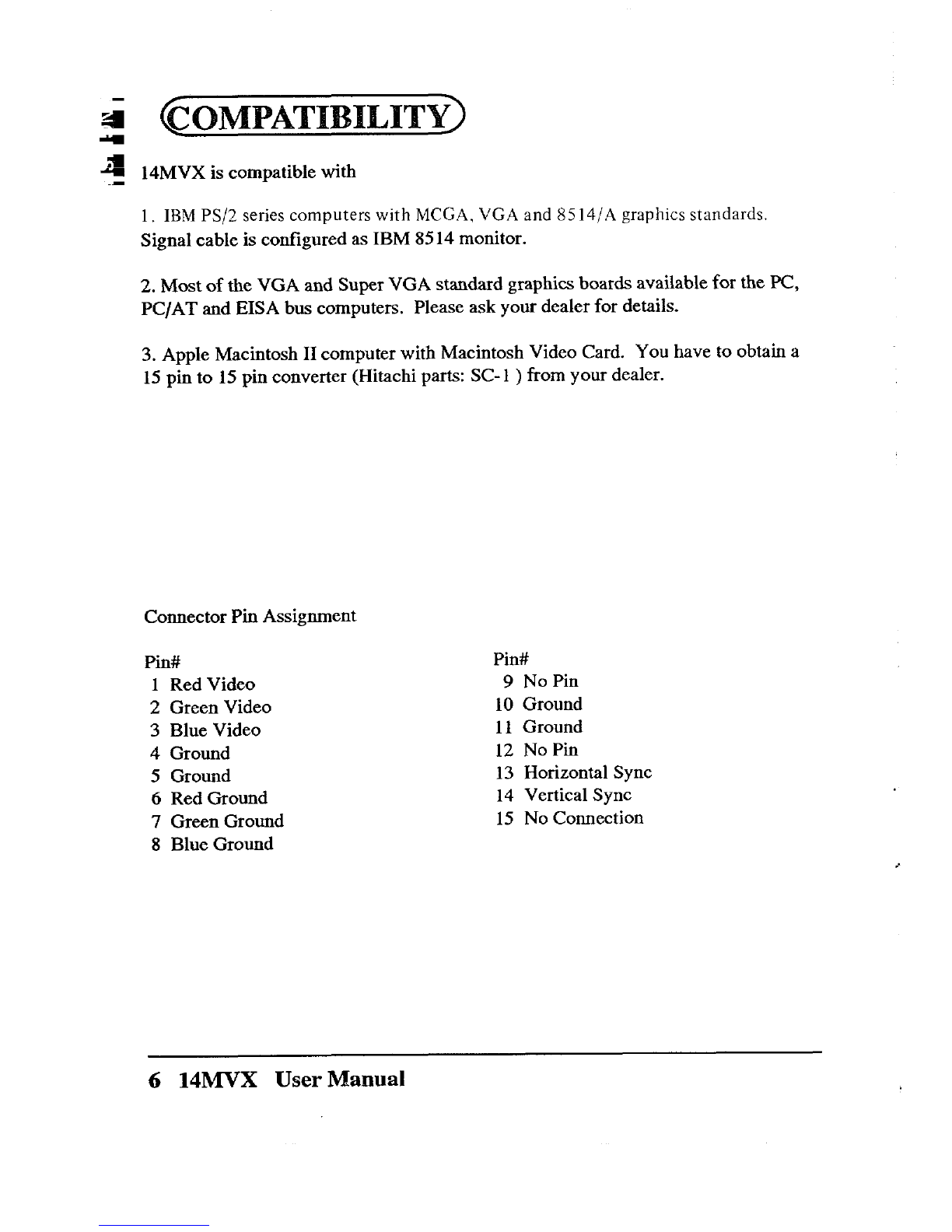

=14MVX is compatible with

1. IBM PS/2 series computers with MCCA, VGA and 85 14/A graphics standards.

Signal cable iscotilguredasIBM8514 monitor.

2. Most of the VGA and Super VGA standard graphks boards available for the PC,

PC/AT and EISA bus computers. Please ask your dealer for details.

3. Apple Macintosh II computer with Macintosh Video Card. You have to obtain a

15 pinto 15 pin converter (Hitachi parts: SC-1 )from your dealer.

Connector Pin Assignment

Pin#

1Red Video

2Green Video

3Blue Video

4Ground

5Ground

6Red Ground

7Green Ground

8Blue Ground

Ph#

9No Pin

10 Ground

11 Ground

12 No Pm

13 Horizontal Sync

14 Vertical Sync

15 No Connection

614MVX User Manual

(specifications’) h

CRT 14(1 3V) inches diagonal, 0.28 mm dot pitch, Black ~

matrix, Silica coated, Short Persistence. m

Input Signal Video: 0.7 Vpp

Sync: Separate H,V or Composite H/V TTL level or

Sync on Green at 0.3 Vpp.

Synchronization Horizontal: 30 —40 kHz

Vertical 5O—1OOHZ

Automatically synchronize.

Resolution

Vidw Band Width

Active Display Area

Horizontal: Up to 1024 dots

Vertical: Up to 768 lines (Interlaced) or 600 lines

(Non-interlaced)

45 MHz

Horizontal: 240 mm

Vertical: 180 mm

Active d~play area is changed by the graphics board

standard.

Mismnvergence Less than 0.55 mm

Power Supply AC 100--120 V, 50/60 Hz/ 200--240 V, 50 Hz

Power Consumption 80 WApproximately

Dimensions 358 (W) X372 (H) X403 (D) mm

Including Tilt &Swivel base.

Weight 15 kg

Environmental Operation Storage

Conditions Temperature: 5°C to 35°C -20°C to 60”C

Humidity: 30% to 80% 10% to 90%

14MVX User Manual 7
