Hitachi LE55W806 Manuel utilisateur
IMPORTANT SAFETYINSTRUCTIONS....................................................................... 2-6
INSTALLING THE TABLETOP STAND 7
FIRST TIME USE
.......................................................................................................
10-12
TV OPERATION ........................................................................................................ 13-19
CONNECTIONS
NETWORK SETTINGS
TO OTHER EQUIPMENT .............................................................. 20-22
TROUBLESHOOTING ......................................
.............................................................
36-37
.....................................
.............................................................
23-35
SPECIFICATIONS.......................................................................................................... 38
.............................................................
LIMITED WARRANTY...............................................................................................
39-40
APPENDIXES................................................................................................................. 43
Thank you for purchasing this Hitachi product. Please read these instructions carefully.
For additional assistance please call 1-888-333-1899(U.S.A. or Puerto Rico), or 01-800-700-4321(Mexico) or visit our
website at www.hitachi.us/tv.
Keep this owner's guide for future reference.
Record the model number and serial number of your LCD Television for future reference.
This information is located on the back of the television.
MODEL NUMBER SERIAL NUMBER
ES-G122201
TABLE OF CONTENTS
Simulated image.
Image may differ from actual product.
Models
Owner’s Guide
LE55W806
55” Class (54.64” Diagonal)
LE48W806
48” Class (47.61” Diagonal)
TO PREVENT ELECTRIC SHOCK, THIS APPLIANCE MUST BE CONNECTED TO AN OUTLET WITH A
PROTECTIVE EARTHING CONNECTION.
2
This TV has an Auto Shut Off feature that will automatically turn off the TV if there is no video signal detected within 15minutes.
Additionally this TV has LED backlighting which has greater energy saving benefits versus conventional CCFL type TV.
3
This product contains lead. Dispose of this product in accordance with applicable environmental laws .For product recycling and
disposal information,contact your local government agency or www.eRecycle.org (in California),the Electronic Industries Alliance at
www.eiae.org(in the US) or the Electronic Product Stewardship Canada at www.epsc.ca (In Canada).For more information,call
"1-888-333-1899."
(1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference
that may cause undesired operation.
4
This apparatus shall be connected to a mains socket outlet with a protective earthing connection.
5
4 inches
4 inches
The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause overheating. Do not block
ventilation holes, or set up near radiators. Do not place in direct sunlight. When placing on a shelf leave 4 inches (10 cm) free space
around the entire unit.
Notes when mounting the LCD TV on a wall
If the unit is to be mounted on the wall, contact the retailer where you purchased the LCD TV for advice, and have the equipment pro-
fessionally installed. Incomplete or improper installation may cause injury to you, and/or damage to the LCD TV.
The screws ISO M6 thread type should be used. The insertion length must be within 12 - 16mm.
If the insertion length is less than 12mm, the weight can not be maintained.
If the insertion length is more than 16mm, a space is created between the Wall Mount Bracket and the Television.
(Insertion Length) = (Screw Length) - (Washers Thickness) - (Mounting Bracket Thickness)
If the unit is to be mounted on a cabinet smaller than length of the unit, it could result in an unstable location and the unit may tumble
over, creating a risk of personal, possibly fatal injury. Also, this would damage the product seriously. Accordingly, Hitachi accepts no
responsibility or liability for any injuries or property damage resulting from the improper installation.
YES!! NO !!
SAFETY PRECAUTIONS
YES!! NO!!
Securing to a Wall
1. Use metallic wire, clamp and screw (not provided) on the rear of the LCD TV as shown below.
2. Use proper hardware (drywall anchor, masonry screw, etc) to secure other end of wire to wall.
2.
4 inches
Wire
Wire
Screw M6×12
Clamp
6
This TV is designed for tabletop or wall mounted use only. Please follow the guidelines below for safe use of this product.
Notice For Use With Included Tabletop Stand
Installing the Tabletop Stand
7
1. Use the four screws(GB/T 818-2000 M5x12) which are
in the accessories bag to attach the base plate.
2. Use the two screws(GB/T818-2000 M4X12) which are
in the accessories bag to attach the cover plate.
4. Please secure the assembled base are installed to
the TV. Make sure that the three hooks on the stand of
the head bracket inserted into the three slots at the
rear of TV.
5.Use the four screws(GB/T818-2000 M5X12) which are in
the accessories bag to attach the base stand to the TV set.
3. Use the two screws(SJ2822-87 ST4X14) which are
in t h e accessories bag to attach the cover plate.
1 2
3 4
5
8
in accordance with FCC rules.
TM
Manufactured under license from Real Sound Lab. SIA. CONEQ is a trademark of Real Sound Lab, SIA.
CONEQ delivers clear, rich sound using proprietary professional equalizing technology. Dialog is clear and music sounds
more dynamic when the speakers are perfectly optimized.
TM
CONEQ HA MODE (Hearing Aid) technology produces natural sound for the hearing impaired. The listener can enjoy
details in music and clear dialog often without the help of a hearing aid.
TM
Unique space saving design combines a 55"/ 48" LCD color TV with the 6 features noted below and more!
9
20
2
6
7
5
23
23
25
26
27
27
28
29
30
31
Connections to other equipment
Network Settings
Network Connection
Connecting to a Wireless Network
Wireless Setting
Home Network Settings
Media Share Settings in computer
Setting to Share Files
Internet-based Services
VUDU HD Movies
VUDU Apps
Netflix
YouTube
Other
View the Shared Files on TV
Digital Media Player
Enjoy Video Files
Enjoy Music Files
Browse the Pictures
Troubleshooting
Specifications
Limited Warranty
End User License Agreement for HITACHI DTV Software
End User License Agreement for Open Source Sofrware
Appendixes
Starting setup
Using the Channels Menu
Using the Video Menu
Using the Audio Menu
Using the Setup Menu
Using the Parental Controls Menu
Before using your unit
TV Operation
Advanced Features
Other Information
IMPORTANT SAFETY INSTRUCTIONS
CHILD SAFETY NOTICE
SAFETY PRECAUTIONS
Installing the Tabletop Stand

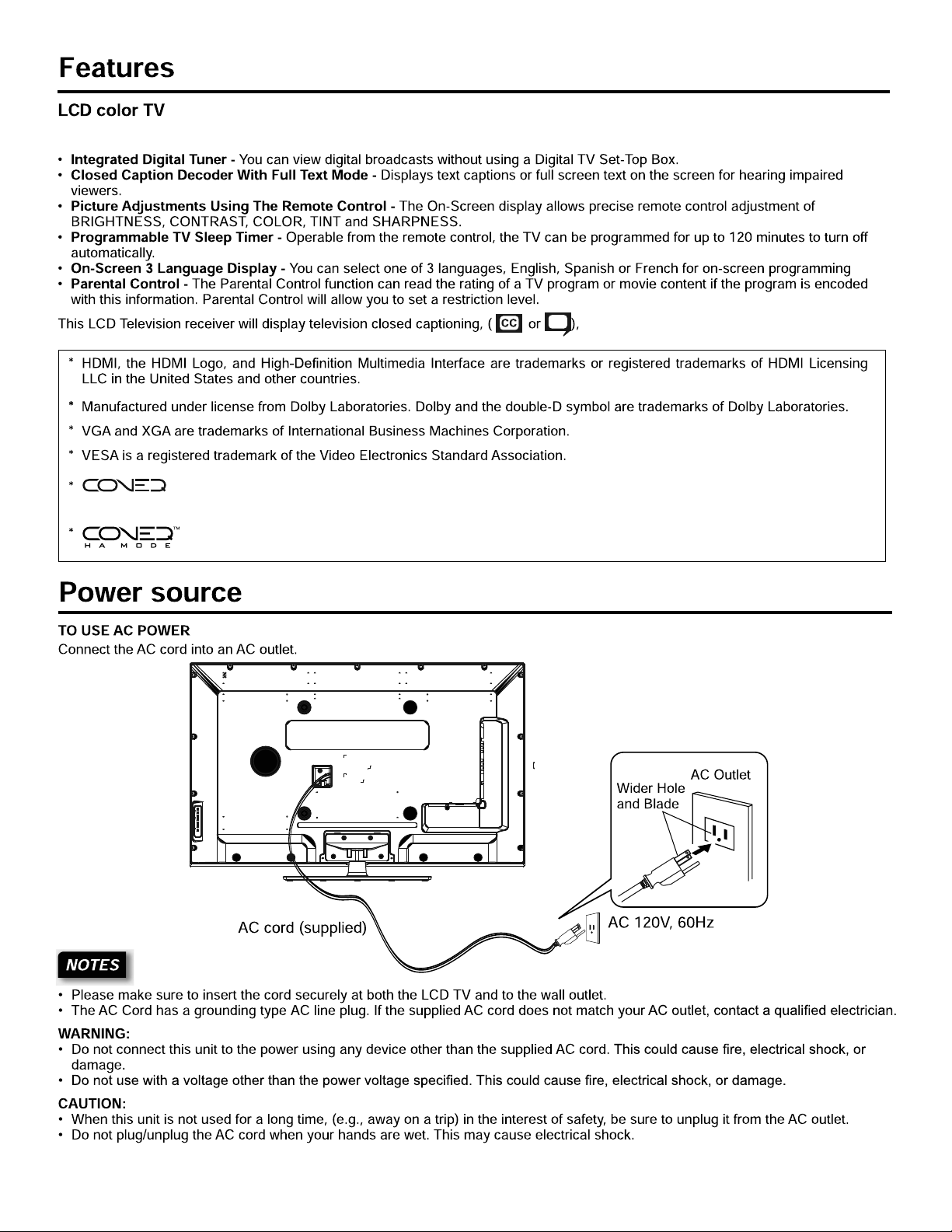

Features
Power source
Contents
Location of controls
Remote control
Antenna connections
Cable TV connections
8
9
10
11
12
12
13
14
14
16
16
17
8
32
32
33
33
33
34
35
36
38
39
41
42
43
32
Power indicator3D emitter
3D emitter Sends signals to 3D glasses during playback of 3D movies and TV shows.
Adjusts TV volume and used as Cursor Left and Right keys to navigate OSD menus.
Selects input source to TV and used like remote control's ENTER key when
choosing an item in OSD menus.
Selects a TV channel and used as Cursor Up and Down keys to navigate OSD menus.
Do not put anything near the sensor,
as its function may be affected.
red
0(18
,1387
&+
92/
32:(5
Illuminates white when the TV is in on mode.
3( )
10
