Hisense WFN9012 Manuel utilisateur

Hisense

Customer Service Manual

WFN9012

WFN9012S

Content

1 Safety

2 Specification

3 Control Panel

4 Structure Perspective

5 Fault Codes and Test Procedure

6 Parts Specification

7 Wiring Diagram

Series number:G75201300201

Customer Service

Safety:

•

Only use genuine spare parts during any repairs. If non-genuine parts are

used the manufacturer’s guarantee will be void. The manufacturer will not

accept any liability if a non-genuine spare parts is fitted, and

subsequently fails, causing damage or injury.

•

This appliance must be connected to a sound electrical earth path:

•

It is important, to avoid electrical shock and for electrical safety, that this

appliance must be earthed.

•

Do not use extension leads, or multi socket adaptors.

•

Attention:

(1)

Disconnect the appliance from the electrical power supply before

commencing any clearing or maintenance.

(2)

Any safety features installed by the manufacturer, i.e. door lock,

must not be bypassed or modified in any way.

Customer Service

Specification:

Model Numbers

WFN9012 WFN9012S

The maximum spin speed

1200rpm

The maximum wash volume

9.0kg

Temperature range

95°

Colour

White

Dimensions (cms) H 850 x W595 x D 620

Netweight

74KG

Voltage 220-240V

Frequency

50Hz

Fuse

13A

Heater Power

1900W

Powercord 170 cms

Drum volume

64Litres

Door diameter

450 mm

Dooropenangle135°

Customer Service

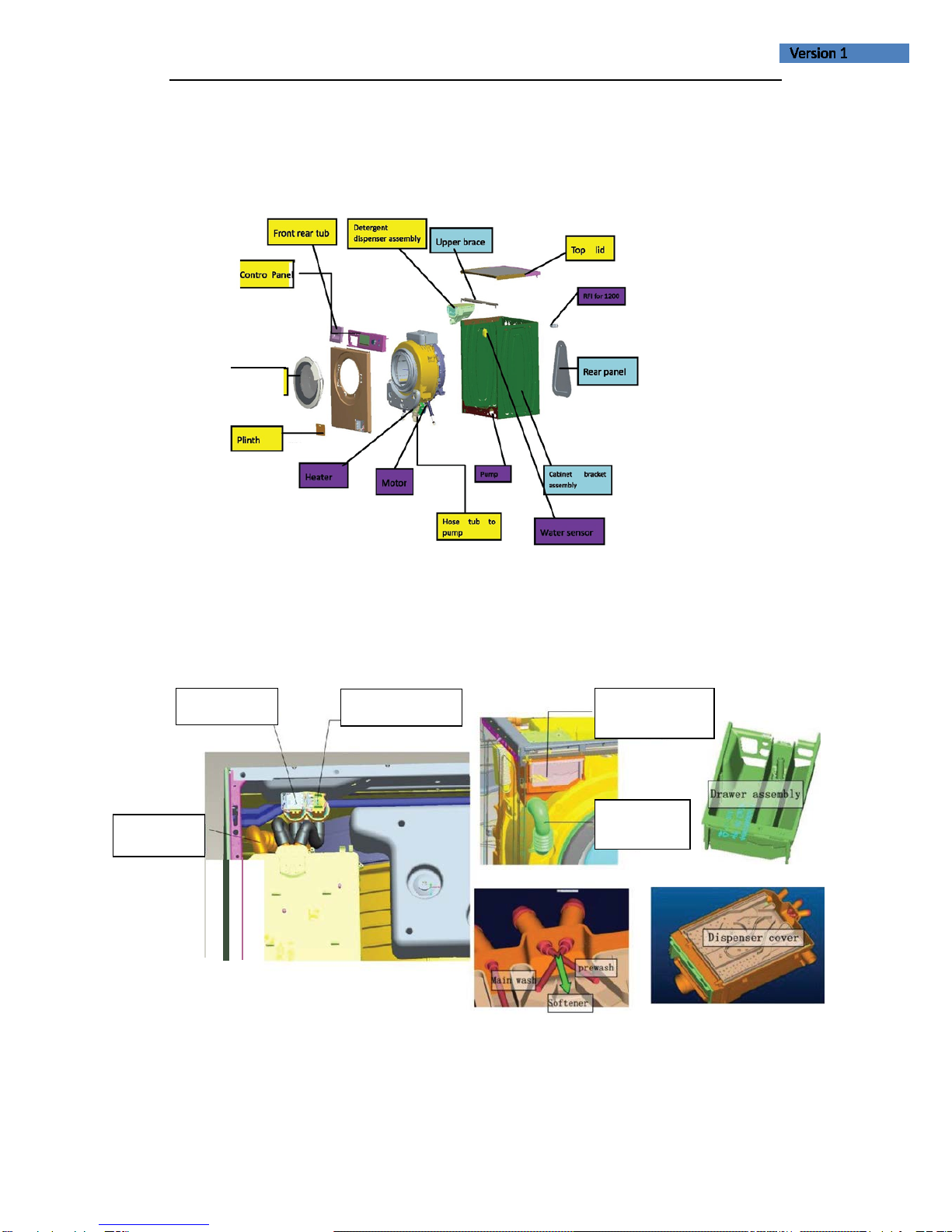

4. Structure Perspective:

4.1

4.2Inlet system

ispe

to tu

Main wash fill

valve.

Prewash fill valve.

Dispe

nser

•

Door frame

assembly.

Dispenser to

tub hose.

Main wash fill

valve.

Prewash fill valve. Detergent dispenser

assembly.

Dispenser to

tub hose.

Customer Service

4.3Tub

4.4 Drainsystem

4.5

Door assembly

Pump to tub hose.

Drain hose.

Drain pump

Customer Service

5. Fault Codes and Test Procedure:

Customer Service

If, before the spin, the control detects a potentially out of balanced load, during its pre spin cycle at

93 rpm, it will slow down to 45 rpm and rotate both clockwise and anti-clockwise, in an effort to

redistribute the load. It will try again at 93 rpm. If the load is now balanced the program will

continue to spin as normal. The program will attempt to distribute the load 10 times before

displaying “Unb” at the end of the cycle if it was not possible to balance the load.

Customer Service

Test Program.

Howto start the test program:

Power on the washer by pressing"Power" button, select 'Spin' program, then press"Option" button

twice and "Start/Pause" button twice successivelywithin 5sec.

Display

Description ofthe Program Flow

Door lock function test.

the door is locked within20 sec,the door lock

iconwill bedisplayed

if it fails to

lock the door error code

“

F13

”

will be displayed.

Display function test.

Press "Delay" button,the digits "88:88"

will bedisplayed.Next press “Load" button, the

wash process icon (Prewash,Wash,Rinse

Spinetc.) will bedisplayed.Nextpress

''Temp" button,the temperature digit displaywillbe displayed.

Next press"Spin"button,the spinspeed digits will be displayed. Next press"Option”

button

to lighttheoption iconsand



icons.Finally press "Select" button

lightall

the icons around the selector.All the icons will be displayed for 1sec.thenC1will be

displayed.

the above operation cannot befinishedin60sec.error code "F25"will

bedisplayed

Water fill test.

Fill for 8 sec. into the Prewash compartment.Fill 8 sec. into the Main wash compartment

Fill for 8 sec. into the Softener compartment, using both fill valves. If the water

level

does

notreachthe preset level, themainwash compartment willkeepfillinguntil the

preset

water levelis attained. If the washer cannot reachthe presetwater level in6 min,error

code "F01"will bedisplayed.

Heating element test.

ln this process the heating element is switched on

and motor is reversing (main wash

and prewash valve inwater in 5 sec.) Then moves to C3.

Drain pump test.

Drainthewater to empty within6 min. Failure to drain to empty within the time

error code"F03"

will displayed.

Spinfunction test.

Keepdrainingthewater andthe spinspeed will bedriven to the maximum spinspeed.

Finish the self-test programandthe washer enters intostandby status.

Customer Service

6 .Mainpartparameter:

Motor

Motor type

1200rpm UM Motor 220v Askoll 46l

Part Number WW10542580

Belt-ratio i

13.3I 1

Nominal Voltage 220V

Resistance ( at 20°C )

Stator ( full field )

1.7750 ohms ±7%

Stator ( tapped filed )

0.8670ohms ±7%

Rotor

1.90 ohms ±7%

Speed table (triac)

1030 ohms ±7%

High 52

Protect type Hot
