Hisense BCD-171A Instructions de montage
Contents
Safety and warning information…........2
Installing your new appliance………....8
Description of the appliance….......….
……....................................10
Using your appliance……………........13
Helpful hints and tips……………… 13
Cleaning and care……………………14
Troubleshooting………………………16
Disposal of the appliance……………17
2
For your safety and correct usage before installing and first
using the appliance, read this user manual carefully, including
its hints and warnings. To avoid unnecessary mistakes and
accidents, it is important to make sure that all people using the
appliance are thoroughly familiar with its
operation and safety features. Save these instructions and be
sure that they remain with the appliance if it is moved or sold,
so that anyone using it throughout its life, will be properly
informed on its usage and safety notices.
For the safety of life and property, keep the precautions of
these user's instructions as the manufacturer is not
,
responsible for damages caused by omission.
Hisense Refrigerator
Safety for children and otherswho are vulnerable people
According to EN standard
According to IEC standard
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
9
Operation
3
Keep all packaging away from children as there is risk of
suffocation.
If you are discarding the appliance, pull the plug out of the
socket, cut the connection cable (as close to the appliance
as you can) and remove the door to prevent children playing
from suffering an electric shock or from closing themselves
inside it.
If this appliance, featuring a magnetic door seals, is to
replace an older appliance having a spring lock (latch) on the
door or lid, be sure to make the spring lock unusable before
you discard the old appliance. This will prevent it from
becoming a death trap for a child.
General safety
WARNING —This appliance is intended to be used in
household and similar applications such as
-staff kitchen areas in shops, offices and other working
environments;
-farm houses and by clients in hotels, motels and other
residential type environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
WARNING — Do not store explosive substances such as
aerosol cans with a flammable propellant in this appliance.
WARNING — If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING — Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING — Do not use mechanical devices or other
means to accelerate the defrosting process, other than those
recommended by the manufacturer.
WARNING — Do not damage the refrigerant circuit.
WARNING — Do not use electrical appliances inside the
food storage compartments of the appliance, unless they are
of the type recommended by the manufacturer.
Hisense Refrigerator
4
WARNING — The refrigerant and insulation blowing gas are
flammable. When disposing of the appliance, do so only at
an authorized waste disposal centre. Do not expose to
flame.
WARNING —When positioning the appliance, ensure the
supply cord is not trapped or damaged.
WARNING —Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the appliance.
Refrigerant
The refrigerant isobutene (R600a) is contained within the
refrigerant circuit of the appliance, a natural gas with a high
level of environmental compatibility, which is nevertheless
flammable. During transportation and installation of the
appliance, ensure that none of the components of the
refrigerant circuit becomes damaged.
The refrigerant (R600a) is flammable.
WARNING:risk of fire
If the refrigerant circuit should be damaged:
-Avoid opening flames and sources of ignition.
-Thoroughly ventilate the room in which the appliance is
situated.
WARNING — Refrigerators contain refrigerant andgases in
the insulation. Refrigerant and gases must be disposed of
professionally as they may cause eye injuries or ignition.
Ensure that tubing of the refrigerant circuit is not damage
prior to proper disposal.
Replacing the illuminating lamps
WARNING—The illuminating lamps must not be replaced by
the user! If the illuminating lamps is damaged, contact the
customer helpline for assistance.
This warning is only for refrigerators that contain illuminating
lamps.
Hisense Refrigerator
5
Daily use
Do not store flammable gass or liquids in the appliance,
There is a risk of an explosion.
Do not operate any electrical appliances in the appliance
(e.g.electric ice cream makers,mixers etc.).
When unplugging always pull the plug from the mains
socket,do not pull on the cable.
Do not place hot items near the plastic components of this
appliance.
Electrical safety
1.The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or damaged.
A crushed or damaged power plug may overheat and cause a
fire.
3. Make sure that you can access the main plug of the
appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose, do not insert the power
plug. There is a risk of electric shock or fire.
6.You must not operate the appliance without the interior
lighting lamp cover.
7.The fridge is only applied with power supply of single phase
alternating current of 220~240V/50Hz. If fluctuation of voltage
in the district of user is so large that the voltage exceeds the
above scope, for safety sake, be sure to apply A.C. Automatic
voltage regulator of more than 350W to the fridge. The fridge
must employ a special power socket instead of common one
with other electric appliances. Its plug must match the socket
with ground wire.
It is dangerous to alter the specifications or modify this
product in any way.
Any damage to the cord may cause a shortcircuit, fire, and/or
electric shock.
Hisense Refrigerator
6
Do not place food products directly against the air outlet on
the rear wall.
Store pre-packed frozen food in accordance with the frozen
food manufacture’s instructions.
The appliances manufactures storage recommendations
should be strictly adhered to.Refer to relrelevant instructions
for storage.
Do not place carbonated or fizzy drinks in the freeze
compartment as it creates pressure on the container,which
may cause it to explode,resulting in damage to the
appliance.
Frozen food can cause frost burns if consumed straight from
the freezer compartment.
Do not place the appliance in direct sunlight.
Keep buring candles,lamps and other items with naked
flames away from the appliance so that do not set the
appliance on fire.
The appliance is intended for keeping food stuff and/or
beverages in normal household as explained in this
instruction booklet The appliance is heavy.Care should be
taken when moving it.
Do not remove nor touch items from the freezer
compartment if your hands are damp/wet,as this could cause
skin abrasions or frost/freezer burns.
Never use the base,drawers, doors etc. to stand on or as
supports.
Frozen food must not be refrozen once it has been thawed
out.
Do not consume ice popsicles or ice cubes straight from
the freezer as this can cause freezer burn to the mouth
and lips.
To avoid items falling and causing injury or damage to
the appliance, do not overload the door racks or put too
much food in the crisper drawers.
caution!
Care and cleaning
Hisense Refrigerator
7
Adequate air circulation should be around the appliance,
lacking this leads to overheating. To achieve sufficient
ventilation, follow the instructions relevant to installation.
Wherever possible the back of the product should not be too
close to a wall to avoid touching or catching warm parts
(compressor, condenser) to prevent the risk of a fire, follow
the instructions relevant to installation.
The appliance must not be locate close to radiators or
cookers.
Make sure that the mains plug is accessible after the
installation of the appliance.
Service
Any electrical work required to do the servicing of the
appliance should be carried out by qualified electrician or
competent person.
This product must be serviced by an authorized Service
Center, and only genuine spare parts must be used.
1)If the appliance is Frost Free.
2)If the appliance contains freezer compartment.
Installation Important!
For electrical connection carefully, follow the instructions
given in this manual.
Unpack the appliance and check if there are damages on it.
Do not connect the appliance if it is damaged. Report
possible damages immediately to the place you bought it. In
this case retain packing.
It is advisable to wait at least four hours before connecting
the appliance to allow the oil to flow back in the compressor.
Before maintenance, switch off the appliance and disconnect
the mains plug from the mains socket.
Do not clean the appliance with metal objects, steam
cleaner, ethereal oils, organic solvents or abrasive
cleansers.
Do not use sharp objects to remove frost from the appliance.
Use a plastic scraper.
Hisense Refrigerator

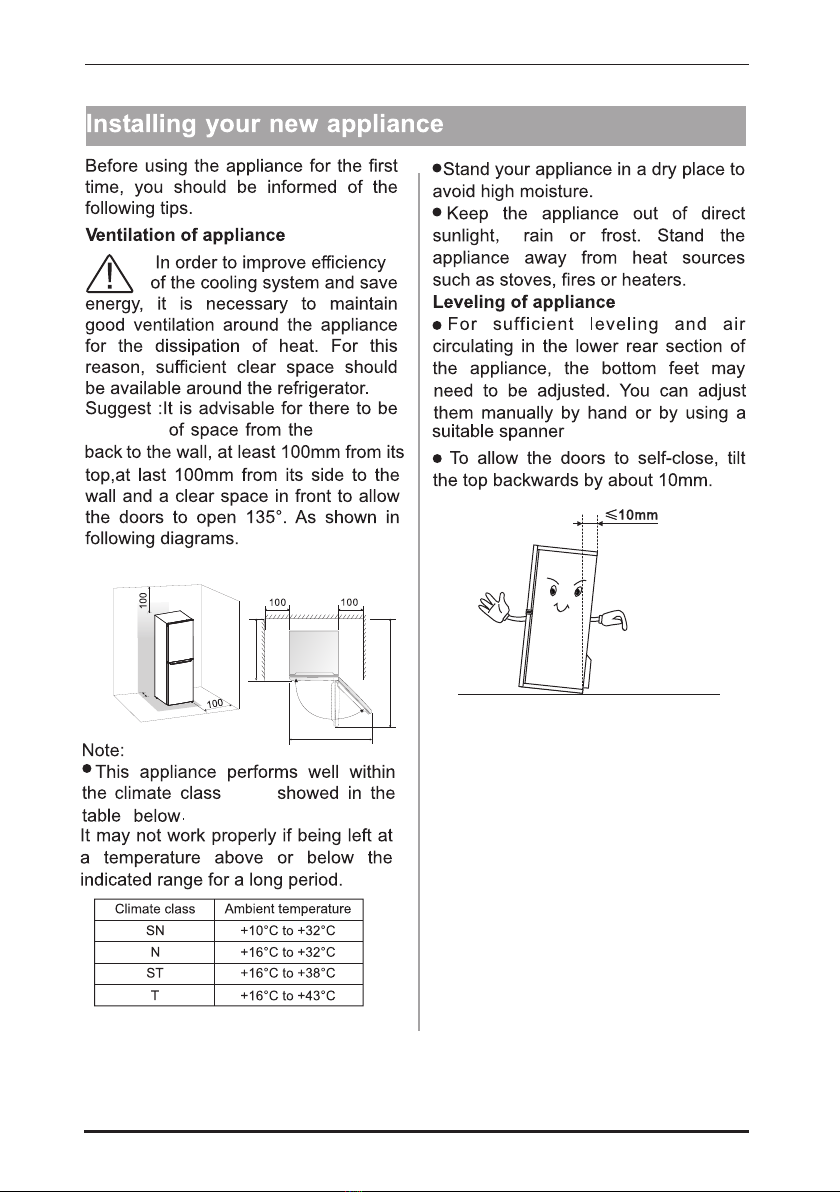

50-70mm
Hisense Refrigerator
8
637
1135
840
13 5°
N,ST
50-70
Description of the appliance
View of the appliance
1 controller part
2.Storage shelf.
3.Crisper box Cover
4.Crisper box
5.
6.
7.
8.Adjustable feet
9.Upper door shelf
10.Lower door shelf
. .
Upper freezer drawer
Middle freezer drawer
Lower freezer drawer
3
2
4
5
8
1
9
6
7
10
To get more space in the freezer, you can remove drawers(except the bottom drawer
in freezer!)
Hisense Refrigerator
9
Table des matières
Langues :
Autres manuels Hisense Réfrigérateur
Hisense
Hisense RQ758N4SAI1 Instructions de montage
Hisense
Hisense LMS044M6RVE Instructions de montage
Hisense
Hisense H120RWH Instructions de montage
Hisense
Hisense RT641N4WFE1 Instructions de montage
Hisense
Hisense RB412N4AI1 Instructions de montage
Hisense
Hisense RB403N4EW1 Instructions de fonctionnement
Hisense
Hisense HR6TFF459S Instructions de montage
Hisense
Hisense RS-15DR Manuel utilisateur
Hisense
Hisense RB17N6DWE Instructions de montage
Hisense
Hisense H415BITF-WD Instructions de montage
Hisense
Hisense RD-60WC4SIB Instructions de montage
Hisense
Hisense HR6TFF526 Instructions de montage
Hisense
Hisense RT393D4AW1 Manuel utilisateur
Hisense
Hisense RF489N4BC1 Instructions de montage
Hisense
Hisense HR6VFF280SD Instructions de montage
Hisense
Hisense HRSBS652B Instructions de montage
Hisense
Hisense FUV126D4AW1 Instructions de montage
Hisense
Hisense RS-34WC SERIES Manuel utilisateur
Hisense
Hisense H740FS-WD Manuel utilisateur
Hisense
Hisense PureFlat RF22B3FSE Manuel utilisateur
